SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
PDC1004 SERIES
PDC1004100MZF
(a)
(b)
(c) (d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10uH
(d) Tolerance code : K = ±10%, M = ±20%
(e) X, Y, Z : Standard part
(f) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
B
C
I
G
I
100
A
PCB Pattern
A
10.0±0.3
B
9.0±0.3
C
4.0±0.5
G
2.50 Ref.
H
9.50 Ref.
I
3.75 Ref.
3. SCHEMATIC :
4. MATERIALS :
d
a
b
(a) Core : DRT Ferrite Core
(b) Wire : Enamelled Copper Wire
(c) Terminal : Ag+Cu+Ni+Sn
(d) Ink : Bon Margue
c
5. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max.
b) Rated current : Base on temp. rise & L/L0A = 10% Max.
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
e) Resistance to solder heat : 260°C.10 secs
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
PDC1004100MZF
PDC1004120MZF
PDC1004150MZF
PDC1004180MZF
PDC1004220MZF
PDC1004270MZF
PDC1004330MZF
PDC1004390MZF
PDC1004470KZF
PDC1004560KZF
PDC1004680KZF
PDC1004820KZF
PDC1004101KZF
PDC1004121KZF
PDC1004151KZF
PDC1004181KZF
PDC1004221KZF
PDC1004271KZF
PDC1004331KZF
PDC1004391KZF
PDC1004471KZF
PDC1004561KZF
Inductance
( µH )
10±20%
12±20%
15±20%
18±20%
22±20%
27±20%
33±20%
39±20%
47±10%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
Test
Frequency
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
1V / 1K
RDC
( )
Max.
0.053
0.061
0.070
0.081
0.088
0.100
0.120
0.151
0.170
0.199
0.223
0.252
0.344
0.396
0.544
0.621
0.721
0.949
1.100
1.245
1.526
1.904
PDC1004 SERIES
IDC
(A)
Max.
2.38
2.13
1.87
1.73
1.60
1.44
1.26
1.20
1.10
1.01
0.91
0.85
0.74
0.69
0.61
0.56
0.53
0.45
0.42
0.38
0.35
0.32
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS

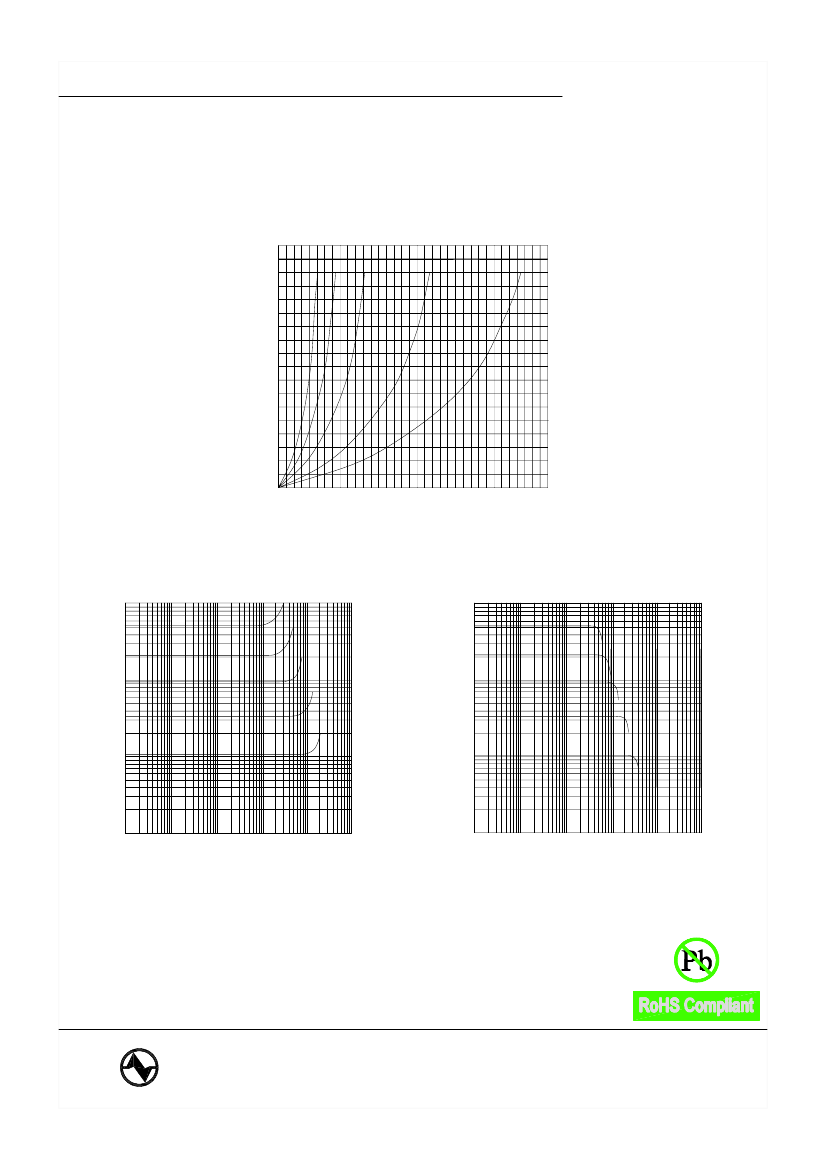

7. CHARACTERISTICS CURVES :
PDC1004 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
50
40
30
20
10
0 0
1
2
3
4
5
6
7
561K
221K
101K
330M
100M
t
(°C)
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
10 3
5
3
221K
561K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
10 3
5
3
221K
561K
10 2
101K
10 2
101K
L
(uH)
5
3
330M
L
(uH)
5
3
330M
1
10
5
3
100M
1
10
5
3
100M
100
10-3
3 5
10-2 3 5
10-1
3 5
100 3 5
101
3 5
102
100
10-3
3 5
10-2 3 5
10-1
3 5
100 3 5
101
3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
PDC1004 SERIES
255°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s

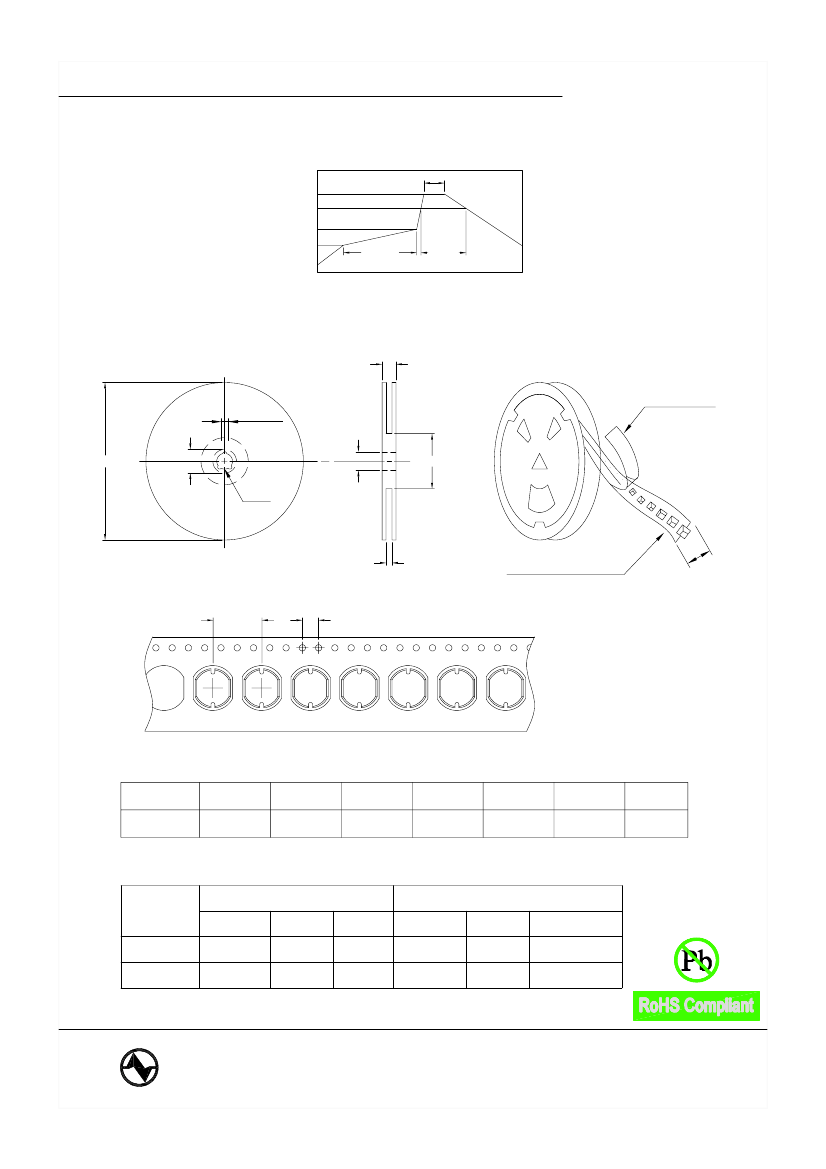

8. PACKAGING INFORMATION :
( 1 ) CONFIGURATION
T
COVER TAPE
2.0±0.5
ØC
ØC
N
A
B
G
D
EMBOSSED CARRIER
* CARRIER TAPE WIDTH : D
P:12 m/m
4 m/m
( 2 ) DIMENSIONS
STYLE
13-24
A
330
B
21±0.8
C
13±0.5
D
24
G
26
+0
N
50
-0
( 3 ) Q'TY & G.W. PER PACKAGE
INNER : REEL
SERIES
PDC1004
PDC1004
Q'TY (PCS)
500
800
G.W. (gw)
1125
1800
STYLE
13 - 24
13 - 24
OUTER : CARTON
Q'TY (PCS)
2000
3200
G.W. (Kg)
8.0
10.7
SIZE (cm)
40 x 40 x 24
40 x 40 x 24
NOTE : Specifications subject to change without notice. Please check our website for latest information.
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
100
100
100
100
100
100
100
Unit:m/m
T
30.4
01.05.2008
SMD POWER INDUCTORS
9. RELIABILTY AND TEST CONDITION :
PDC1004 SERIES
TEST ITEM
SOLDERABILITY
SPECIFICATION
MORE THAN 90% OF THE
TERMINAL ELECTRODE
SHALL BE COVERED
WITH FRESH SOLDER.
TEST CONDITION
PREHEAT : 125±25°C FOR 60 SECONDS
SOLDER : 99%Sn/0.3%Ag/0.7%Cu OR EQUIVALENT
SOLDER TEMP. : 245±5°C
FLUX : ROSIN
DIP TIME : 4±1 SECONDS
THERMAL SHOCK
TEST
INDUCTANCE SHALL
NOT CHANGE MORE
THAN ±20%
ROOM TEMP.
15 MINUTES
-25±2°C
30 MINUTES
( TEMP. CYCLE )
ROOM TEMP.
15 MINUTES
TOTAL : 50 CYCLES
85±2°C
30 MINUTES
HUMIDITY
RESISTANCE TEST
TEMPERATURE : 40±2°C
HUMIDITY : 90 ~ 95%
APPLIED CURRENT : PER SPEC.
TIME : 500 HOURS
HIGH TEMP.
RESISTANCE TEST
TEMPERATURE : 85±2°C
APPLIED CURRENT : PER SPEC.
TIME : 500 HOURS

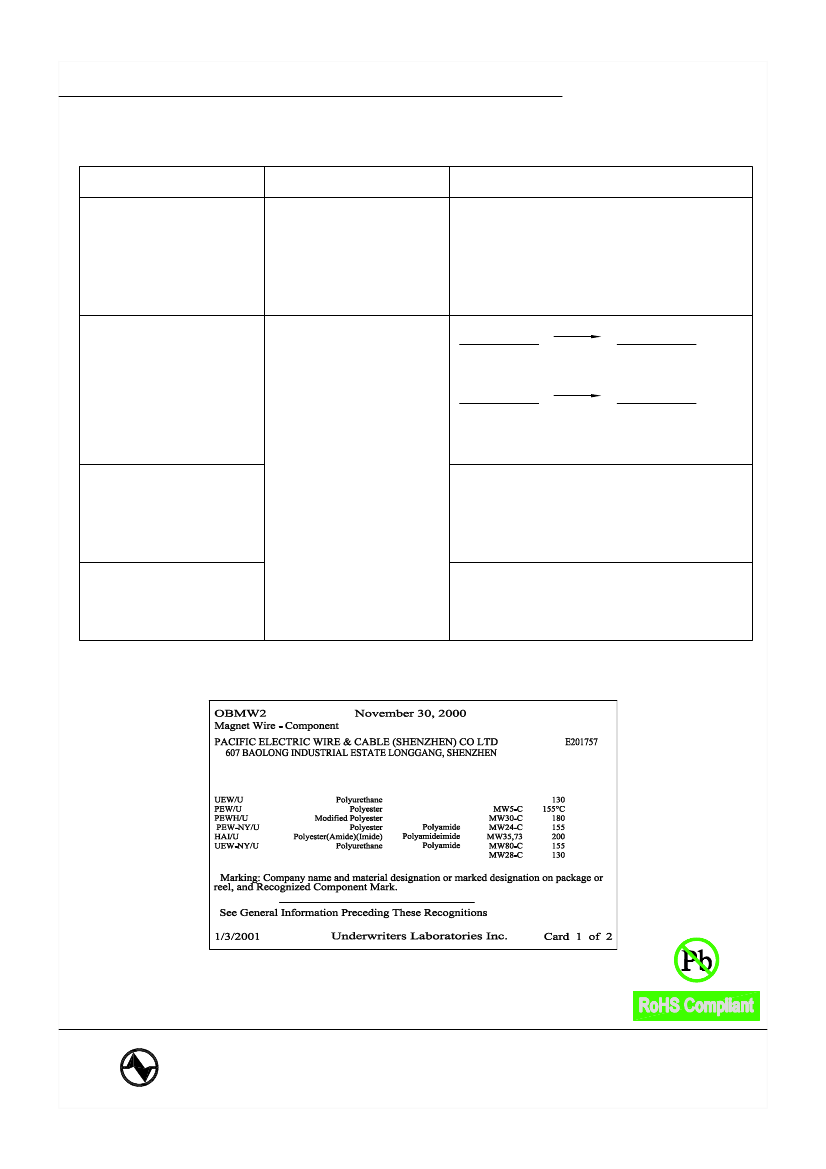

10. UL CARD :
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
