0805N102J160NX015T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 0805N102J160NX015T

0805N102J160NX015T: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size502KB，1 Pages; ManufacturerNovacap; Websitehttps://www.novacap.eu/en/

Download Datasheet Parametric View All

0805N102J160NX015T Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP

0805N102J160NX015T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	0805
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	16 V
size code	0805
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

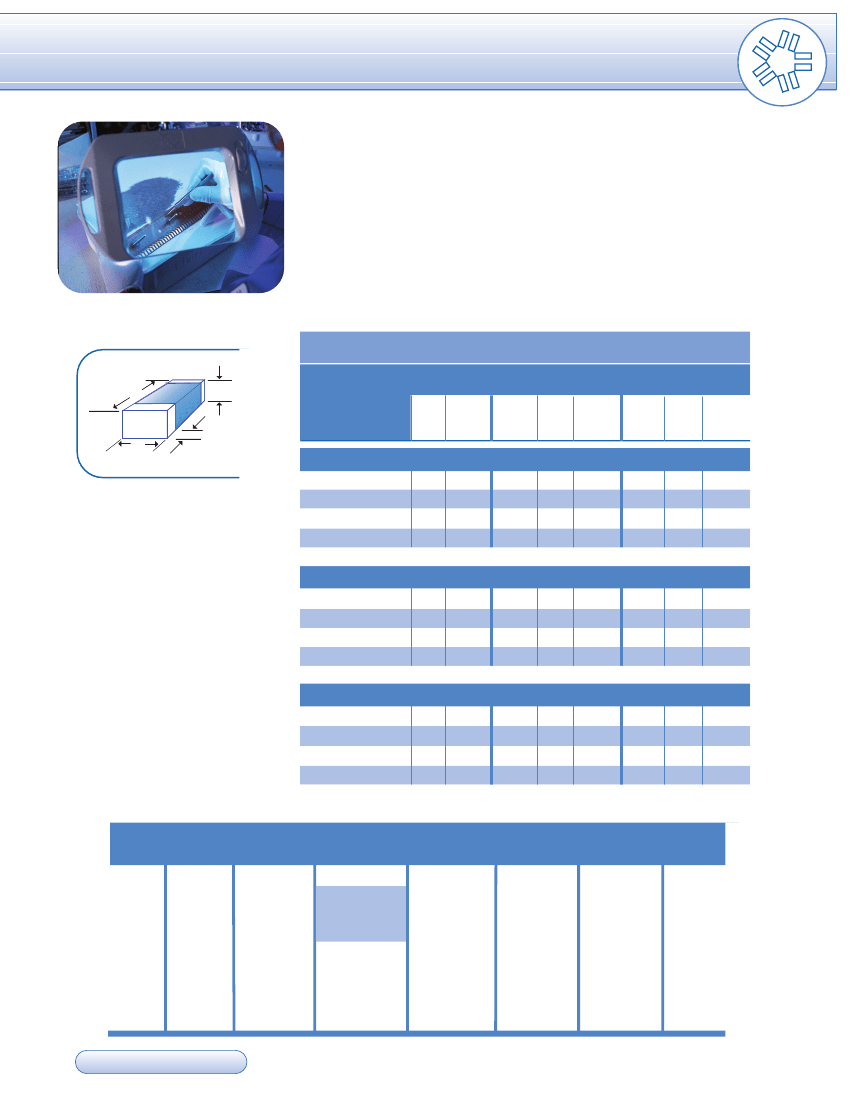

THIN PROFILE CAPACITORS

Popular EIA size chips are offered in very thin profile

configuration with COG,

X7R, Z5U and Y5V dielectric characteristics rated at 5 Vdc to 50 Vdc, for use as

decoupling capacitors under other circuit elements, or for low profile RFID and

“Smart Card” circuitry.

MAX CAPACITANCE AT DISCRETE THICKNESS

3 digit code: two significant digits, followed by number of zeros

eg: 472= 4700 pF. R denotes decimal, eg. 2R7 = 2.7 pF

MAXIMUM THICKNESS

SIZE

INCHES

0805

.015 .018

.381 .457

.015

.381

1206

.018 .020

.457 .508

1210

.015 .018

.381 .457

.020

.508

COG DIELECTRIC

M A X C A P & V O LT A G E

16V

25V

50V

102

821

561

152

122

821

222

182

122

332

272

182

392

272

222

392

332

272

682

472

392

682

562

472

X7R DIELECTRIC

16V

25V

50V

223

153

333

223

473

333

683

563

823

683

823

683

124

104

154

124

Y5V/Z5U DIELECTRIC

16V

25V

50V

184

124

823

274

224

124

274

224

184

474

394

274

564

394

334

564

474

394

824

684

564

105

824

684

HOW TO ORDER

0805

SIZE

103

Value in

Picofarads

Two significant

figures,

followed by

number of

zeros:

103 = 10,000

J = +/- 5 %

K = +/- 10 %

COG , X7R ONLY

M = +/- 20 %

Z = +80% -20%

P = +100% -0%

250

Two significant

figures, followed

by number of

zeros:

250 = 25V

N = Nickel Barrier

(100% Tin)

P = Palladium Silver

Y = Nickel Barrier

(90 Tin/10 lead)

X015

THICKNESS

OPTION

X=Non-stan-

dard thickness.

Specify in Mils

if non- standard

is required.

PACKING

OPTION *

T=Reeled

*(Consult

Factory)

DIELECTRIC CAPACITANCE TOLERANCE

VOLTAGE-VDCW TERMINATION

See Chart N = COG

B = X7R

Y = Y5V

Z = Z5U

www.

N O V A C A P

com
