06035U121FAT4A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 06035U121FAT4A

06035U121FAT4A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.00012uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，8 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

06035U121FAT4A Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 1% +Tol, 1% -Tol, C0G, 30ppm/Cel TC, 0.00012uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

06035U121FAT4A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	REFERENCE STANDARD: MIL-C-55681
capacitance	0.00012 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.91 mm
JESD-609 code	e3
length	1.52 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	1%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
positive tolerance	1%
Rated (DC) voltage (URdc)	50 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.76 mm
Base Number Matches	1

Preview

Download Datasheet

View All

U Dielectric

RF/Microwave C0G (NP0) Capacitors (RoHS)

Ultra Low ESR, “U” Series, C0G (NP0) Chip Capacitors

GENERAL INFORMATION

“U” Series capacitors are C0G (NP0) chip capacitors specially designed for “Ultra” low ESR for applications in the communications

market. Max ESR and effective capacitance are met on each value producing lot to lot uniformity. Sizes available are EIA chip

sizes 0402, 0603, 0805, and 1210.

DIMENSIONS: INCHES (MILLIMETERS)

0402

0603

0805

1210

Size

0402

0603

0805

1210

0.039±0.004 (1.00±0.1)

0.060±0.010 (1.52±0.25)

0.079±0.008 (2.01±0.2)

0.126±0.008 (3.2±0.2)

0.020±0.004 (0.50±0.1)

0.030±0.010 (0.76±0.25)

0.049±0.008 (1.25±0.2)

0.098±0.008 (2.49±0.2)

0.022 (0.55mm) max

0.036 (0.91mm) max

0.040±0.005 (1.02±0.127)

N/A

0.010±0.005 (0.25±0.13)

0.020±0.010 (0.51±0.255)

inches (mm)

N/A

0.030 (0.76) min

0.020 (0.51) min

0.040 (1.02) min

0.050±0.005 (1.27±0.127) 0.025±0.015 (0.635±0.381)

HOW TO ORDER

0805

Case Size

0402

0603

0805

1210

Dielectric =

Ultra Low ESR

100

Capacitance

Tolerance Code

B = ±0.1pF

C = ±0.25pF

D = ±0.5pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

T= Plated Ni and

Special Code

A = Standard

Termination

Voltage Code

3 = 25V

5 = 50V

1 = 100V

2 = 200V

EIA Capacitance Code in pF.

First two digits = significant figures or

“R” for decimal place.

Third digit = number of zeros or after

“R” significant figures.

Capacitance

A = Not Applicable

Failure Rate

Code

Packaging

Code

2 = 7" Reel

4 = 13" Reel

NOTE: Contact factory for availability of Termination and Tolerance

Options for Specific Part Numbers.

ELECTRICAL CHARACTERISTICS

Capacitance Values and Tolerances:

Size 0402

Size 0603

Size 0805

Size 1210

0.2 pF to 30 pF @ 1 MHz

1.0 pF to 100 pF @ 1 MHz

1.6 pF to 160 pF @ 1 MHz

2.4 pF to 1000 pF @ 1 MHz

Dielectric Working Voltage (DWV):

250% of rated WVDC

Equivalent Series Resistance Typical (ESR):

0402

0603

0805

1210

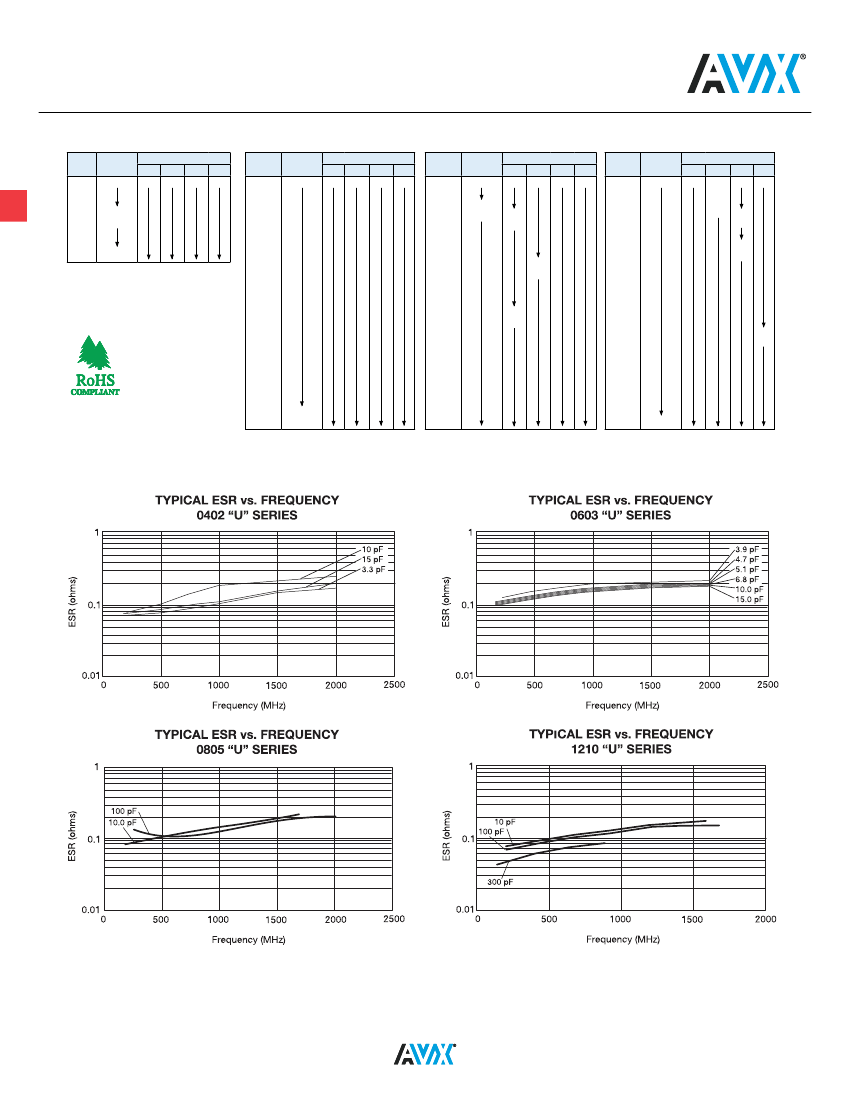

See Performance Curve, page 13

Temperature Coefficient of Capacitance (TC):

0±30 ppm/°C (-55° to +125°C)

Insulation Resistance (IR):

Ω min. @ 25°C and rated WVDC

Ω min. @ 125°C and rated WVDC

Marking:

Laser marking EIA J marking standard (except 0603)

(capacitance code and tolerance upon request).

Working Voltage (WVDC):

Size

Working Voltage

0402 - 100, 50, 25 WVDC

0603 - 200, 100, 50 WVDC

0805 - 200, 100 WVDC

1210 - 200, 100 WVDC

Military Specifications

Meets or exceeds the requirements of MIL-C-55681

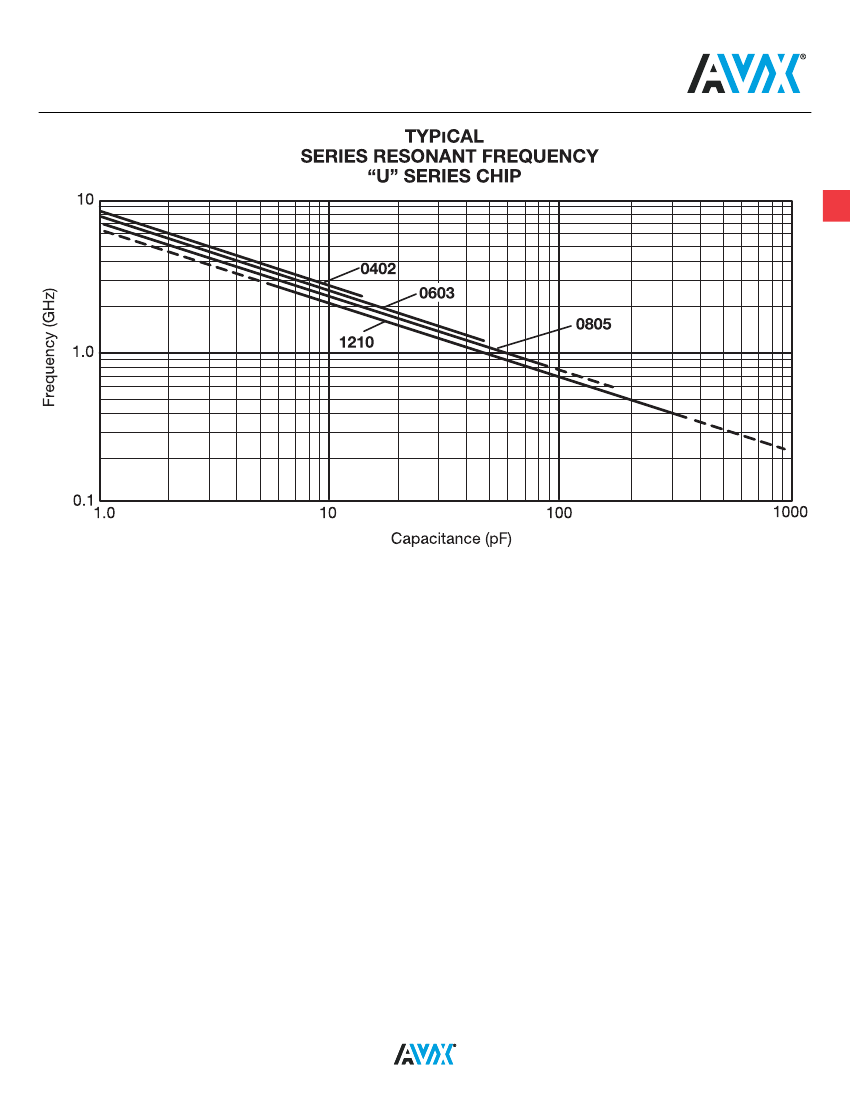

120216
