PG78MW: DescriptionIF TRANSFORMER; CategoryPower/power management; File Size63KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric Compare View All

PG78MW Overview

IF TRANSFORMER

PG78MW Parametric

Parameter Name	Attribute value
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Installation features	THROUGH HOLE MOUNTED
Dimensions	L7.3XB7.3XH8.2 (mm)/L0.287XB0.287XH0.323 (inch)
Manufacturer Series	PG
Transformer type	IF TRANSFORMER

Preview

Download Datasheet

View All

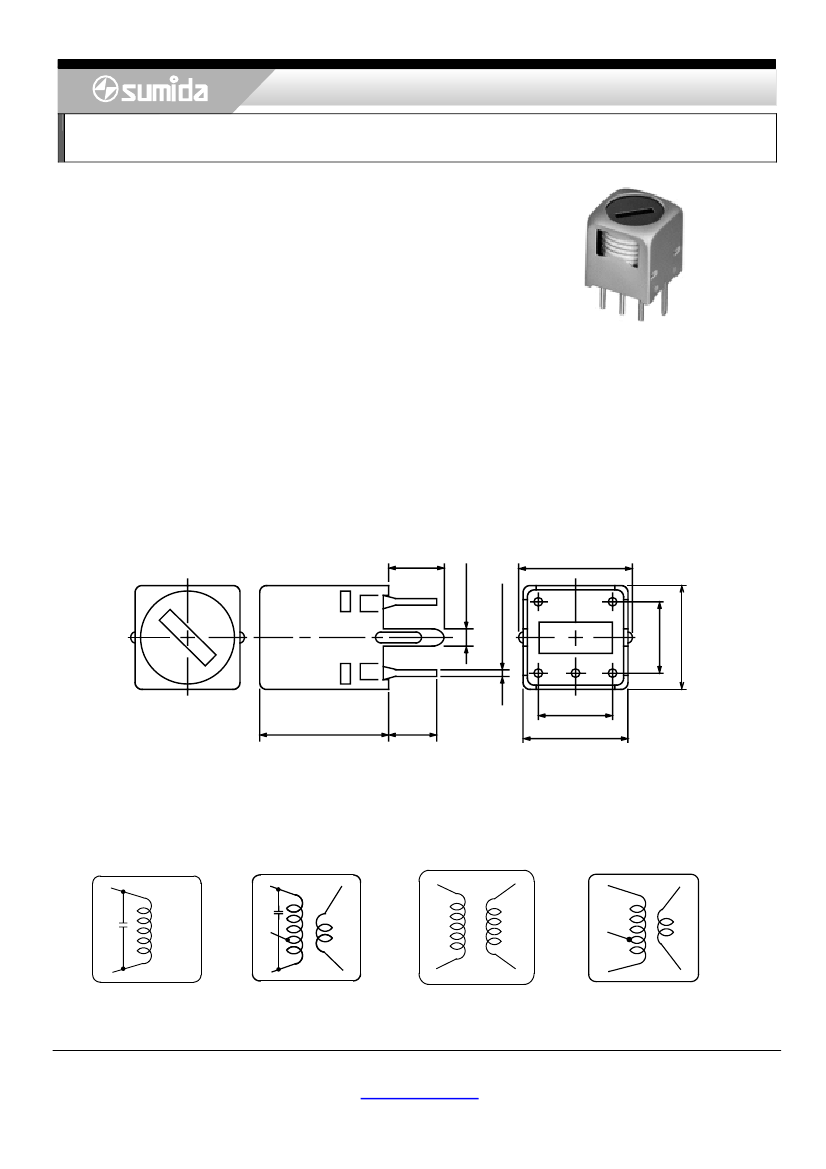

IFT Coils < Pin Type: PG Series>

Type: PG78 /FM, PG78/AM, PG78/SW, PG78/MW

◆

Product Description

・7.6×7.6mm

Max.(L×W), 8.7mm Max. Height.

・Inductance:1~820µH.

・Operating

frequency:20MHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Variable

shielded type.

・FM,AM,SW,MW

types are available.

・Internally

assembled condenser is available.

・Ideally

used in Radio (FM, AM,SW,MW),TV. Transceiver

・RoHS

Compliance

◆

Dimensions (mm)

1.0±0.15

3.5±0.3

7.5

+0.1

φ0.5-0.05

4.5±0.15

8.2±0.5

±0.5

3.0

4.5±0.15

7.3±0.3

＊

Dimension does not include solder used on coil.

＊

Pin pitch shall be measured at the root of terminal.

＊

Dimension without tolerance are approx.

◆

Connection (Bottom View)

④

S

③

②

S

①

④

S

③

S

②

④

③

②

③

②

⑥

①

⑥

S

①

⑥

S ①

PG78/FM

“S” is winding start

PG78/AM

PG78/SW

PG78/MW

Please refer to the sales offices on our website for a representative near you

www.sumida.com

7.3±0.3

④ S

⑥

1/1
