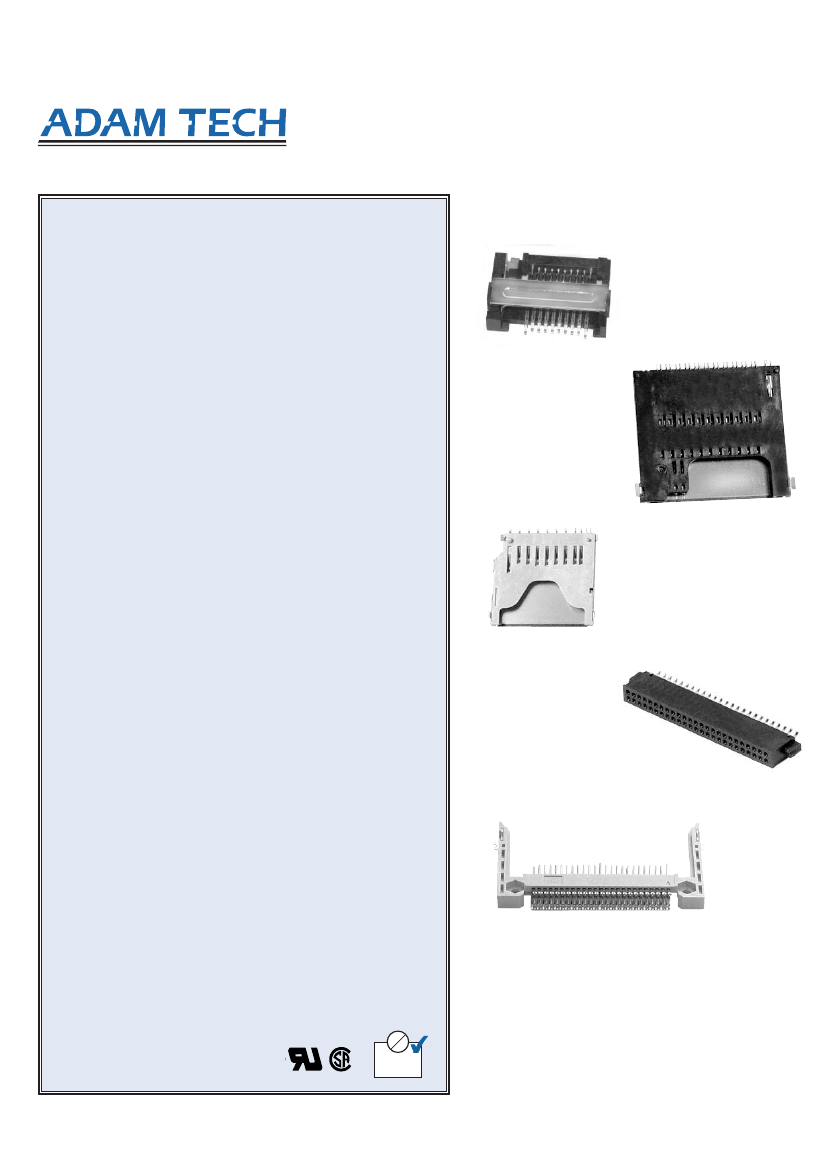

MEMORY SOCKETS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech’s Memory Connector series is a complete range of
memory sockets for most memory card applications including
Compact Flash, PCMCIA, Memory Stick and Secure Digital. Our
advanced designs are focused on their ease of use, mating
accuracy, card retention and cycle life. Precision engineered,
extremely durable mating contacts and PCB leads contribute to a
solid, high reliability, long life design.
FEATURES:
Multitude of sockets to satisfy most applications
Precision, compact designs
Fine pitched, heavy duty contacts
Sockets conform to CFA, JEIDA, PCMCIA & JEDEC
MATING OPTIONS:
All industry standard memory cards
SPECIFICATIONS:
Material:
Insulator: PA9 or LCP, glass reinforced, rated UL94V-0
Contacts: Phosphor Bronze
Frame / shield: Brass, nickel plated
Contact Plating:
Gold over nickel underplate on contact area, tin over copper
underplate on tails.
Electrical:
Operation voltage: 250V AC max.
Current rating: 0.5 and 1 Amps max.
Contact resistance: 40 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Mating durability: 10,000 cycles min.
Temperature Rating:
Operating temperature: -20°C to +85°C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
Compact Flash
Pg 341-342
Memory Stick
Pg 337
MEMORY STICK, SMART MEDIA,
COMPACT FLASH
SECURE DIGITAL & PCMCIA
Smart Media
Pg 337
Secure Digital
Pg 338
Compact Flash
Pg 340
Pb
UL
®
®
®
D E
V
RoHS
COMPLIANT
2002
/ 95
/ EC
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
336
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
