PH2323-14
CW Power Transistor
14W, 2.3 GHz
Features
•
•
•
•
•
•
•
•
NPN silicon microwave power transistor
Common base configuration
Class C operation
Interdigitated geometry
Gold metallization system
Hermetic metauceramic package
Diffused emitter ballasting resistors
Internal input and output impedance matching
M/A-COM Products

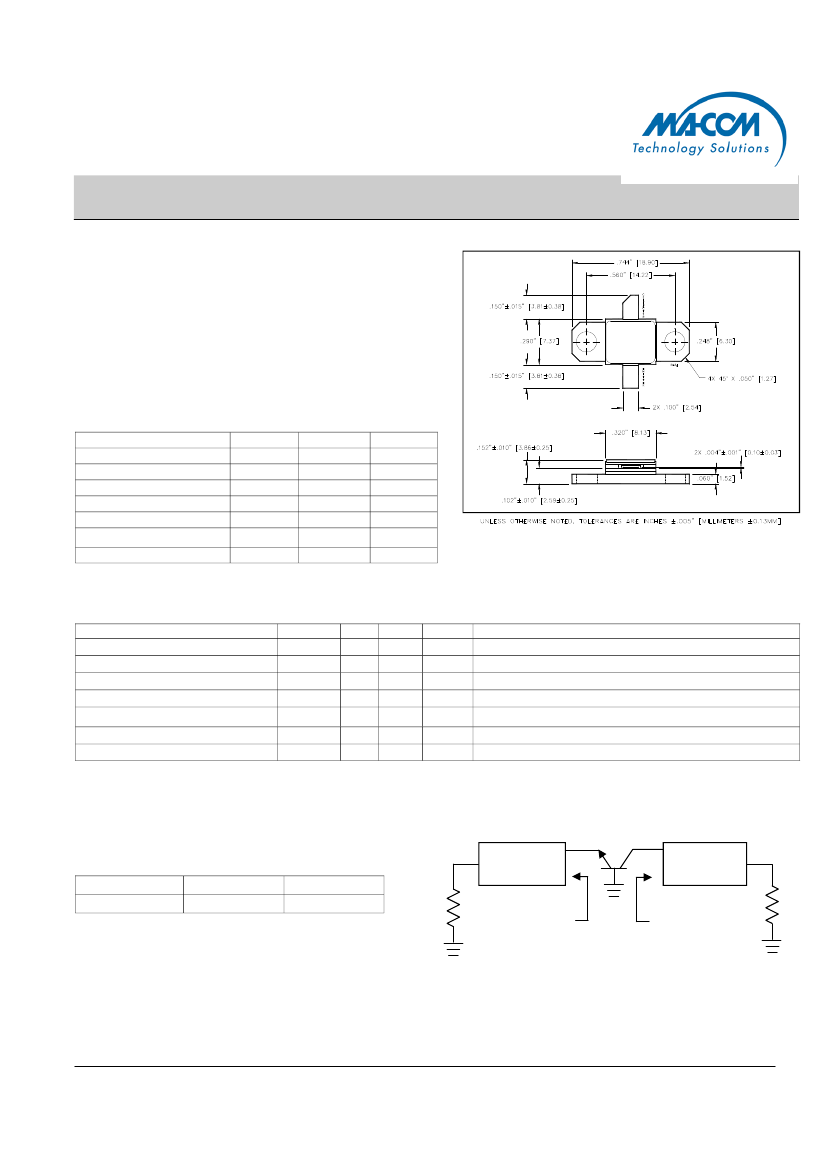

Outline Drawing
ABSOLUTE MAXIMUM RATING AT 25°C
Parameter
Symbol
Rating
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Junction Temperature
Storage Temperature
Thermal Resistance
V
CES
V
EBO
I
C
P
D
T
J
T
STG
θ
JC
60
3.0
0.8
25
200
-65 to + 200
Units
V
V
A
W
°C
°C
°C/W
4.5
ELECTRICAL SPECIFICATIONS AT 25°C
Parameter
Symbol
Collector-Emitter Breakdown Voltage
Collector-Emitter Leakage Current
Input Power
Power Gain
Collector Efficiency
Input Return Loss
Load Mismatch Tolerance
BV
CES
I
CES
P
OUT
G
P
ŋ
C
Min
60
-
14
7.6
35
10
-
Max
-
2.0
-
-
-
-
2:1
Units
V
mA
w
dB
%
dB
-
I
C
= 10mA
V
CE
= 28V
Test Conditions
V
CE
= 28V,
P
out
= 2.5 W, F =2.3 GHz
V
CE
= 28V,
P
out
= 2.5 W, F =2.3 GHz
V
CE
= 28V,
P
out
= 2.5 W, F =2.3 GHz
V
CE
= 28V,
P
out
= 2.5 W, F =2.3 GHz
V
CE
= 28V,
P
out
= 2.5 W, F =2.3 GHz
RL
VSWR-T
TEST FIXTURE IMPEDANCES
F (GHz)
2.30
Z
IN
(Ω)
4.1-8.5
Z
OF
(Ω)
11.0+j4.0
50Ω
TEST FIXTURE
INPUT
CIRCUIT
TEST FIXTURE
OUTPUT
CIRCUIT
Z
IF
Z
OF
50Ω
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
PH2323-14
CW Power Transistor
14W, 2.3 GHz

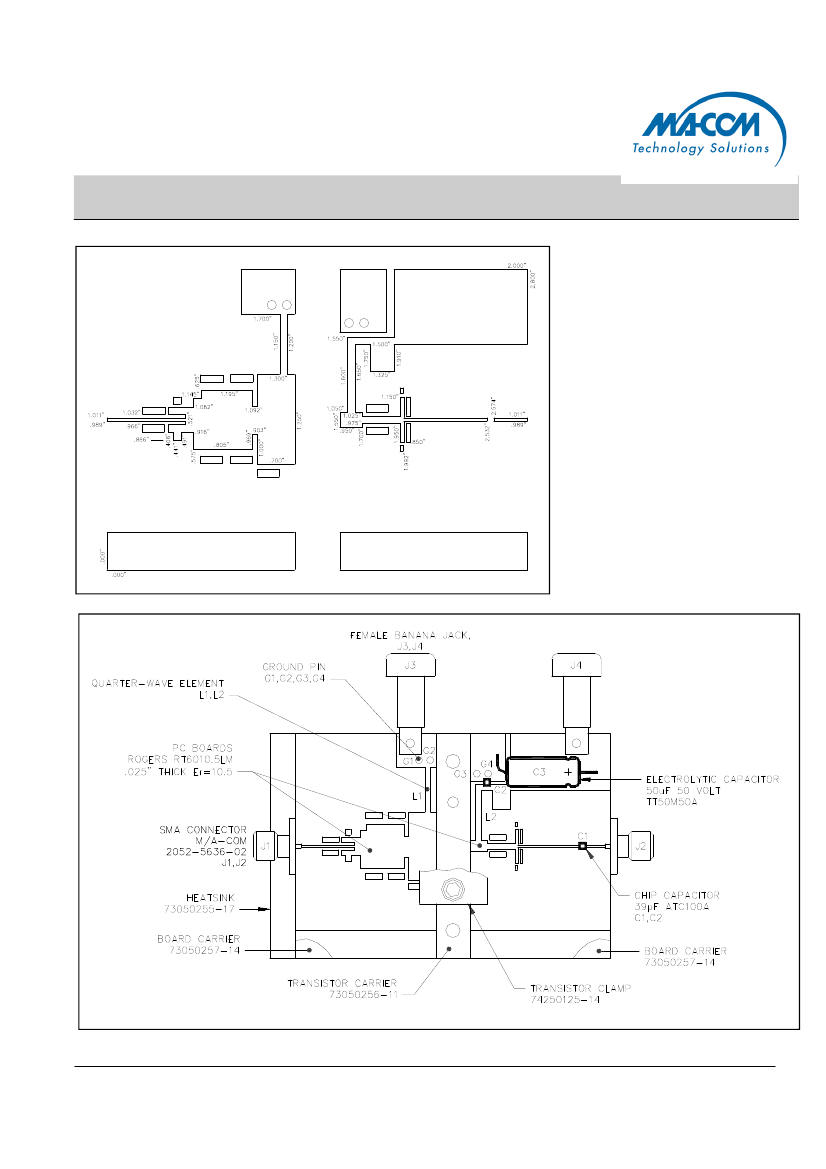

TEST FIXTURE DIMENSIONS
M/A-COM Products
TEST FIXTURE ASSEMBLY
2
