87551-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87551-6

87551-6: Description06 MODII HDR SRRA UNSHRD .100; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

87551-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87551-6	-	-	View	Buy Now

87551-6 Overview

06 MODII HDR SRRA UNSHRD .100

87551-6 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.138 inch
subject depth	0.17 inch
body length	0.584 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

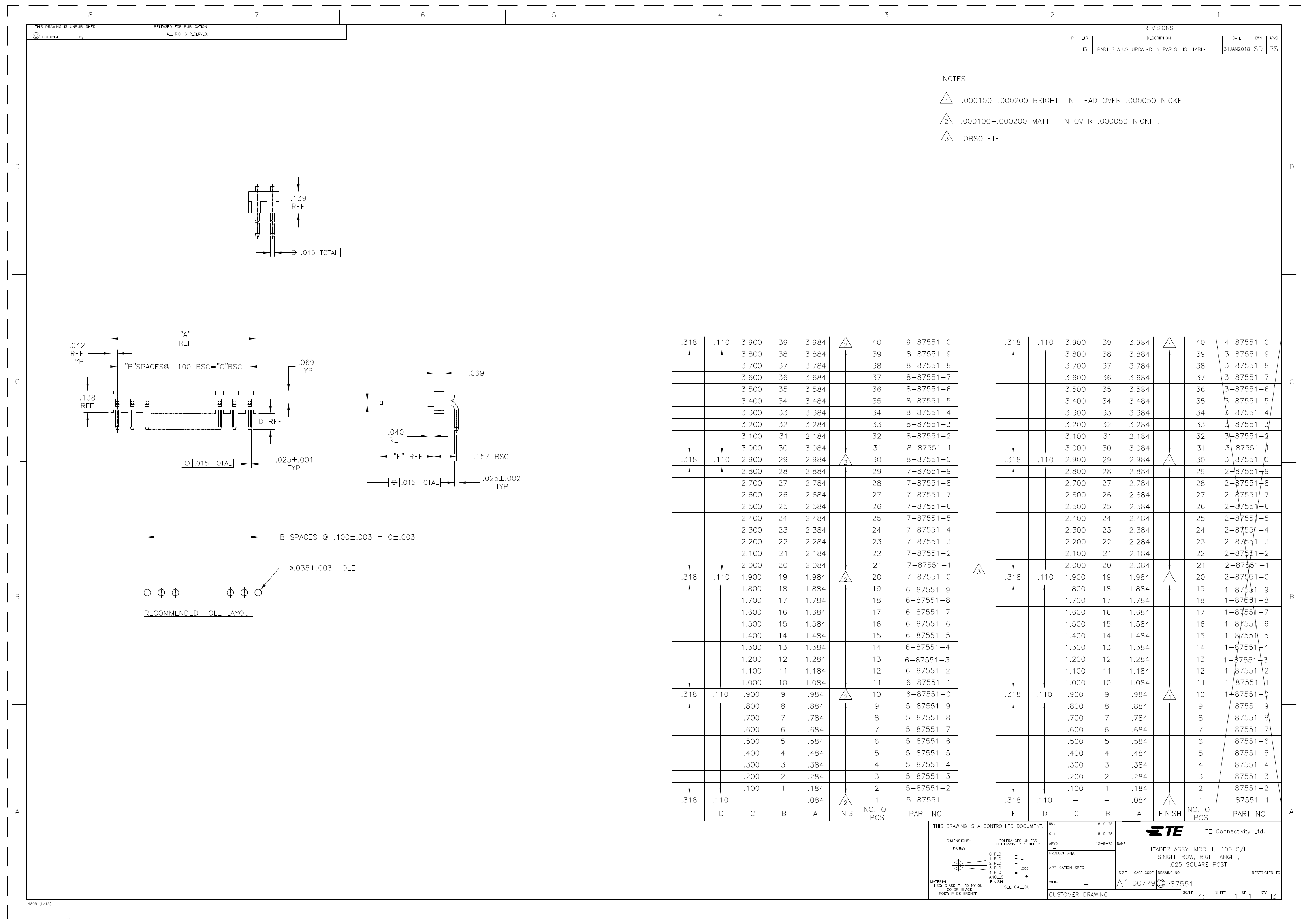

Preview

Download Datasheet

View All

87551-6 Related Products

	87551-6	87551-3	MA-121-043-255-A2800
Description	06 MODII HDR SRRA UNSHRD .100	03 MODII HDR SRRA UNSHRD .100	Board Connector
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
body width	0.138 inch	0.138 inch	0.08 inch
subject depth	0.17 inch	0.17 inch	0.135 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT
Filter function	NO	NO	NO
insulator material	THERMOPLASTIC	POLYETHYLENE	POLYPHENYLENE SULFIDE
JESD-609 code	e0	e0	e0
Plug contact pitch	0.1 inch	0.1 inch	0.05 inch
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	CABLE AND PANEL
Number of connectors	ONE	ONE	ONE
Number of rows loaded	1	1	1
Maximum operating temperature	105 °C	105 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	WITH CABLE ASSEMBLY
Plating thickness	100u inch	100u inch	50u inch
Rated current (signal)	1 A	1 A	3 A
Guideline	UL	UL	MIL
Termination type	SOLDER	SOLDER	WIRE
Total number of contacts	6	3	43
Brand Name	AMP	AMP	-
Is it lead-free?	Contains lead	Contains lead	-
body length	0.584 inch	0.284 inch	-
Contact to complete cooperation	TIN LEAD	TIN LEAD	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
DIN compliance	NO	NO	-
Dielectric withstand voltage	1000VAC V	1000VAC V	-
IEC compliance	NO	NO	-
Insulator color	BLACK	BLACK	-
MIL compliance	NO	NO	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	-
PCB row number	1	1	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal length	0.11 inch	0.11 inch	-
Terminal pitch	2.54 mm	2.54 mm	-
UL Flammability Code	94V-0	94V-0	-
Objectid	-	1422499104	7001148667
