PH3134-65M
Radar Pulsed Power Transistor
65W, 3.1-3.4 GHz, 100µs Pulse, 10% Duty
Features
•
•
•
•
•
•
•
•
•
NPN silicon microwave power transistors
Common base configuration
Broadband Class C operation
High efficiency inter-digitized geometry
Diffused emitter ballasting resistors
Gold metallization system
Internal input and output impedance matching
Hermetic metal/ceramic package
RoHS compliant
M/A-COM Products
Released, 10 Aug 07

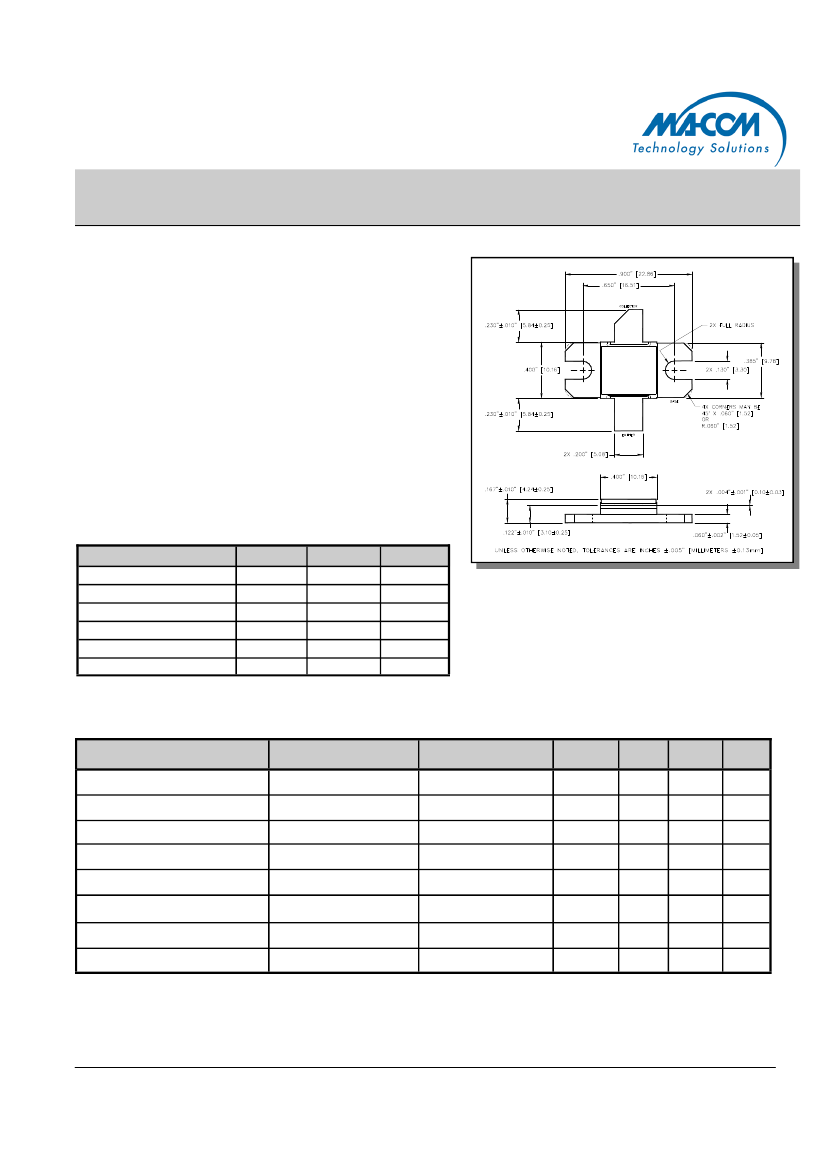

Outline Drawing
Absolute Maximum Ratings at 25°C
Parameter
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (Peak)
Power Dissipation @ +25°C
Storage Temperature
Junction Temperature
Symbol
V
CES
V
EBO
I
C
P
TOT
T
STG
T
J
Rating
65
3.0
7.7
350
-65 to +200
200
Units
V
V
A
W
°C
°C
Electrical Specifications: T
C
= 25 ± 5°C (
Room Ambient
)
Parameter
Test Conditions
Frequency
Symbol
BV
CES
I
CES
F = 3.1, 3.25, 3.4 GHz
F = 3.1, 3.25, 3.4 GHz
F = 3.1, 3.25, 3.4 GHz
F = 3.1, 3.25, 3.4 GHz
F = 3.1, 3.25, 3.4 GHz
F = 3.25 GHz
R
TH(JC)
P
IN
G
P
Min
65
-
-
-
7.5
35
-
-
Max
-
5.0
0.5
11.6
-
-
-6
2:1
Units
V
mA
°C/W
W
dB
%
dB
-
Collector-Emitter Breakdown Voltage I
C
= 25mA
Collector-Emitter Leakage Current
Thermal Resistance
Input Power
Power Gain
Collector Efficiency
Input Return Loss
Load Mismatch Tolerance
V
CE
= 36V
Vcc = 36V, Pout = 65W
Vcc = 36V, Pout = 65W
Vcc = 36V, Pout = 65W
Vcc = 36V, Pout = 65W
Vcc = 36V, Pout = 65W
Vcc = 36V, Pout = 65W
η
C
RL
VSWR-T
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
PH3134-65M
Radar Pulsed Power Transistor
65W, 3.1-3.4 GHz, 100µs Pulse, 10% Duty
RF Test Fixture Impedance
F (GHz)
3.10
3.25
3.40
Z
IF
(Ω)
11.2 - j11.7
11.5 - j9.5
12.7 - j7.6
Z
OF
(Ω)
8.1 - j5.3
7.1 - j4.3
6.4 - j3.3
M/A-COM Products
Released, 10 Aug 07

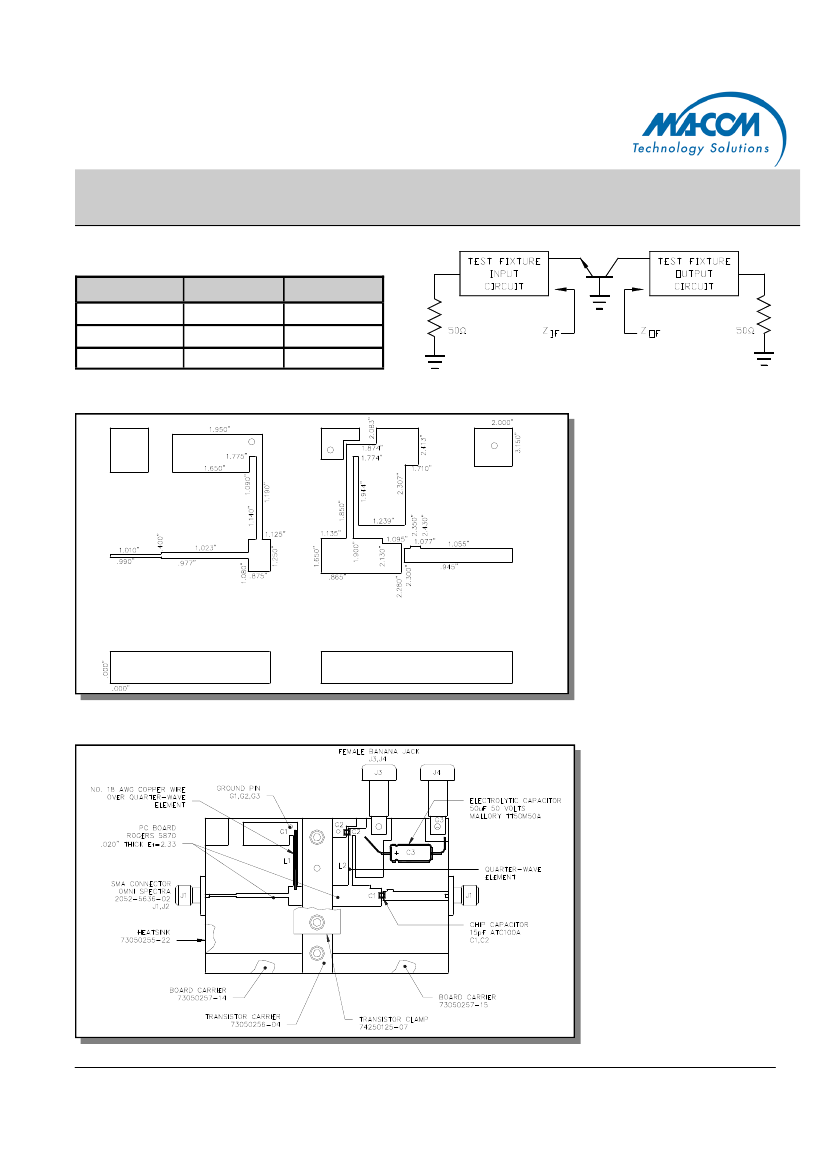

Test Fixture Circuit Dimensions
Test Fixture Assembly
