9457250000: DescriptionCircular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal, Socket; CategoryThe connector The connector; File Size220KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

9457250000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9457250000	-	-	View	Buy Now

9457250000 Overview

Circular Connector, 5 Contact(s), Polybutylene Terephthalate, Female, Screw Terminal, Socket

9457250000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
Factory Lead Time	10 weeks
Back shell type	SOLID
Body/casing type	SOCKET
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	COPPER TIN ZINC
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	9457250000
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SCREW
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

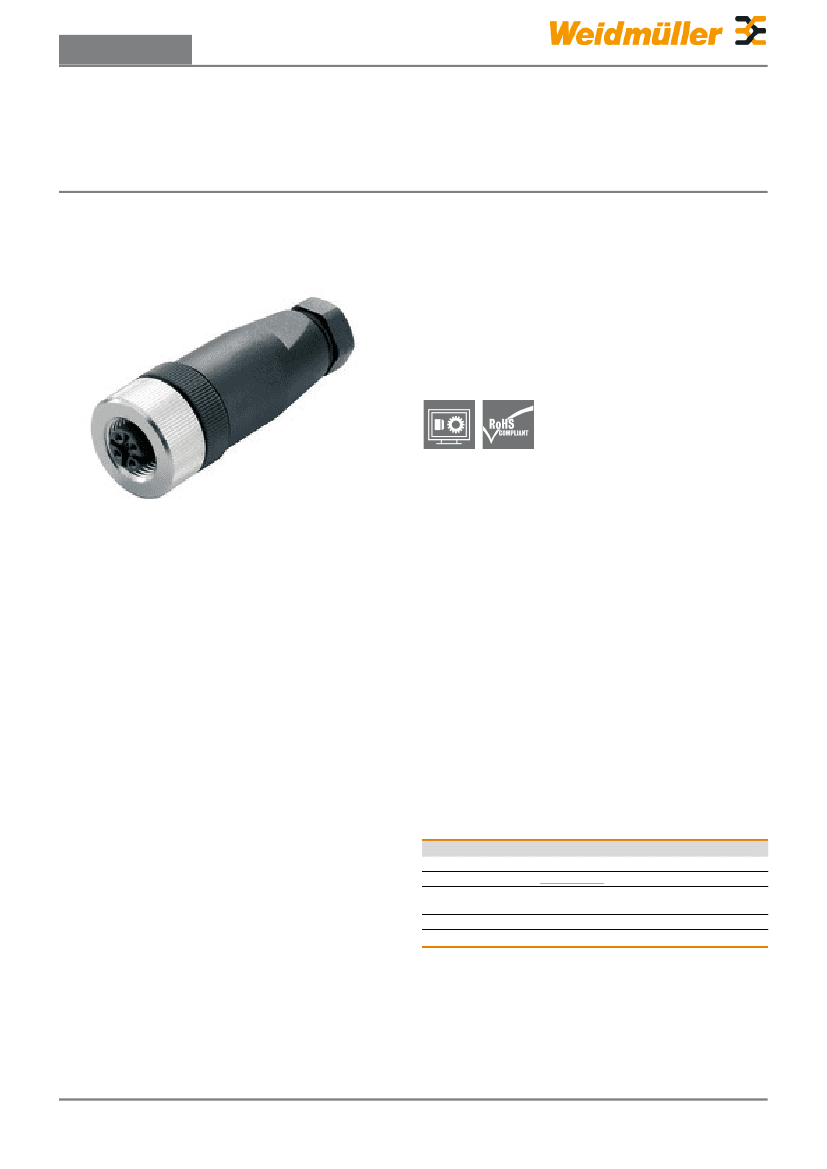

Data sheet

SAIB-5/7

Weidmüller Interface GmbH & Co. KG

Klingenbergstraße 16

D-32758 Detmold

Germany

Fon: +49 5231 14-0

Fax: +49 5231 14-292083

www.weidmueller.com

Individual cable lengths are often required nowadays. In

order to meet these demands, Weidmüller offers a wide

range of plug-in connectors for custom assembly.

Male plugs and female socket for customisable assembly

for M8, M12, M16 and 7/8" connections which are

highly robust and ideally suited to machine engineering,

for instance. The M12 plug-in connectors offer a choice of

5 different connection systems.

The screw connection can be used in a wide range

of applications. With this technology the conductor,

optionally with wire-end ferrules, can be plugged into

connection elements and secured with a screw. It is the

classic, cheapest form of connection technology that also

supports multi-conductor connections.

General ordering data

Type

Order No.

Version

GTIN (EAN)

Qty.

SAIB-5/7

9457250000

Sockets prefabricated to customer spec., M12,

Female socket, straight

4032248155774

1 pc(s).

Creation date October 12, 2018 4:03:37 PM CEST

Catalogue status 28.09.2018 / We reserve the right to make technical changes.
