ICS874003
PCI E
XPRESS
J
ITTER
A
TTENUATOR
G
ENERAL
D
ESCRIPTION
The ICS874003 is a high performance Differential-to-LVDS
Jitter Attenuator designed for use in PCI Express systems.
In some PCI Express systems, such as those found in
desktop PCs, the PCI Express clocks are generated from a
low bandwidth, high phase noise PLL frequency
synthesizer. In these systems, a jitter attenuator may be
required to attenuate high frequency random and
deterministic jitter components from the PLL synthesizer
and from the system board. The ICS874003 has 3 PLL
bandwidth modes: 200kHz, 400kHz, and 800kHz. The
200kHz mode will provide maximum jitter attenuation, but
with higher PLL tracking skew and spread spectrum
modulation from the motherboard synthesizer may be
attenuated. The 400kHz provides an intermediate bandwidth
that can easily track triangular spread profiles, while
providing good jitter attenuation. The 800kHz bandwidth
provides the best tracking skew and will pass most spread
profiles, but the jitter attenuation will not be as good as the
lower bandwidth modes. Because some 2.5Gb serdes have
x20 multipliers while others have than x25 multipliers, the
ICS874003 can be set for 1:1 mode or 5/4 multiplication
mode (i.e. 100MHz input/125MHz output) using the FSEL pins.
The ICS874003 uses IDT’s 3
rd
Generation FemtoClock
®
PLL technology to achive the lowest possible phase noise.
The device is packaged in a 20 Lead TSSOP package,
making it ideal for use in space constrained applications
such as PCI Express add-in cards.
F
EATURES
•
Three Differential LVDS output pairs
•
One Differential clock input
•
CLK and nCLK supports the following input types:
LVPECL, LVDS, LVHSTL, SSTL, HCSL
•
Output frequency range: 98MHz - 160MHz
•
Input frequency range: 98MHz - 128MHz
•
VCO range: 490MHz - 640MHz
•
Cycle-to-cycle jitter: 35ps (maximum)
•
3.3V operating supply
•
Three bandwidth modes allow the system designer to
make jitter attenuation/tracking skew design trade-offs
•
0°C to 70°C ambient operating temperature
•
Available in both standard and lead-free RoHS compliant
packages
PLL B
ANDWIDTH
BW_SEL
0 = PLL Bandwidth: ~200kHz
Float = PLL Bandwidth: ~400kHz (default)
1 = PLL Bandwidth: ~800kHz
B
LOCK
D
IAGRAM
OEA Pullup
F_SELA Pulldown
BW_SEL Float
0 = ~200kHz
Float = ~400kHz
1 = ~800kHz
CLK Pulldown
nCLK Pullup
QA0
P
IN
A
SSIGNMENT
F_SELA
0 ÷5
(default)
1 ÷4
QA1
V
DDO
QA0
nQA0
MR
BW_SEL
nc
V
DDA
F_SELA
V
DD
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
nQA1
V
DDO
QB0
nQB0
F_SELB
OEB
GND
nCLK
CLK
OEA
nQA0
QA1
Phase
Detector
VCO
490 - 640MHz
nQA1
ICS874003
F_SELB
0 ÷5
(default)
1 ÷4
QB0
20-Lead TSSOP
6.5mm x 4.4mm x 0.92mm
package body
M = ÷5
(fixed)
nQB0
G Package
Top View
F_SELB Pulldown
MR Pulldown
OEB Pullup
874003AG
www.idt.com
1
REV. A OCTOBER 5, 2010
ICS874003
PCI E
XPRESS
J
ITTER
A
TTENUATOR
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1, 20
2, 19
3, 4
5
Name
QA1, nQA1
V
DDO
QA0, nQA0
MR
Power
Output
Input
Type
Output
Description
Differential output pair. LVDS interface levels.
Output supply pins.
Differential output pair. LVDS interface levels.
Active HIGH Master Reset. When logic HIGH, the internal dividers are
reset causing the true outputs (nQXx) to go low and the inver ted
Pulldown
outputs (QXx) to go high. When logic LOW, the internal dividers and
the outputs are enabled. LVCMOS/LVTTL interface levels.
Pullup/
PLL Bandwidth input. See Table 3B.
Pulldown
No connect.
Analog supply pin.
Frequency select pin for QAx/nQAx outputs.
Pulldown
LVCMOS/LVTTL interface levels.
Core supply pin.
Output enable pin for QAx/nQAx pins. When HIGH, the QAx/nQAx
Pullup
outputs are active. When LOW, the QAx/nQAx outputs are in a high
impedance state. LVCMOS/LVTTL interface levels.
Pulldown Non-inver ting differential clock input.
Pullup
Inver ting differential clock input.
Power supply ground.
Output enable pin for QB0 pins. When HIGH, the QB0/nQB0 outputs
Pullup
are active. When LOW, the QB0/nQB0 outputs are in a high impedance
state. LVCMOS/LVTTL interface levels.
Frequency select pin for QB0/nQB0 outputs.
Pulldown
LVCMOS/LVTTL interface levels.
Differential output pair. LVDS interface levels.
6
7
8
9
10
11
12
13
14
15
16
17, 18
BW_SEL
nc
V
DDA
F_SELA
V
DD
OEA
CLK
nCLK
GND
OEB
F_SELB
nQB0, QB0
Input
Unused
Power
Input
Power
Input
Input
Input
Power
Input
Input
Output
NOTE:
Pullup
and
Pulldown
refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
Test Conditions
Minimum
Typical
4
51
51
Maximum
Units
pF
kΩ
kΩ
T
ABLE
3A. O
UTPUT
E
NABLE
F
UNCTION
T
ABLE
Inputs
OEA
0
1
OEB
0
1
HiZ
Enabled
Outputs
QA0:1, nQA0:1
QB0/nQB0
HiZ
Enabled
T
ABLE
3B. PLL B
ANDWIDTH
/PLL B
YPASS
C
ONTROL
Inputs
PLL_BW
0
1
Float
PLL
Bandwidth
~200kHz
~800kHz
~400kHz
874003AG
www.idt.com
2
REV. A OCTOBER 5, 2010
ICS874003
PCI E
XPRESS
J
ITTER
A
TTENUATOR
T
ABLE
4C. D
IFFERENTIAL
DC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
I
IH
I
IL
V
PP
Parameter
Input High Current
Input Low Current
CLK
nCLK
CLK
nCLK
Test Conditions
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
V
DD
= V
IN
= 3.465V
-150
0.15
1.3
V
V
5
150
µA
Minimum
Typical
Maximum
150
Units
µA
Peak-to-Peak Input Voltage
Common Mode Input Voltage; NOTE 1, 2
GND + 0.5
V
DD
- 0.85
V
CMR
NOTE 1: Common mode voltage is defined as V
IH
.
NOTE 2: For single ended applications, the maximum input voltage for CLK, nCLK and FB_IN, nFB_IN is V
DD
+ 0.3V.
T
ABLE
4D. LVDS DC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
V
OD
Δ
V
OD
V
OS
Δ
V
OS
Parameter
Differential Output Voltage
V
OD
Magnitude Change
Offset Voltage
V
OS
Magnitude Change
1.2
1.35
Test Conditions
Minimum
275
Typical
375
Maximum
485
50
1.5
50
Units
mV
mV
V
mV

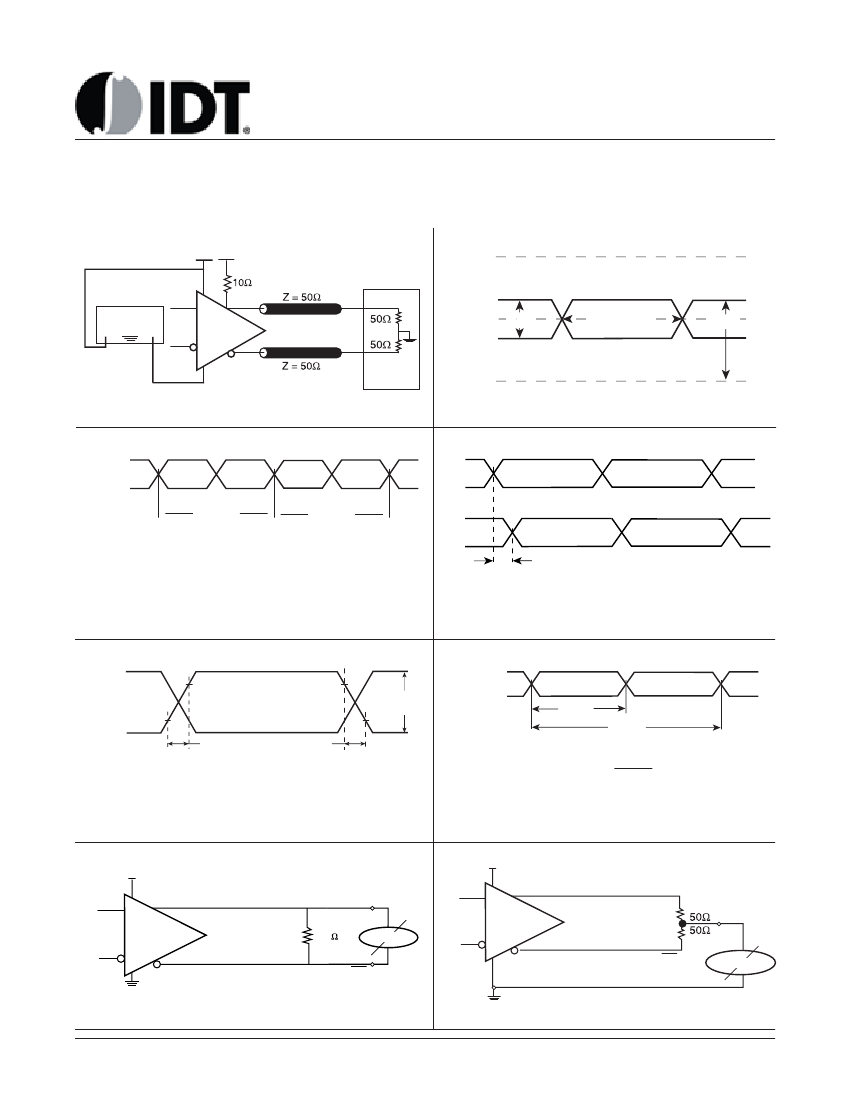

T
ABLE
5. AC C
HARACTERISTICS
,
V
DD
= V
DDA
= V
DDO
= 3.3V±5%, T
A
= 0°C
TO
70°C
Symbol
f
MAX
Parameter
Output Frequency
Cycle-to-Cycle Jitter, NOTE 1
Output Skew; NOTE 2, 3
Output Rise/Fall Time
20% to 80%
275
Test Conditions
Minimum
98
Typical
Maximum
160
35
50
725
52
Units
MHz
ps
ps
ps
%
t
jit(cc)
t
sk(o)
t
R
/ t
F
odc
Output Duty Cycle
48
NOTE 1: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions.
Measured at V
DDO
/2.
NOTE 3: These parameters are guaranteed by characterization. Not tested in production.
874003AG
www.idt.com
4
REV. A OCTOBER 5, 2010
