X1G005191008501 Overview

CMOS Output Clock Oscillator,

X1G005191008501 Parametric

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
package instruction	DILCC4,.2,200
Reach Compliance Code	unknown
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TAPE
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	25.000625 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.3mm
longest rise time	6 ns
Maximum slew rate	4.4 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	1.62 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

Programmable Clock OSC

SG-8101CA

SG-8101CA 25.000625 MHz TCHSA

Product name

Product Number / Ordering code

X1G0051910085xx

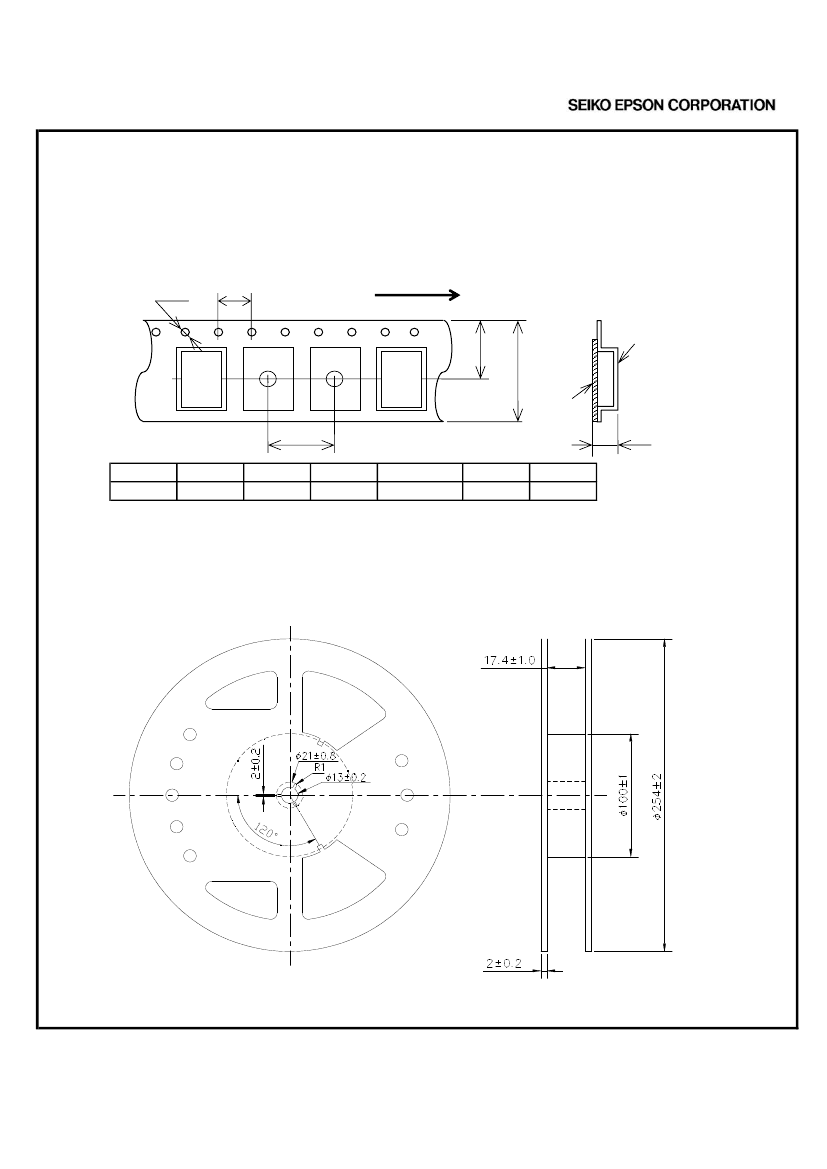

Please refer to the 8.Packing information about xx (last 2 digits)

Output waveform

CMOS

Pb free / Complies with EU RoHS directive

Reference weight Typ.

143 mg

1.Absolute maximum ratings

Parameter

Maximum supply voltage

Storage temperature

Input voltage

Symbol

-GND

T_stg

Min.

-0.3

-40

GND-0.5

Typ.

Max.

+4.0

+125

Vcc+0.3

Unit

ºC

Conditions / Remarks

Stored as bare product after

unpacking

ST or OE terminal

2.Specifications(characteristics)

Parameter

Symbol

Output frequency

Supply voltage

Operating temperature

Frequency tolerance

Current consumption

Stand-by current

Disable current

Symmetry

Output voltage

Output load condition

Input voltage

Min.

1.62

-40

-20

90%Vcc

70%Vcc

Typ.

25.000625

Max.

3.63

+105

+20

4.4

2.5

10%Vcc

30%Vcc

Unit

MHz

ºC

x10

µA

μs

-6

Conditions / Remarks

Typ. 1.8V / 2.5V / 3.3V

T_use

f_tol

I_std

I_dis

SYM

L_CMOS

t_stp

t_sta

t_res

t_str

f_aging

T_use : -40 to +105℃

Vcc=3.3V Typ., No load

Vcc=3.3V Typ., ST=GND

50%Vcc, L_CMOS=<15pF

CMOS Load

ST Terminal

20% to 80%Vcc,L_CMOS=15pF

Measured from the time OE or

ST pin crosses 30%Vcc

Rise time

Fall time

Disable time

Enable time

Resum time

Start-up time

Frequency aging

Measured from the time STpin

crosses 70%Vcc

Measured from the time Vcc

reaches its rated minimum value,

1.62V

Included in Frequency tolerance

x10

-6

/Year 10 years

1 Page

9.Notice

NOTICE：PLEASE READ CAREFULLY BELOW BEFORE THE USE OF THIS DOCUMENT ©Seiko Epson Corporation 2020

1. The content of this document is subject to change without notice.

　Before

purchasing or using Epson products, please contact with sales

representative of Seiko Epson Corporation (“Epson”) for the latest information and be always sure to check the latest information

published on Epson’s official web sites and resources.

2. This document may not be copied, reproduced, or used for any other purposes, in whole or in part, without Epson’s prior consent.

3. Information provided in this document including, but not limited to application circuits, programs and usage, is for reference purpose only.

Epson makes no guarantees against any infringements or damages to any third parties’ intellectual property rights or any other rights

resulting from the information. This document does not grant you any licenses, any intellectual property rights or any other rights with

respect to Epson products owned by Epson or any third parties.

4. Using Epson products, you shall be responsible for safe design in your products; that is, your hardware, software, and/or systems shall be

designed enough to prevent any critical harm or damages to life, health or property, even if any malfunction or failure might be caused by

Epson products. In designing your products with Epson products, please be sure to check and comply with the latest information

regarding Epson products (including, but not limited to this document, specifications, data sheets, manuals, and Epson’s web site).

Using technical contents such as product data, graphic and chart, and technical information, including programs, algorithms and

application circuit examples under this document, you shall evaluate your products thoroughly both in stand-alone basis and within your

overall systems. You shall be solely responsible for deciding whether to adopt/use Epson products with your products.

5. Epson has prepared this document carefully to be accurate and dependable, but Epson does not guarantee that the information is always

accurate and complete. Epson assumes no responsibility for any damages you incurred due to any misinformation in this document.

6. No dismantling, analysis, reverse engineering, modification, alteration, adaptation, reproduction, etc., of Epson products is allowed.

7. Epson products have been designed, developed and manufactured to be used in general electronic applications and specifically

requires particular quality or extremely high reliability in order to refrain from causing any malfunction or failure leading to critical harm to

life and health, serious property damage, or severe impact on society, including, but not limited to listed below (“Specific Purpose”).

Therefore, you are strongly advised to use Epson products only for the Anticipated Purpose.　 Should you desire to purchase and use

Epson products for Specific Purpose, Epson makes no warranty and disclaims with respect to Epson products, whether express or

implied, including without limitation any implied warranty of merchantability or fitness for any Specific Purpose. Please be sure to

contact our sales representative in advance, if you desire Epson products for Specific Purpose:

Space equipment (artificial satellites, rockets, etc.)/ Transportation vehicles and their control equipment (automobiles, aircraft, trains,

ships, etc.) / Medical equipment/ Relay equipment to be placed on sea floor/ Power station control equipment / Disaster or crime

prevention equipment/Traffic control equipment/ Financial equipment

Other applications requiring similar levels of reliability as the above

8. Epson products listed in this document and our associated technologies shall not be used in any equipment or systems that laws and

regulations in Japan or any other countries prohibit to manufacture, use or sell. Furthermore, Epson products and our associated

technologies shall not be used for the purposes of military weapons development (e.g. mass destruction weapons), military use, or any

other military applications. If exporting Epson products or our associated technologies, please be sure to comply with the Foreign

Exchange and Foreign Trade Control Act in Japan, Export Administration Regulations in the U.S.A (EAR) and other export-related laws

and regulations in Japan and any other countries and to follow their required procedures.

9. Epson assumes no responsibility for any damages (whether direct or indirect) caused by or in relation with your non-compliance with the

terms and conditions in this document or for any damages (whether direct or indirect) incurred by any third party that you give, transfer or

assign Epson products.

10. For more details or other concerns about this document, please contact our sales representative.

11. Company names and product names listed in this document are trademarks or registered trademarks of their respective companies.

10.Contact us

https://www5.epsondevice.com/en/contact/
