48D12.250 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 48D12.250

Preview

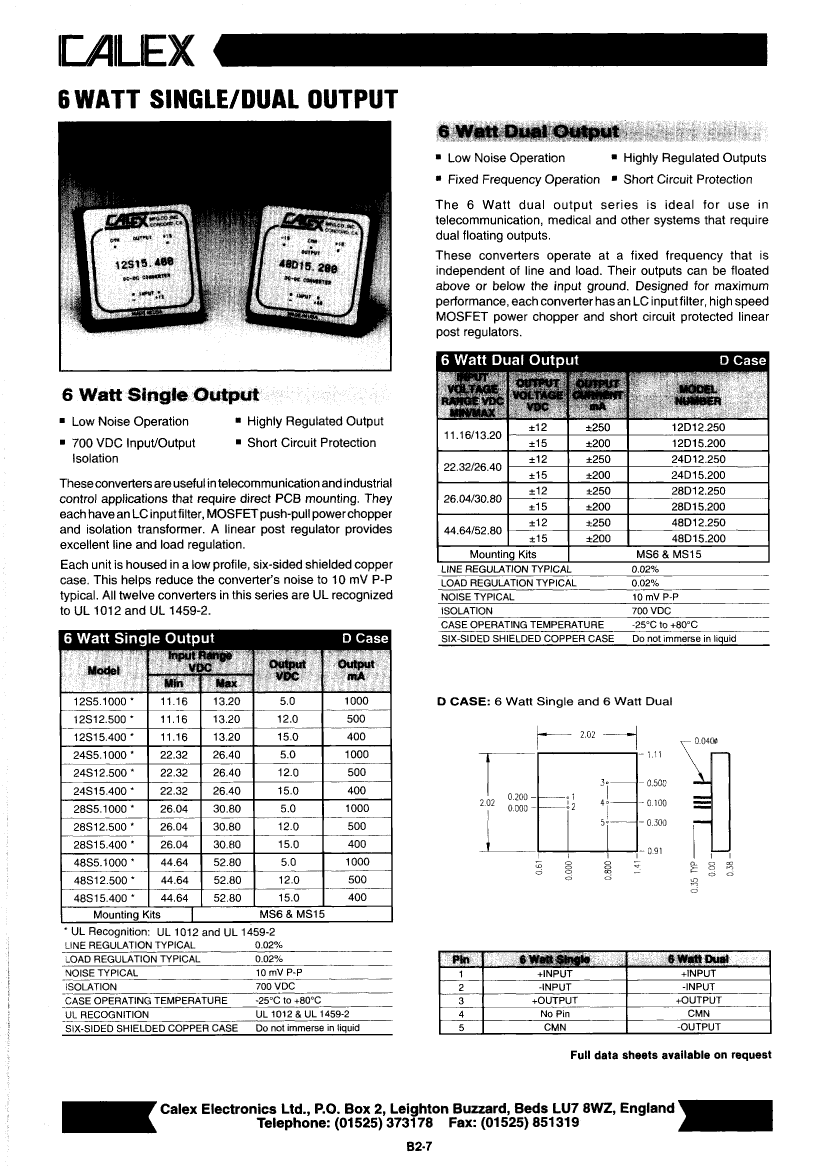

48D12.250: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid; CategoryPower/power management The power supply circuit; File Size176KB，1 Pages; ManufacturerCalex Mfg Co Inc.

Download Datasheet Parametric Compare View All

48D12.250 Overview

DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid

48D12.250 Parametric

Parameter Name	Attribute value
Maker	Calex Mfg Co Inc.
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	52.8 V
Minimum input voltage	44.64 V
Nominal input voltage	48 V
JESD-30 code	S-XDIP-P5
Maximum grid adjustment rate	0.02%
Maximum load regulation	0.02%
Number of functions	1
Output times	2
Number of terminals	5
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	IN-LINE
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

48D12.250 Related Products

	48D12.250	24D12.250	24D15.200	28D12.250	28D15.200	340103101B61PFR116D1-4	S1206CA2183BEB-TR	48D15.200
Description	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid	61 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, SOLDER, PLUG	Fixed Resistor, Thin Film, 0.3W, 218000ohm, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid
Reach Compliance Code	compliant	compli	compli	compli	compli	compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	-	-	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	52.8 V	26.4 V	26.4 V	30.8 V	30.8 V	-	-	52.8 V
Minimum input voltage	44.64 V	22.32 V	22.32 V	26.04 V	26.04 V	-	-	44.64 V
Nominal input voltage	48 V	24 V	24 V	28 V	28 V	-	-	48 V
JESD-30 code	S-XDIP-P5	S-XDIP-P5	S-XDIP-P5	S-XDIP-P5	S-XDIP-P5	-	-	S-XDIP-P5
Maximum grid adjustment rate	0.02%	0.02%	0.02%	0.02%	0.02%	-	-	0.02%
Maximum load regulation	0.02%	0.02%	0.02%	0.02%	0.02%	-	-	0.02%
Number of functions	1	1	1	1	1	-	-	1
Output times	2	2	2	2	2	-	-	2
Number of terminals	5	5	5	5	5	-	2	5
Nominal output voltage	12 V	12 V	15 V	12 V	15 V	-	-	15 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	-	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	-	RECTANGULAR PACKAGE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	SMT	IN-LINE
Protect	CURRENT	CURRENT	CURRENT	CURRENT	CURRENT	-	-	CURRENT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
surface mount	NO	NO	NO	NO	NO	-	YES	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	-	THIN FILM	HYBRID
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	-	-	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	-	DUAL
Maximum total power output	6 W	6 W	6 W	6 W	6 W	-	-	6 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	-	-	NO
Base Number Matches	1	1	1	1	1	-	-	1
