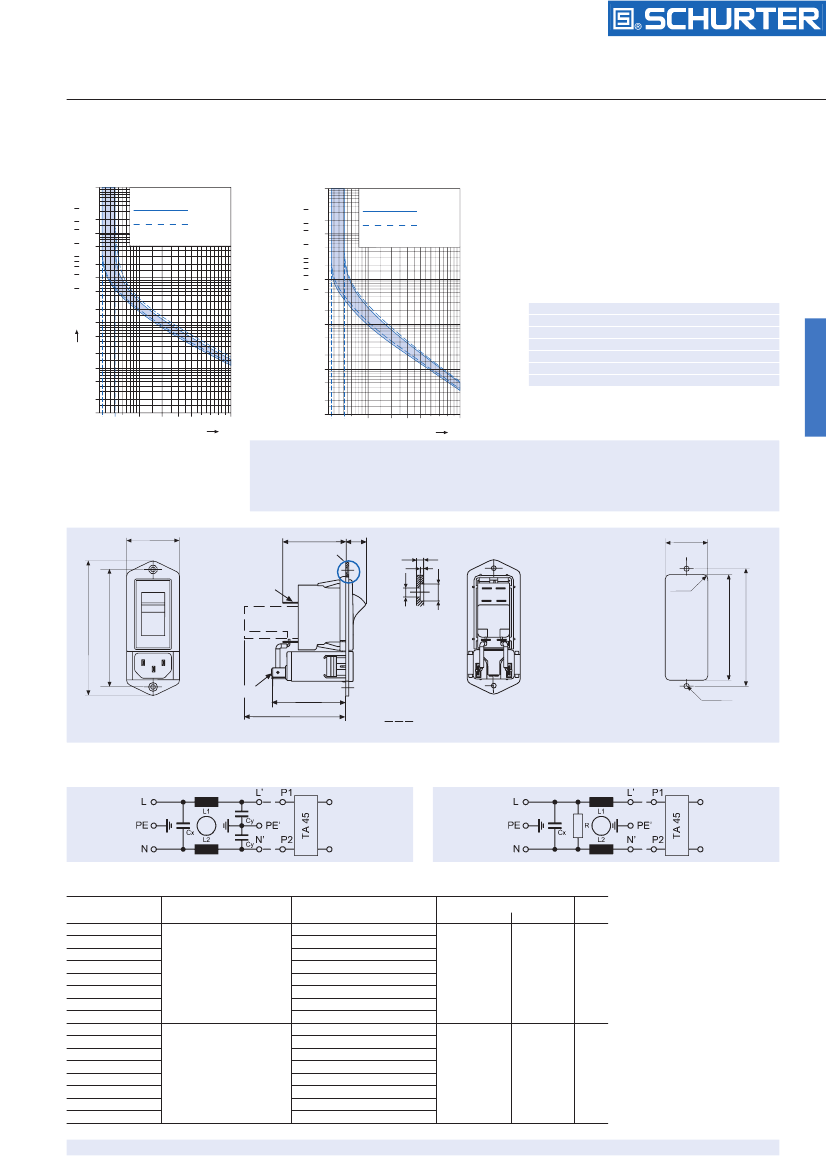

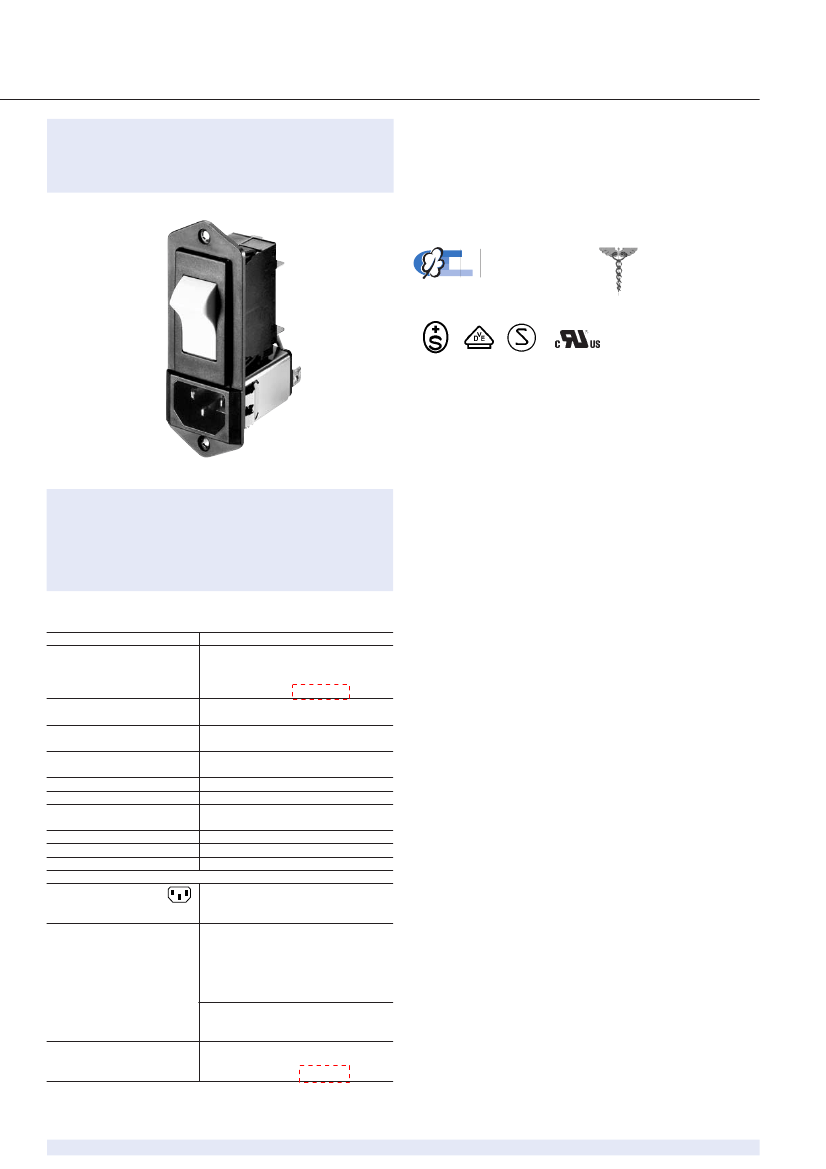

POWER ENTRY MODULES /
GERÄTESTECKER-KOMBIELEMENTE
Power entry module Type 5145
– Panel mount: screw-on version, front-side
– Appliance inlet, circuit breaker type TA 45 and line filter
5145
Standard or
Medical filter
50
75
100
Characteristics
• Circuit breaker with line switch, 2-pole, non-illuminated or
illuminated
• Combined with thermal overload protection
• Optional with undervoltage- or remote trip release
• All single elements wired
Unwired versions available on request
Technical data
Rated voltage
Rated currents I
n1
)
125/250 VAC; 50/60 Hz
1–10 A; @T
a
40 °C; SEV, VDE, Semko
1–15 A; @T
a
40 °C; UL, CSA
0,1–10 A; VDE, see table 1
0,1–15 A; UL/CSA, see table 1
< 0,5 mA (250 V/60 Hz)
< 5 µA (250 V/60 Hz)
1,7 kVDC between L-N
2,7 kVDC between L/N-PE
–10 °C to +55 °C
10/055/21 acc. to IEC/EN 60068-1
IP 40 acc. to IEC 60529
suitable for equipment with prot. cl. I,
acc. to IEC 61140
quick-connect 6,3 x 0,8 mm
max. 8 mm
Thermoplastic, black, UL94 V–0
Filter
TA 45
Leackage current, Standard
Medical
Test voltage (2 sec)
Allowable ambient air
temperatures T
a
Climatic category
Degree of protection (front-side)
Protection class
Terminals
Panel thickness s
Materials: Housing
Appliance-inlet
acc. to. IEC/EN 60320-1/C14,
Protection class I, pin-temperature 70 °C
(cold condition)
Circuit breaker
acc. to IEC/EN 60934, UL 1077,
type TA45
CSA 22.2 no. 235.
2-pole rocker switch, illuminated or
non-illuminated.
Optional with undervoltage- or remote
trip release
Short circuit capacity Icn:
at In < 3 A / 240 VAC: 10 x In
at In
≥
3 A / 240 VAC: 300 A
Line filter, standard and medical acc. to. IEC 60939, EN 133 200,
UL 1283, CSA C 22.2 no. 8
Technical details see page 202
Application note
The rated current of the line filter must be equal or higher than the
rated current of the circuit-breaker.
1)
126
www.schurter.com
POWER ENTRY MODULES /
GERÄTESTECKER-KOMBIELEMENTE
Technical data (continued)
Circuit breaker
Tripping characteristics
In < 3 A
[ min ] [ sec ]
10’000
Type /
Typ
Rated current /
Nennstrom
TA45
In < 3 A
1 pole protected
2 pole protected
Ambient temp.
Umgebungstemp.
5145
Tripping characteristics
In
≥
3…≤ 15 A
[ min ] [ sec ]
10’000
Type /
Typ
Rated current /
Nennstrom
TA45
In
≥
3 A ....
≤
15 A
1 pole protected
2 pole protected
Ambient temp.
Umgebungstemp.
Effect of ambient temperature
1)
The unit is calibrated for an ambient temperature of
+23 °C. To determine the rated current for a lower or
higher ambient temperature, use a correction factor
from the table below.
60
30
20
10
5
200
100
1
50
2000
1000
500
60
30
20
2’000
1’000
500
+23
°C
10
5
+23
°C
200
100
1
50
20
10
5
2
1
0,5
Tripping time
20
10
5
2
1
0,5
Tripping time
Ambient temperature /
Umgebungs-
temperatur [°C]
–10
–5
0
+23
+30
+40
+55
Correction
factor
0,89
0,91
0,92
1,00
1,03
1,08
1,16
0,3
0,2
0,1
1,05 1,32
2
3
4
5
8
10
0,3
0,2
0,1
1,05 1,32
2
3
4
5
8
10
Multiple of rated current /
Nennstrom-Vielfaches
[ x In ]
Multiple of rated current
[ x In ]
1)
Example
Rated current at +23 °C
6,0 A
Correction factor /
Korrekturfaktor
Chosen rated current at
+40 °C ambient temperature
+40 °C Umgebungstemperatur
0
1,08
Ambient temperature
+40 °C
Dimensions
36
43
Detail a
13,5
Detail a
2
1
ø6
29
+0,2
6 A x 1,08 = 6,5 A
3,25
6,3 x 0,8 mm
R3
0
-0,5
91,5
6,3 x 0,8 mm
50,7
67,5*
M3 / ø 3,6
Mounting screw torque 0,5 Nm
*
Version TA45 with undervoltage release
Panel cut-out
Diagrams
Standard version /
Standardversion
Medical version
Line
Load
Line
72
0
Load
Technical data of filter-components
Rated current /
Nennstrom (A)
1
2
3
4
6
8
10
15
1
2
3
4
6
8
10
15
Filter-Type /
Filter-Typ
Inductance /
Induktivitäten
L1/L2 (mH)
2 x 11
2x4
2 x 2,5
2 x 1,6
2 x 0,7
2 x 0,6
2 x 0,4
2 x 0,1
2 x 11
2x4
2 x 2,5
2 x 1,6
2 x 0,7
2 x 0,6
2 x 0,4
2 x 0,1
Capacitance /
Kapazitäten R
CX (nF)
CY (nF)
(MΩ)
Standard
47
2 x 2,2
–
Medical
47
–
1
80
±0,1
80
+0,1
www.schurter.com
127

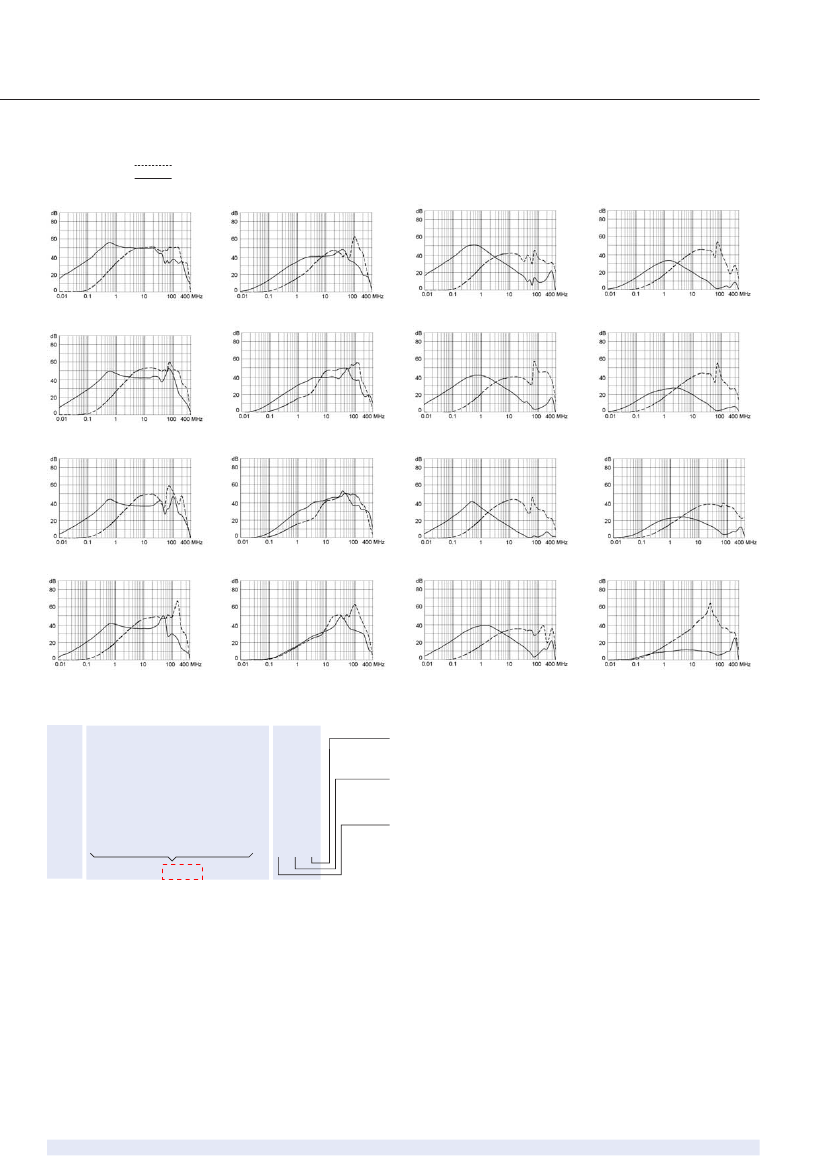

POWER ENTRY MODULES /
GERÄTESTECKER-KOMBIELEMENTE
Attenuation loss
Standard version
differential mode
common mode
1A
6A
1A
6A
5145
Medical version
2A
8A
2A
8A
3A
10 A
3A
10 A
4A
15 A
4A
15 A
Order code (Order example)
Type
Order code TA45
(2-pole rocker-switch without
accessories)
Wiring
0
Without
1
With
Type of line filter
1
Standard
3
Medical
Rated current of line filter
1
1 (A)
2
2 (A)
3
3 (A)
4
4 (A)
5
6
7
8
6 (A)
8 (A)
10 (A)
15 (A)
5145
.
A B T W F 1 5 0 C 0
see table 1
.
0 0 1
Please note that Schurter will establish an internal part number for logistical use in additional to the order code. The format of this internal part
number is, for example 5145.0031.001
Application note
The rated current of the line filter must be equal or higher than the rated current of the circuit-breaker
128
www.schurter.com
POWER ENTRY MODULES /
GERÄTESTECKER-KOMBIELEMENTE
Table 1 Selection for type TA45
Order example
• Line switch
• 2-pole, rocker actuated
• Quick connect terminal
Other types on request
Diagram
Thermal overload protection
without /
ohne
P2
P1
5145
ABT
W
F
150
C0
5
3
P1
a
with
1-pole
P2
P1
with
2-pole
P2
P1
Without illumination
With illumination /
Mit Beleuchtung
220…240 V
110…120 V
6
5
6
3
4
3
ABC
A02
A04
ABT
A12
A14
ABD
A32
A34
}
Colours
Switch front /
Rocker
W
B
6
black
/ schwarz
black
/ schwarz
black
/ schwarz
white
/ weiss
black
/ schwarz
–
–
–
orange transp.
Rocker legend
Surface /
Illustration / Colour of print
Surface /
Illustration / Colour of print
O
F
H
K
L
embossed
printed
/ bedruckt
printed
/ bedruckt
printed
/ bedruckt
M
white
black
white
P
R
printed
/ bedruckt
printed
/ bedruckt
printed
/ bedruckt
O
l
l
black
white
black
OFF OFF
ON
I
I
O
O
ON
l
Position of the rocker legend
e.g F
O
Rated current
:
• Without thermal overload protection: code C00
}
I
n
= 16 A
• With thermal overload protection: rated current In (A)
In
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
Code
J01
J02
J03
J04
J05
J06
J07
J08
J09
J10
J11
J12
In
1,3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,5
Code
J13
J14
J15
J16
J17
J18
J19
J20
J21
J22
J23
J25
In
2,8
3,0
3,5
4,0
4,5
5,0
6,0
6,5
7,0
7,5
8,0
9,0
Code
J28
030
035
040
045
050
060
065
070
075
080
090
In
10,0
11,0
12,0
13,0
14,0
15,0
Code
100
110
120
130
140
150
Without release: code C0
Undervoltage release
P2
U<
P1
P2
b
U<
P1
P2
ba
U<
P1
Remote trip release
P2
c P1
Rated voltage Un
U
E
Z
A
Code
2
3
4
240 V AC
230 V AC
120 V AC
•
•
•
•
•
•
•
•
•
•
•
•
www.schurter.com
129
