Planar Lightwave Circuit Splitter

Modules

(LGX and Rack-mount Chassis Assembly)

PLCS2 Series

Features

Product Description



Wide Operating Wavelength

Range (1310/1490/1550/1620nm)



Ultra-Low Insertion Loss



Low PDL



Excellent IL Uniformity



Compact Size



Telcordia Qualified



RoHS Compliant

Applications

Optical Power Splitter is a component that splits the optical power

from one optical route into a few different routes according to a cer-

tain allocation ratio. Oplink’s Planar Lightwave Circuit Splitter Product

family provides PLC splitters from 1x4 to 1x64 and 2x4 to 2x64 with

high performance and high reliability. Various packaging choices are

available based on Oplink’s professional mechanical design ability.

Oplink can provide customized designs to meet specialized feature

applications. Also, Oplink offers modular assemblies that integrate

other components to form a full function module.



FTTX Solutions



Passive Optical Network (PON)

Options



High Performance Fan-out Available



Module Cassette Available



LGX Packaging Available



19/23” Rack-mount Chassis Available



Wall-mount Cabinet Available



Outdoor Enclosure Available

Performance Specificationns

Parameter

1x4

2x4

1x8

2x8

1x16

2x16

1x32

2x32

1x64

2x64

Operation Wavelength

Insertion Loss (Typ)

Insertion Loss (Max)

Insertion Loss (Typ)

Insertion Loss (Max)

Uniformity (Max)

Polarization Dependent Loss

(Max)

Directivity (Min)

Return Loss (Min)

Optical Input Power

Operating Temperature

Storage Temperature

Fiber Type

Packaging Dimension

<7.1

<7.5

<6.8

<7.2

<0.7

<0.3

<7.3

<7.7

<7.1

<7.5

<1.0

<0.3

<10.3

<10.8

<10.0

<10.3

<1.0

<0.3

<10.4

<11.0

<10.2

<10.5

<1.2

<0.3

1260~1360 / 1480~1620

<13.5

<14.0

<13.2

<13.7

<1.5

<0.3

≥45dB for PLC splitters with PC&SPC connector type

≥50dB for PLC splitters with APC connector type

300

-5 to +70

-40 to +85

Corning SMF-28 or equivalent

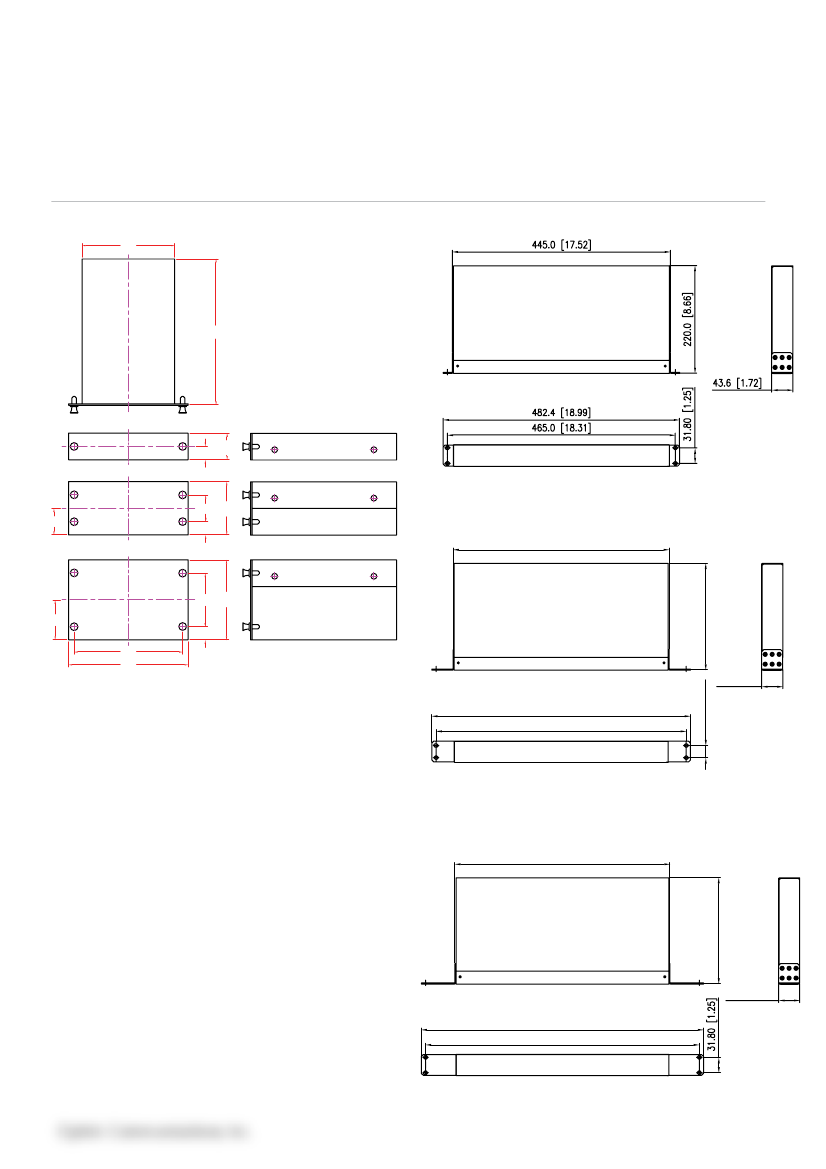

LGX or Rack-mount Chassis, refer ordering information for packaging choices

<14.0

<14.5

<13.6

<14.2

<2.0

<0.4

<16.8

<17.5

<16.5

<17.0

<2.0

<0.3

<17.3

<18.0

<17.0

<17.5

<2.5

<0.4

19.6

20.5

19.2

<2.5

<0.3

20.3

21.0

19.8

20.5

<3.0

<0.4

°C

Notes:

[1] All the parameters are tested at 1310nm&1550nm and room temperature. The IL doesn’t include TDL, WDL or the connector loss.

[2] Connector IL is 0.2dB/pair for PC&SPC type and 0.4dB/pair for APC type.

R01.20080807
