M85049/16H13N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/16H13N

M85049/16H13N: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size86KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/16H13N Overview

Connector Accessory

M85049/16H13N Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	M85049/16
Base Number Matches	1

Preview

Download Datasheet

View All

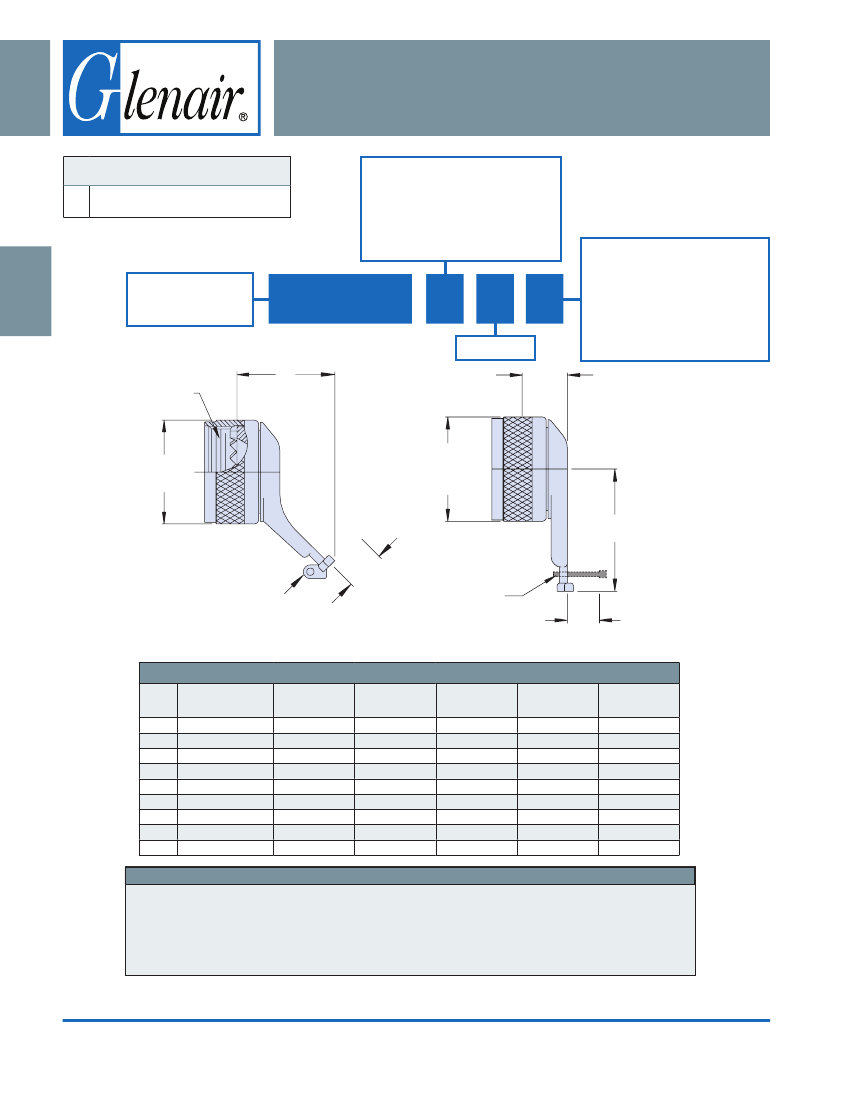

Self-Locking Coupling • Optional Ground Lug

CONNECTOR DESIGNATOR:

AS85049/15 and AS85049/16

45° and 90° Qwik-Ty

Strain Reliefs

AS85049

MIL-DTL-38999, Series III and IV

EN3645

SELF-LOCKING

COUPLING

Basic Part Number

M85049/15

= 45°

M85049/16

= 90°

Configuration

––

= Non-Self-Locking

= Non-Detented

= Self-Locking with Ground Lug

= Non-Detented with Ground Lug

= Self-Locking without Ground Lug

M85049/15

Shell Size

Finish

= Anodize, Black

= Electroless Nickel

= 1,000 Hour Cadmium Olive Drab

over Electroless Nickel

= Nickel Fluorocarbon Polymer

= Pure Dense Electrodeposited

Aluminum

= Zinc-Nickel, Black

A Thread

Typ.

M85049/16S =

.50 (12.7) Max

M85049/16G =

.69 (17.5) Max

Dia

Ground Lug

Typical on

M85049/15G and

M85049/16G only

MS3367-1

Tie Strap or

Equivalent

(Typical)

D Dia

Max

.860

.984

1.160

1.280

1.410

1.520

1.640

1.770

1.890

(21.8)

(25.0)

(29.5)

(32.5)

(35.8)

(38.6)

(41.7)

(45.0)

(48.0)

F Max

Cable Entry

.264

.392

.506

.631

.756

.845

.970

1.095

1.220

(6.7)

(10.0)

(12.9)

(16.0)

(19.2)

(21.5)

(24.6)

(27.8)

(31.0)

M85049/15S

G Max

1.030

1.090

1.110

1.210

1.260

1.300

1.340

(26.2)

(27.7)

(28.2)

(30.7)

(32.0)

(33.0)

(34.0)

TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions

Shell

Size

A Thread

Class 2B

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

M85049/15G

G Max

1.210

1.390

(30.7)

(35.3)

M85049/16

H Max

1.220

1.290

1.620

1.660

1.720

1.790

1.850

1.910

(31.0)

(32.8)

(41.1)

(42.2)

(43.7)

(45.5)

(47.0)

(48.5)

APPLICATION NOTES

Assembly identified with manufacturer’s name and part number, space permitting.

For complete dimensions, see the applicable Military Specification.

Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not

intended for inspection criteria.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-36
