54601906002LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54601906002LF

54601906002LF: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, LEAD FREE; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

54601906002LF Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, LEAD FREE

54601906002LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2146623911
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.1
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.453 inch
subject depth	0.709 inch
body length	0.52 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	25 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
Shell material	GLASS FILLED POLYAMIDE66
Terminal length	0.148 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

LOGO

1.5 0.3

6.5 0.5

10.0 REF.

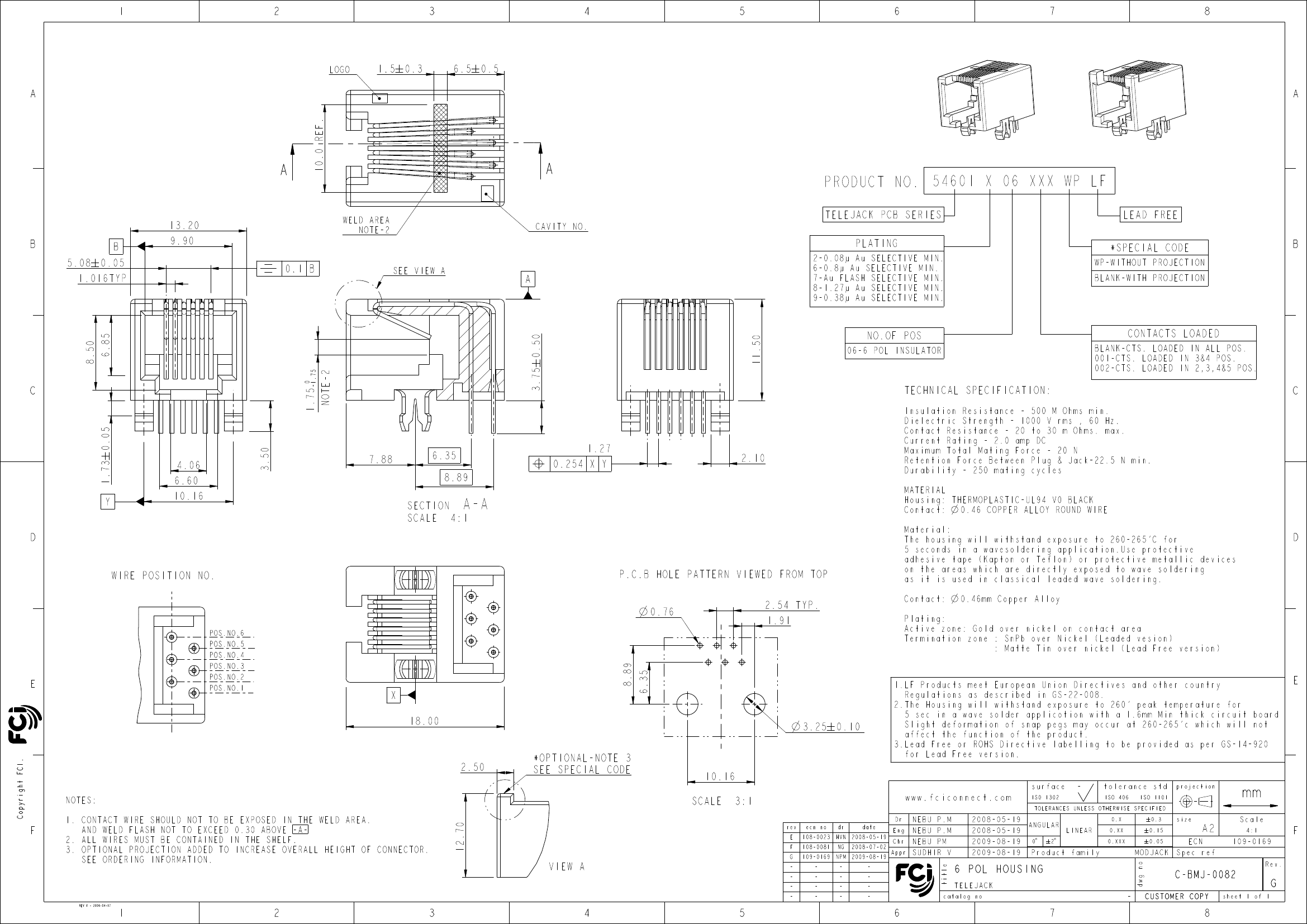

PRODUCT NO. 54601 X 06 XXX WP LF

TELEJACK PCB SERIES

LEAD FREE

*SPECIAL CODE

WP-WITHOUT PROJECTION

BLANK-WITH PROJECTION

13.20

5.08 0.05

1.016 TYP

9.90

0.1 B

WELD AREA

NOTE-2

CAVITY NO.

PLATING

SEE VIEW A

2-0.08µ Au SELECTIVE MIN.

6-0.8µ Au SELECTIVE MIN.

7-Au FLASH SELECTIVE MIN.

8-1.27µ Au SELECTIVE MIN.

9-0.38µ Au SELECTIVE MIN.

6.85

3.75 0.50

11.50

8.50

NO.OF POS

06-6 POL INSULATOR

CONTACTS LOADED

BLANK-CTS. LOADED IN ALL POS.

001-CTS. LOADED IN 3 &4 POS.

002-CTS. LOADED IN 2,3,4 &5 POS.

1.75

-1.75

NOTE-2

TECHNICAL SPECIFICATION:

Insulation Resistance - 500 M Ohms min.

Dielectric Strength - 1000 V rms , 60 Hz.

Contact Resistance - 20 to 30 m Ohms. max.

Current Rating - 2.0 amp DC

Maximum Total Mating Force - 20 N

Retention Force Between Plug & Jack-22.5 N min.

Durability - 250 mating cycles

MATERIAL

Housing: THERMOPLASTIC-UL94 V0 BLACK

Contact:

0.46 COPPER ALLOY ROUND WIRE

Material:

The housing will withstand exposure to 260-265'C for

5 seconds in a wavesoldering application.Use protective

adhesive tape (Kapton or Teflon) or protective metallic devices

on the areas which are directly exposed to wave soldering

as it is used in classical leaded wave soldering.

Contact:

0.46mm Copper Alloy

1.73 0.05

3.50

4.06

6.60

10.16

7.88

6.35

8.89

SECTION

A-A

SCALE 4:1

1.27

0.254 X Y

2.10

WIRE POSITION NO.

P.C.B HOLE PATTERN VIEWED FROM TOP

2.54 TYP.

1.91

0.76

POS.NO.6

POS.NO.5

POS.NO.4

Plating:

Active zone: Gold over nickel on contact area

Termination zone : SnPb over Nickel (Leaded vesion)

: Matte Tin over nickel (Lead Free version)

8.89

POS.NO.2

POS.NO.1

6.35

POS.NO.3

18.00

3.25 0.10

*OPTIONAL-NOTE 3

SEE SPECIAL CODE

1.LF Products meet European Union Directives and other country

Regulations as described in GS-22-008.

2.The Housing will withstand exposure to 260' peak temperature for

5 sec in a wave solder applicotion with a 1.6mm Min thick circuit board

Slight deformation of snap pegs may occur at 260-265'c which will not

affect the function of the product.

3.Lead Free or ROHS Directive labelling to be provided as per GS-14-920

for Lead Free version.

2.50

NOTES:

10.16

surface

tolerance std

ISO 406

ISO 1101

projection

SCALE

12.70

3:1

rev

ecn no

I08-0023

I08-0081

I09-0169

date

2008-07-02

Eng

Chr

Appr

HVN 2008-05-19

NPM 2009-08-19

www.fciconnect.com

NEBU P.M

NEBU PM

SUDHIR V

title

IS0 1302

Scale

4:1

TOLERANCES UNLESS OTHERWISE SPECIFIED

dwg no

1. CONTACT WIRE SHOULD NOT TO BE EXPOSED IN THE WELD AREA.

AND WELD FLASH NOT TO EXCEED 0.30 ABOVE -A-

2. ALL WIRES MUST BE CONTAINED IN THE SHELF.

3. OPTIONAL PROJECTION ADDED TO INCREASE OVERALL HEIGHT OF CONNECTOR.

SEE ORDERING INFORMATION.

2008-05-19

2009-08-19

ANGULAR

0.X

0.3

0.15

0.05

size

LINEAR

0.XX

0.XXX

ECN

Rev.

I09-0169

Product family

MODJACK Spec ref

VIEW A

6 POL HOUSING

TELEJACK

C-BMJ-0082

CUSTOMER COPY

sheet

1 of 1

catalog no

REV F - 2006-04-17

PDM: Rev:G

STATUS:

Released

Printed: Aug 21, 2009
