IDT70261L45PF8: DescriptionMulti-Port SRAM, 16KX16, 45ns, CMOS, PQFP100, PLASTIC, TQFP-100; Categorystorage storage; File Size657KB，18 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT70261L45PF8 Overview

Multi-Port SRAM, 16KX16, 45ns, CMOS, PQFP100, PLASTIC, TQFP-100

IDT70261L45PF8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFP
package instruction	LFQFP,
Contacts	100
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	45 ns
Other features	INTERRUPT FLAG; ARBITER; SEMAPHORE
JESD-30 code	S-PQFP-G100
JESD-609 code	e0
length	14 mm
memory density	262144 bit
Memory IC Type	MULTI-PORT SRAM
memory width	16
Humidity sensitivity level	3
Number of functions	1
Number of ports	2
Number of terminals	100
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX16
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	20
width	14 mm
Base Number Matches	1

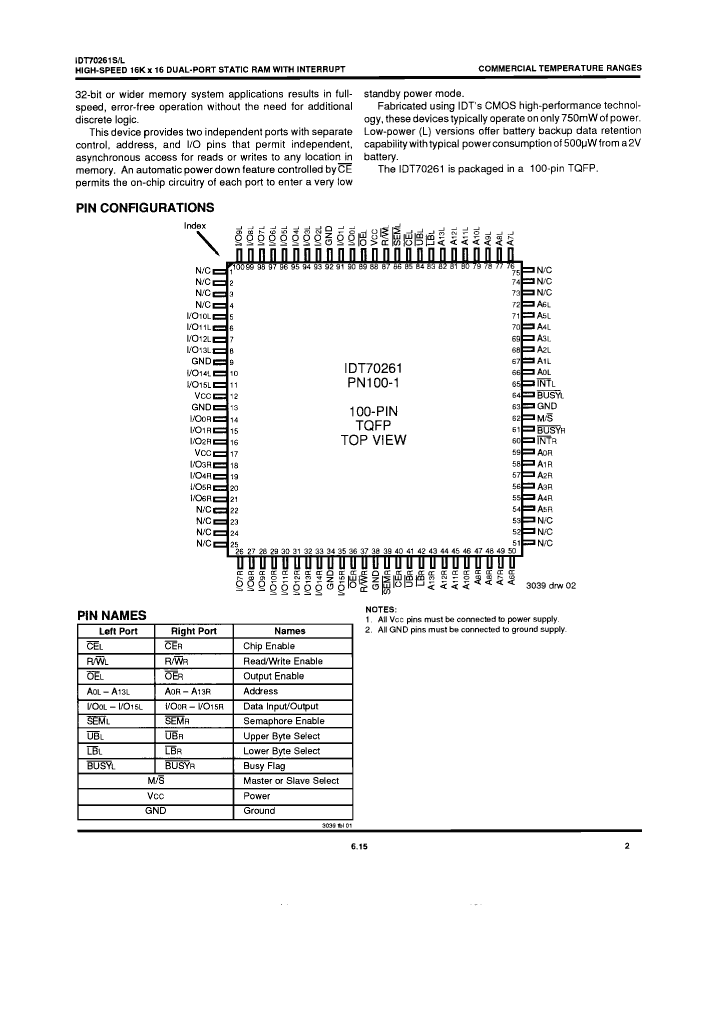

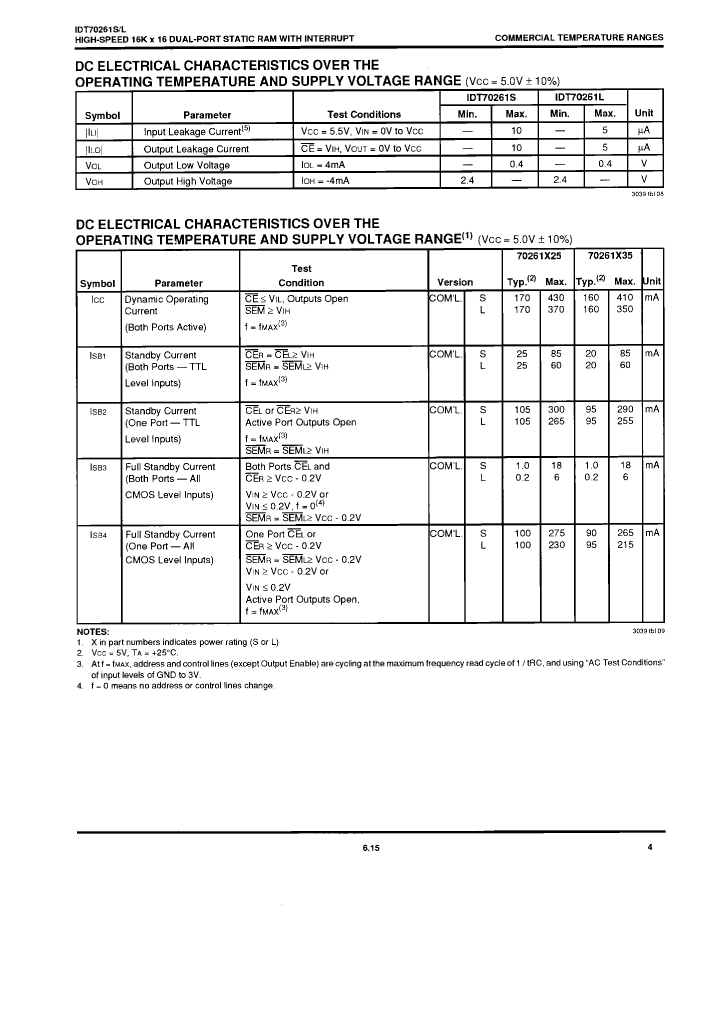

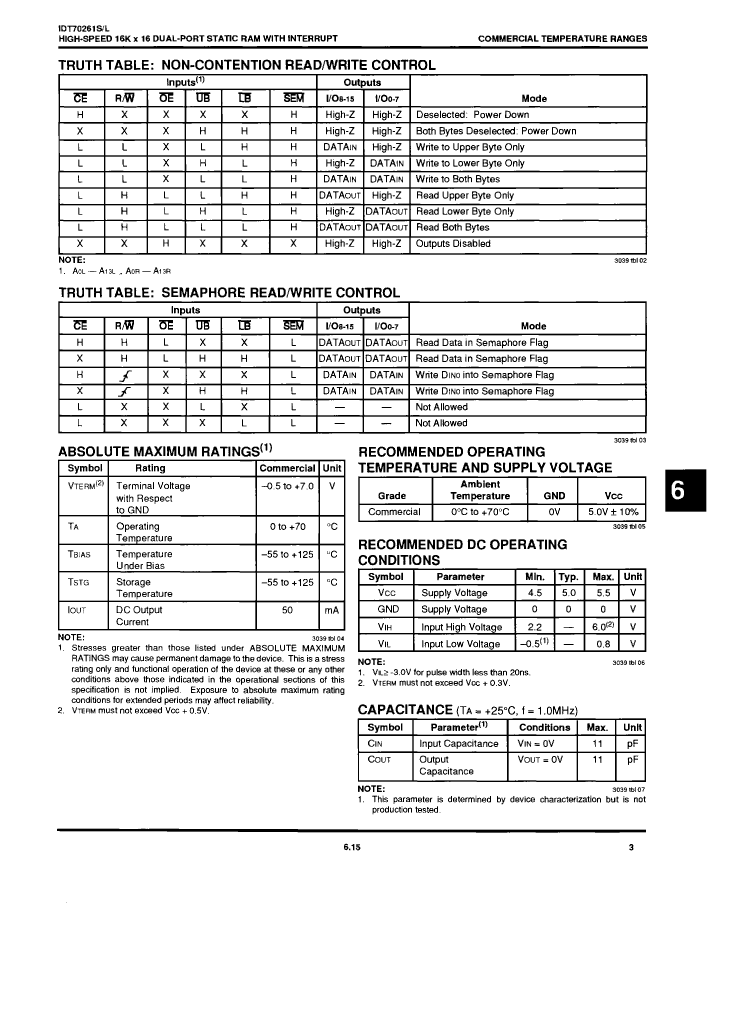

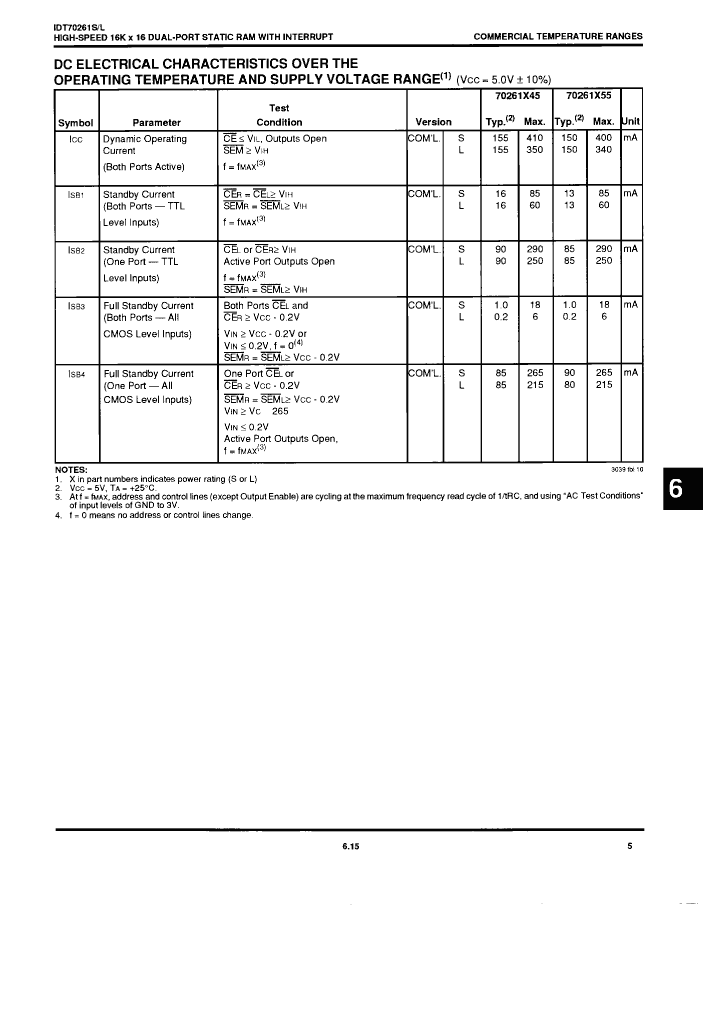

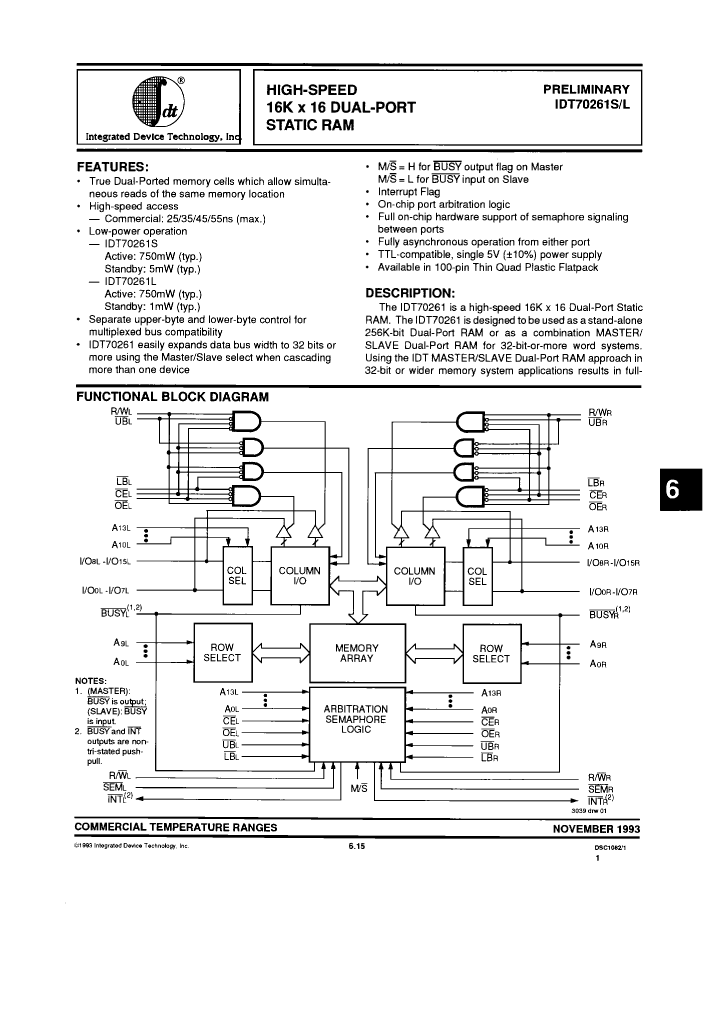

Preview

Download Datasheet

View All

IDT70261L45PF8 Related Products

	IDT70261L45PF8	IDT70261L45PF	IDT70261S45PF	IDT70261S45PF8
Description	Multi-Port SRAM, 16KX16, 45ns, CMOS, PQFP100, PLASTIC, TQFP-100	Multi-Port SRAM, 16KX16, 45ns, CMOS, PQFP100, PLASTIC, TQFP-100	Multi-Port SRAM, 16KX16, 45ns, CMOS, PQFP100, PLASTIC, TQFP-100	Multi-Port SRAM, 16KX16, 45ns, CMOS, PQFP100, PLASTIC, TQFP-100
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	QFP	QFP	QFP	QFP
package instruction	LFQFP,	PLASTIC, TQFP-100	PLASTIC, TQFP-100	LFQFP,
Contacts	100	100	100	100
Reach Compliance Code	compliant	not_compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	45 ns	45 ns	45 ns	45 ns
Other features	INTERRUPT FLAG; ARBITER; SEMAPHORE	INTERRUPT FLAG; ARBITER; SEMAPHORE	INTERRUPT FLAG; ARBITER; SEMAPHORE	INTERRUPT FLAG; ARBITER; SEMAPHORE
JESD-30 code	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100	S-PQFP-G100
JESD-609 code	e0	e0	e0	e0
length	14 mm	14 mm	14 mm	14 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM
memory width	16	16	16	16
Humidity sensitivity level	3	3	3	3
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	100	100	100	100
word count	16384 words	16384 words	16384 words	16384 words
character code	16000	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	16KX16	16KX16	16KX16	16KX16
Exportable	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm
