86063-3680: DescriptionFiber Optic SC Connector, 128um, Multi Mode, Simplex, Plug; CategoryThe connector The connector; File Size120KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

86063-3680 Overview

Fiber Optic SC Connector, 128um, Multi Mode, Simplex, Plug

86063-3680 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	INSERTION LOSS LESS THAN 0.34 DB TYP
Body/casing type	PLUG
Connection Type	SIMPLEX
Connector type	FIBER OPTIC SC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Fiber size	128um
IEC compliance	NO
Insertion loss	0.34 dB
MIL compliance	NO
Manufacturer's serial number	86063
model	MULTI
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

SC Connectors & Adapters

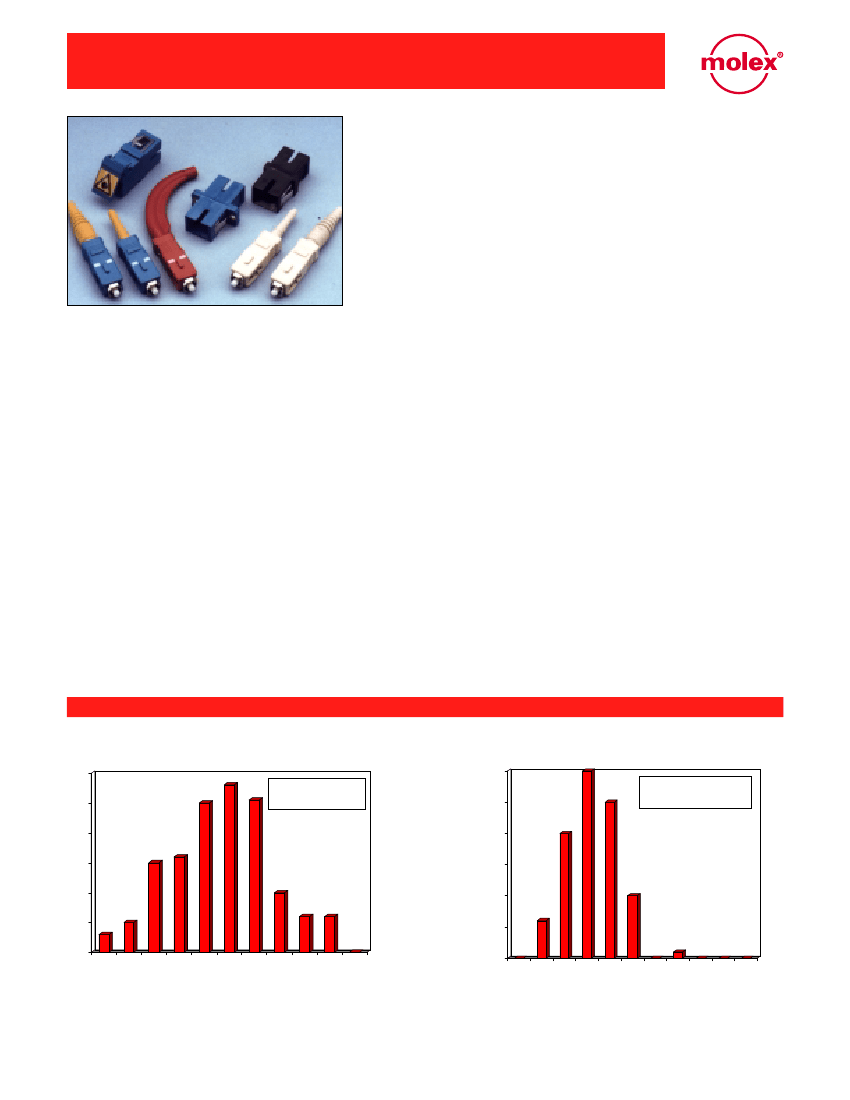

Features & Benefits

•

Meets EIA/TIA, IEC and

•

NTT-SC* standards

Variety of colors and boot styles

•

Pre-assembled or multi-piece

body design

- Reduces termination time

- Field installable

Pre-polished ceramic ferrules

- Minimizes polishing time

- Maintains endface geometry, physical contact

- Tunable

Low insertion loss:

< .34 dB typical MM

< .17 dB typical MM enhanced

< .15 dB typical SM

Applications

•

Telecommunication networks

•

CATV networks

•

Data communication networks

•

Active device termination

•

Three adapter styles

- Industry standard, small flanged & shuttered

The versatile Molex SC lightwave connector has been designed to NTT-SC standards and is completely compatible with other

SC hardware. This design, which provides non-optical disconnect terminations in a push-pull coupling mechanism, has

been tested to the rigorous Telcordia 326 and IEC standards. Adding to the versatility of the connector, a tab on the plastic SC

housing permits the simplex connector to be configured into a duplex format. A tunable SC is now available for optimum

performance, incorporating a complete plastic body.

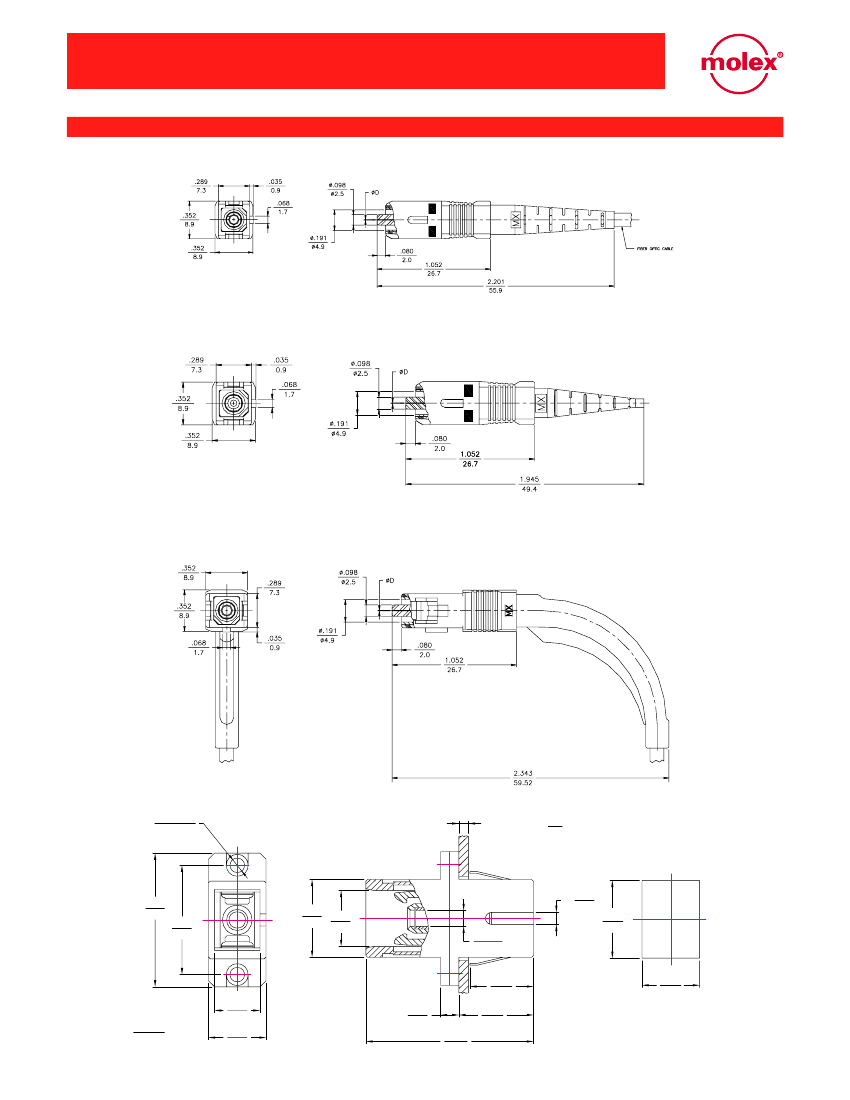

Beige, blue, green, red and black color housing and both straight and 90º boots for 3.0mm and 2.4mm cables add to the

versatility of the connector. All versions utilize precision ceramics, ruggedized zinc diecast inner body, and the latest

engineering polymers in their construction. With their pre-assembled 1-piece body design and pre-polished ferrules, these

connectors provide quick and economical terminations both in factory and in-the-field settings. The pre-polished ferrule and

the Molex termination method also deliver a uniform endface geometry and consequently consistent optical performance.

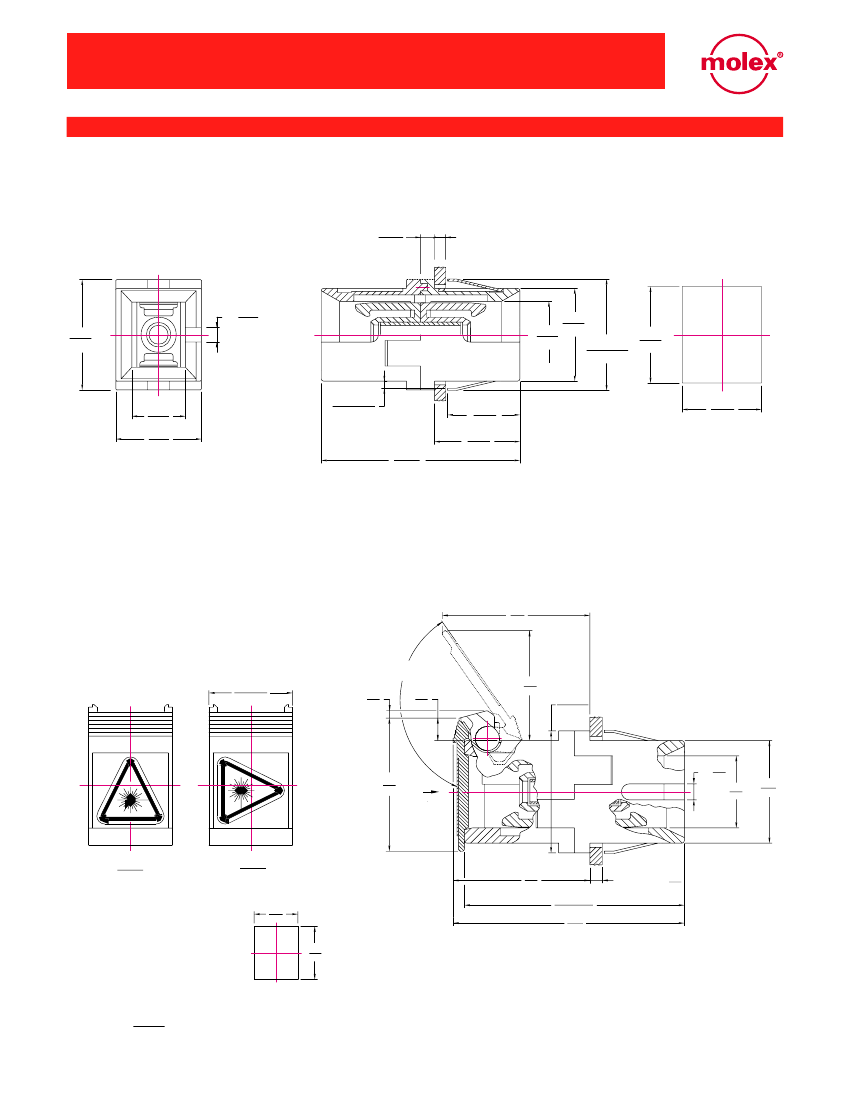

Molded polymer adapters containing either the precision ceramic or the rugged phosphor bronze alignment sleeves are used

to mate 2 SC connectors. These are available in 3 styles: an industry standard version; a small flange version for higher density;

and a shuttered version for protection against dust contamination and laser exposure.

*NTT-SC is a trademark of NTT Advanced Technology Corporation

Optical Performance Distribution

Insertion Loss Performance

(MM enhanced ferrule, 62.5/125µm fiber)

Insertion Loss Performance

(SM ferrule, 9/125µm fiber)

Avg.: 0.19 dB

Std. Dev.: 0.08 dB

Avg.: 0.13 dB

Std. Dev.: 0.04 dB

Frequency

0.04

0.08

0.12

0.16

0.2

0.24

0.28

0.32

0.36

0.4

0.04

0.08

0.12

0.16

0.2

0.24

0.28

0.32

0.36

0.4

Insertion Loss (dB)

MOLEX FIBER OPTICS DIVISION

5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber

86063-3680 Related Products

	86063-3680	86063-3670	86063-7480	86063-7470
Description	Fiber Optic SC Connector, 128um, Multi Mode, Simplex, Plug	Fiber Optic SC Connector, 128um, Multi Mode, Simplex, Plug	Fiber Optic SC Connector, 127um, Single Mode, Simplex, Plug	Fiber Optic SC Connector, 127um, Single Mode, Simplex, Plug
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	INSERTION LOSS LESS THAN 0.34 DB TYP	INSERTION LOSS LESS THAN 0.34 DB TYP	INSERTION LOSS LESS THAN 0.15 DB TYP	INSERTION LOSS LESS THAN 0.15 DB TYP
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connection Type	SIMPLEX	SIMPLEX	SIMPLEX	SIMPLEX
Connector type	FIBER OPTIC SC CONNECTOR	FIBER OPTIC SC CONNECTOR	FIBER OPTIC SC CONNECTOR	FIBER OPTIC SC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Fiber size	128um	128um	127um	127um
IEC compliance	NO	NO	NO	NO
Insertion loss	0.34 dB	0.34 dB	0.15 dB	0.15 dB
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	86063	86063	86063	86063
model	MULTI	MULTI	SINGLE	SINGLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
ECCN code	EAR99	EAR99	-	EAR99
Base Number Matches	1	1	-	1
