Printview: Male header with angled solder pins; 6-pole; Pin spacing 3.5 mm / 0.138 in; Reflow soldering -
Item No.: 2091-1426/200-000/997-406
.
Male header with angled solder pins; 6-pole; Pin spacing 3.5 mm /
0.138 in; Reflow soldering
Item No.: 2091-1426/200-000/997-406
.
Male header with angled solder pins; 6-pole; Pin spacing 3.5 mm / 0.138 in; Reflow soldering
.
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
2091-1426/200-000/997-406
1
1
Item description:Assembly of female connectors without loss of poles, allowing different functions to be divided within
one male headerCoding pins inserted into the header interface prevent mismating, allowing subsequent coding in
panel feedthrough applicationsThe female connector is fully shrouded by the male header's housing, providing
vibration resistance up to 20 g
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
6
3.5 mm (0.138 in %)
light gray
IEC/EN 60664-1
160 [V]
2.5 [kV]
160 [V]
2.5 [kV]
320 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male header with angled solder pins; 6-pole; Pin spacing 3.5 mm / 0.138 in; Reflow soldering -
Item No.: 2091-1426/200-000/997-406
Technical data
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of levels
Solder pin length [mm]
Solder pin diameter [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Contact material
Contact plating
Width
Height
Height from the surface
Length
2.5 [kV]
10 [A]
1
2.4 [mm]
1 [mm]
1.2(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Electrolytic copper (Ecu)
tin-plated
23 mm / 0.906 in
14.8 mm / 0.583 in
12.4 mm / 0.488 in
17.5 mm / 0.689 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male header with angled solder pins; 6-pole; Pin spacing 3.5 mm / 0.138 in; Reflow soldering -
Item No.: 2091-1426/200-000/997-406

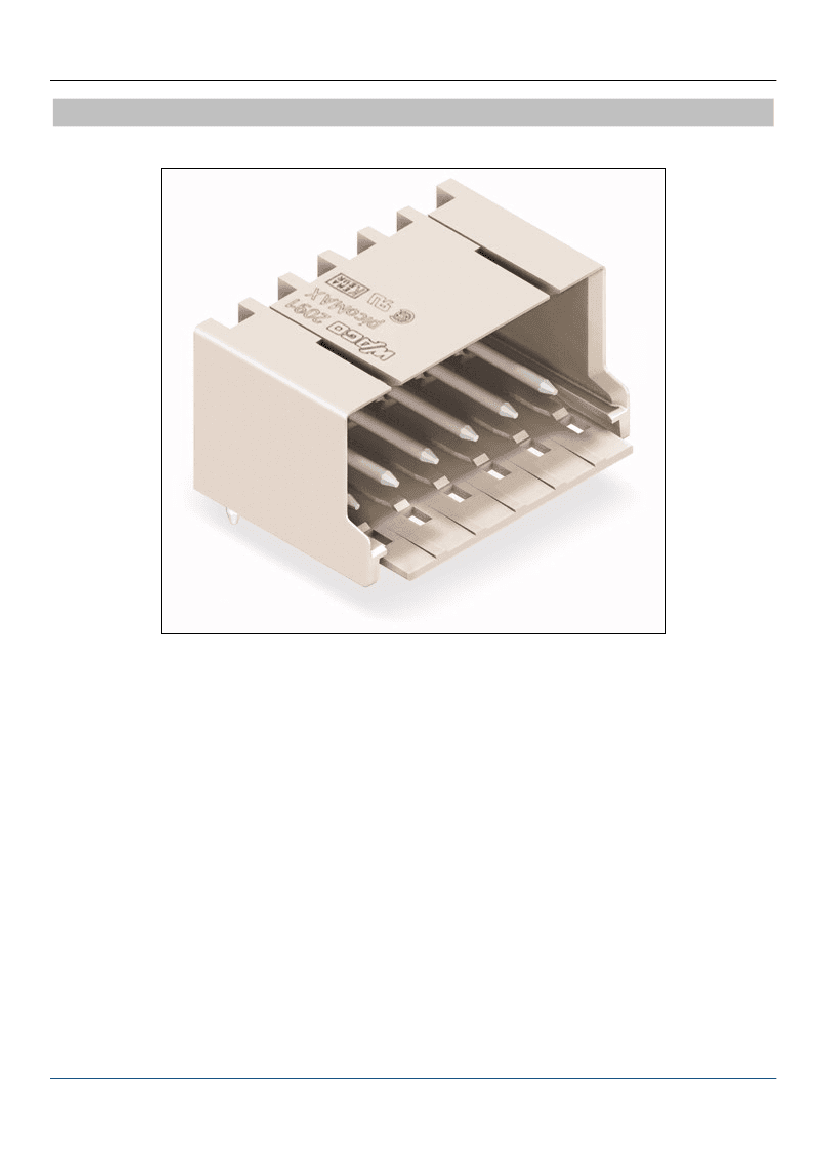

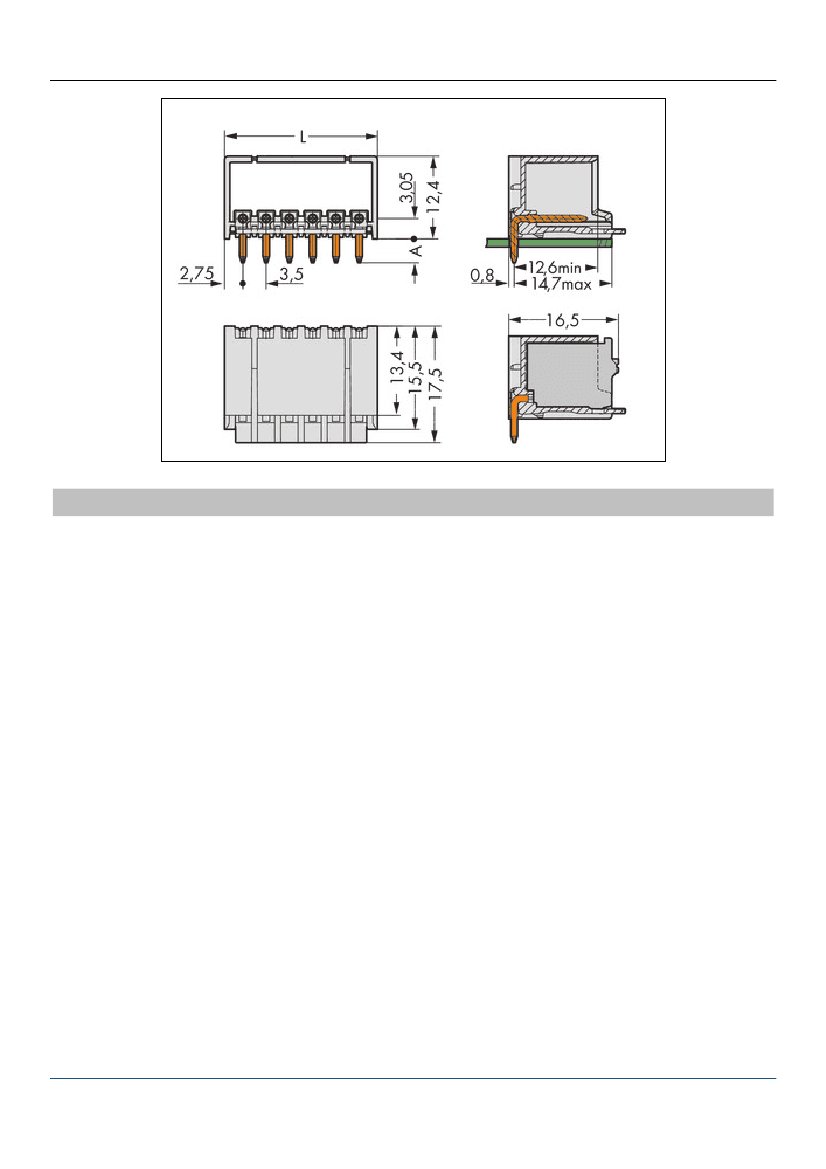

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male header with angled solder pins; 6-pole; Pin spacing 3.5 mm / 0.138 in; Reflow soldering -
Item No.: 2091-1426/200-000/997-406
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
