86094328115768000E1

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle,
CategoryThe connector    The connector
File Size127KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

86094328115768000E1 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Wire Wrap Terminal, Receptacle,

86094328115768000E1 Parametric

Parameter NameAttribute value
Objectid1786032972
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7.7
Other featuresSTANDARD: DIN 41612
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderFEMALE
DIN complianceYES
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeWIRE WRAP
Total number of contacts32
UL Flammability Code94V-0
1
2 3
4
5
6
A
A
XXX XX XX XXX XXXXX YY XX
B
FCIconnect.com
B
C
C
Copyright FCI
linear
NOTES:-
1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008
2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION
WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

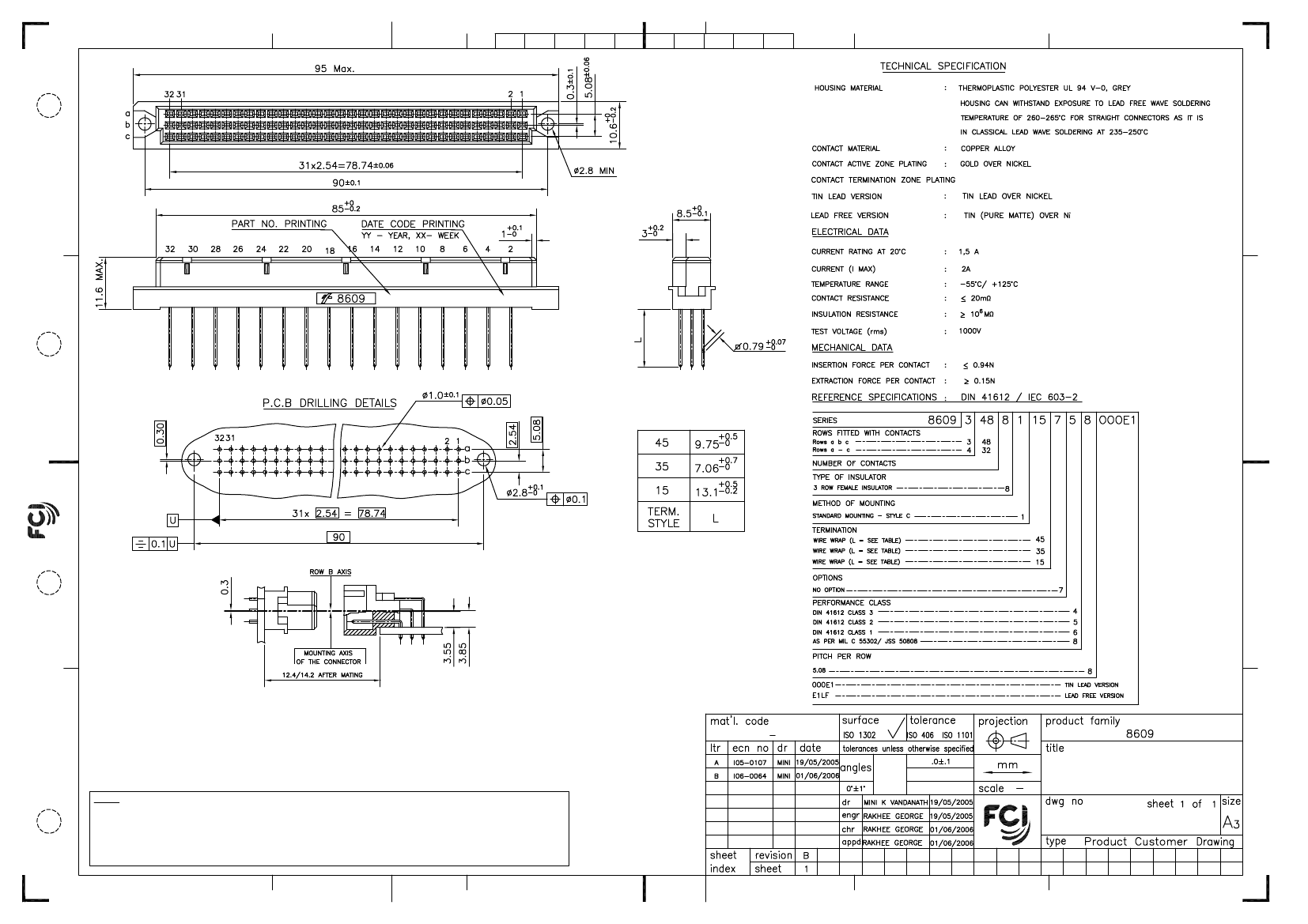

DIN STANDARD RECEPTACLE
WIRE WRAP DIN 41612 STYLE-C
C-8609-2061
D
3
4
5
6
STATUS:
Released
Printed: Oct 30, 2007
.
D
3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.
form: A3
1
2
PDM: Rev:B
