87022-20LF: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,; CategoryThe connector The connector; File Size241KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

87022-20LF Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,

87022-20LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307183009
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.4
body width	0.12 inch
subject depth	0.187 inch
body length	1.016 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Durability	200 Cycles
maximum insertion force	1.529 N
Insulation resistance	50000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.175 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Evacuation force-minimum value	.417 N

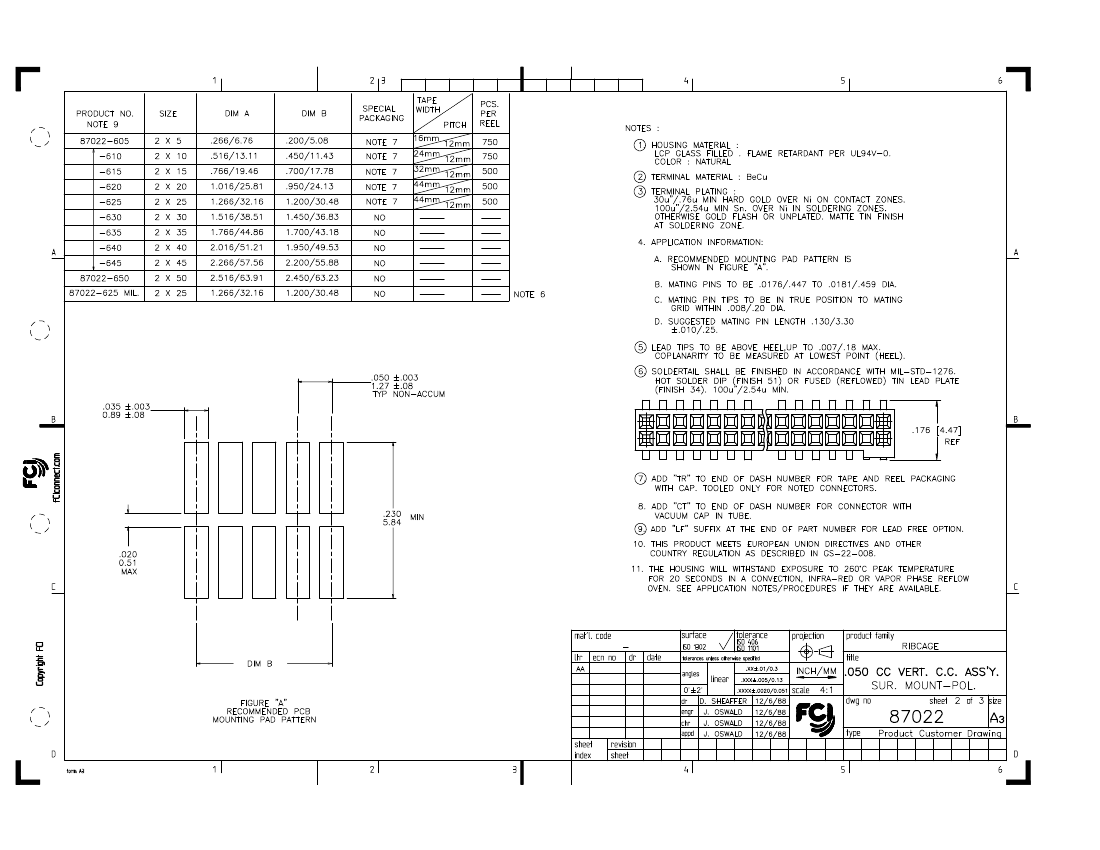

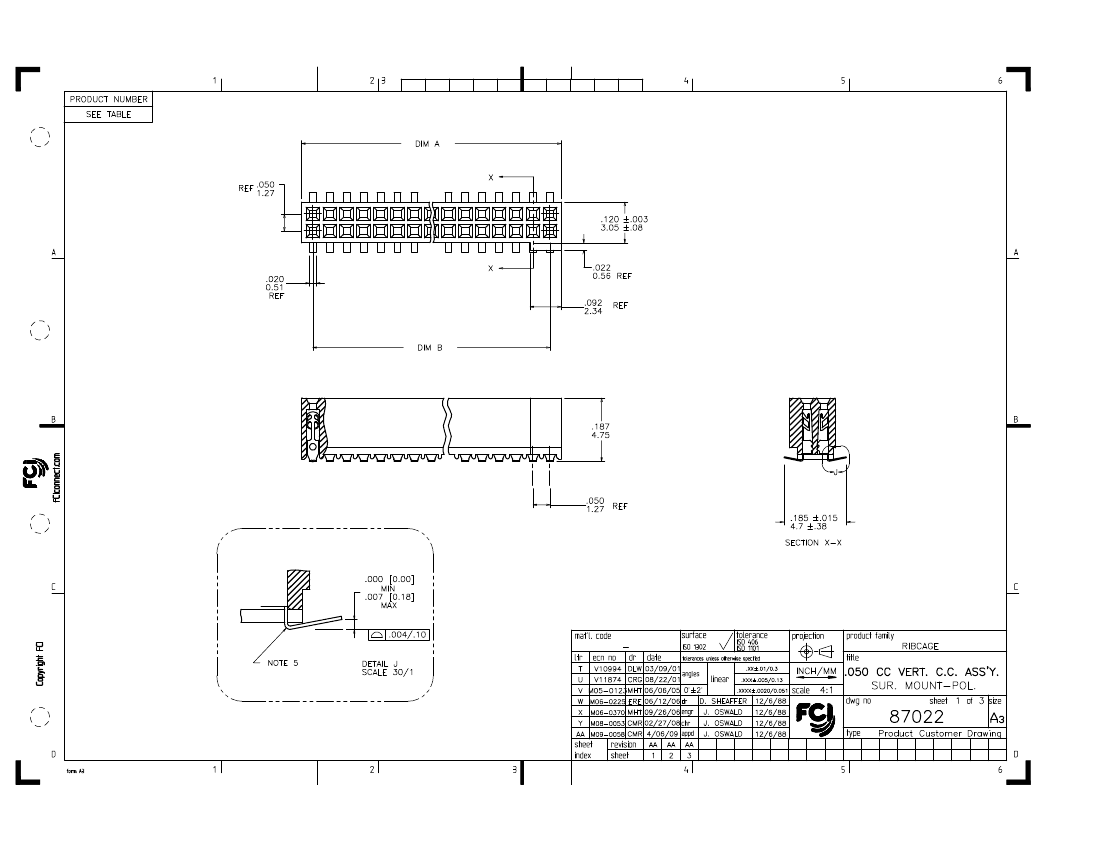

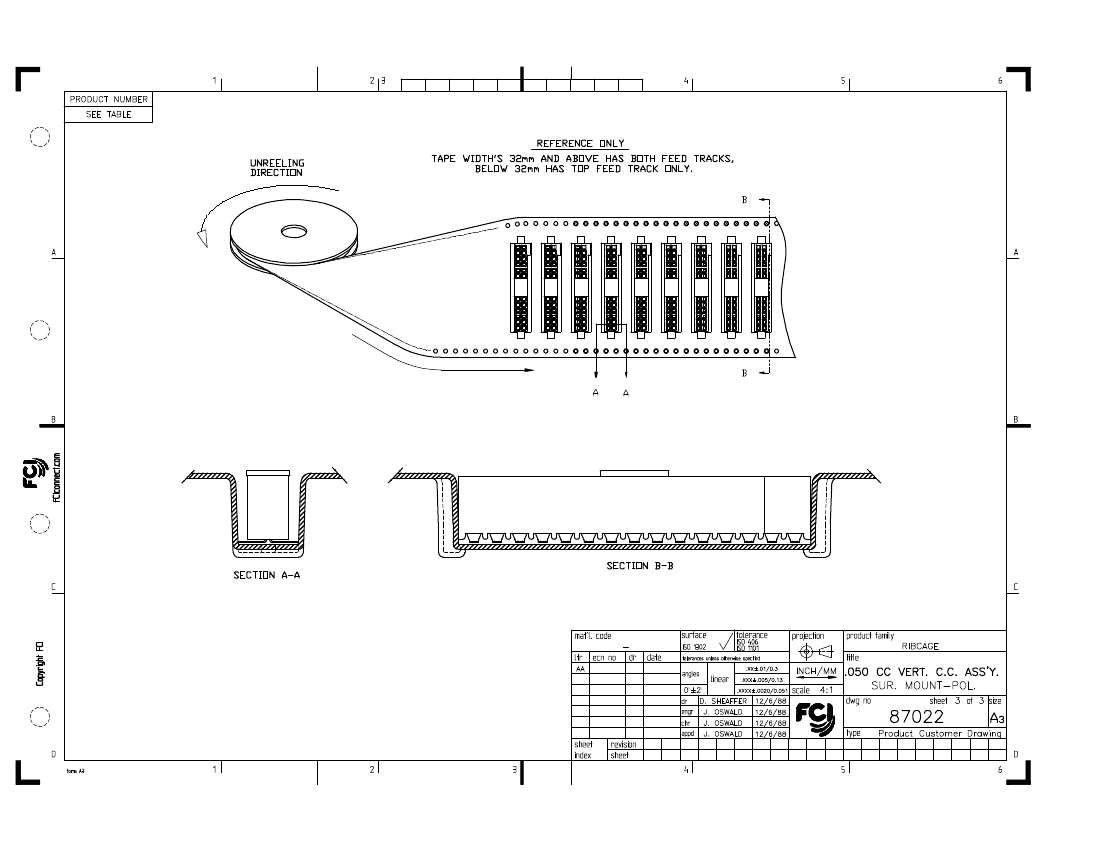

Preview

Download Datasheet

View All

PDM: Rev:AA

STATUS:

Released

Printed: Feb 20, 2010

87022-20LF Related Products

	87022-20LF	87022-25TRLF	87022-20TRLF	87022-25LF	87022-25TR	87022-20TR	87022-30TR	87022-40LF	87022-40TRLF
Description	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle,	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch
subject depth	0.187 inch	0.187 inch	0.187 inch	0.187 inch	0.187 inch	0.187 inch	0.187 inch	0.187 inch	0.187 inch
body length	1.016 inch	1.266 inch	1.016 inch	1.266 inch	1.266 inch	1.016 inch	1.516 inch	2.016 inch	2.016 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	1.529 N	1.529 N	1.529 N	1.529 N	1.529 N	1.529 N	1.529 N	1.529 N	1.529 N
Insulation resistance	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω	50000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C	130 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm	3.175 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	40	50	40	50	50	40	60	80	80
Evacuation force-minimum value	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N	.417 N
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	-	-	conform to	conform to
Objectid	307183009	307183014	-	307183012	-	307183010	307183016	307183021	307183023
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	EAR99	EAR99
YTEOL	9.4	9.4	-	9.4	-	9.4	9.4	-	-
