Part Number

Search

5-535677-7

Description
HEADER CONNECTOR,PCB MNT,PLUG,58 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK
CategoryThe connector    The connector

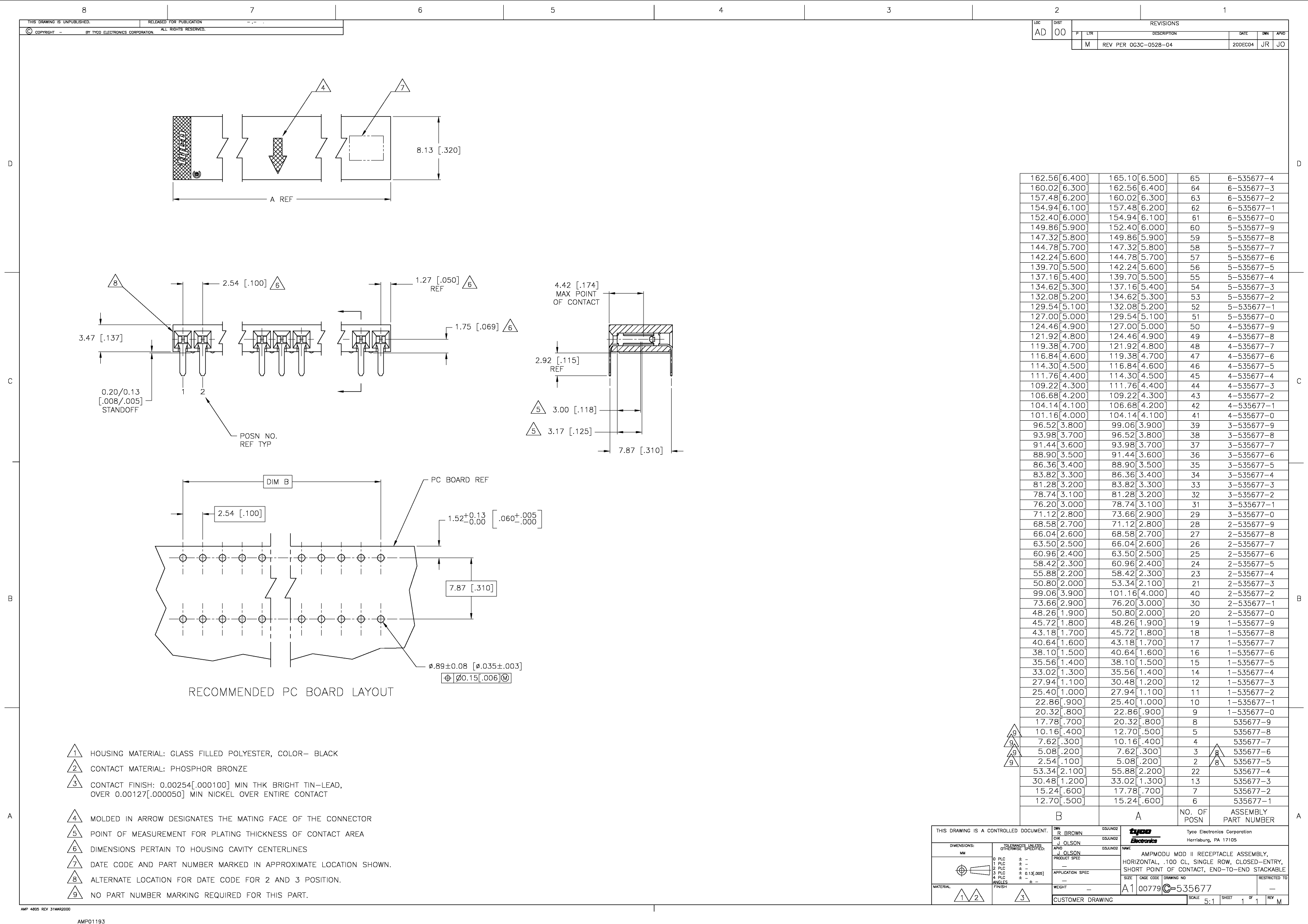

File Size101KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5-535677-7 Overview

HEADER CONNECTOR,PCB MNT,PLUG,58 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK

5-535677-7 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Other featuresWITH STANDOFF, CLOSED ENTRY
body width0.145 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage750VAC V
Durability75 Cycles
maximum insertion force2.224 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number535677
Plug contact pitch0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
PCB contact row spacing7.874 mm
Plating thickness100u inch
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.115 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts58
Evacuation force-minimum value.278 N
Base Number Matches1
