85407-127 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85407-127

85407-127: DescriptionTelecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size416KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

85407-127 Overview

Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle

85407-127 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LATCHED
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	85407
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE46
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1

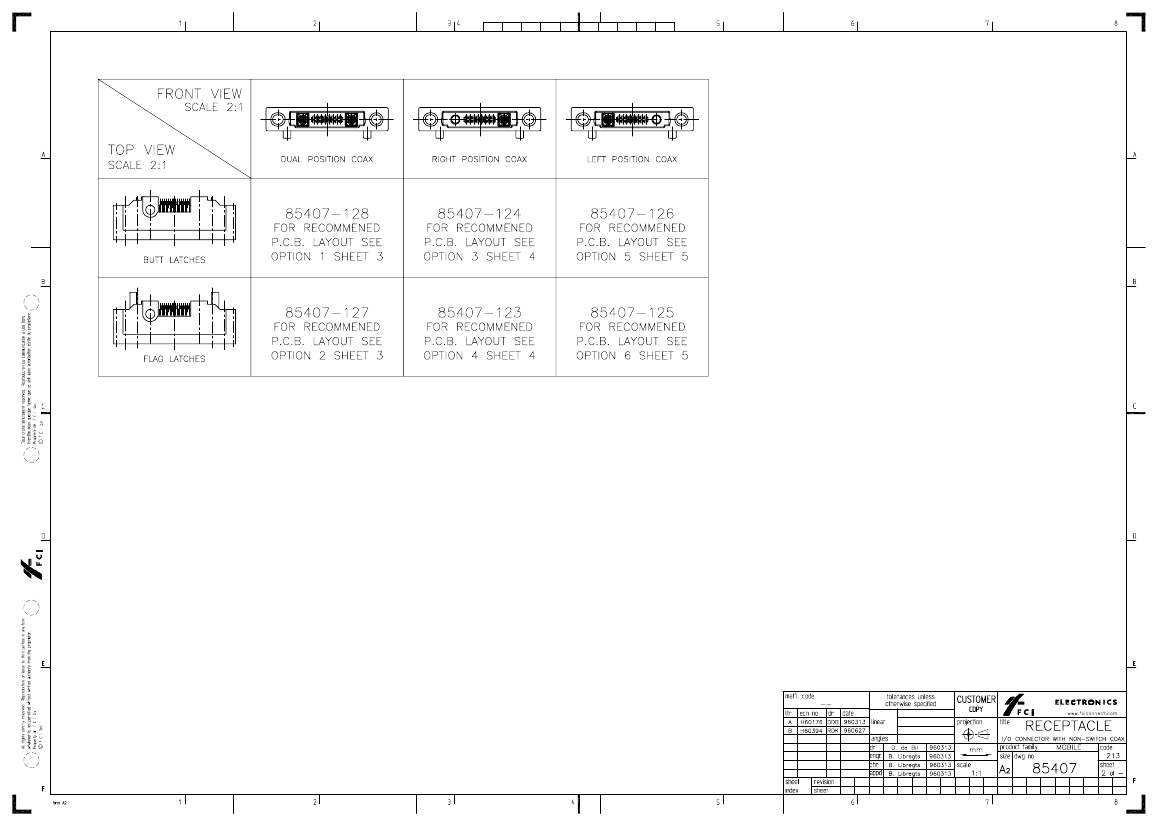

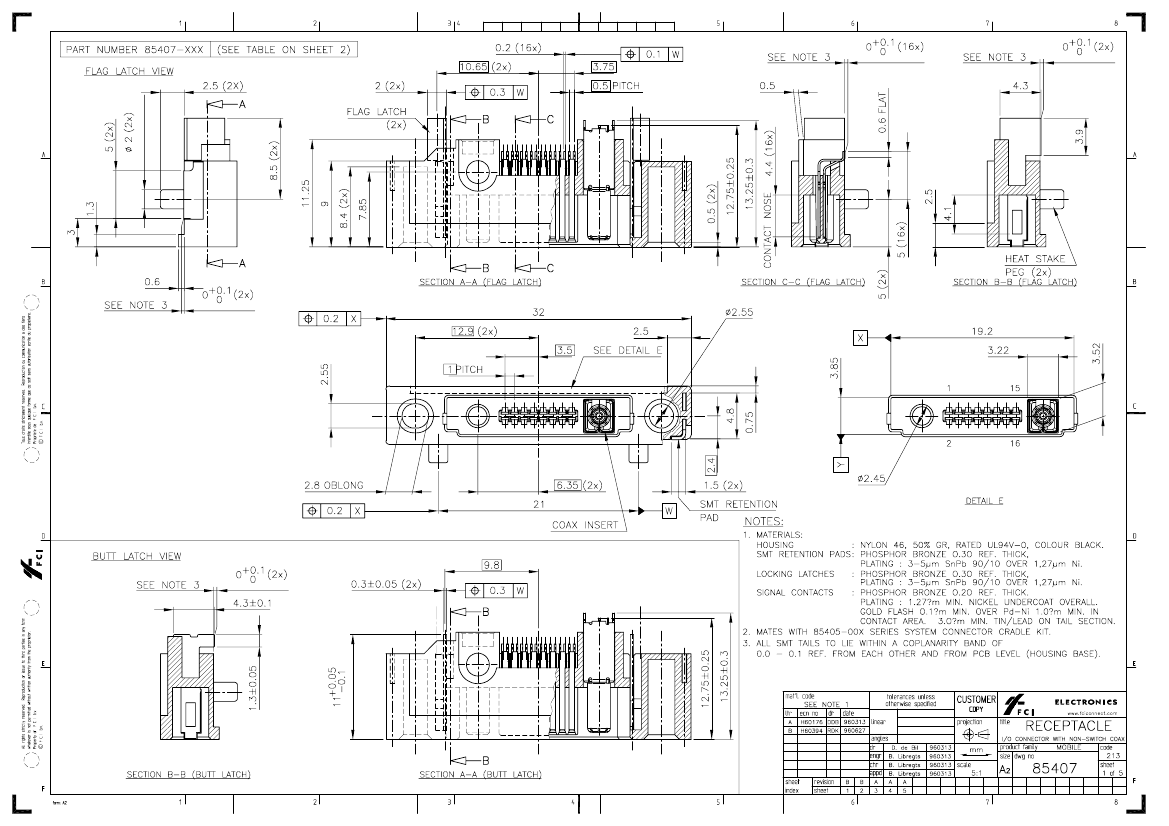

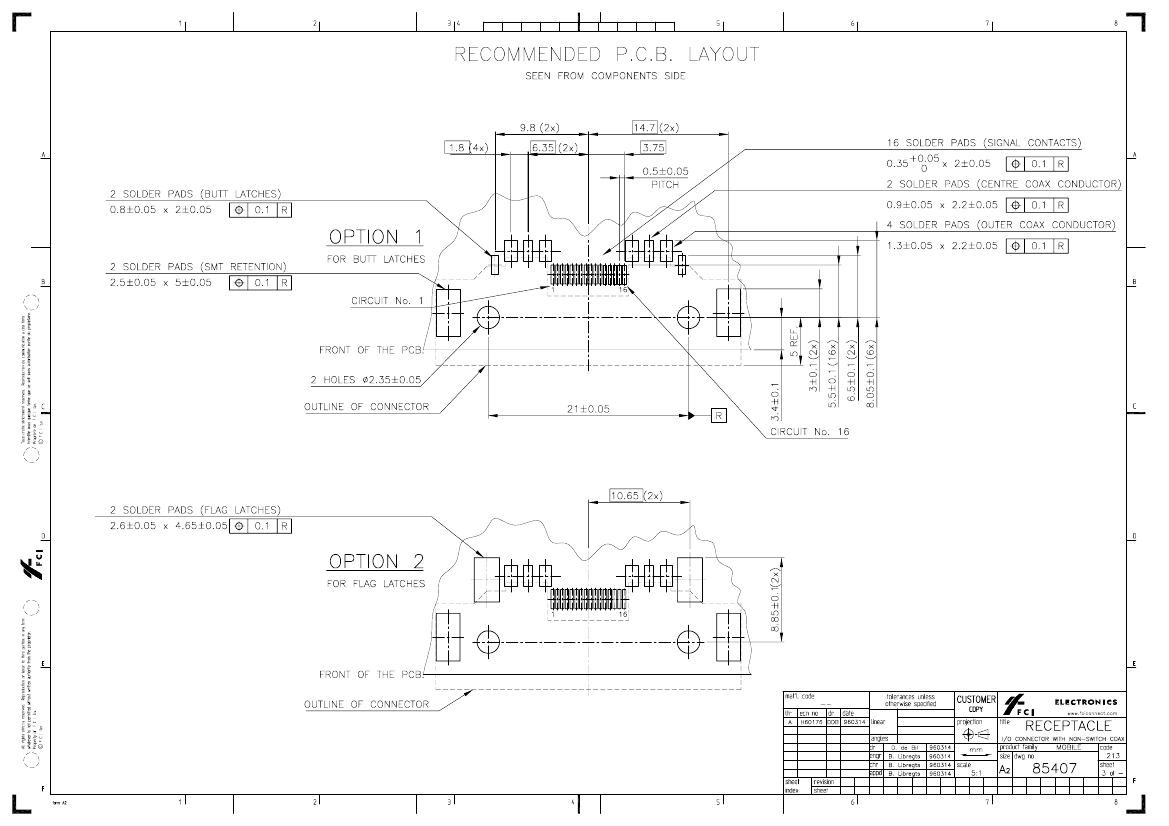

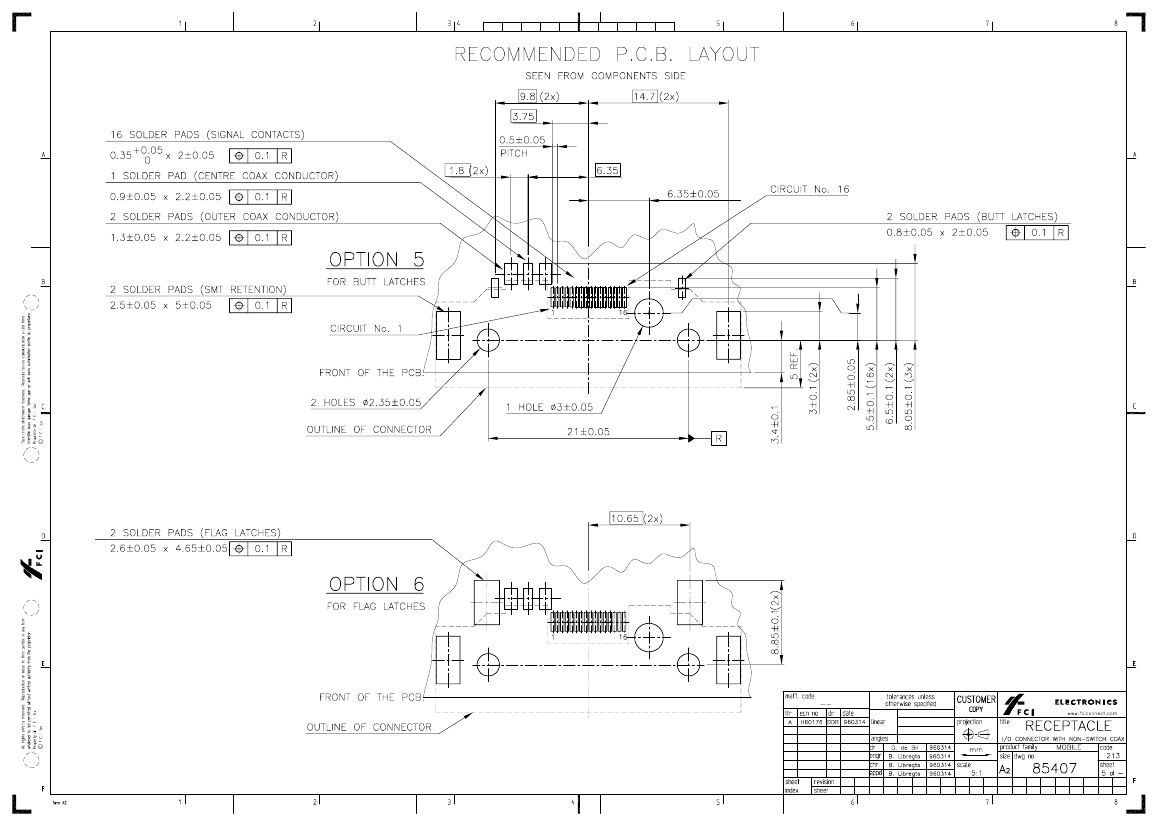

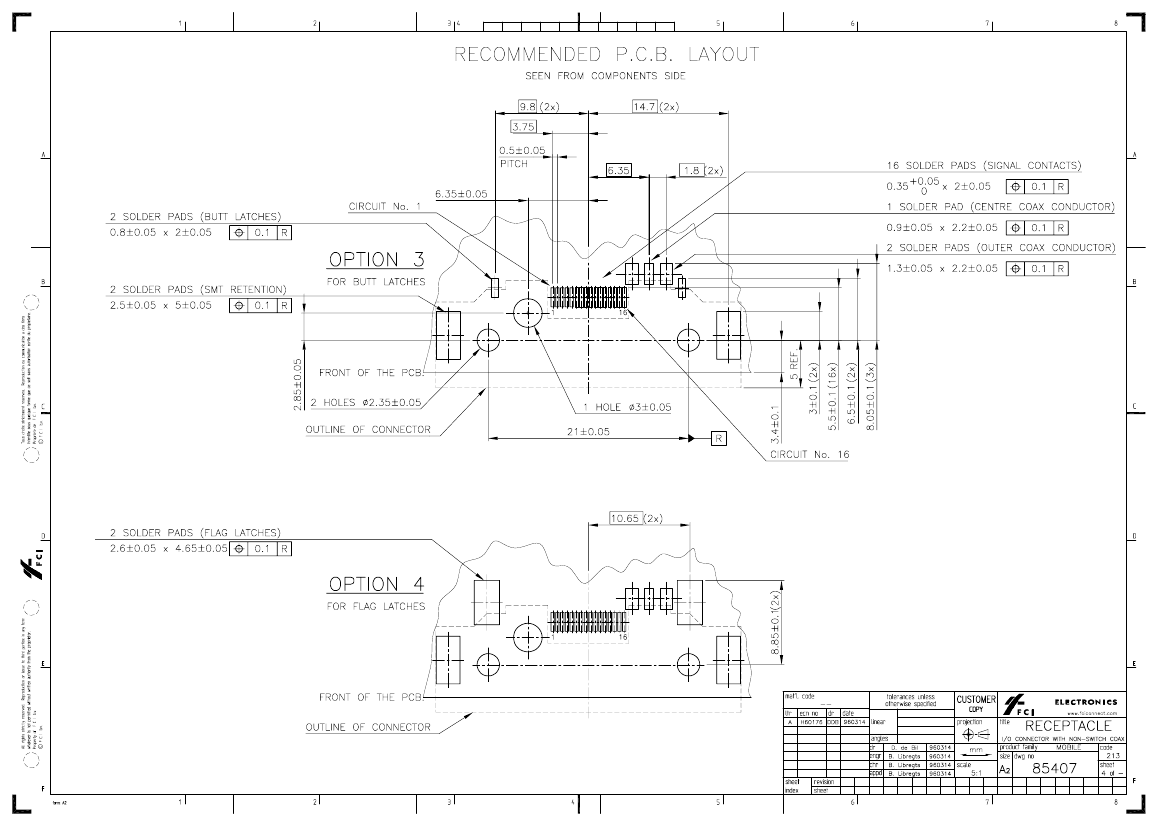

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Sep 29, 2009

85407-127 Related Products

	85407-127	85407-123	85407-124	85407-125	85407-126	85407-128
Description	Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 17 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle	Telecom and Datacom Connector, 18 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	85407	85407	85407	85407	85407	85407
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	17	17	17	17	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol
Base Number Matches	1	1	1	1	1	-
