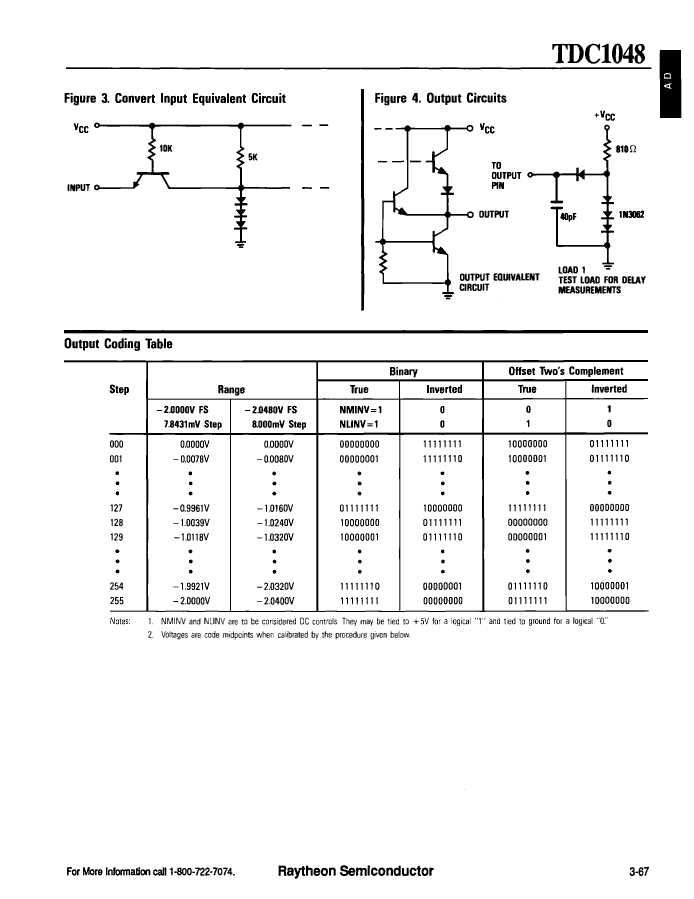

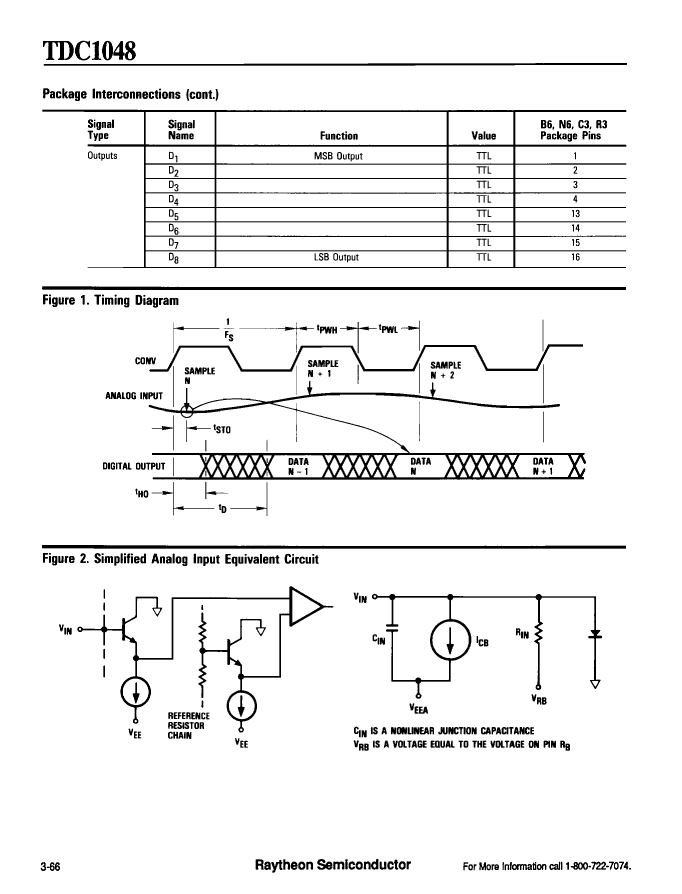

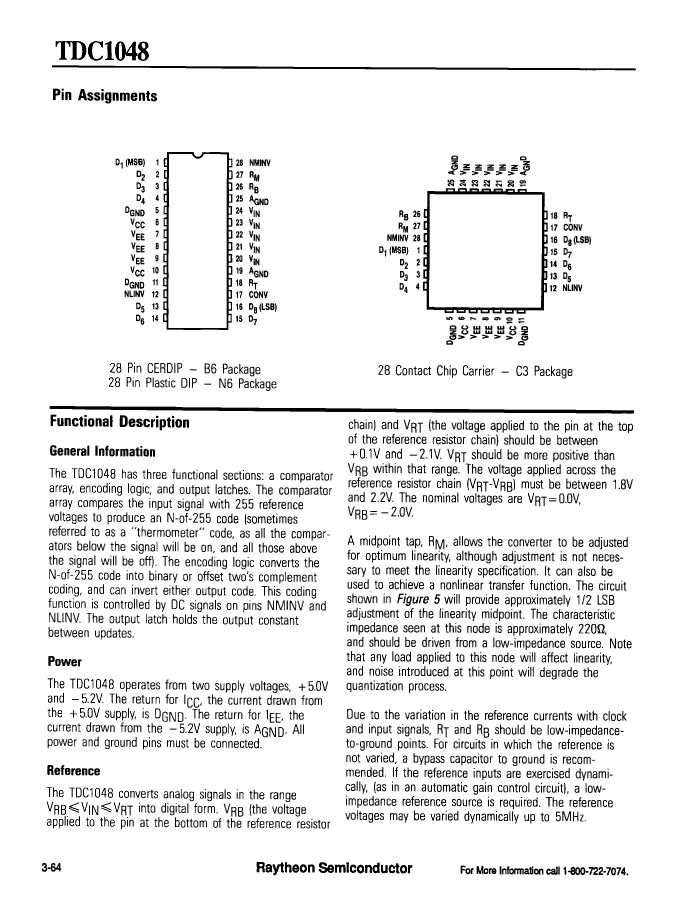

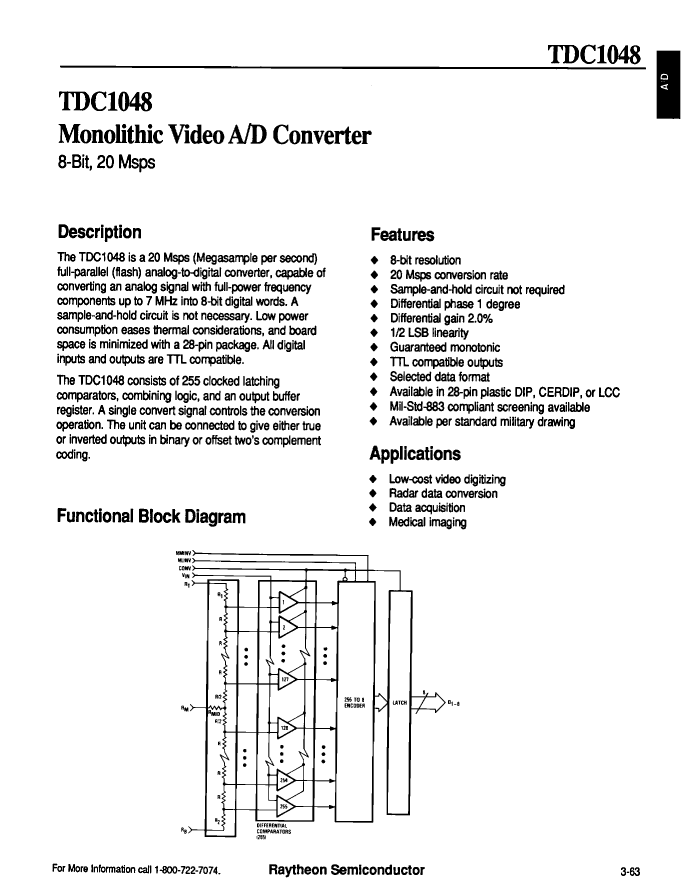

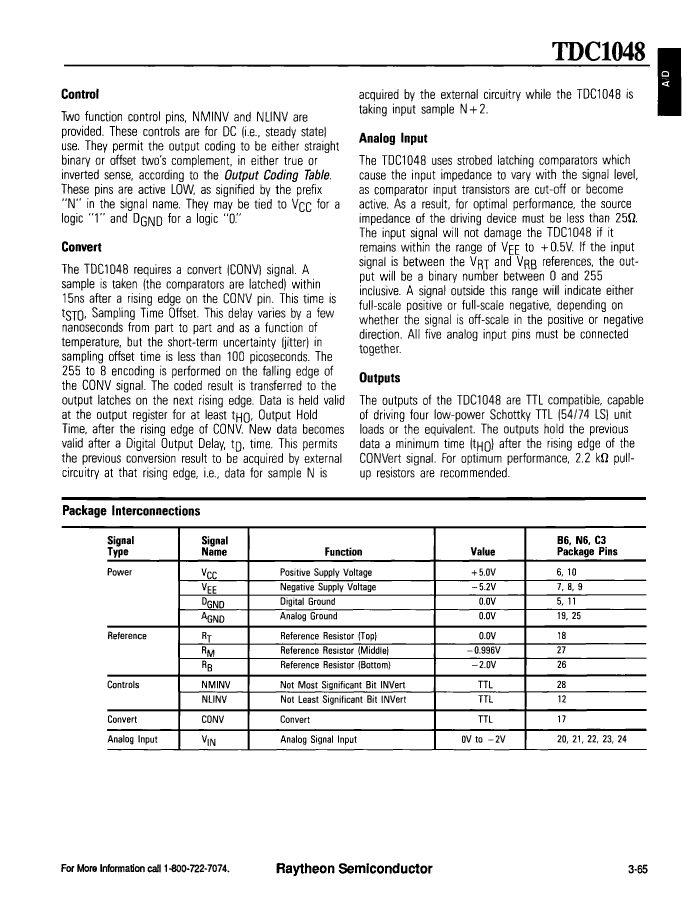

Preview

5962-87600013A: DescriptionADC, Flash Method, 8-Bit, 1 Func, Parallel, 8 Bits Access, CQCC28, LCC-28; CategoryAnalog mixed-signal IC converter; File Size300KB，10 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

5962-87600013A Overview

ADC, Flash Method, 8-Bit, 1 Func, Parallel, 8 Bits Access, CQCC28, LCC-28

5962-87600013A Parametric

Parameter Name	Attribute value
Maker	Raytheon Company
package instruction	LCC-28
Reach Compliance Code	unknown
Maximum analog input voltage
Minimum analog input voltage	-2 V
Converter type	ADC, FLASH METHOD
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
Maximum linear error (EL)	0.2%
Nominal negative supply voltage	-5.2 V
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Sampling rate	20 MHz
Maximum slew rate	320 mA
Nominal supply voltage	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

5962-87600013A Related Products

	5962-87600013A	5962-87600013X	5962-8760001XX	5962-8760001XA
Description	ADC, Flash Method, 8-Bit, 1 Func, Parallel, 8 Bits Access, CQCC28, LCC-28	ADC, Flash Method, 8-Bit, 1 Func, Parallel, 8 Bits Access, CQCC28,	ADC, Flash Method, 8-Bit, 1 Func, Parallel, 8 Bits Access, CDIP28,	ADC, Flash Method, 8-Bit, 1 Func, Parallel, 8 Bits Access, CDIP28, CERAMIC, DIP-28
Reach Compliance Code	unknown	unknown	unknown	unknown
Minimum analog input voltage	-2 V	-2 V	-2 V	-2 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	S-CQCC-N28	S-CQCC-N28	R-CDIP-T28	R-GDIP-T28
JESD-609 code	e0	e0	e0	e0
Maximum linear error (EL)	0.2%	0.2%	0.2%	0.2%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT	BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY 2\'S COMPLEMENT
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	20 MHz	20 MHz	20 MHz	20 MHz
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	QUAD	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1
