PQ40A datasheet, PDF - EEWORLD Datasheet

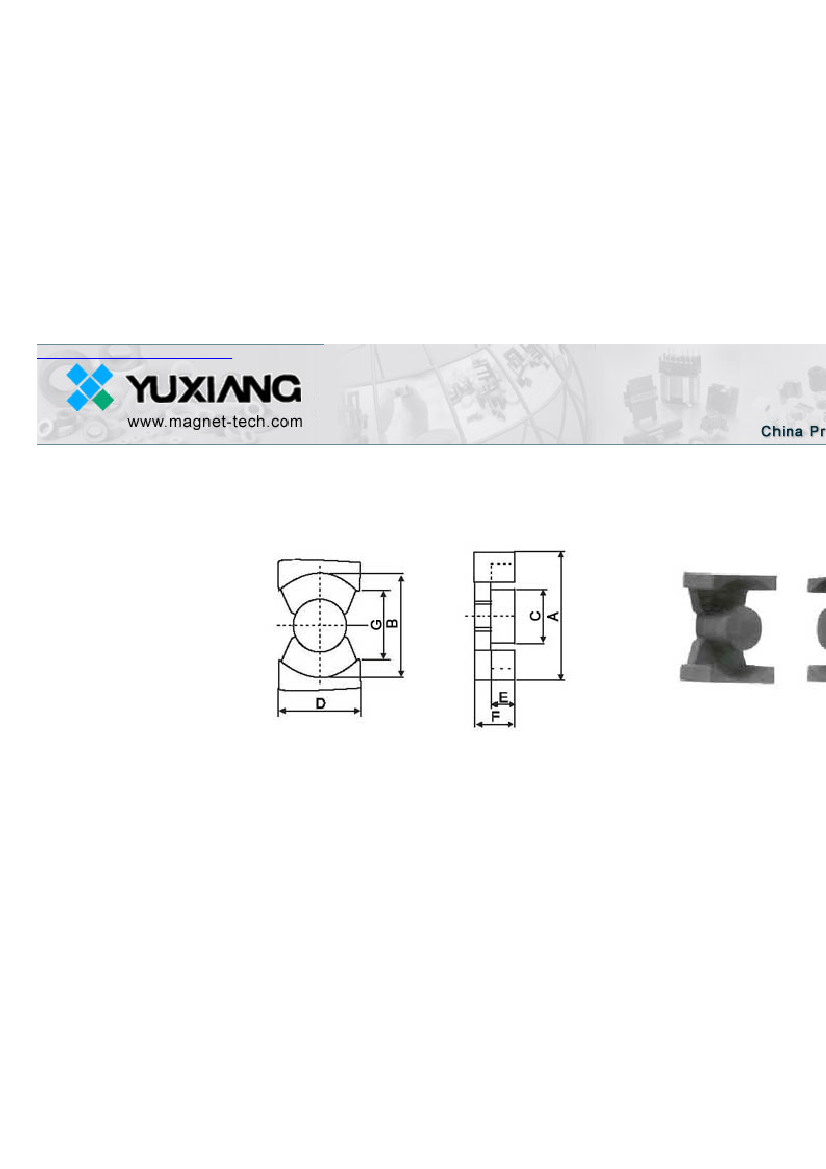

PQ40A: DescriptionPQ CORES; File Size48KB，3 Pages; ManufacturerYUXIANG; Websitehttp://www.magnet-tech.com/

Download Datasheet View All

PQ40A Overview

PQ CORES

PQ Cores,Core Ferrite Manufacturers,Mn-Zn Ferrite Cores,PQ Ferrite Core,Power MnZn ferrite core

China Professional Ferrite Core Supplier

PQ CORES

Introduce of PQ cores

PQ Ferrite Core, one kind of Mn-Zn Ferrite Cores, are designed especially for switched mode power supp

design provides an optimized ratio of volume to winding area and surface area. As a result, both maxim

inductance and winding area are possible with a minimum core size. The PQ cores thus provide maximu

output with a minimum assembled transformer weight and volume, in addition to taking up a minimum

of area on the printed circuit board. Assembly with printed circuit bobbins and one piece clamps is simp

This efficient design provides a more uniform cross-sectional area; thus Power MnZn ferrite core tends t

with fewer hot spots than with other designs.

Advantages of PQ Cores Assemblies

As one of specialty Core Ferrite Manufacturers, our PQ Cores posses special advantages as fllows,wide c

selection; unique one-piece clamp; minimal wire losses; heavy wire capability; multiple tap capability;

consistency and uniformity; compact packaging on PCB easy; low-cost assembly; 12, 14 pin bobbins; e

mounting, etc. Also we have high-tech manufacture than other Core Ferrite Manufacturers.
