AD5215TD

Description
IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter
CategoryAnalog mixed-signal IC    converter
File Size632KB，6 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

AD5215TD Overview

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter

AD5215TD Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
Parts packaging codeDIP
package instructionHERMETIC SEALED, CERAMIC, DIP-24
Contacts24
Reach Compliance Codeunknown
ECCN code3A001.A.2.C
Maximum analog input voltage10 V
Minimum analog input voltage-10 V
Maximum conversion time13 µs
Converter typeADC, SUCCESSIVE APPROXIMATION
JESD-30 codeR-CDIP-T24
JESD-609 codee0
Maximum linear error (EL)0.0122%
Nominal negative supply voltage-15 V
Number of analog input channels1
Number of digits12
Number of functions1
Number of terminals24
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output bit codeBINARY
Output formatSERIAL, PARALLEL, WORD
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP24,.6
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5,+-15 V
Certification statusNot Qualified
Sample and hold/Track and holdSAMPLE
Nominal supply voltage15 V
surface mountNO
technologyHYBRID
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

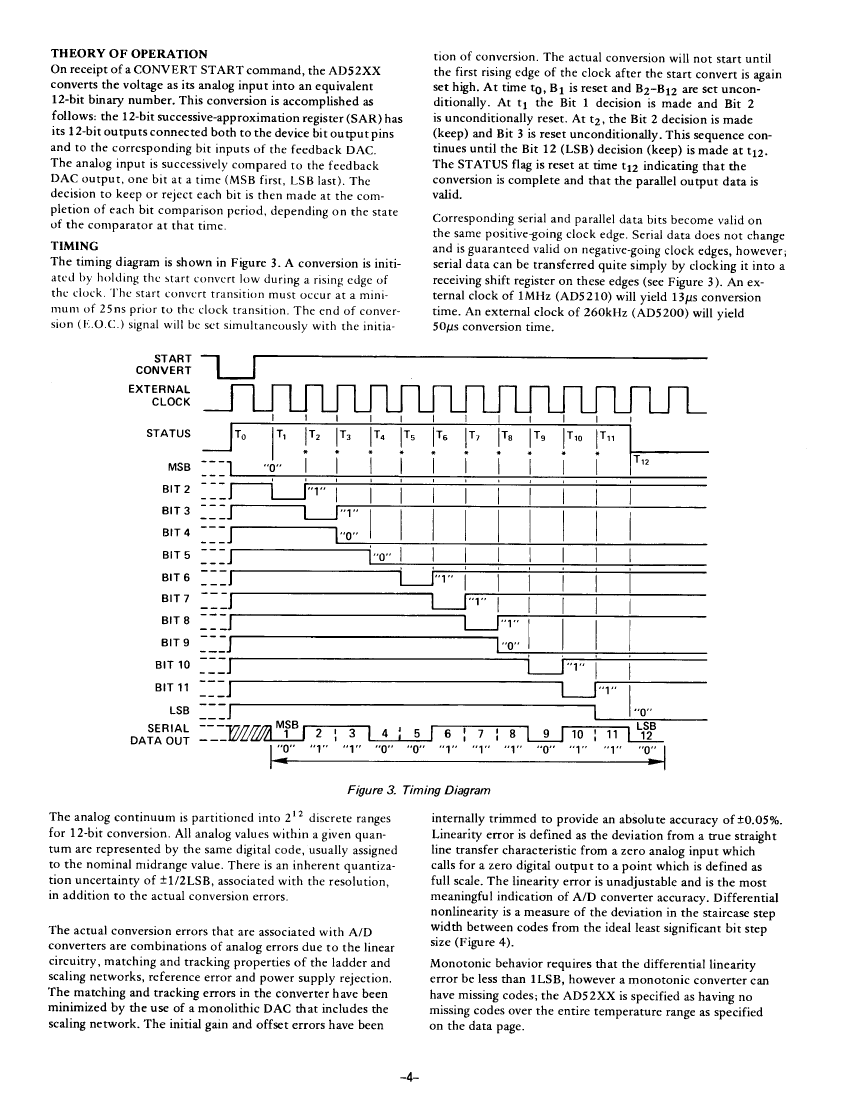

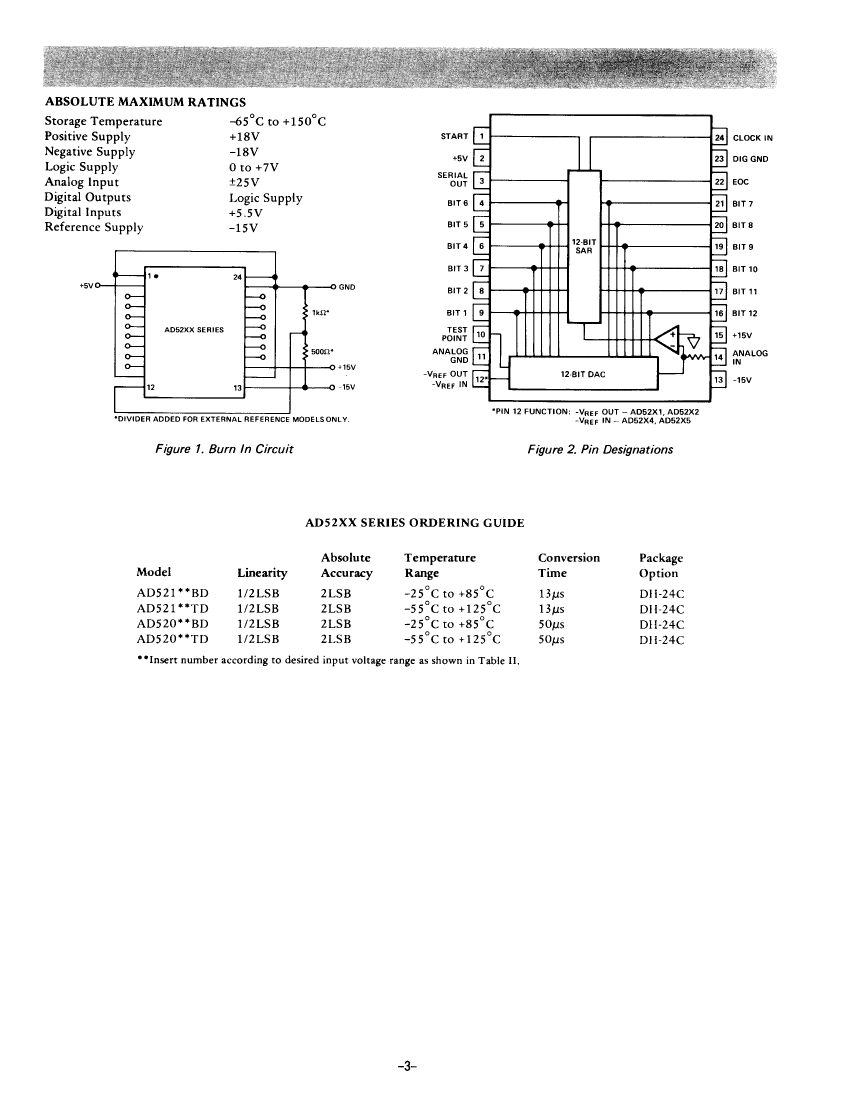

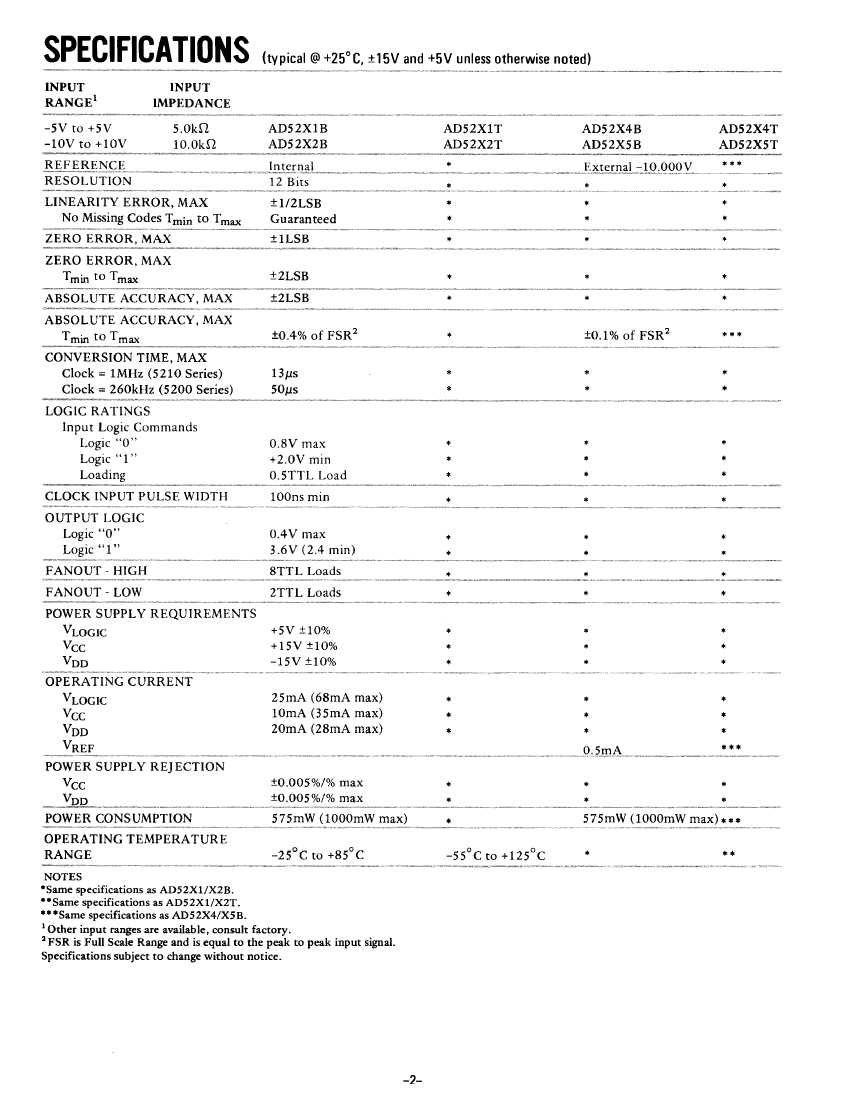

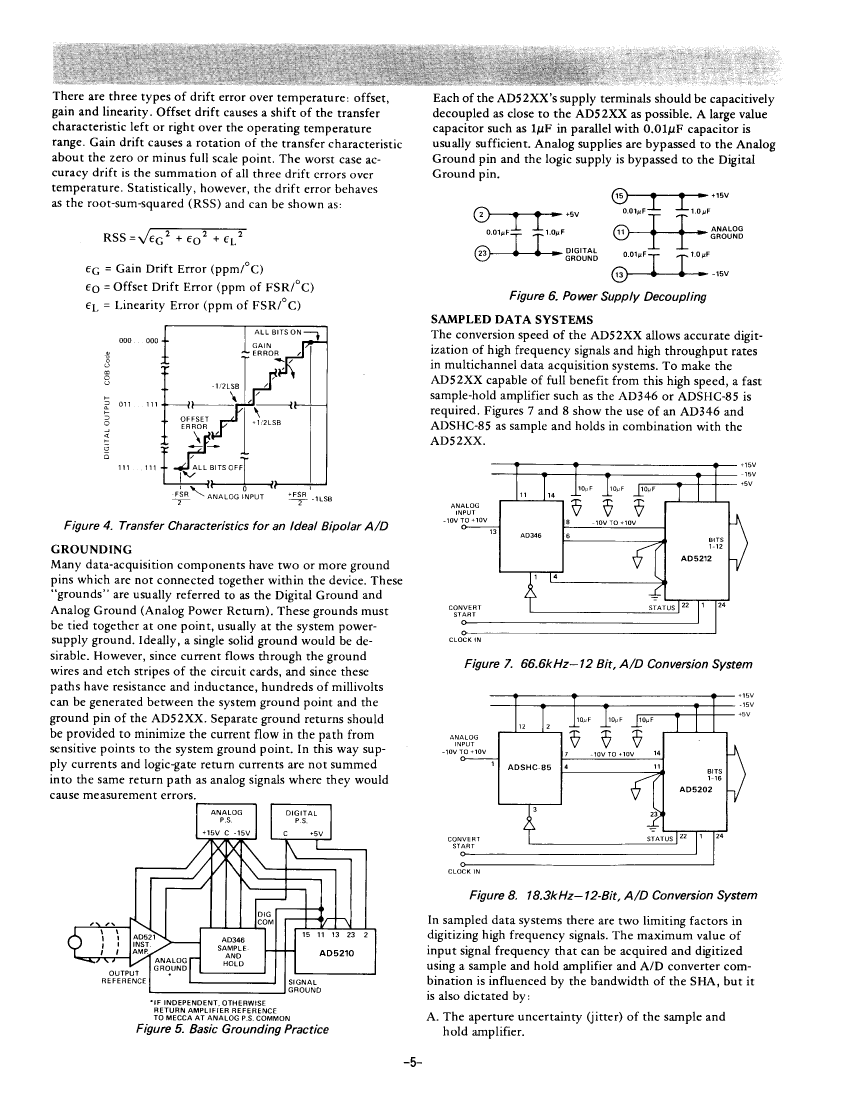

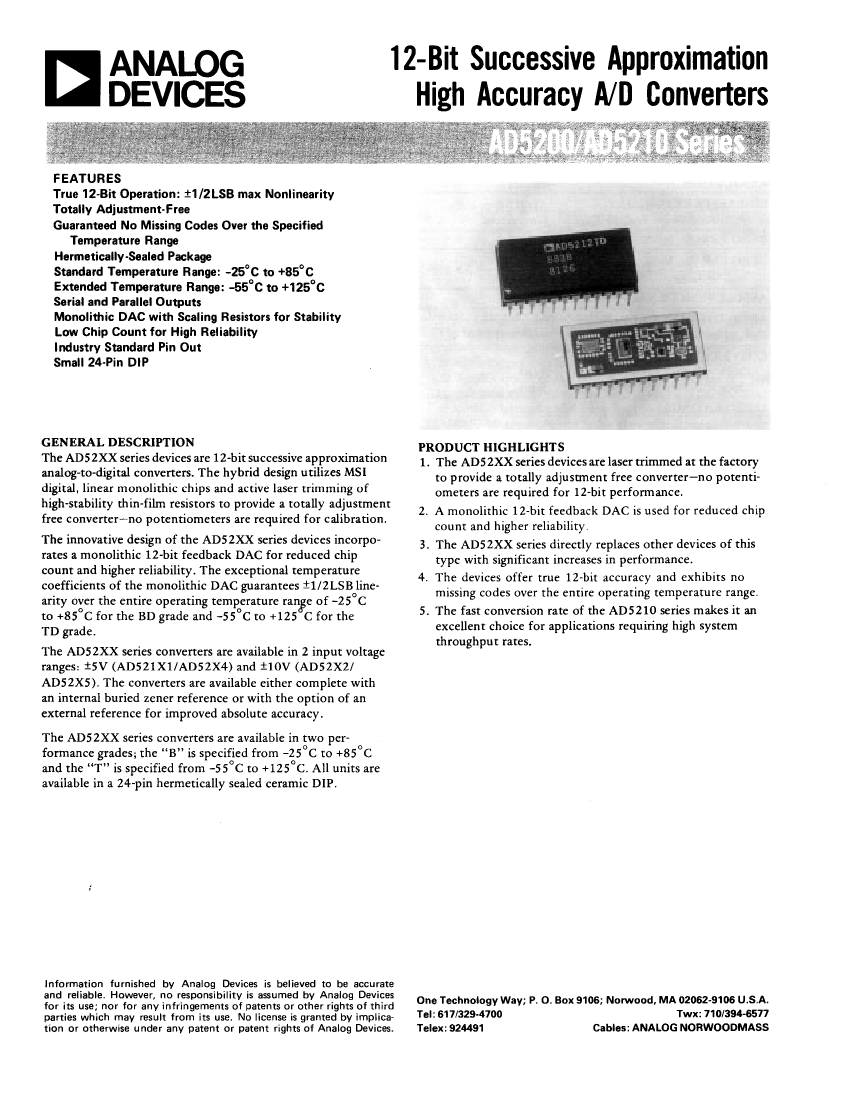

Preview

Download Datasheet

AD5215TD Related Products

AD5215TD AD5201BD AD5211BD AD5215BD AD5202BD AD5204BD AD5205BD AD5214BD
Description IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24, Analog to Digital Converter
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Parts packaging code DIP DIP DIP DIP DIP DIP DIP DIP
package instruction HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24 HERMETIC SEALED, CERAMIC, DIP-24
Contacts 24 24 24 24 24 24 24 24
Reach Compliance Code unknown unknown not_compliant unknown unknown unknown unknown unknown
ECCN code 3A001.A.2.C EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum analog input voltage 10 V 5 V 5 V 10 V 10 V 5 V 10 V 5 V
Minimum analog input voltage -10 V -5 V -5 V -10 V -10 V -5 V -10 V -5 V
Maximum conversion time 13 µs 50 µs 13 µs 13 µs 50 µs 50 µs 50 µs 13 µs
Converter type ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION ADC, SUCCESSIVE APPROXIMATION
JESD-30 code R-CDIP-T24 R-CDIP-T24 R-CDIP-T24 R-CDIP-T24 R-CDIP-T24 R-CDIP-T24 R-CDIP-T24 R-CDIP-T24
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0
Maximum linear error (EL) 0.0122% 0.0122% 0.0122% 0.0122% 0.0122% 0.0122% 0.0122% 0.0122%
Nominal negative supply voltage -15 V -15 V -15 V -15 V -15 V -15 V -15 V -15 V
Number of analog input channels 1 1 1 1 1 1 1 1
Number of digits 12 12 12 12 12 12 12 12
Number of functions 1 1 1 1 1 1 1 1
Number of terminals 24 24 24 24 24 24 24 24
Maximum operating temperature 125 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Output bit code BINARY BINARY BINARY BINARY BINARY BINARY BINARY BINARY
Output format SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD SERIAL, PARALLEL, WORD
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP DIP DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6 DIP24,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5,+-15 V 5,+-15 V 5,+-15 V 5,+-15 V 5,+-15 V 5,+-15 V 5,+-15 V 5,+-15 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Sample and hold/Track and hold SAMPLE SAMPLE SAMPLE SAMPLE SAMPLE SAMPLE SAMPLE SAMPLE
Nominal supply voltage 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V
surface mount NO NO NO NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level MILITARY OTHER OTHER OTHER OTHER OTHER OTHER OTHER
Terminal surface TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maker ADI ADI - ADI ADI ADI ADI ADI
