PS0908
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

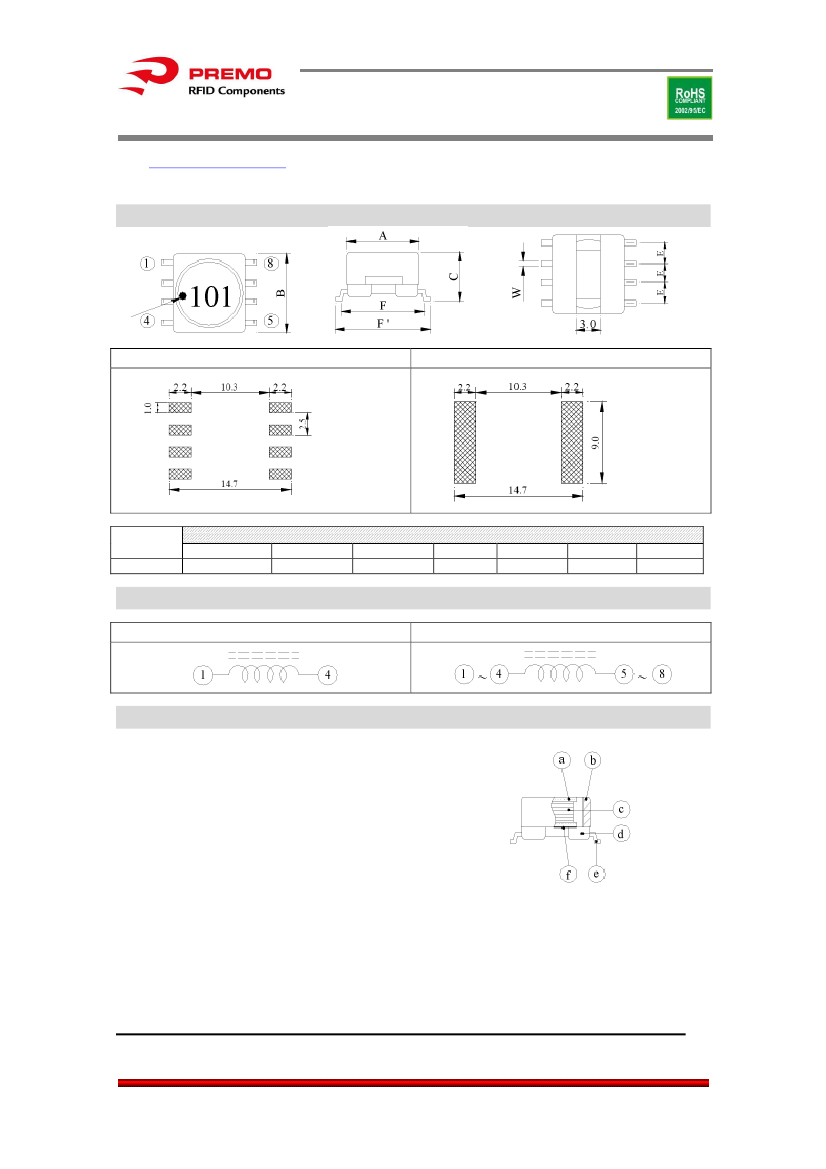

1. Configuration & Dimensions
PS0908 – 101L
~
153L
PS0908 – 1R5M
~
820M
(PCB Pattern)
(PCB Pattern)
Series
PS0908
Dimensions [mm]
A
9.5±0.3
B(max.)
10.5
C
7.5±0.3
E
2.5±0.3
F
11.5±0.5
F’
12.7±0.8
W(typ.)
0.6
2. Schematic Diagram
PS0908 – 101L
~
153L
PS0908 – 1R5M
~
820M
3. Materials
a.- Core : Ferrite DR core
b.- Core : Ferrite RI core
c.- Wire : Enamelled copper wire (class F)
d.- Base : LCP
e.- Terminal : Cu / Ni / Sn
f.- Adhesive : Epoxy resin
g.- Remark : Lead content 200ppm max. include ferrite
1
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0908
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

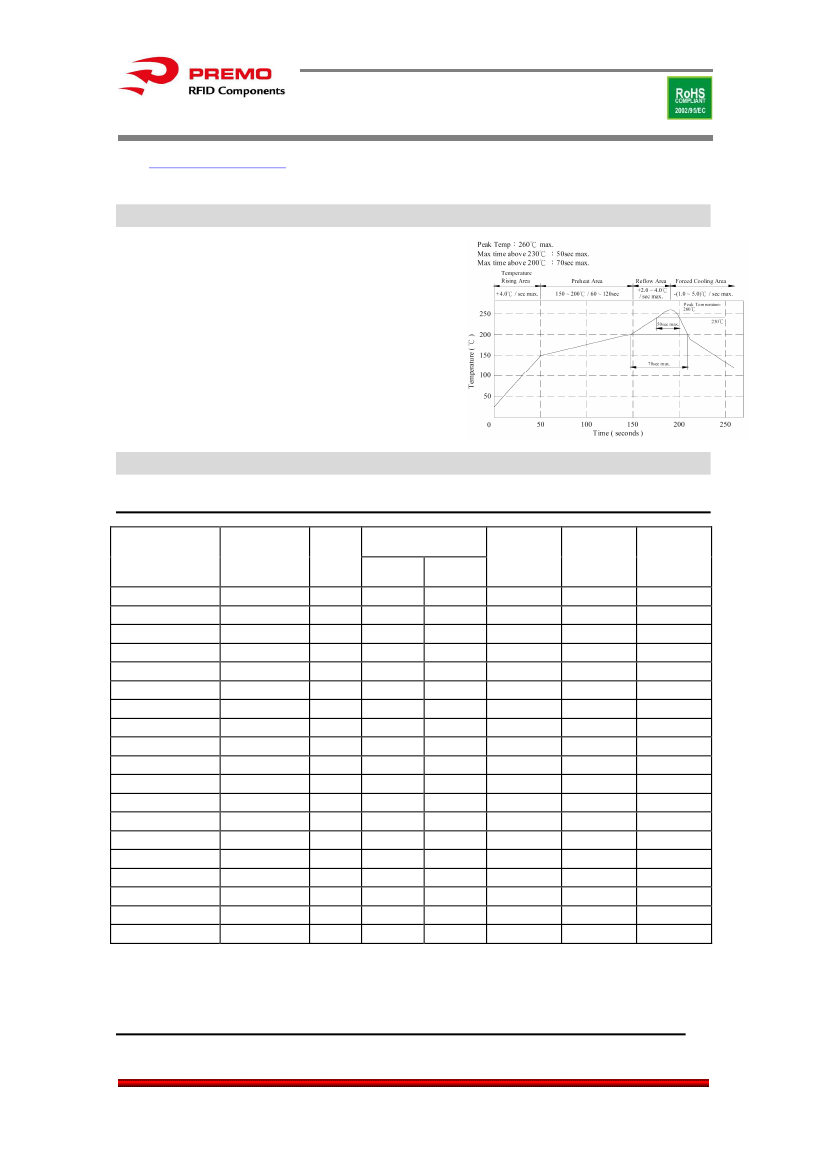

4. General Specification
a.- Temp. rise : 40ºC max.
b.- Rated current : Base on temp. rise &
∆L/L0A
= 10% max.
c.- Storage temp. : -40ºC ~ +125ºC
d.- Operating temp. : -40ºC ~ +105ºC
e.- Resistance to solder heat : 260ºC. 10 secs
5. Electrical Characteristics
PS0908
PS0908
(1.5µH – 15000µH)
Test Freq.
DWG No.
Inductance
(µH)
µ
1.5±20%
2.7±20%
3.9±20%
5.6±20%
7.5±20%
10.0±20%
12.0±20%
15.0±20%
18.0±20%
22.0±20%
27.0±20%
33.0±20%
39.0±20%
47.0±20%
56.0±20%
68.0±20%
82.0±20%
100.0±15%
120.0±15%
Q
nom.
20
20
20
18
18
33
40
45
40
35
45
40
45
40
35
30
30
40
42
L
(KHz)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Q
(MHz)
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
SRF
(MHz)
nom.
65.00
50.00
35.00
25.00
15.00
11.00
11.00
8.50
8.50
6.00
6.00
5.00
5.00
4.00
3.00
2.50
2.40
6.00
5.70
RDC
(Ω)
Ω
max.
0.014
0.019
0.021
0.027
0.032
0.040
0.050
0.065
0.075
0.080
0.090
0.100
0.135
0.150
0.165
0.184
0.260
0.280
0.340
IDC
(mA)
max.
5600
4800
4400
3800
3400
3000
2500
2200
2000
1900
1800
1700
1500
1400
1350
1250
1050
1000
900
PS0908 – 1R5M
PS0908 – 2R7M
PS0908 – 3R9M
PS0908 – 5R6M
PS0908 – 7R5M
PS0908 – 100M
PS0908 – 120M
PS0908 – 150M
PS0908 – 180M
PS0908 – 220M
PS0908 – 270M
PS0908 – 330M
PS0908 – 390M
PS0908 – 470M
PS0908 – 560M
PS0908 – 680M
PS0908 – 820M
PS0908 – 101L
PS0908 – 121L
2
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0908
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PS0908
PS0908
(1.5µH – 15000µH)
PS0908 – 151L
PS0908 – 181L
PS0908 – 221L
PS0908 – 271L
PS0908 – 331L
PS0908 – 391L
PS0908 – 471L
PS0908 – 561L
PS0908 – 681L
PS0908 – 821L
PS0908 – 102L
PS0908 – 152L
PS0908 – 222L
PS0908 – 332L
PS0908 – 472L
PS0908 – 682L
PS0908 – 822L
PS0908 – 103L
PS0908 – 153L
150.0±15%
180.0±15%
220.0±15%
270.0±15%
330.0±15%
390.0±15%
470.0±15%
560.0±15%
680.0±15%
820.0±15%
1000.0±15%
1500.0±15%
2200.0±15%
3300.0±15%
4700.0±15%
6800.0±15%
8200.0±15%
10000.0±15%
15000.0±15%
45
35
35
30
30
33
30
35
30
35
85
120
95
95
90
90
85
110
130
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.0796
0.0796
4.60
4.20
3.80
3.40
3.00
2.60
2.30
2.20
2.00
1.90
1.80
1.30
1.00
0.90
0.80
0.60
0.50
0.50
0.40
0.450
0.500
0.600
0.700
0.800
1.000
1.150
1.500
1.700
2.200
2.500
4.000
5.000
8.000
12.000
16.500
24.000
26.000
40.000
800
700
650
600
550
500
450
380
350
320
300
250
200
150
120
100
97
95
75

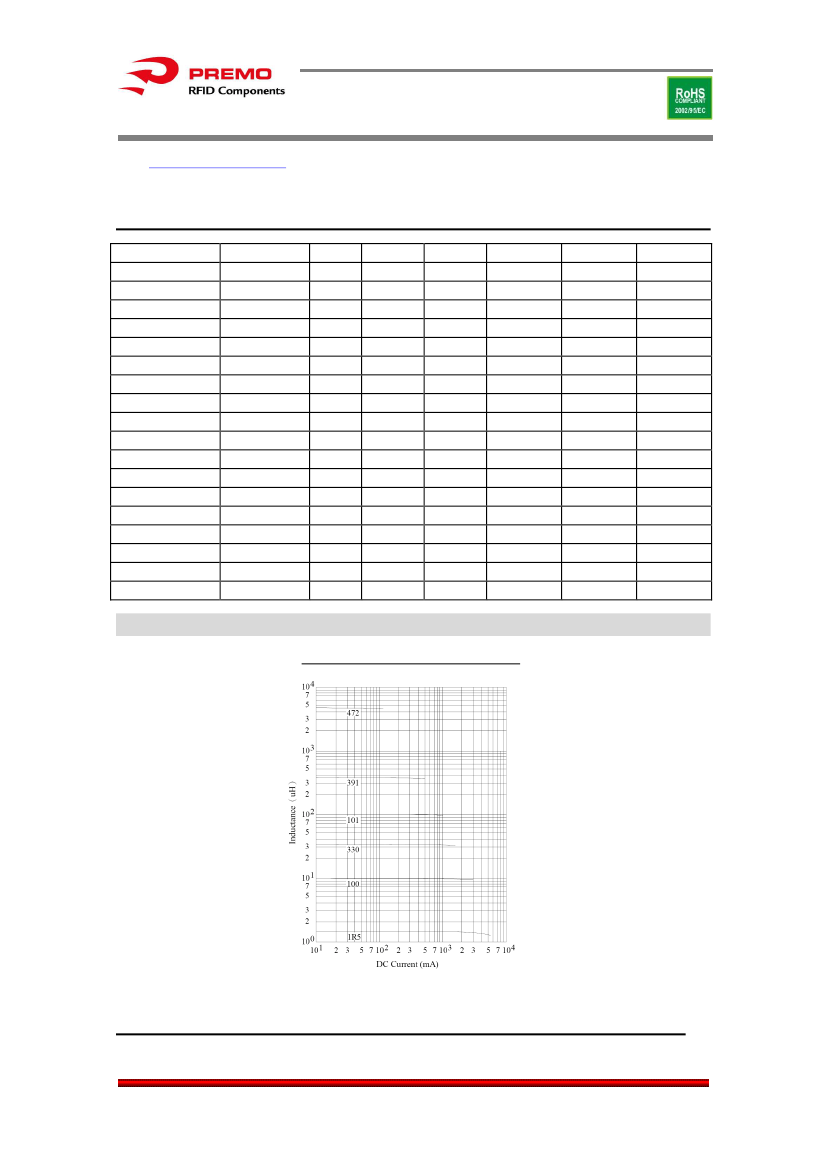

6. Curve
Inductance VS. DC Current Curve
PS0908
3
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0908
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

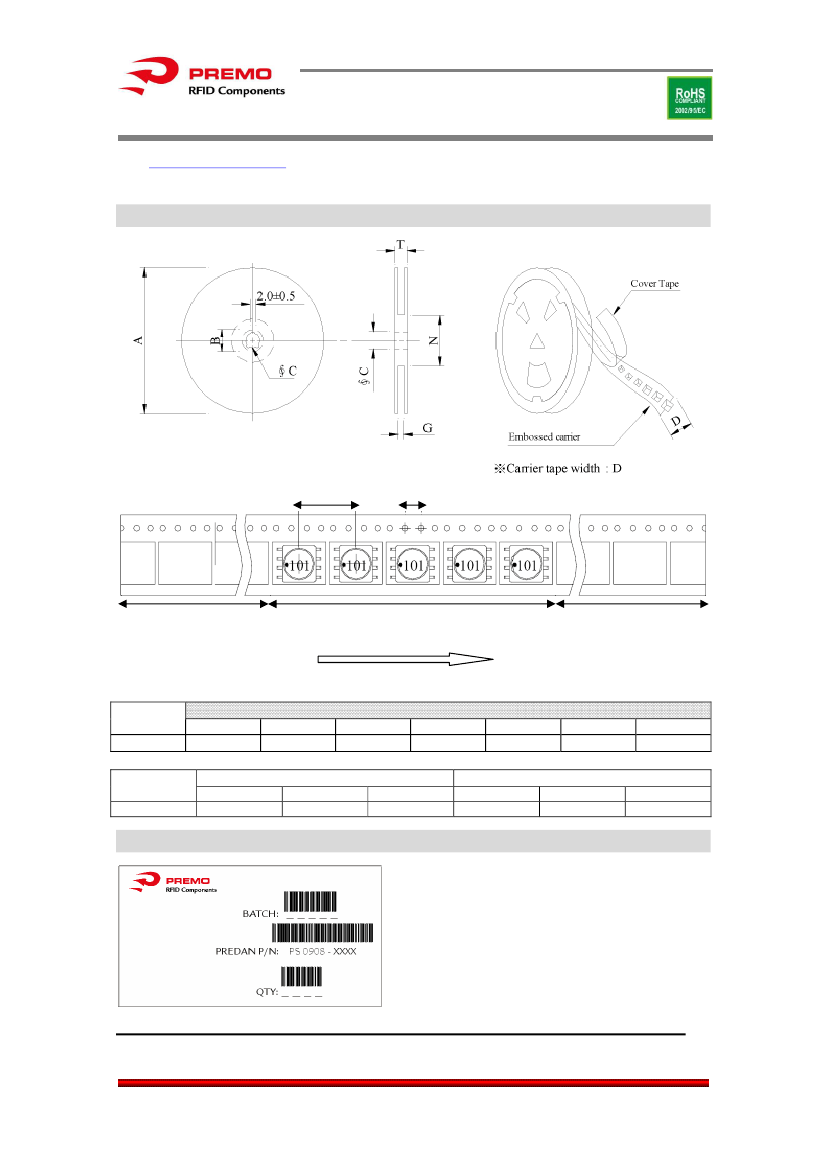

7. Packaging Information
P: 16mm
End
4mm
Start
Leader
no component
200 mm min.
Components
Trailer
no component
400 mm min.
User direction of feed
Style
13 – 24
Dimensions [mm]
A
330
B
21±0.8
C
13
D
24
G
26
+0
N
50
-0
T
30.4
Series
PS0908
Inner : Reel
Q’TY(pcs)
400
G.W.(gw)
1,600
Style
13 – 24
Q’TY(pcs)
1,600
Outer : Carton
G.W.(Kg)
8.6
Size(cm)
40 x 40 x 24
8. Labelling
4
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
PS0908
SMD Power Inductors Shielded
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
9. Reliability Test
Test item
Specification
More than 90% of the
terminal electrode
shall be covered
with fresh solder
Test condition
Preheat : 150±25% for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5ºC
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
(Temp. cycle)
Inductance shall
not change more
than ±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-25±2ºC
30 minutes
85±2ºC
30 minutes
Humidity
Resistance test
Temperature : 40±2ºC
Humidity : 90 ~ 95%
Applied current : Per specifications
Time : 500 hours
High temp.
Resistance test
Temperature : 105±2ºC
Applied current : Per specifications
Time : 500 hours
10. Edition Control
Edition
1
st
Date
31/08/06
Change description
Update Specification
Made by
Pablo Pozo
5
