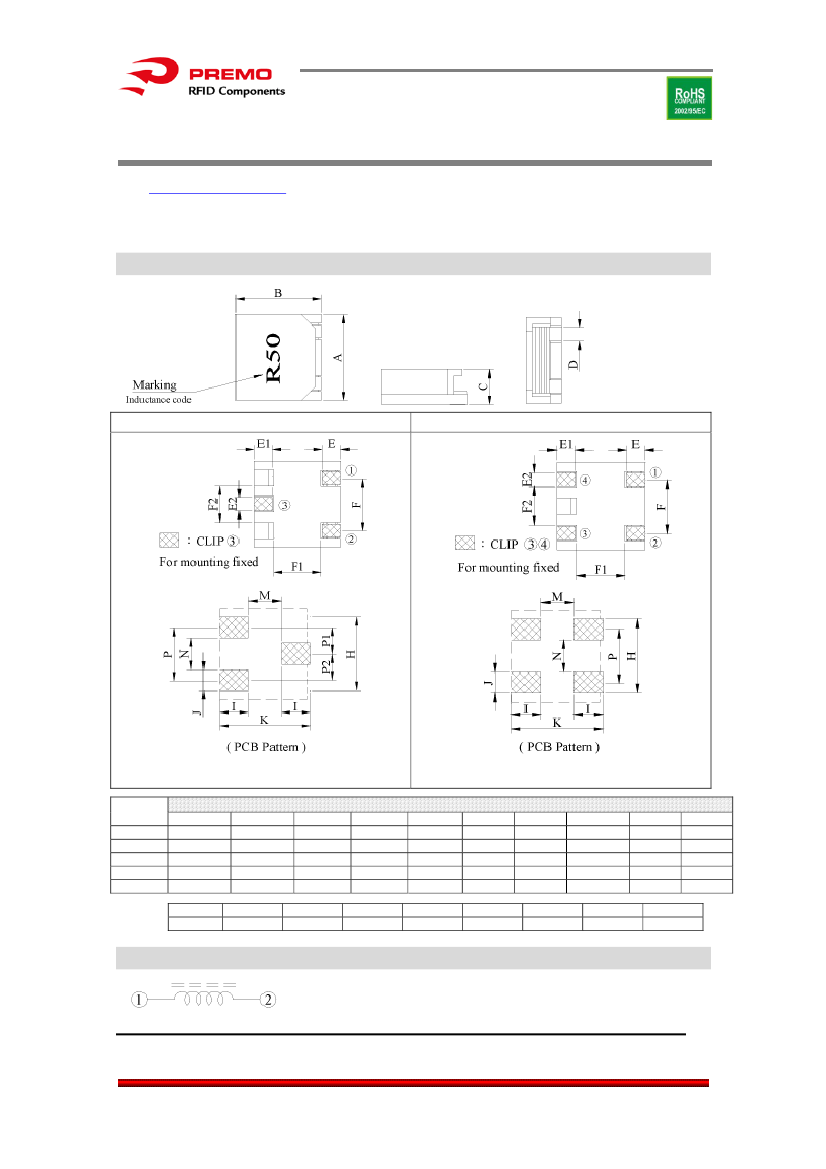

1. Configuration & Dimensions
PS1204, PS1205B, PS1206B
PS1205A, PS1206
Series
PS1204
PS1205A
PS1205B
PS1206
PS1206B
Dimensions [mm]
A
12.50±0.3
12.50±0.3
12.50±0.3
12.50±0.3
12.50±0.3
H(ref.)
10.50
B
12.50±0.3
12.50±0.3
12.50±0.3
12.50±0.3
12.50±0.3
I(ref.)
4.15
C
4.00±0.3
5.00±0.3
5.00±0.3
5.70±0.3
5.70±0.3
J(ref.)
3.00
D
1.90±0.2
1.90±0.2
1.90±0.2
1.90±0.2
1.90±0.2
K(ref.)
13.00
E(nom.)
2.50
2.50
2.50
2.50
2.50
M(ref.)
4.70
E1(ref.)
3.00
3.00
3.00
2.00
2.00
N(ref.)
4.50
E2(ref.)
2.00
2.00
2.00
2.00
2.00
P(ref.)
7.50
F
7.50±0.25
7.50±0.25
7.50±0.25
7.50±0.25
7.50±0.25
P1(ref.)
3.75
F1(ref.)
6.40
6.40
6.40
6.40
6.40
F2(ref.)
5.20
5.20
5.20
5.20
5.20
P2(ref.)
3.75
2. Schematic Diagram
1
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
SMD Power Inductors Shielded
PS1204 , PS1205A , PS1205B ,
PS1206
&
PS1206B
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

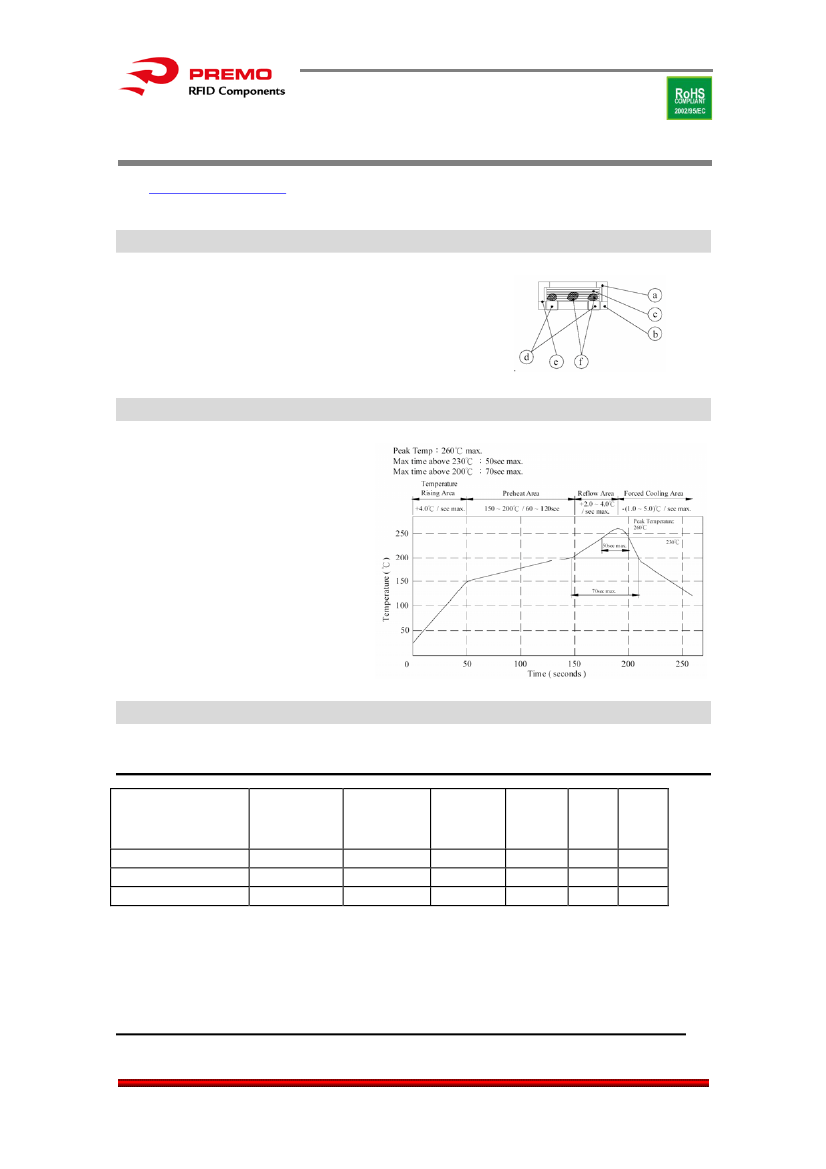

3. Materials
a.- Core : Ferrite ER core
b.- Core : Ferrite SB core
c.- Wire : Ultra – fine rectangular enamelled copper wire (class F)
d.- Terminal : Cu / Sn
e.- Adhesive : Epoxy resin
f.- Adhesive : Epoxy resin
g.- Remark : Lead content 200ppm max. include ferrite
4. General Specification
a.- Temp. rise : 40ºC max.
b.- Storage temp. : -40ºC ~ +125ºC
c.- Operating temp. : -40ºC ~ +105ºC
d.- Resistance to solder heat : 260ºC. 10 secs
5. Electrical Characteristics
PS1204
(0.75μH – 2μH)
DWG No.
Initial
Inductance
L0
(μH)
0.75±20%
1.30±20%
2.00±20%
Inductance
at flatpoint
L1
(μH)
0.55±20%
1.10±20%
1.80±20%
Flat Point
ref.
(A)
2.0
2.0
2.0
RDC
(mΩ)
max.
3.0
4.5
6.0
Irms
(A)
Isat
(A)
PS1204 – R50M
PS1204 – 1R1M
PS1204 – 1R8M
13.0
12.0
10.0
14.0
13.0
11.0
2
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
SMD Power Inductors Shielded
PS1204 , PS1205A , PS1205B ,
PS1206
&
PS1206B
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PS1205A
(0.9μH – 10.5μH)
DWG No.
Initial
Inductance
L0
(μH)
0.90±25%
1.40±25%
2.00±25%
3.50±25%
4.80±25%
6.80±25%
8.60±25%
10.50±25%
Inductance
at flatpoint
L1
(μH)
0.75±25%
1.25±25%
1.80±25%
3.20±25%
4.60±25%
6.40±25%
8.20±25%
10.00±25%
Flat Point
ref.
(A)
5.0
5.0
4.0
2.0
2.0
3.0
3.0
2.0
RDC
(mΩ)
max.
2.5
3.4
4.6
9.0
10.5
11.0
12.0
13.5
Irms
(A)
Isat
(A)
PS1205A – R90
PS1205A – 1R4
PS1205A – 2R0
PS1205A – 3R2
PS1205A – 4R6
PS1205A – 6R4
PS1205A – 8R2
PS1205A – 100
18.0
15.0
12.0
8.6
8.2
7.8
7.2
6.5
20.0
16.0
13.0
9.0
7.2
6.0
5.4
4.7
PS1205B
(0.9μH – 10.5μH)
DWG No.
Initial
Inductance
L0
(μH)
0.90±25%
1.40±25%
2.00±25%
3.50±25%
4.80±25%
6.80±25%
8.60±25%
10.50±25%
Inductance
at flatpoint
L1
(μH)
0.75±25%
1.25±25%
1.80±25%
3.20±25%
4.60±25%
6.40±25%
8.20±25%
10.00±25%
Flat Point
ref.
(A)
5.0
5.0
4.0
2.0
2.0
3.0
3.0
2.0
RDC
(mΩ)
max.
2.5
3.4
4.6
9.0
10.5
11.0
12.0
13.5
Irms
(A)
Isat
(A)
PS1205B – R90
PS1205B – 1R4
PS1205B – 2R0
PS1205B – 3R2
PS1205B – 4R6
PS1205B – 6R4
PS1205B – 8R2
PS1205B – 100
18.0
15.0
12.0
8.6
8.2
7.8
7.2
6.5
20.0
16.0
13.0
9.0
7.2
6.0
5.4
4.7
PS1206
(2.7μH – 4.8μH)
DWG No.
Initial
Inductance
L0
(μH)
2.70±25%
2.50±25%
3.60±25%
4.80±25%
Inductance
at flatpoint
L1
(μH)
2.50±25%
2.30±25%
3.20±25%
4.60±25%
Flat Point
ref.
(A)
5.0
4.0
3.0
2.0
RDC
(mΩ)
max.
6.0
4.6
6.0
7.0
Irms
(A)
Isat
(A)
PS1206 – 2R5
PS1206 – 2R3
PS1206 – 3R2
PS1206 – 4R6
13.0
10.5
10.0
9.0
12.0
11.0
8.5
7.5
3
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
SMD Power Inductors Shielded
PS1204 , PS1205A , PS1205B ,
PS1206
&
PS1206B
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com
PS1206B
(0.7μH – 3μH)
DWG No.
Initial
Inductance
L0
(μH)
0.70±25%
0.90±25%
1.10±25%
1.50±25%
2.20±25%
3.00±25%
Inductance
at flatpoint
L1
(μH)
0.47±25%
0.60±25%
0.80±25%
1.30±25%
2.00±25%
2.80±25%
Flat Point
ref.
(A)
5.0
5.0
5.0
4.0
4.0
3.0
RDC
(mΩ)
max.
2.30
2.30
3.20
3.60
6.00
7.00
Irms
(A)
Isat
(A)
PS1206B – R47
PS1206B – R60
PS1206B – R80
PS1206B – 1R3
PS1206B – 2R0
PS1206B – 2R8
16.50
15.50
14.50
12.50
11.50
10.50
30.00
26.00
25.00
19.00
15.00
13.00
[Inductance tested at 100KHz / 1V] [Irms base on temp. rise 40ºC max.] [Isat base on inductance drop 20% max. of L1 value]
6. Curve

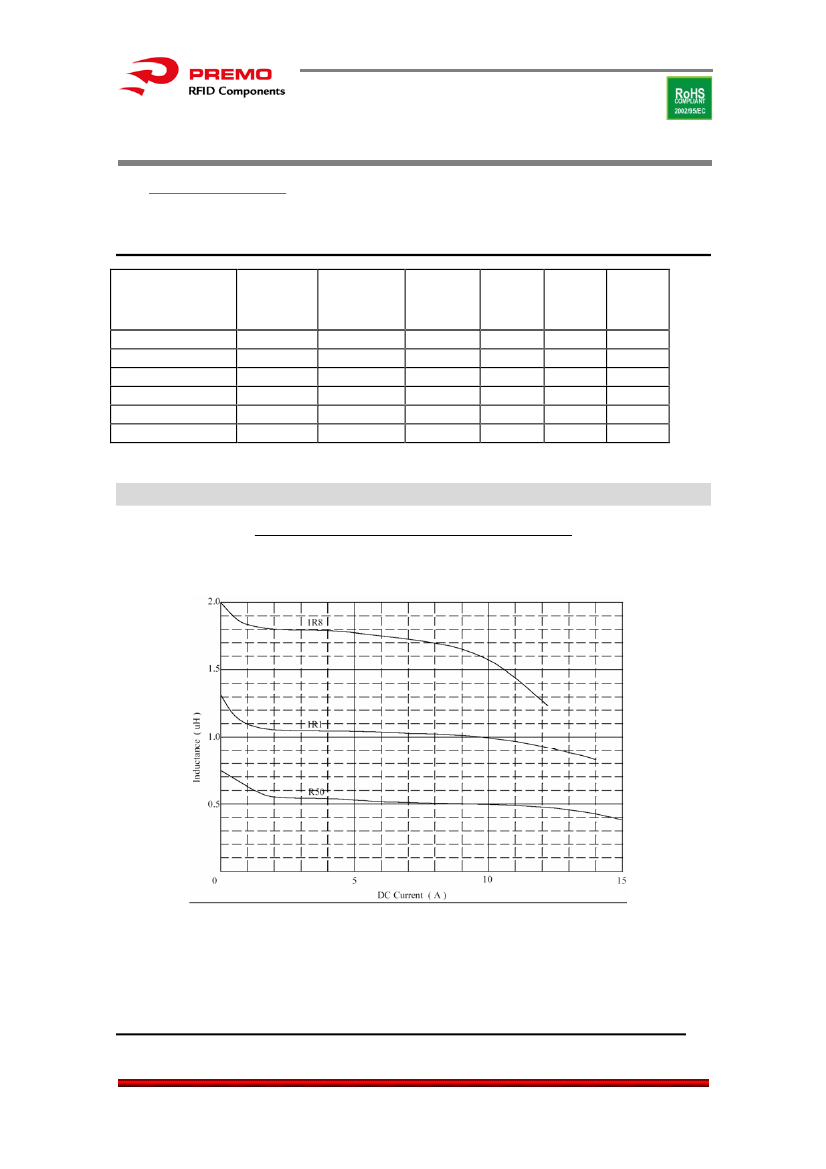

Inductance VS. DC Superposition Characteristics
PS1204
4
SMD Power Inductors
PREMO
PREMO
All rights reserved. Passing on of this document, use and communication of contents not permitted without written authorisation.
SMD Power Inductors Shielded
PS1204 , PS1205A , PS1205B ,
PS1206
&
PS1206B
C/Severo Ochoa 33 – Parque Tecnológico de Andalucía. 29590 Campanillas .Málaga (Spain)
Phone
+34 951 231 320 Fax +34 951 231 321
E-mail:
mar.villarrubia@grupopremo.com
Web http://www.grupopremo.com

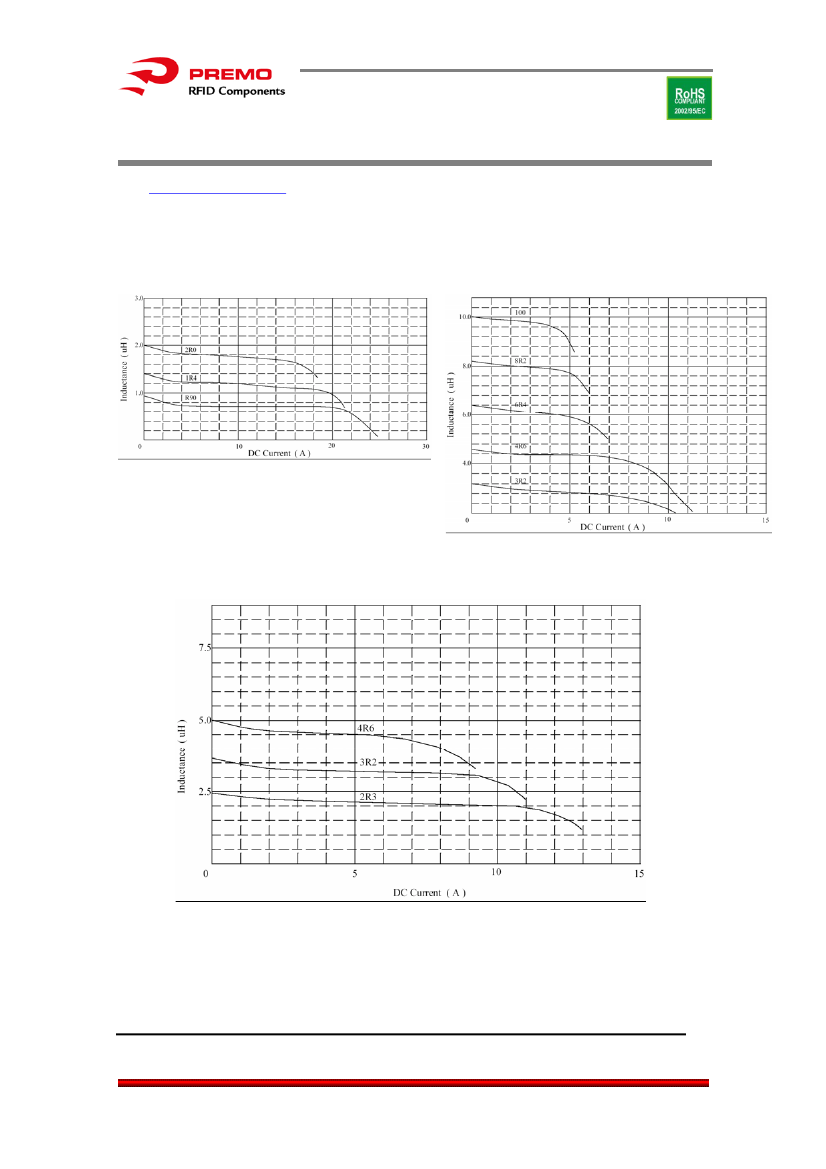

PS1205A & PS1205B
