WIMA DC-LINK MKP 6
NEW
Metallized Polypropylene (PP) -
Capacitors in Cylindrical Case for
DC-Link Applications
Special Features
˜
Very high volume/capacitance ratio
˜
Self-healing properties
˜
With cylindrical aluminium case for
bus bar mounting
˜
Dry construction without electrolyte
or oil
˜
No internal fuse required
˜
Negative capacitance change
versus temperature
˜
Very low dielectric absorption
˜
According to RoHS 2002/95/EC
D
Electrical Data
Capacitance range: 165
mF
to 1560
mF
Rated voltages: 600
VDC, 700 VDC,
900 VDC,1100 VDC, 1300 VDC, 1500 VDC
Capacitance tolerances: ±20%,
±10%
(±5% available subject to special enquiry)
Operating temperature range:
–40+ C to +85+ C
Insulation resistance at
+20+ C:
5 000 sec (M¸ x
mF)
(mean value: 20 000 sec)
Measuring voltage: 100 V/1 min.
Dielectric loss factor tan
d
0
:
2
x 10
-4
Test voltage: 1.5
U
r
, 2sec
Dielectric absorption:
0.05 %
Reliability:
Operational life
100 000 hours
Failure rate < 50 fit (hot spot
70° C)
Typical Applications
DC capacitors with high capacitances
for applications in power electronics
also at non-sinusoidal voltages and
currents e.g. in
˜
Wind power systems
˜
Inverters
Mounting Recommendation
Excessive mechanical strain, e.g. pressure
or shock onto the capacitor body, is to be
avoided during mounting and usage of the
capacitors.
Packing
Transportation-safe packing in cardboard
boxes.
For further details and graphs please refer
to Technical Information.

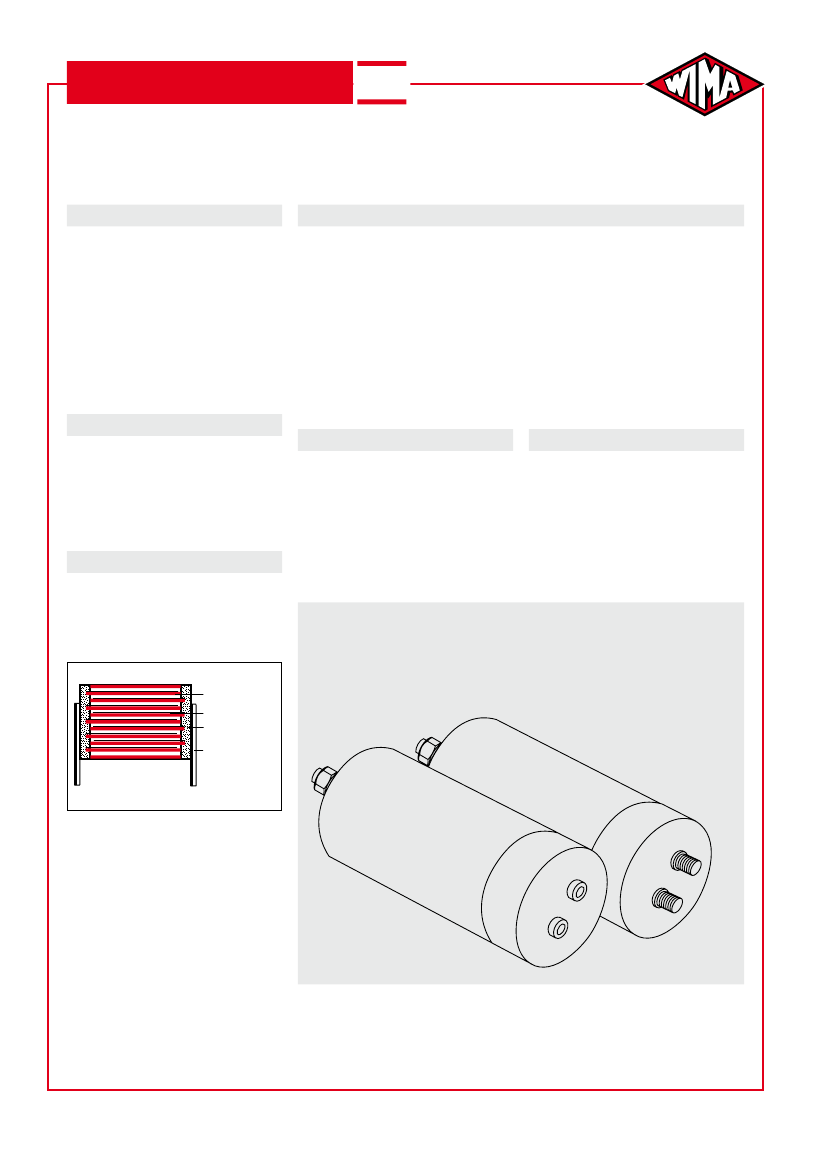

Construction
Dielectric:
Polypropylene (PP) film
Capacitor electrodes:
Vacuum-deposited
Internal construction:
Plastic film
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Termination
The capacitors are non-polarized and
are optionally available with „male“ and
„female“ terminations. The earth bolt is
electrically inactive and serves for fixing
and/or earthing of the metal case.
Encapsulation:
Aluminium case with PU-sealing, UL 94 V-0
Terminations:
Screw connection (male or female), screw
bolt M12 x 16.
Marking:
Colour: Metallic. Marking: Black on silver
label.
08.12

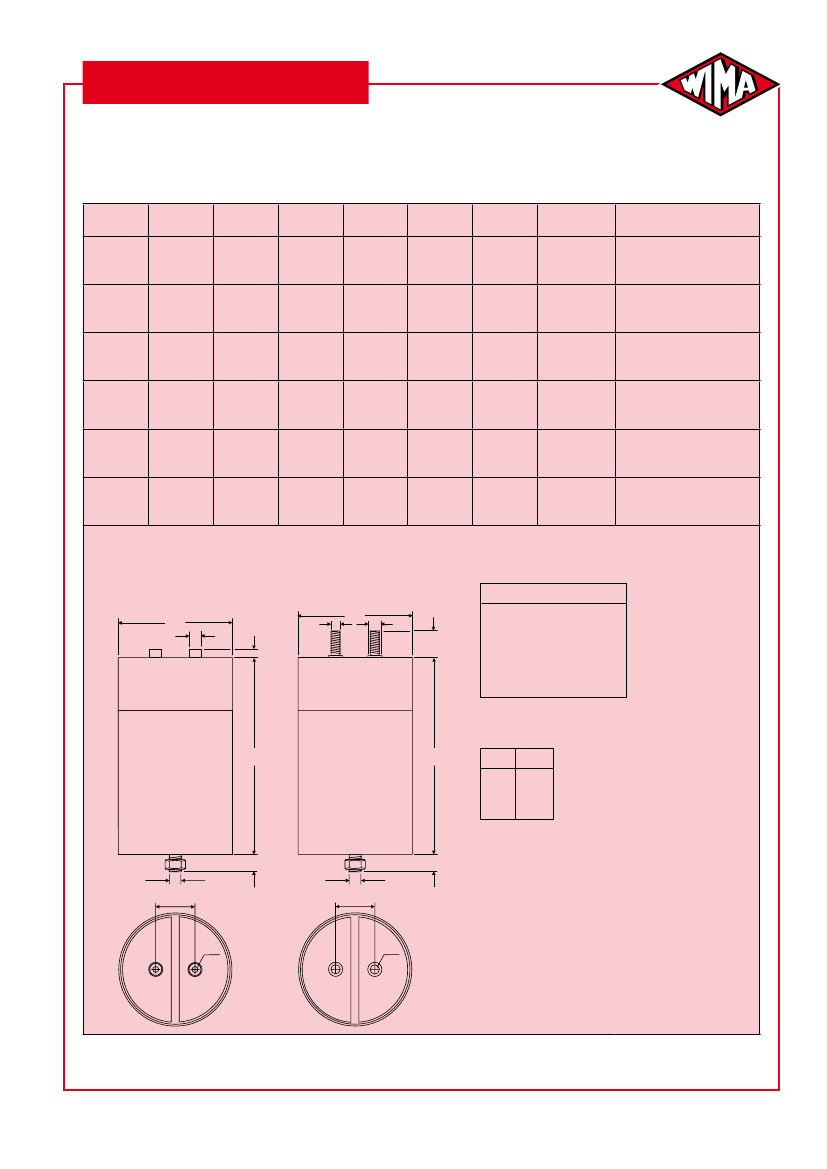

D
WIMA Part Number System
A WIMA part number consists of 18 digits and is composed as follows:
Field
Field
Field
Field
Field
Field
Field
Field
1
M
1 - 4: Type description
5 - 6: Rated voltage
7 - 10: Capacitance
11 - 12: Size and PCM
13 - 14: Special features (e.g. Snubber versions)
15:
Capacitance tolerance
16:
Packing
17 - 18: Lead length (untaped)
2
K
3
S
4
2
5
C
6
0
7
2
8
1
9
0
10
0
11
1
12
A
13
0
-
14
0
15
M
20
%
16
S
bulk
17
S
6 -2
18
D
MKS 2
63 VDC
0.01
mF
2.5 6.5 7.2
x x
Type description:
SMD-PET
=
SMD-PPS
=
FKP 02
=
MKS 02
=
FKS 2
=
FKP 2
=
MKS 2
=
MKP 2
=
FKS 3
=
FKP 3
=
MKS 4
=
MKP 4
=
MKP 10
=
FKP 4
=
FKP 1
=
MKP-X2
=
MKP-X2 R
=
MKP-Y2
=
MP 3-X2
=
MP 3-X1
=
MP 3-Y2
=
MP 3R-Y2
=
Snubber MKP =
Snubber FKP
=
GTO MKP
=
DC-LINK MKP 4 =
DC-LINK MKP 5 =
DC-LINK MKP 6 =
DC-LINK HC
=
SuperCap C
=
SuperCap MC =
SuperCap R
=
SuperCap MR =
Rated voltage:
SMDT 2.5 VDC = A1
SMDI
4 VDC
= A2
FKP0
14 VDC = A3
MKS0 28 VDC = A4
FKS2
40 VDC = A5
FKP2
5 VDC
= A6
MKS2 50 VDC = B0
MKP2 63 VDC = C0
FKS3
100 VDC = D0
FKP3
160 VDC = E0
MKS4 250 VDC = F0
MKP4 400 VDC = G0
MKP1 450 VDC = H0
FKP4
600 VDC = I0
FKP1
630 VDC = J0
MKX2 700 VDC = K0
MKXR 800 VDC = L0
MKY2 850 VDC = M0
MPX2
900 VDC = N0
MPX1
1000 VDC = O1
MPY2
1100 VDC = P0
MPRY
1200 VDC = Q0
SNMP 1250 VDC = R0
SNFP
1500 VDC = S0
GTOM 1600 VDC = T0
DCP4
2000 VDC = U0
DCP5
2500 VDC = V0
DCP6
3000 VDC = W0
DCH_ 4000 VDC = X0
SCSC 6000 VDC = Y0
SCMC 250 VAC = 0W
SCSR
275 VAC = 1W
SCMR 300 VAC = 2W
400 VAC = 3W
440 VAC = 4W
500 VAC = 5W
...
Capacitance:
22 pF
= 0022
47 pF
= 0047
100 pF = 0100
150 pF = 0150
220 pF = 0220
330 pF = 0330
470 pF = 0470
680 pF = 0680
1000 pF = 1100
1500 pF = 1150
2200 pF = 1220
3300 pF = 1330
4700 pF = 1470
6800 pF = 1680
0.01
mF
= 2100
0.022
mF
= 2220
0.047
mF
= 2470
0.1
mF
= 3100
0.22
mF
= 3220
0.47
mF
= 3470
= 4100
1
mF
2.2
mF
= 4220
4.7
mF
= 4470
= 5100
10
mF
= 5220
22
mF
= 5470
47
mF
100
mF
= 6100
220
mF
= 6220
1F
= A010
2.5 F
= A025
50 F
= A500
100 F
= B100
110 F
= B110
600 F
= B600
1200 F = C120
...
Size:
4.8 x 3.3 x 3 Size 1812
4.8 x 3.3 x 4 Size 1812
5.7 x 5.1 x 3.5 Size 2220
5.7 x 5.1 x 4.5 Size 2220
7.2 x 6.1 x 3 Size 2824
7.2 x 6.1 x 5 Size 2824
10.2 x 7.6 x 5 Size 4030
12.7 x 10.2 x 6 Size 5040
15.3 x 13.7 x 7 Size 6054
2.5 x 7 x 4.6 PCM 2.5
3 x 7.5 x 4.6 PCM 2.5
2.5 x 6.5 x 7.2 PCM 5
3 x 7.5 x 7.2 PCM 5
2.5 x 7 x 10 PCM 7.5
3 x 8.5 x 10 PCM 7.5
3 x 9 x 13 PCM 10
4 x 9 x 13 PCM 10
5 x 11 x 18 PCM 15
6 x 12.5 x 18 PCM 15
5 x 14 x 26.5 PCM 22.5
6 x 15 x 26.5 PCM 22.5
9 x 19 x 31.5 PCM 27.5
11 x21 x 31.5 PCM 27.5
9 x 19 x 41.5 PCM 37.5
11 x 22 x 41.5 PCM 37.5
94 x 49 x 182 DCH_
94 x 77 x 182 DCH_
...
Special features:
Standard
= 00
Version A1
= 1A
Version A1.1.1 = 1B
Version A1.2 = 1C
...
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
KA
KB
QA
QB
TA
TB
VA
XA
YA
0B
0C
1A
1B
2A
2B
3A
3C
4B
4C
5A
5B
6A
6B
7A
7B
H0
H1
Tolerance:
20 %
=
10 %
=
5%
=
2.5 %
=
1%
=
...
M
K
J
H
E
Packing:
AMMO H16.5 340 x 340
AMMO H16.5 490 x 370
AMMO H18.5 340 x 340
AMMO H18.5 490 x 370
REEL H16.5 360
REEL H16.5 500
REEL H18.5 360
REEL H18.5 500
ROLL H16.5
ROLL H18.5
BLISTER W12 180
BLISTER W12 330
BLISTER W16 330
BLISTER W24 330
Bulk Standard
TPS Standard
...
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
=
A
B
C
D
F
H
I
J
N
O
P
Q
R
T
S
Y
Lead length (untaped)
3.5 ±0.5 = C9
6 -2
= SD
16 ±1
= P1
...
07.12
The data on this page is not complete and serves only to explain the part number system. Part number information is listed on the
pages of the respective WIMA range.
