599-10-064-04-000429 datasheet, PDF

Datasheet> All Categories > The connector> socket> 599-10-064-04-000429

599-10-064-04-000429: DescriptionIC Socket, BGA64, 64 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size98KB，3 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

599-10-064-04-000429 Overview

IC Socket, BGA64, 64 Contact(s), ROHS COMPLIANT

599-10-064-04-000429 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BGA ADAPTER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	BGA64
Shell material	GLASS FILLED EPOXY
JESD-609 code	e4
Number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

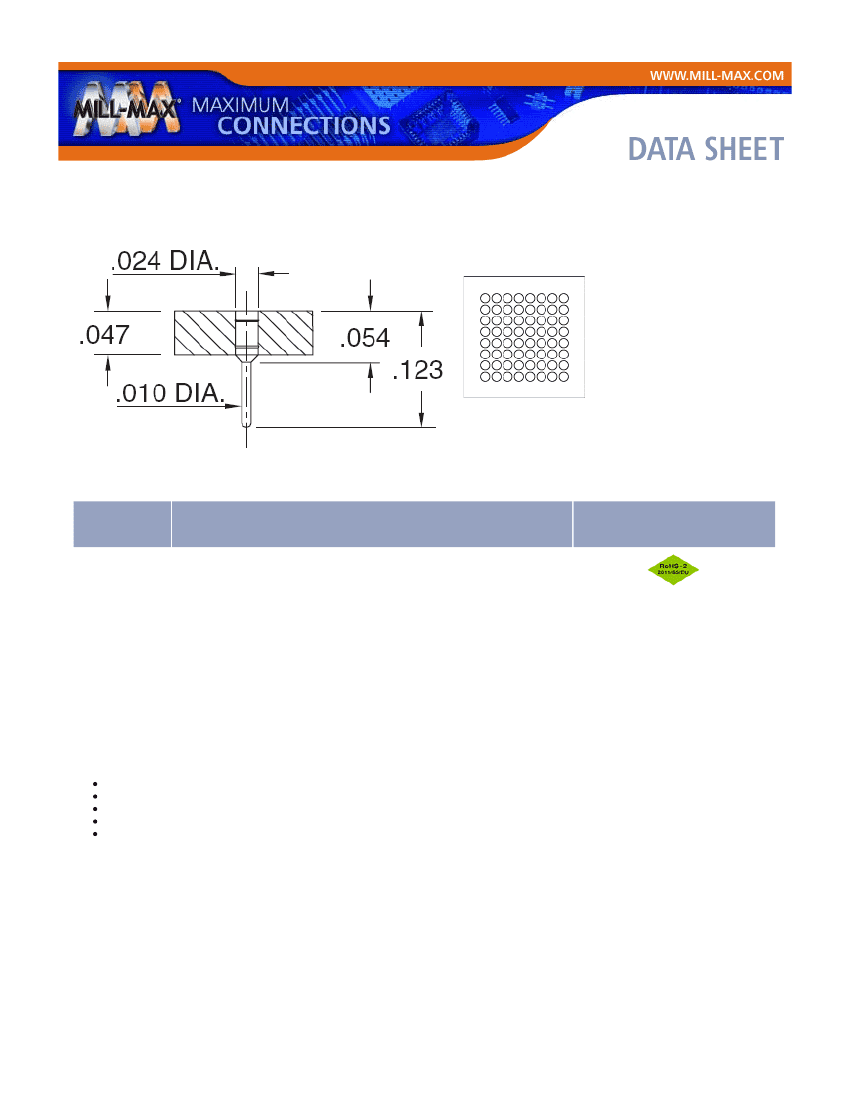

Product Number: 599-10-064-04-000429

Description:

BGA Header

1mm Grid; BGA Header

Plating Code:

Shell Plating:

10 μ" Gold over 100 μ" Nickel

064-04-000

8 X 8

Pins

Mill-Max

Part

Number

599-10-064-04-000429

RoHS

Compliant

LOOSE PIN:

Pin Used: 9929 (Brass Alloy)

BRASS ALLOY

(UNS C36000) per ASTM B 16

Note: Swage Pins are Annealed

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit "free machining" and is permitted by EC Directive 2002/95Annex 6; so all pin

materials are RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

Mill-Max Mfg. Corp. Datasheet — Last Modified 4/2/2013

Page 1 of 3

FR-4

Laminate

High Temperature

Properties of FR-4 Laminate:

Epoxy/Glass Laminate. Thicknesses available: .010", .020", .031", .047", .062", .093", .125" (natural color, beige)

ENVIRONMENTAL DATA:

Operating temperature range: -55/+125 °C

Shock (No electrical discontinuity greater than 1μs):50 G

Solderability: 364-52

Resistance to soldering heat: 364-56A Test Cond. C

Resistance to atmospheric corrosion: 364-22A/31A

Climactic category (IEC): 365-17A

- Nitric Acid Vapor Test: 365-17A

Vibration (No electrical discontinuity greater than 1µs): 10-2000 HZ, 15 G

Certificate of Compliance:

This is to Certify that the product described above is manufactured to Mill-Max quality standards in accordance with all

applicable specifications and drawing. Mill-Max certifies this product to be free from defects of materials and workmanship.

This Certificate of Compliance covers the following requirements:

Dimensional (all features verified to be within tolerances described on the applicable drawing).

Raw Material (materials and properties verified to be as described on the applicable drawing).

Plating (platings as required, thickness verified, and performance including solderability per mil-standard).

Performance (insertion extraction or other force requirements as described on the applicable drawing).

RoHS Compliance Statement for the restriction of lead, mercury, cadmium and hexavalent chromium PBB,

PBDE, including Octa-BDE, Penta-BDE, Deca -BDE, in electronic equipment and use of PFOA

and PFOS in metal plating processes.

Reference:

1. Directive 2002/95/EC of the European Parliament and of the Council of January 27 2003 on the restriction of the use of

certain hazardous substances in electrical and electronic equipment.

2. Directive 2003/11/EC which amends Council Directive 76/769/EC to include pentabromodiphenyl ether and

octabromodiphenyl ether.

3. Directive 2005/618/EC Commission decision of 18 August 2005 amending Directive 2002/95/EC. Establishes threshold

limits for Lead, Mercury, Cadmium, Hexavalent Chromium, PBB, and PBDE.

4. Judgment of the Court (Grand Chamber) 1 April 2008, Directive 2002/95/EC-Electrical and electronic equipment -

Decabromodiphenyl ether (Deca-BDE) Actions for annulment of exemption.

5. EU Directive 2006/122/EC of the European Parliament and of the Council of 12 December 2006, amending Council

Directive 76/769/EEC on the restriction of Perfluorooctanoic Acid (PFOA) and Perfluorooctane Sulfanates (PFOS) used

during metal plating processes.

In reference to the directives described above, MILL-MAX Mfg.Corp. declares that lead, mercury, cadmium, hexavalent

chromium, polybrominated biphenyls, polybrominated diphenyl ethers, including pentabromodiphenyl ether,

octabromodiphenyl ether, decabromodiphenyl ether, Perfluorooctanoic Acid, and Perfluorooctane Sulfanates are not

intentionally added to the raw material or processes used for our certified RoHS compliant products except where described

and allowed under item 6 of the annex; Applications where lead mercury, cadmium, and hexavalent chromium, which are

exempted from the requirements of Article 4 (1) of reference 1. No warranty, liability of indemnification is expressed or

implied with this information.

Compliance Statement for Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Reference:

1. Regulation EC No 1907/2006 of the European Parliament and of the Council of 18 December 2006, concerning the

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

2. ECHA, Candidate list of Substances of Very High Concern (SVHC)

http://echa.europa.eu/reach_en.asp

Mill-Max is aware of the regulation and the SVHC list the EU published (referenced above). Mill-Max does not produce or

sell any of the listed substances in their homogeneous form. These substances are not intentionally added during the

manufacturing of any Mill-Max products. To our knowledge, our products do not contain the substances described on the

ECHA SVHC list. Testing is not performed for materials and substances that were not intentionally added. No warranty,

liability of indemnification is expressed or implied with this information. Mill-Max maintains surveillance of the ECHA website

to obtain the latest information and periodically reviews the SVHC list for changes and additions.

Compliance Statement for DRC Conflict Free products.

Reference:

Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502, reporting requirements for users of conflict

minerals.

“Conflict minerals,” are Columbite-tantalite (coltan), cassiterite, gold, wolframite, or their derivatives; or any other mineral

or its derivatives determined by the Secretary of State to be financing conflict in the Democratic Republic of the Congo

(DRC) or an adjoining country. Metals derived from these minerals are tin, tantalum, tungsten, and gold. By this definition,

the only minerals of concern that may be found in Mill-Max products are tin and gold.

Mill-Max Mfg. Corp. Datasheet — Last Modified 4/2/2013

Page 2 of 3
