54LS04/BCA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS04/BCA

54LS04/BCA: DescriptionInverter, LS Series, 6-Func, 1-Input, TTL, CDIP14; Categorylogic logic; File Size125KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54LS04/BCA Overview

Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14

54LS04/BCA Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	6.6 mA
propagation delay (tpd)	26 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

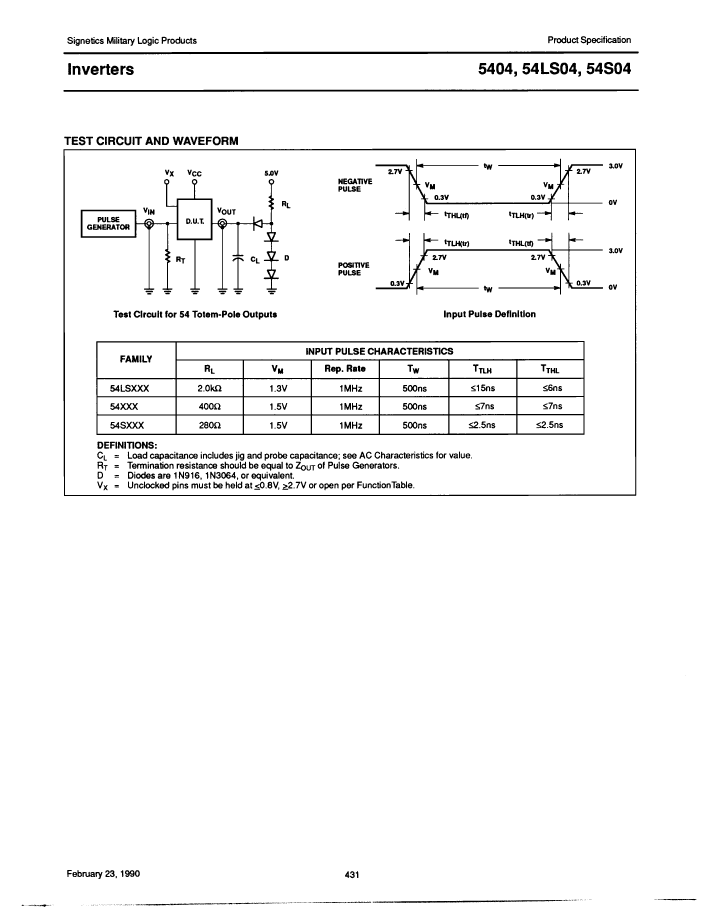

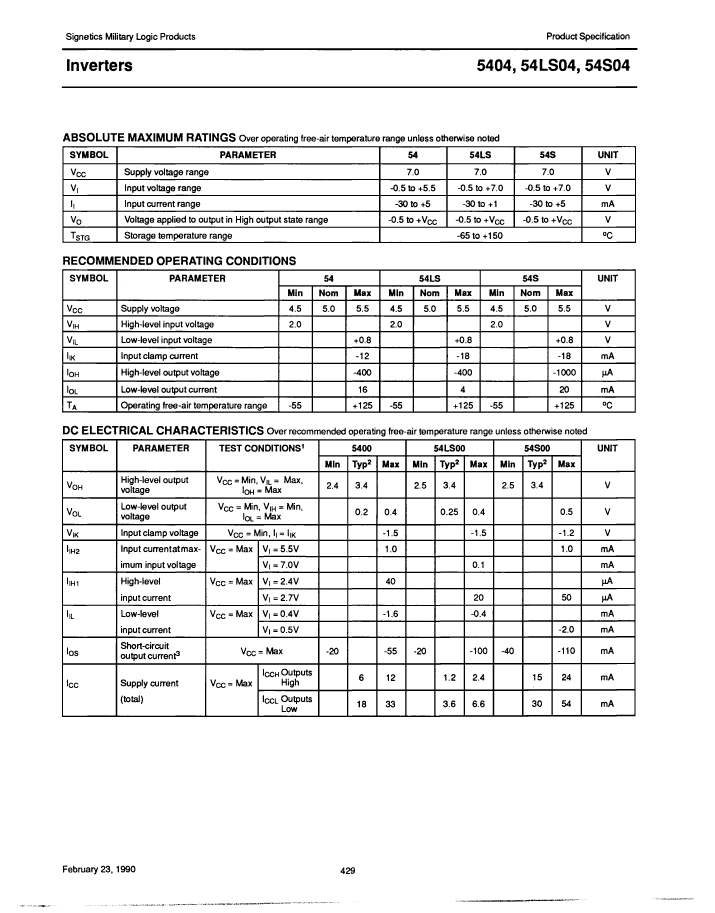

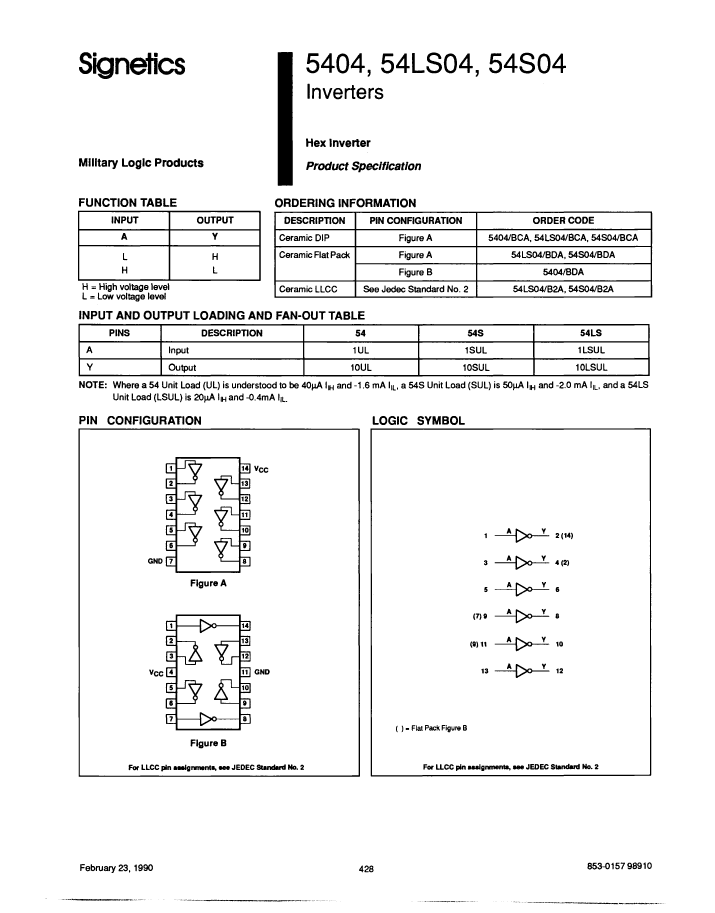

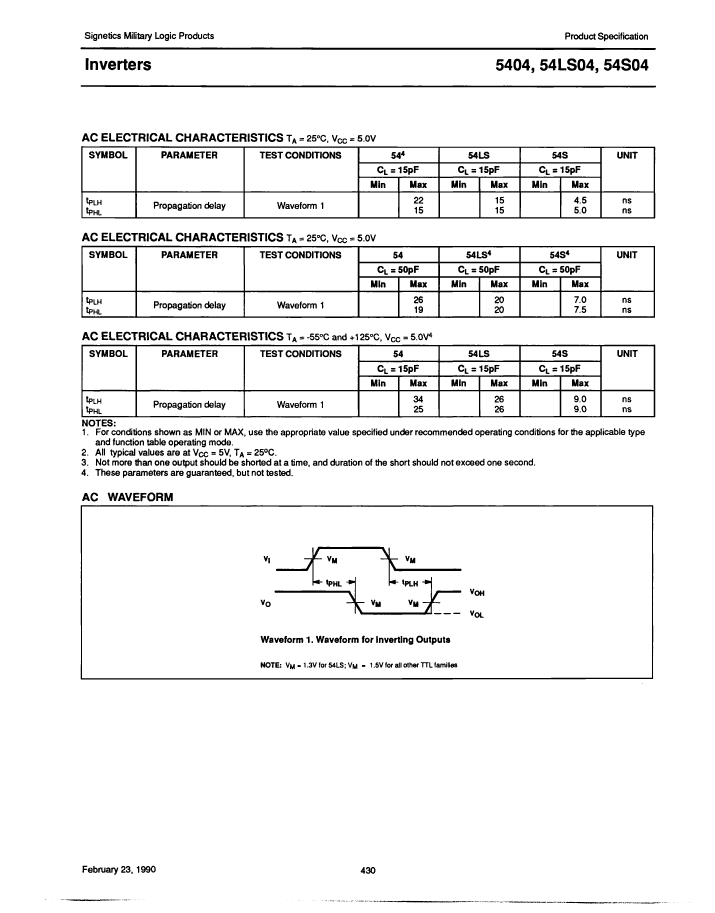

Preview

Download Datasheet

View All

54LS04/BCA Related Products

	54LS04/BCA	54S04/BCA	54LS04/BDA	5404/BCX	54S04/BDX	54S04/B2A	5404/BCA	5404/BDA	54S04/BDA	54LS04/B2A
Description	Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14	Inverter, S Series, 6-Func, 1-Input, TTL, CDIP14	Inverter, LS Series, 6-Func, 1-Input, TTL, CDFP14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14	Inverter, S Series, 6-Func, 1-Input, TTL, CDFP14, CERAMIC, FP-14	Inverter, S Series, 6-Func, 1-Input, TTL, CQCC20	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDIP14	Inverter, TTL/H/L Series, 6-Func, 1-Input, TTL, CDFP14	Inverter, S Series, 6-Func, 1-Input, TTL, CDFP14	Inverter, LS Series, 6-Func, 1-Input, TTL, CQCC20
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	LS	S	LS	TTL/H/L	S	S	TTL/H/L	TTL/H/L	S	LS
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14	S-CQCC-N20	R-CDIP-T14	R-CDFP-F14	R-CDFP-F14	S-CQCC-N20
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6	6	6	6	6	6	6
Number of entries	1	1	1	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	20	14	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER
propagation delay (tpd)	26 ns	9 ns	26 ns	25 ns	9 ns	9 ns	25 ns	25 ns	9 ns	26 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	YES	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	FLAT	FLAT	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	QUAD
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Load capacitance (CL)	15 pF	15 pF	15 pF	-	-	15 pF	15 pF	15 pF	15 pF	15 pF
Maximum supply current (ICC)	6.6 mA	54 mA	6.6 mA	-	-	54 mA	33 mA	33 mA	54 mA	6.6 mA
