89MAA61 datasheet, PDF - EEWORLD Datasheet

89MAA61: DescriptionCircular Connector, Aluminum Alloy, Female; Male, Plug; CategoryThe connector The connector; File Size146KB，4 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

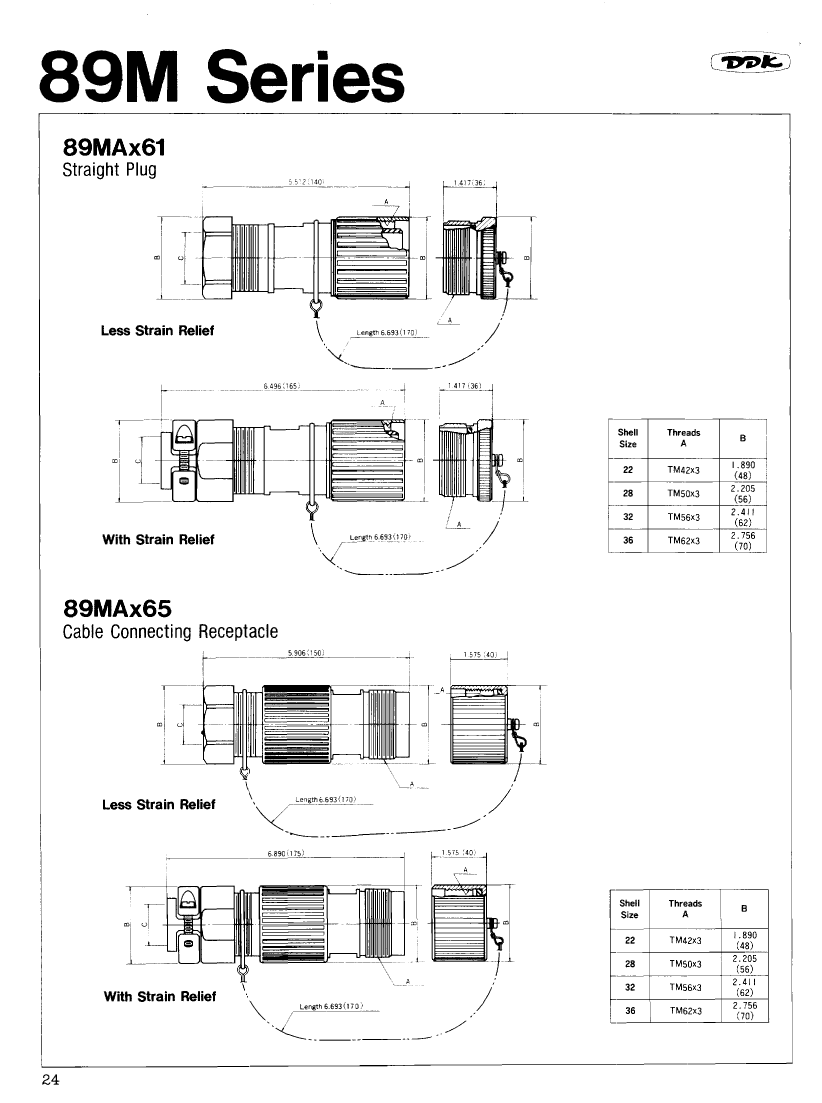

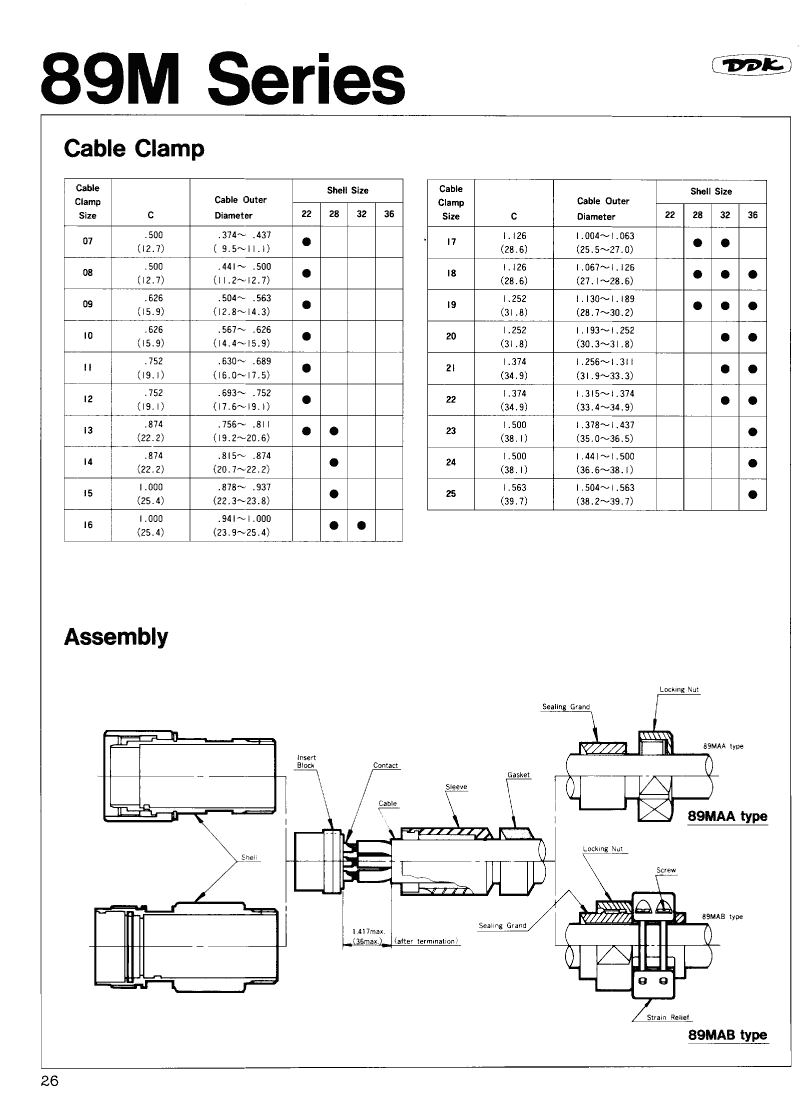

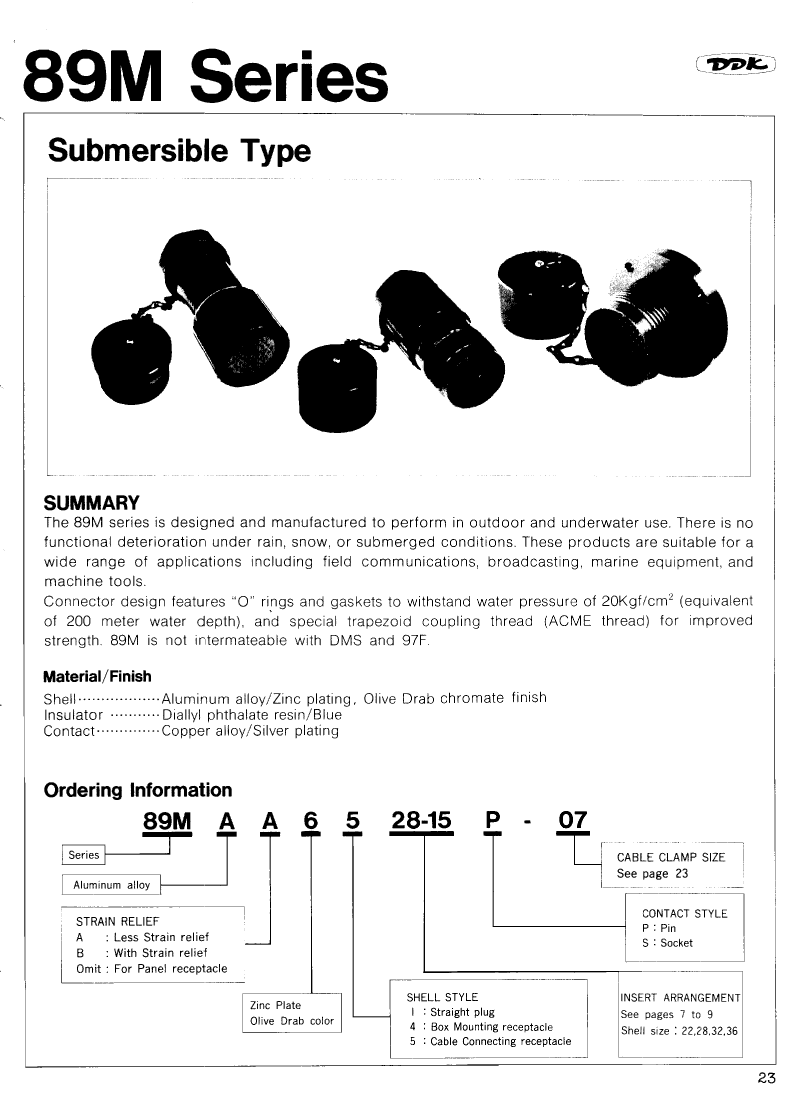

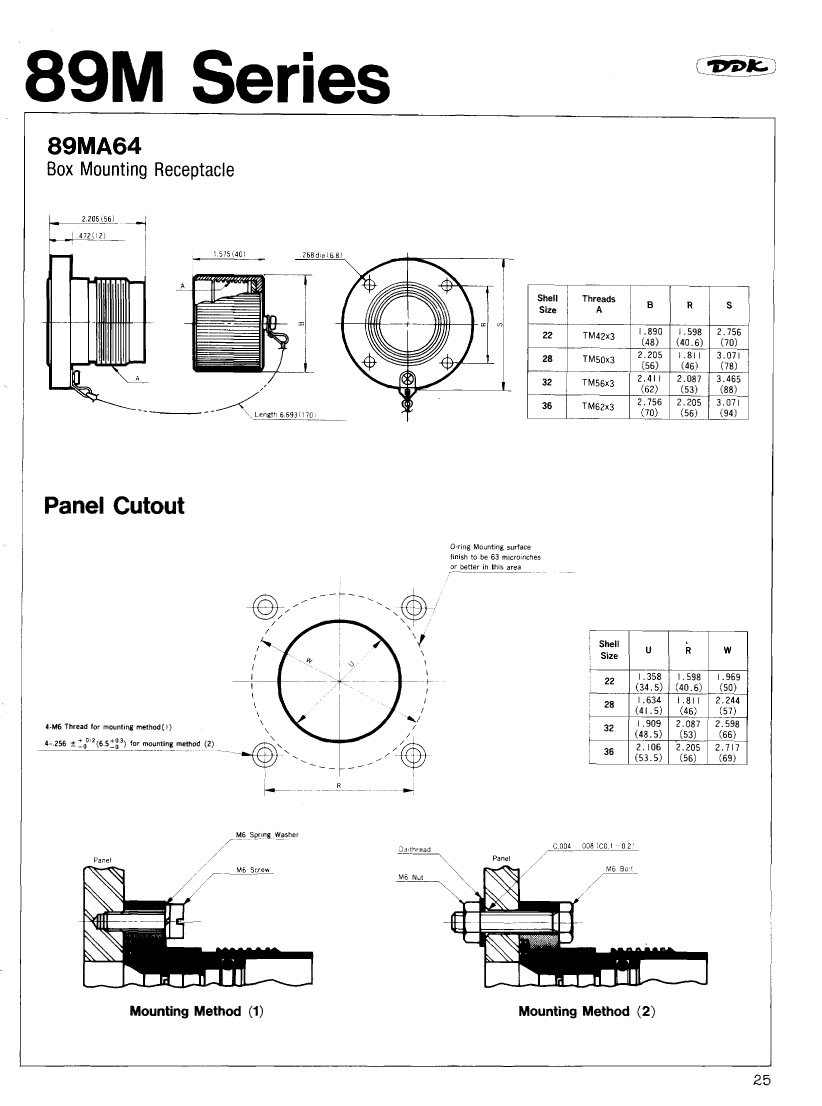

89MAA61 Overview

Circular Connector, Aluminum Alloy, Female; Male, Plug

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	MAX CONTACTS (SERIES)=73
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE; MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	89M
Mixed contacts	YES
Installation type	CABLE
Options	WATERPROOF
Shell surface	OLIVE DRAB CHROMATE
Shell material	ALUMINUM
Housing size	22; 28; 32; 36
Base Number Matches	1

	89MAA61	89MA64	89MAA65	89MAB61	89MAB65
Description	Circular Connector, Aluminum Alloy, Female; Male, Plug	Circular Connector, Aluminum Alloy, Female; Male, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Plug	Circular Connector, Aluminum Alloy, Female; Male, Receptacle
Maker	DDK	DDK	DDK	DDK	DDK
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	MAX CONTACTS (SERIES)=73	MAX CONTACTS (SERIES)=73	MAX CONTACTS (SERIES)=73	MAX CONTACTS (SERIES)=73	MAX CONTACTS (SERIES)=73
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	89M	89M	89M	89M	89M
Mixed contacts	YES	YES	YES	YES	YES
Installation type	CABLE	PANEL	CABLE	CABLE	CABLE
Options	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF	WATERPROOF
Shell surface	OLIVE DRAB CHROMATE	OLIVE DRAB CHROMATE	OLIVE DRAB CHROMATE	OLIVE DRAB CHROMATE	OLIVE DRAB CHROMATE
Shell material	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
Housing size	22; 28; 32; 36	22; 28; 32; 36	22; 28; 32; 36	22; 28; 32; 36	22; 28; 32; 36
Base Number Matches	1	1	1	1	1
