InGaAs PIN Photodiode Modules
R-11-300-X-XXX-XX

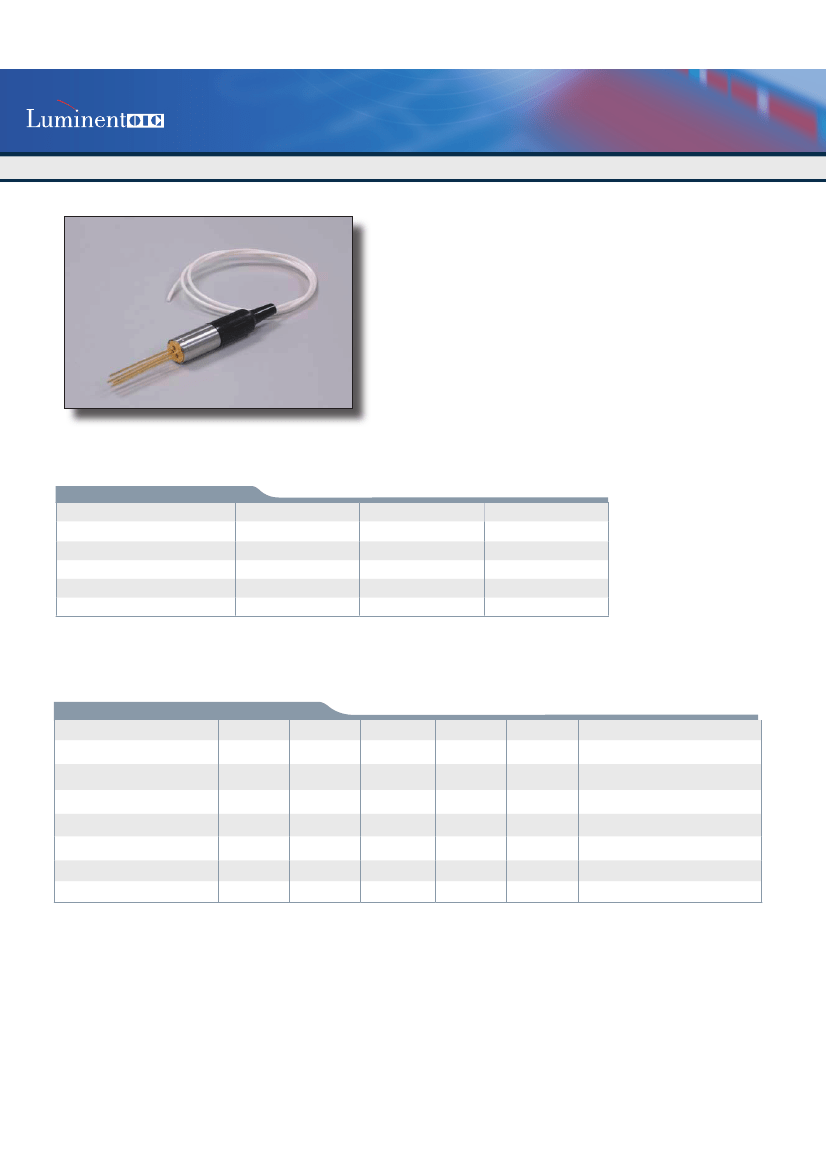

Features
• InGaAs/InP PIN Photodiode
• High responsivity at 1310nm and 1550nm
• Low dark current
• Fast pulse response
• -40~85
º
C operating temperature
• Hermetically sealed 3-pin metal case
Packaging
• FC/ST/SC receptacle package
• SM/MM fiber pigtailed with optional FC/ST/SC connector
• RoHS compliant available
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Supply Reverse Voltage
Forward Current
Reverse Current
Operating Temperature
Storage Temperature
Symbol
V
R
I
F
I
R
T
opr
T
stg
Value
20
2
1
-40 ~ 85
-40 ~ 85
Unit
V
mA
mA
ºC
ºC
(All optical data refer to a coupled 9/125µm SM & 50/125µm MM fiber)
Optical and Electrical Characteristics (Tc=25ºC)
Parameter
Active Area (Dia)
Detection Range
Responsivity
Dark Current
Capacitance
Rise / Fall Time
Bandwidth
Symbol
Min
-
1100
Typ
300
1310
0.85
2
6
1
-
Max
-
1650
-
5
10
-
-
Unit
µm
nm
A/W
nA
pF
ns
GHz
Test Conditions
-
-
V
R
=5V,
λ
=1310nm
V
R
=5V
V
R
=5V
V
R
=5V, 10%~90%
V
R
=5V
R
I
dark
C
T
r
/ T
f
BW
0.8
-
-
-
0.5
Note: 1.Pin assignment can be customized.
2.Specifications subject to change without notice.
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS539-MAR2007
rev. A.0
1
InGaAs PIN Photodiode Modules
R-11-300-X-XXX-XX
Pin Assignment
Pin Assignment
1~PD(-)
2~CASE
3~PD(+)
Functional Schematic

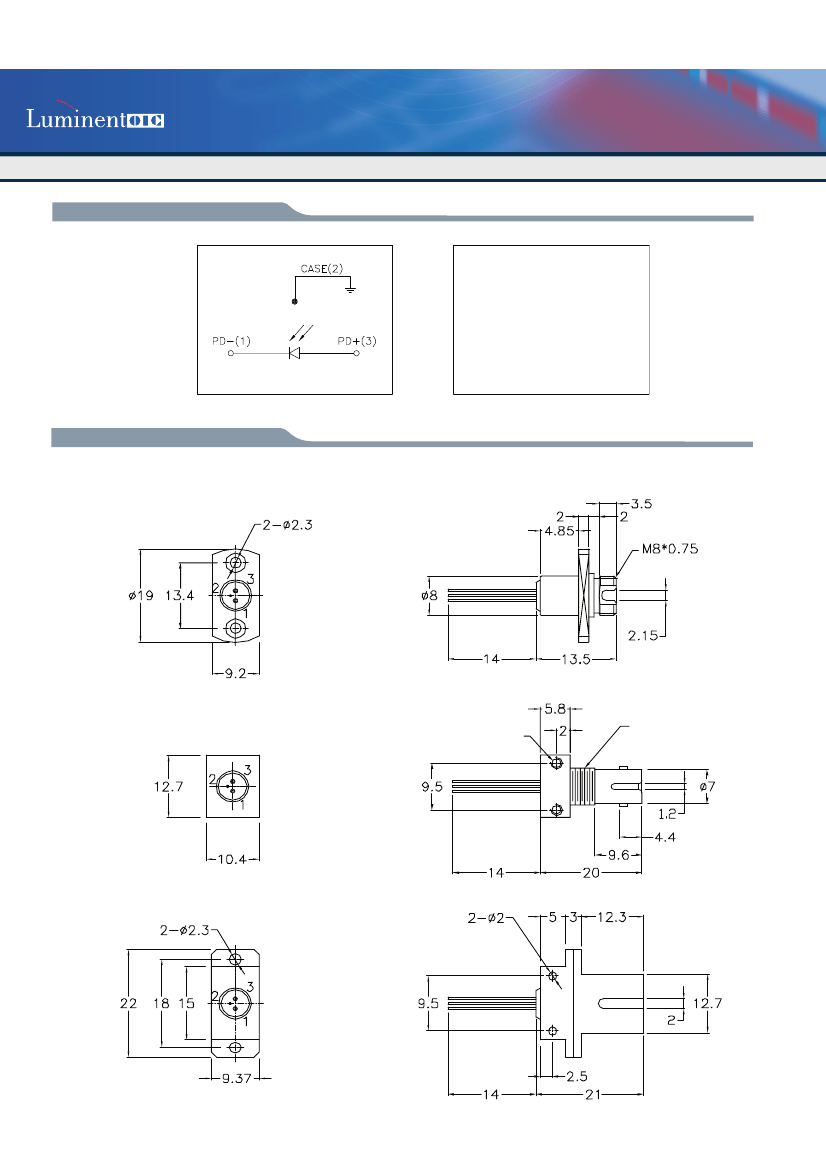

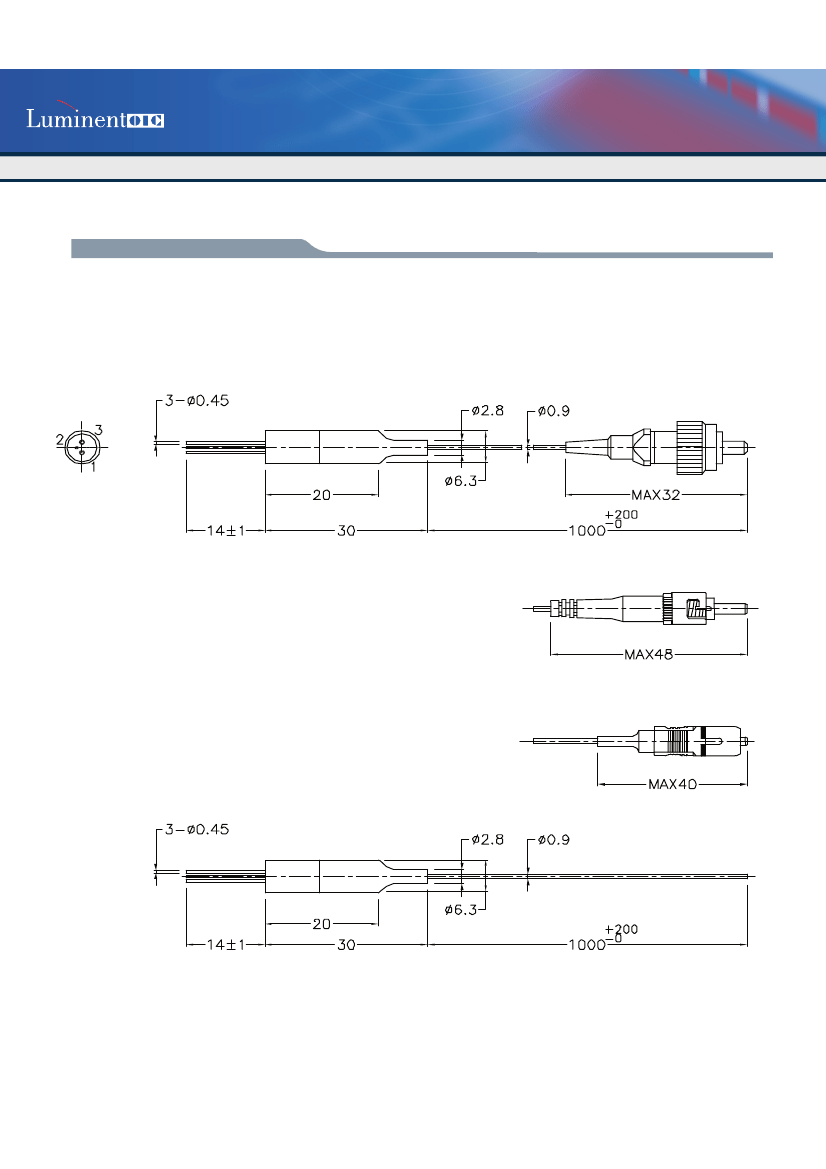

Packaging Dimension
Units in mm.
PIN-TIA Receiver Module-receptacle
Part Number: R-11-300-R-SXX-XX
FC Receptacle
(2)#2-56 UNC-02B Thread Thru
3/8"-24 UNF
ST Receptacle
SC Receptacle
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS539-MAR2007
rev. A.0
2
InGaAs PIN Photodiode Modules
R-11-300-X-XXX-XX
Ordering Information
R-11-300-X-XXX-XX
Package
P=Pigtail
R=Receptacle
Connector
FC/ST/SC/-
Fiber Application
S = SM 9/125µm
M = MM 50/125µm
RoHS Compliant
Blank/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment
is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion.
Luminent warrants performance of its products to current specifications only in accordance with the company＇s standard one-year war-
ranty; however, specifications designated as “preliminary＂ are given to describe components only, and Luminent expressly disclaims
any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fit-
ness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company＇s Terms and Conditions of
Sale for further warranty information.
Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of pat-
ents, services, or intellectual property described herein. No license, either express or implied, is granted under any patent right,
copyright, or intellectual property right, and Luminent makes no representations or warranties that the product(s) described herein
are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in
implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using
or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any
damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any
actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this
document. Customer must contact Luminent to obtain the latest version of this publication to verify, before placing any order, that
the information contained herein is current.
© LuminentOIC, Inc. 2007
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS539-MAR2007
rev. A.0
4
