R-HP803xx
3W Rectangular Power LED Series
Features
Highest Flux
Very long operating life >>50000hr
More Energy Efficient than Incandescent and most Halogen lamps
Low voltage DC operated
Instant light (less than 100 ns)
Superior ESD protection

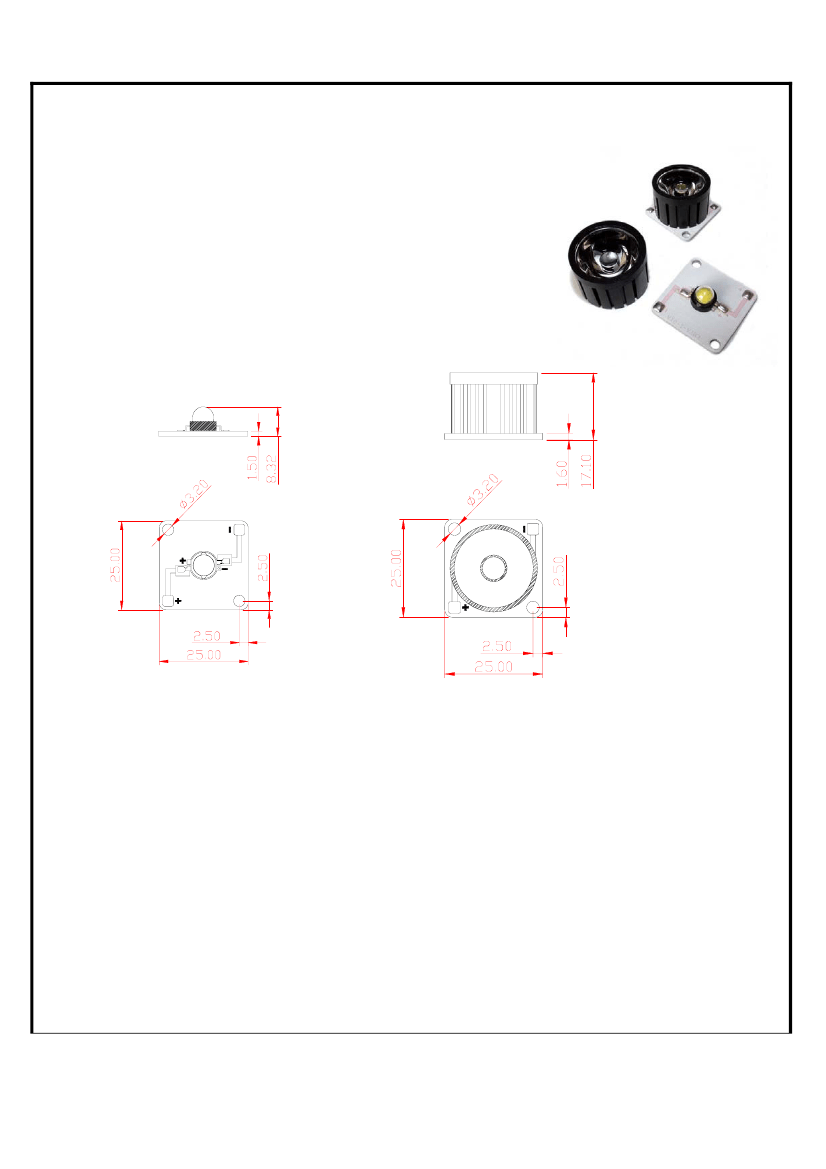

Package Dimensions
Option : Collimator Lens with 15 degree
Notes
1.
2.
3.
4.
5.
6.
7.
Drawings not to scale
All dimensions are in millimeters .
Tolerance is ±0.1mm unless otherwise noted.
Protruded resin under flange is 1.0mm max.
Lead spacing is measured where the leads emerge from the package.
Specifications are subject to change without notice.
Precautions for ESD:
STATIC SHIELD Electricity and surge damages the LED. It is recommended to use a wrist band
or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must
be properly grounded
Absolute Maximum Ratings at Ta=25C
Parameter
Power Dissipation
Pulse Forward Current
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Symbol
PD
IPF
IF
VR
Topr
Tstg
Max
3
1000
700
5
- 40 to +85
- 40 to + 85
Unit
W
mA
mA
V
C
C
Flux Characteristics at 700mA , Junction Temperature, TJ= 25C
Color
White
Warm White
Blue
Cyan
Model
R-HP803NW
R-HP803WW
R-HP803NB
R-HP803CN
R-HP803PG
R-HP803NO
R-HP803NR
Typ.(Lumens)
55 lm
45 lm
16 lm
40 lm
55 lm
36 lm
40 lm
Viewing angle
120
120
120
120
120
120
120
Pure
Green
Amber
Red
Optical Characteristics at 700mA , Junction Temperature, TJ = 25C
Color
White
Warm White
Blue
Cyan
CCT /
λD
Min.
5000K
2850K
460nm
490nm
515nm
587nm
620nm
Typ.
6000K
3300K
470nm
505nm
525nm
590nm
630nm
Max.
7000K
3800K
475nm
515nm
540nm
595nm
645nm
Λ
--
--
25
30
35
20
20
λ/T
--
--
0.04
0.04
0.04
0.05
0.05
Pure
Green
Amber
Red
Electrical Characteristics at 700mA , Junction Temperature, TJ = 25C
Color
White
Warm White
Blue
Cyan
Forward Voltage
Min.
3.8 v
3.8 v
3.8 v
3.8 v
3.8 v
2.8 v
2.8 v
Typ.
4.0 v
4.0 v
4.0 v
3.8 v
3.8 v
3.0 v
3.0 v
Max.
4.2 v
4.2 v
4.2 v
4.2 v
4.2 v
3.2 v
3.2 v
/W
15
15
15
15
15
18
18
V/T
-2.0
-2.0
-2.0
-2.0
-2.0
-2.0
-2.0
Pure
Green
Amber
Red
Notes
1.
2.
3.
Minimum luminous flux or radiometric power performance guaranteed within published operating
conditions. maintains a tolerance of
±10%
on flux and power measurements
Dominant wavelength is derived from the CIE 1931 Chromaticity diagram and represents the
perceived color. maintains a tolerance of± 1 nm for dominant wavelength measurements.
CCT ±5% tester tolerance.
Precautions For Use
Over–current–proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause
big current change
Burn out will happen
Typical Electrical / Optical Characteristics Curves

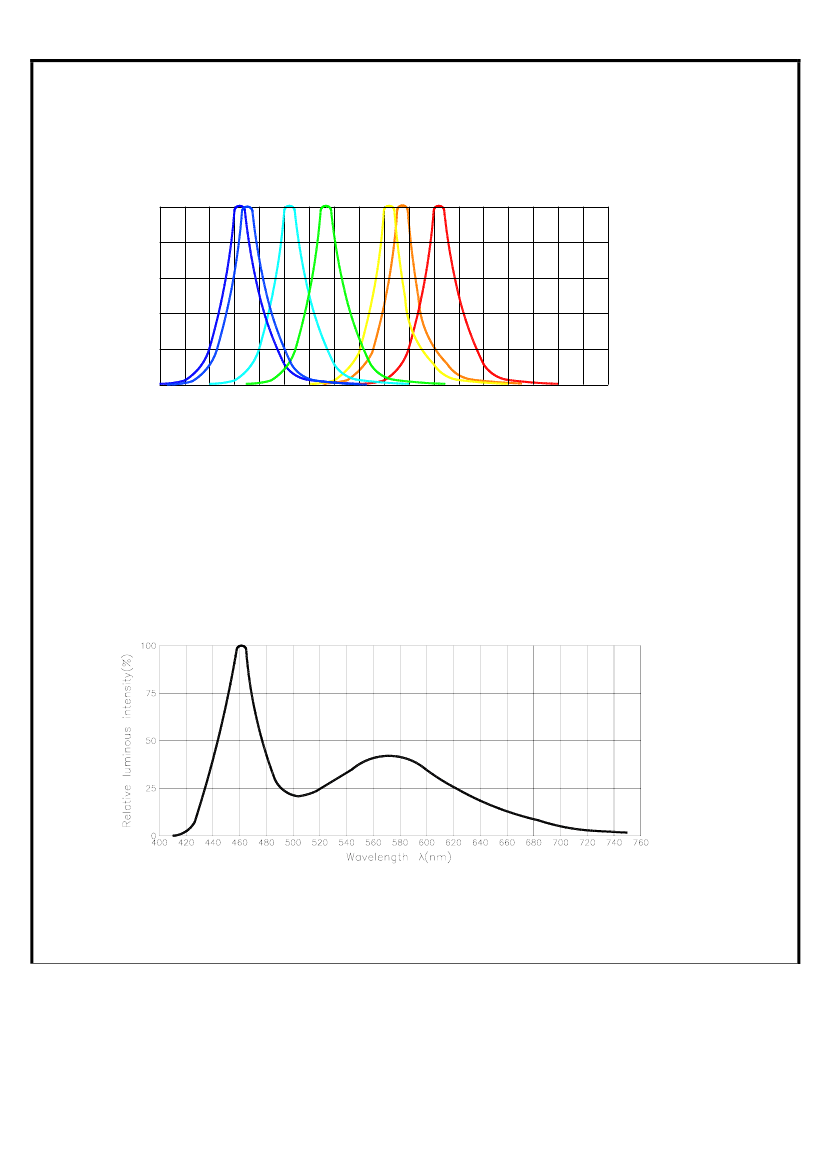

Spectrum Distribution
100
Relative luminous intensity(%)
Blue
Pure Blue
Yellow
Green
Amber
Red
80
60
Cyan
40
20
0
400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 740 760
Wavelength (nm)
Spectrum Distribution

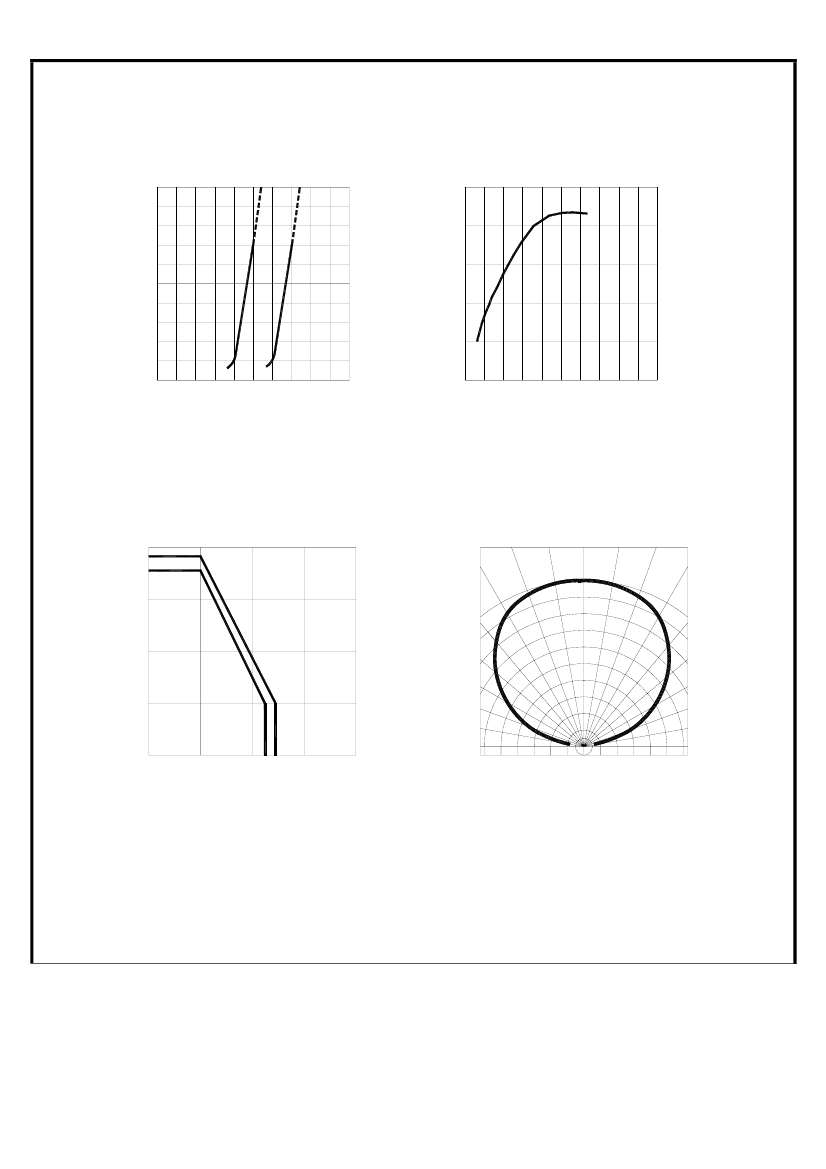

Forward Current VS. Forward Voltage
500
Luminous Intensity VS. Forward Current
Relative Luminous Inttensity(%)
125
Forward Current IF (mA)
400
100
Yellow/Red
300
Blue/Green
White
75
200
50
100
25
0
0
1.0
2.0
3.0
4.0
5.0
0
0
200
400
600
800
1000
Forward Voltage(VF) -Volts
Forward Current IF (mA)
Forward Current VS. Ambient Temperature
400
30¢X
20¢X
Radiation Diagram
10¢X
0¢X
Forward Current IF (mA)
300
Yellow/Red
200
Blue/Green
White
100
40¢X
50¢X
60¢X
70¢X
80¢X
0
0
50
100
150
200
90¢X
0.6
0.4
0.2
0 0.1
0.3
0.5
1.0
0.9
0.8
0.7
Ambient Temperature (¢X )
C
