8X371/BXA datasheet, PDF - EEWORLD Datasheet

8X371/BXA: DescriptionIC 8 I/O, PIA-GENERAL PURPOSE, CDIP24, Parallel IO Port; CategoryThe embedded processor and controller Microcontrollers and processors; File Size184KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

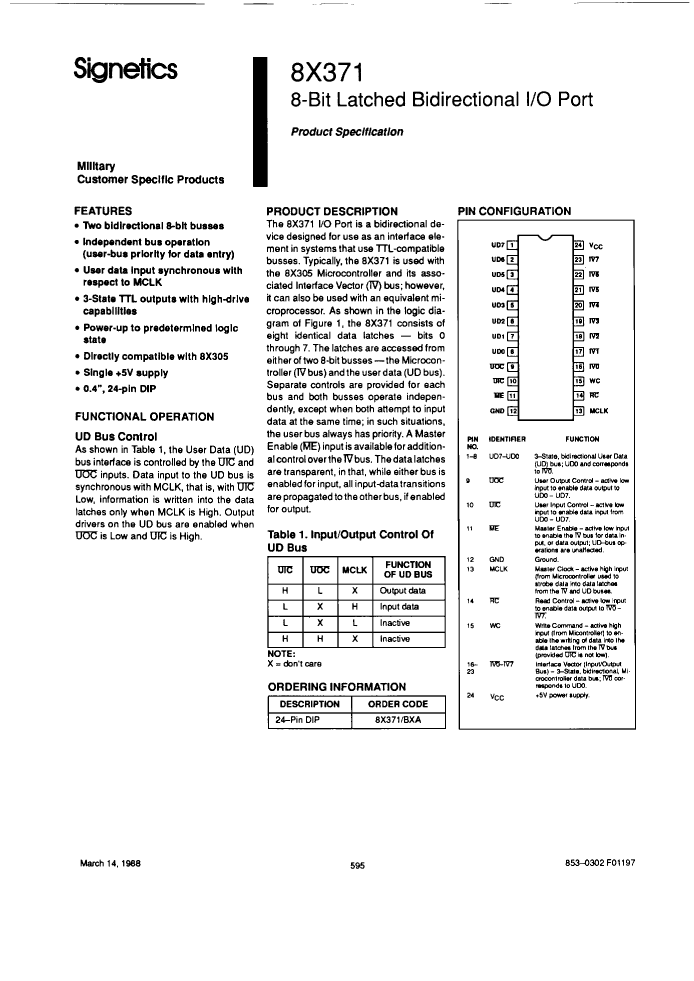

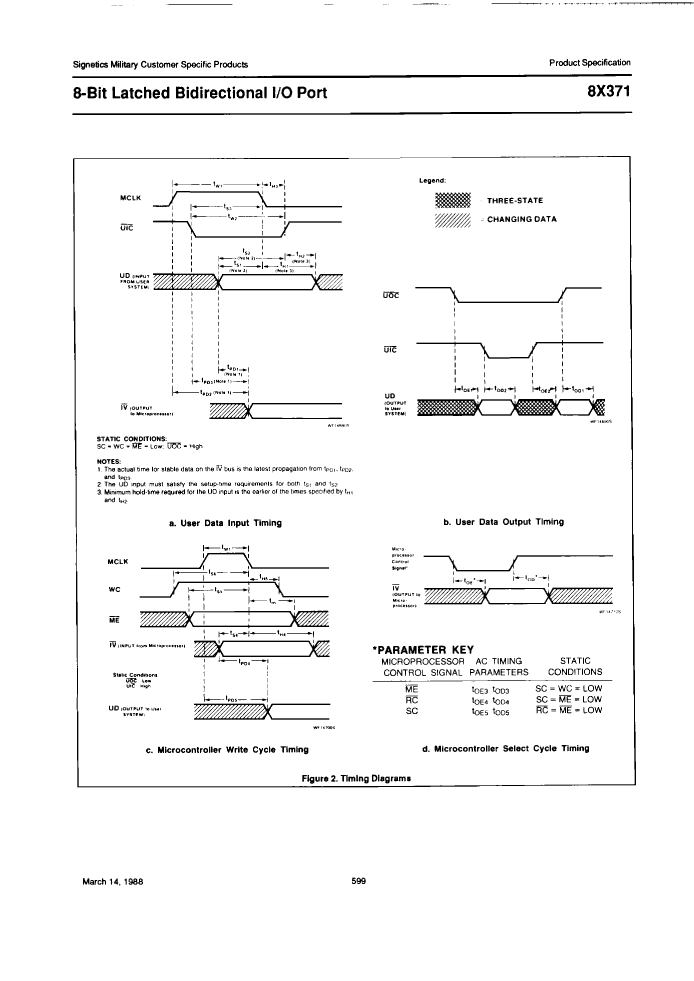

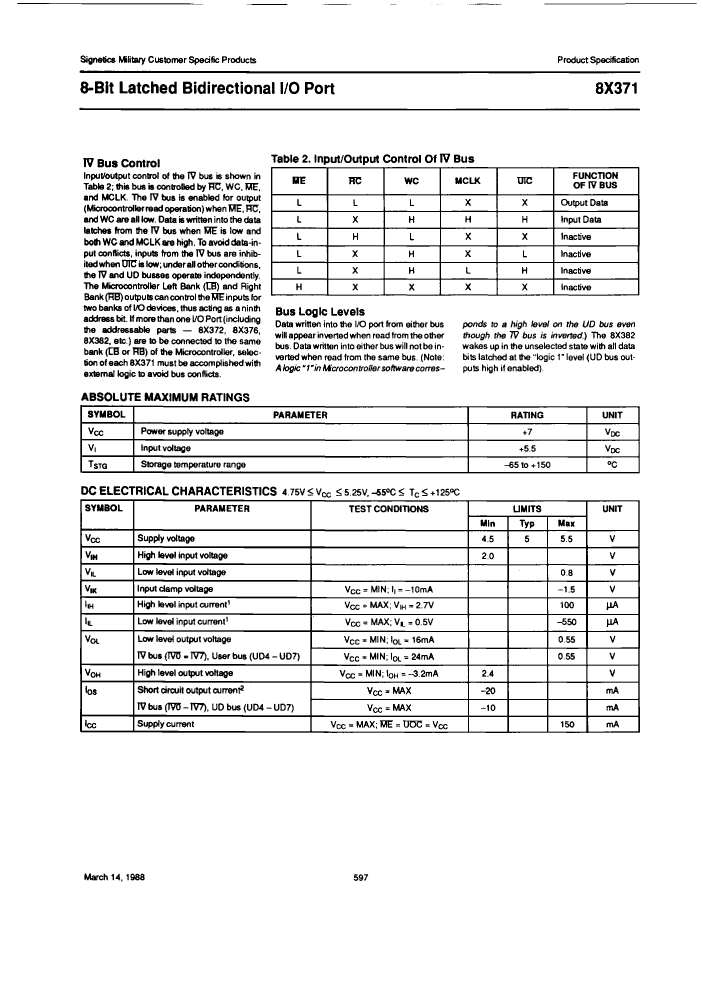

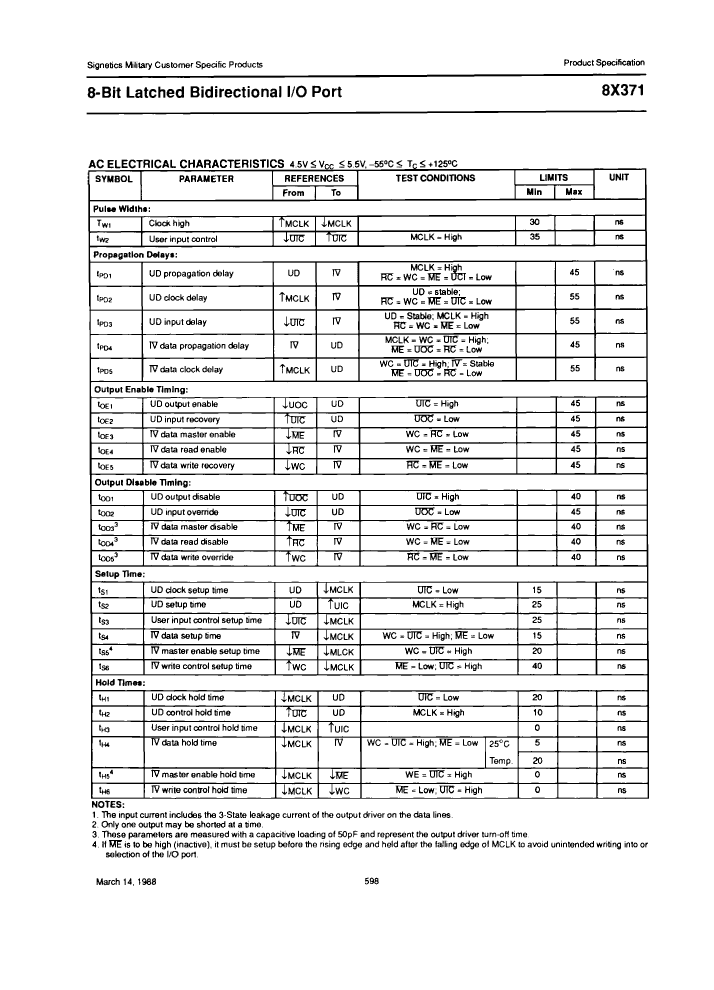

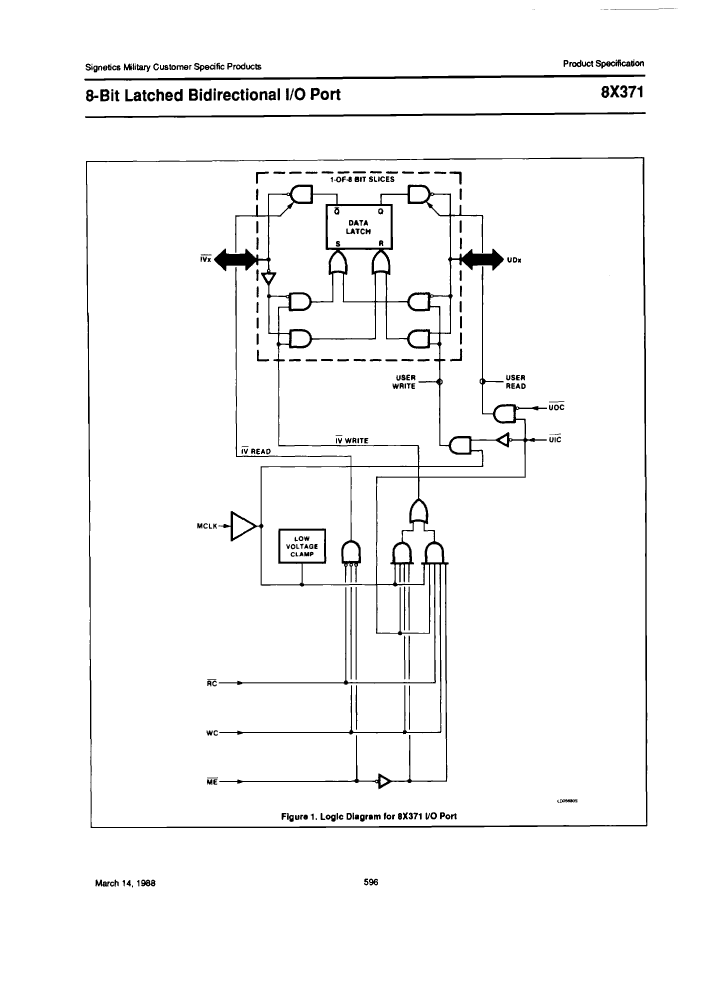

8X371/BXA Overview

IC 8 I/O, PIA-GENERAL PURPOSE, CDIP24, Parallel IO Port

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
Number of digits	8
Number of I/O lines	8
Number of ports	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1

	8X371/BXA
Description	IC 8 I/O, PIA-GENERAL PURPOSE, CDIP24, Parallel IO Port
Maker	NXP
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
Number of digits	8
Number of I/O lines	8
Number of ports	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1
