30430201 Overview

Circular Connector, 34 Contact(s), Polybutylene Terephthalate, Female,

30430201 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPOLARIZED
Back shell typeSOLID
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug information30530101
Mixed contactsNO
OptionsWATERPROOF
Shell materialPOLYBUTYLENE TEREPHTHALATE
Total number of contacts34
Base Number Matches1

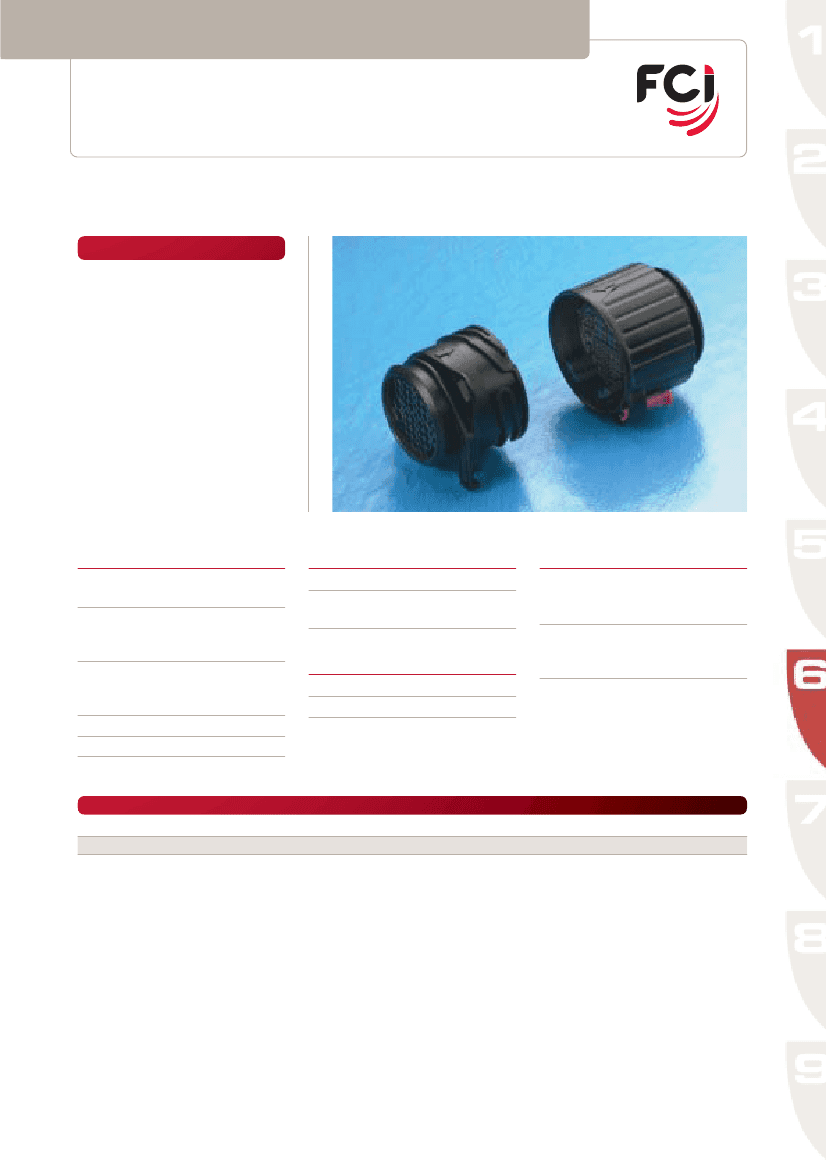

Engine Compartment Connectors
Gear box connectors
DCS-2
34 way sealed connector system for 1.5 and 2.8 mm terminals
Features
Waterproof connector system when
equipped with rear single wire seal
Circumferential interface seal on
female housing
Lateral secondary lock for terminal
aosition assurance (T.P.A.)
Connector position assurance (C.P.A.)
Bayonet locking device
Mechanical polarization
Performance characteristics
Temperature range:
from -40°C to +120°C
Construction
Housing material:
Silicone
PBT
Connector compatibility
Usable terminals:
DCS-2 1.5 and 2.8 mm
female terminals
Circumferential interface seal:
Contact retention force:
> 55 N for DCS-2 1.5 mm
> 80 N for DCS-2 2.8 mm
Matable with:
Contact insertion force:
< 10 N for DCS-2 1.5 mm
< 15 N for DCS-2 2.8 mm
Tooling
Terminal removal tool:
Mini-applicator:
< 150 N
IP 67
Consult us
Consult us
DCS-2 1.5 and 2.8 mm
male terminals
Connector mating force:
Sealing protection:

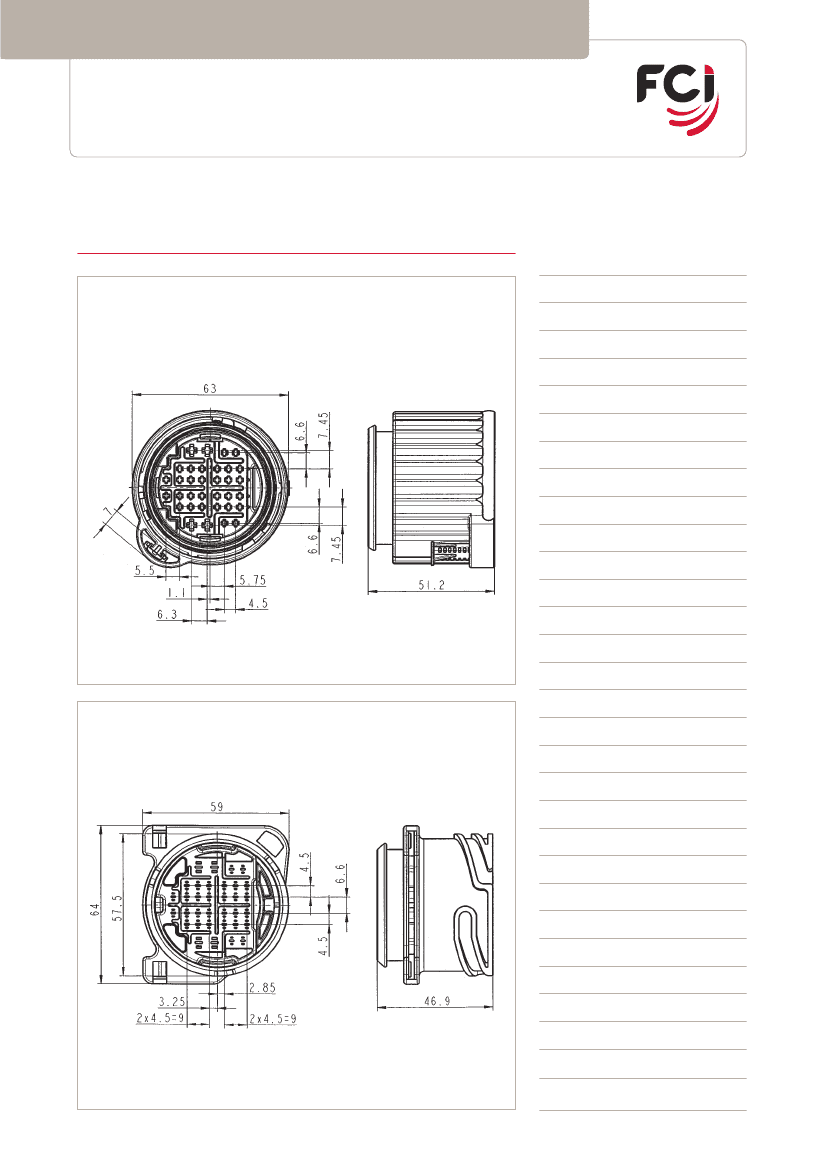

Part Numbers
3 043 02 01
3 053 01 01
No. of position
34
34
Terminal size
30 x [1.5 mm] + 4 x [2.8 mm]
30 x [1.5 mm] + 4 x [2.8 mm]
Type
Female housing
Male housing
Colour
Black
Black
6.69
