74LVX08MSCX datasheet, PDF - EEWORLD Datasheet

74LVX08MSCX: DescriptionAND Gate, LV/LV-A/LVX/H Series, 4-Func, 2-Input, CMOS, PDSO14, EIAJ TYPE1, PLASTIC, SSOP-14; Categorylogic logic; File Size76KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

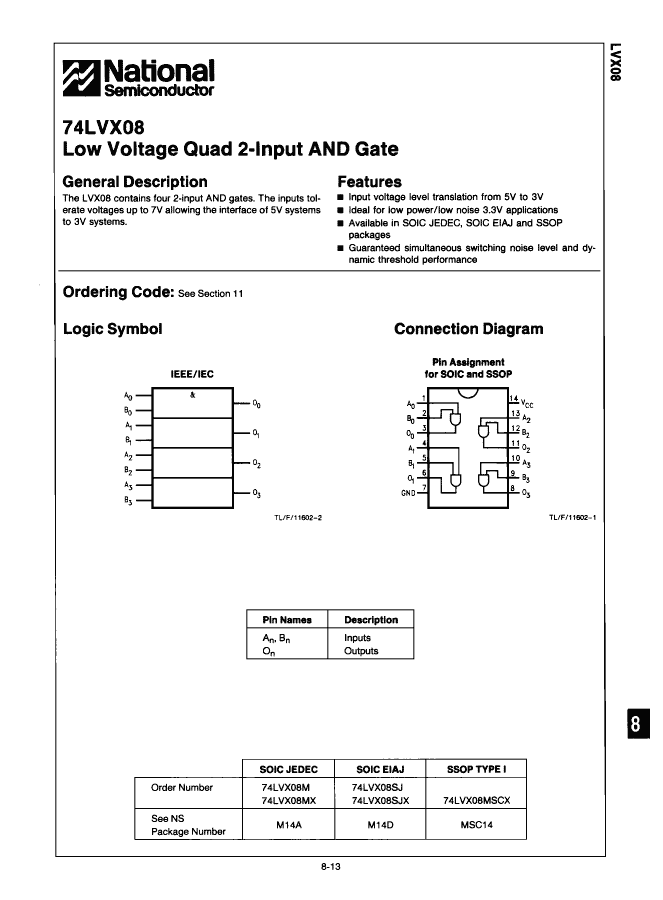

74LVX08MSCX Overview

AND Gate, LV/LV-A/LVX/H Series, 4-Func, 2-Input, CMOS, PDSO14, EIAJ TYPE1, PLASTIC, SSOP-14

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SSOP
package instruction	LSSOP,
Contacts	14
Reach Compliance Code	unknown
Other features	INPUTS CAN BE DRIVEN BY 3V OR 5V COMPONENTS
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14
length	5 mm
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

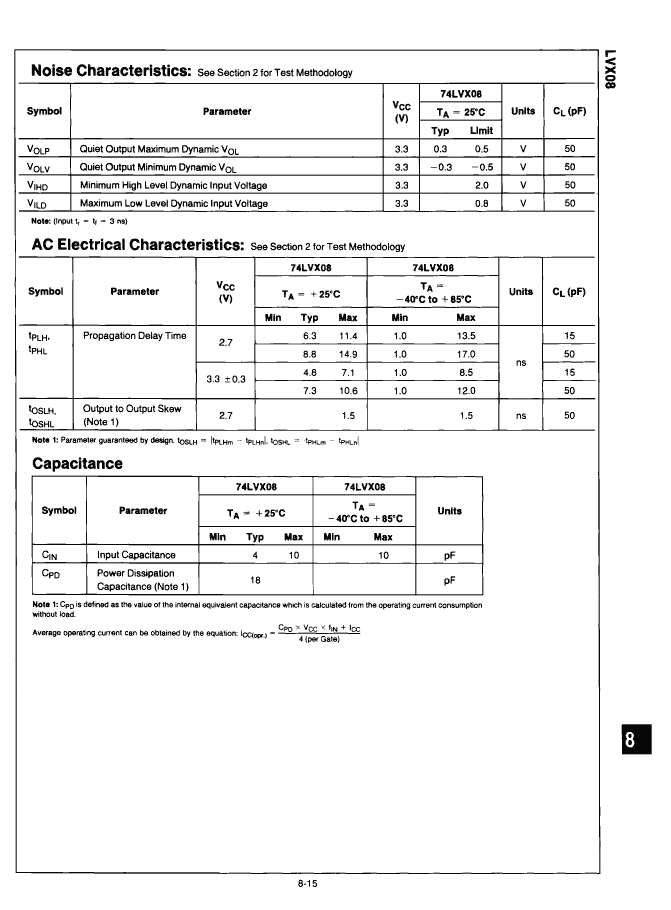

propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm

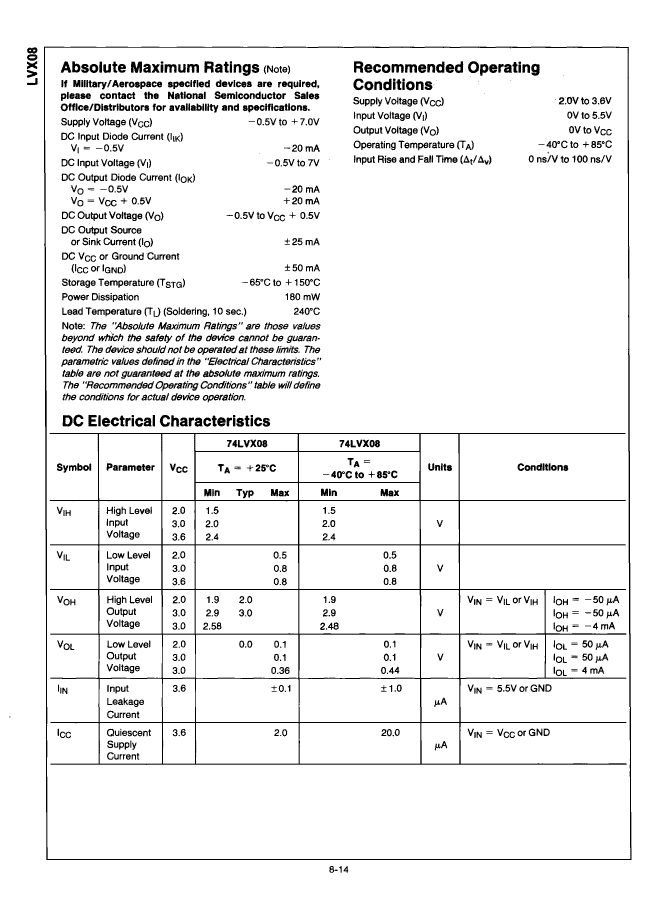

Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

	74LVX08MSCX
Description	AND Gate, LV/LV-A/LVX/H Series, 4-Func, 2-Input, CMOS, PDSO14, EIAJ TYPE1, PLASTIC, SSOP-14
Maker	Fairchild
Parts packaging code	SSOP
package instruction	LSSOP,
Contacts	14
Reach Compliance Code	unknown
Other features	INPUTS CAN BE DRIVEN BY 3V OR 5V COMPONENTS
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G14
length	5 mm
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1
