R58NP-5R6MB: Description1 ELEMENT, 5.6 uH, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size140KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

R58NP-5R6MB Overview

1 ELEMENT, 5.6 uH, GENERAL PURPOSE INDUCTOR

R58NP-5R6MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	3120
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	3120
structure	Unshielded
core material	FERRITE
DC Resistance	0.0418 Ω
Nominal inductance(L)	5.6 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.5 mm
Lead length	4 mm
lead spacing	5.5 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	8.5 mm
Package length	7.9 mm
Package form	Radial
Package width	5.2 mm
method of packing	Box
Maximum rated current	2.6 A
series	R58
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	7.96 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Power Inductor< Pin Type :R Series>

Type: R58

◆

Product Description

・7.9×5.2mm

Ref.(L×W),9.0mm Max.Height

・Inductance

range: 1.0μH~ 100μH

・Rated

current range: 0.46~ 4.2A

・In

addition to the standard versions of inductors shown here, custom design

are available to meet your exact requirements.

◆

Feature

・Magnetically

unshielded construction.

・Ideally

Used in Printers, LCD TV, DVD, Printer, Copy Machine, Mainboard of PC etc,

as Power Supplies’s Inductors or DC-DC Converter inductors.

・RoHS

Compliance

◆

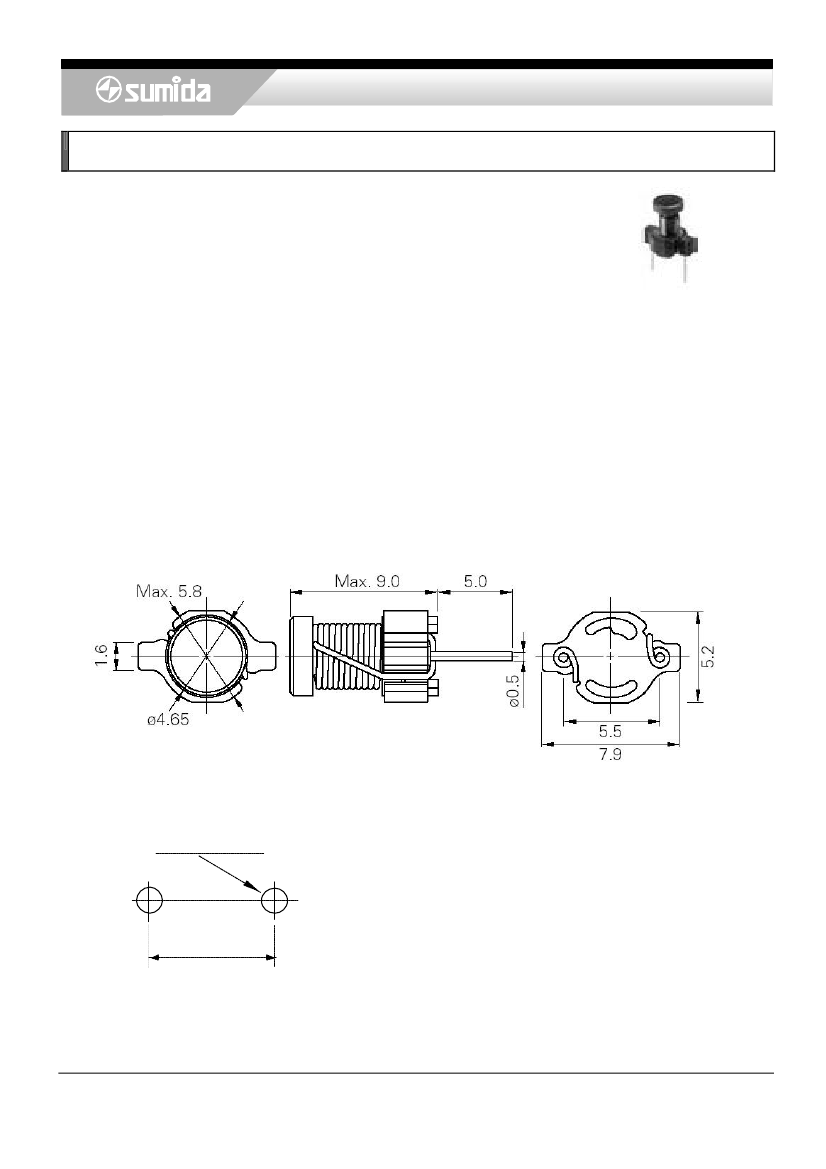

Dimensions (mm)

◆

Reference PCB piercing plan dimension (mm)

2-φ0.8±0.1

5.5±0.1

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
