85C72/SN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> 85C72/SN

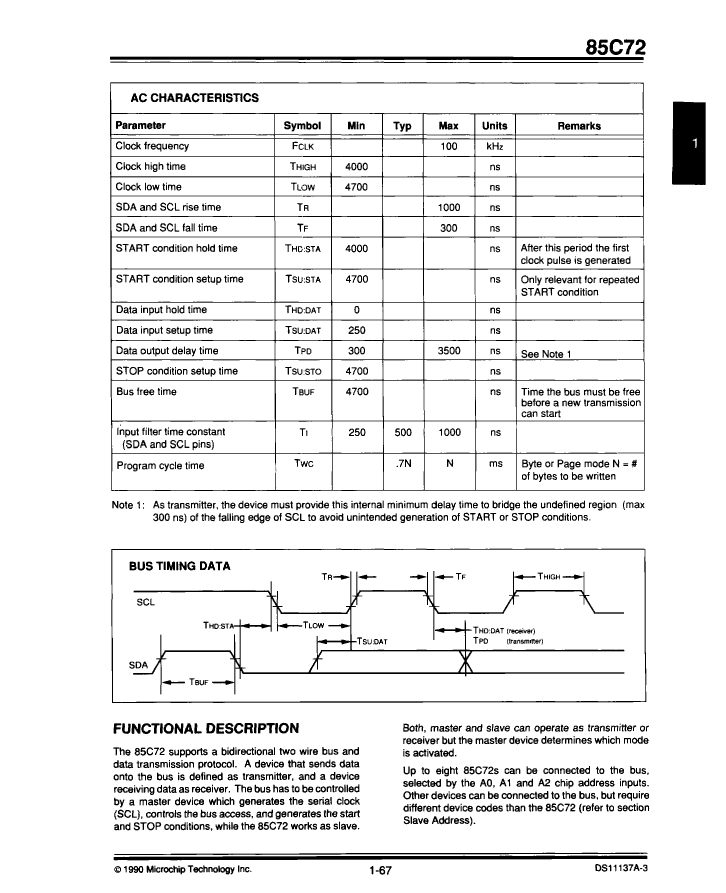

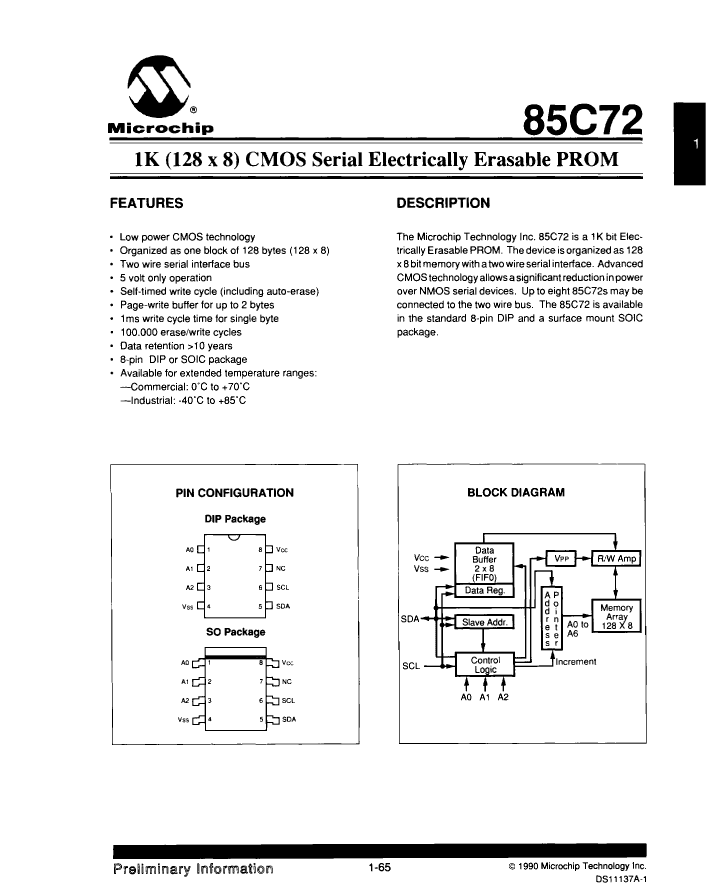

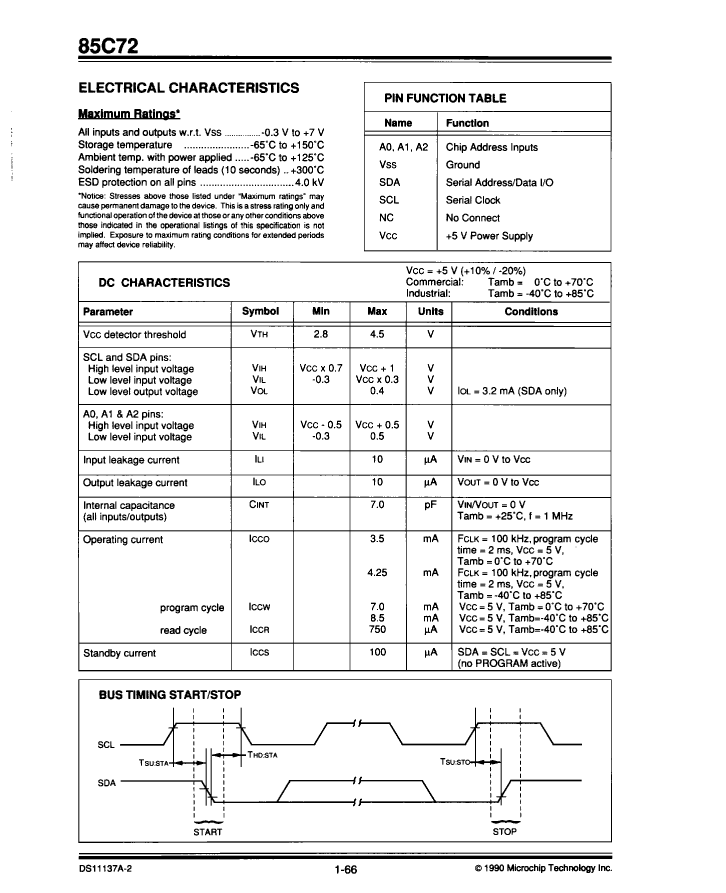

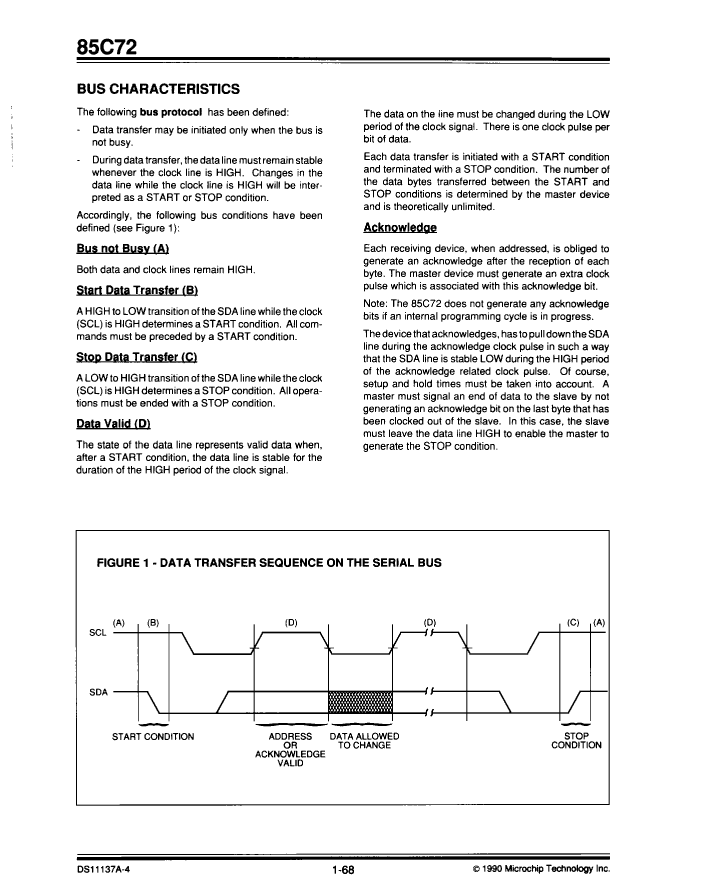

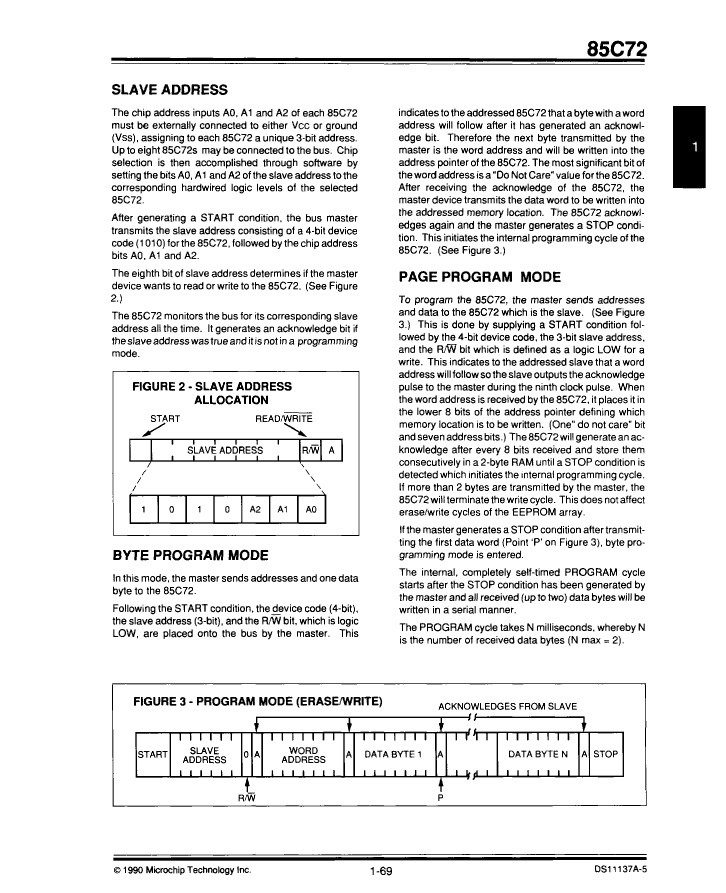

Preview

85C72/SN: Description128 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOIC-8; Categorystorage storage; File Size218KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

85C72/SN Overview

128 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOIC-8

85C72/SN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Microchip
Parts packaging code	SOIC
package instruction	0.150 INCH, PLASTIC, SOIC-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AUTOMATIC WRITE; 2 WIRE INTERFACE
Maximum clock frequency (fCLK)	0.1 MHz
I2C control byte	1010DDDR
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128X8
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum standby current	0.0001 A
Maximum slew rate	0.007 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm
Maximum write cycle time (tWC)	1 ms
Base Number Matches	1

Preview

Download Datasheet

View All

85C72/SN Related Products

	85C72/SN	85C72-I/SN
Description	128 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOIC-8	128 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SOIC-8
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Microchip	Microchip
Parts packaging code	SOIC	SOIC
package instruction	0.150 INCH, PLASTIC, SOIC-8	0.150 INCH, PLASTIC, SOIC-8
Contacts	8	8
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	AUTOMATIC WRITE; 2 WIRE INTERFACE	AUTOMATIC WRITE; 2 WIRE INTERFACE
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz
I2C control byte	1010DDDR	1010DDDR
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3	e3
length	4.9 mm	4.9 mm
memory density	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	8	8
word count	128 words	128 words
character code	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	85 °C
organize	128X8	128X8
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	260	260
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Serial bus type	I2C	I2C
Maximum standby current	0.0001 A	0.0001 A
Maximum slew rate	0.007 mA	0.0085 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
width	3.9 mm	3.9 mm
Maximum write cycle time (tWC)	1 ms	1 ms
Base Number Matches	1	1
