THICK FILM LOW PROFILE
RESISTOR NETWORK
RA &RB SERIES
Thick Film Low Profile Resistor Network
Features
•
Space saving over individual resistors
•
Low Profile, High Density Package
•
RoHS Compliant
Applications
•
For general purpose applications
•
For computer, Car, Air-Conditioner, Color Television and Electronic equipment

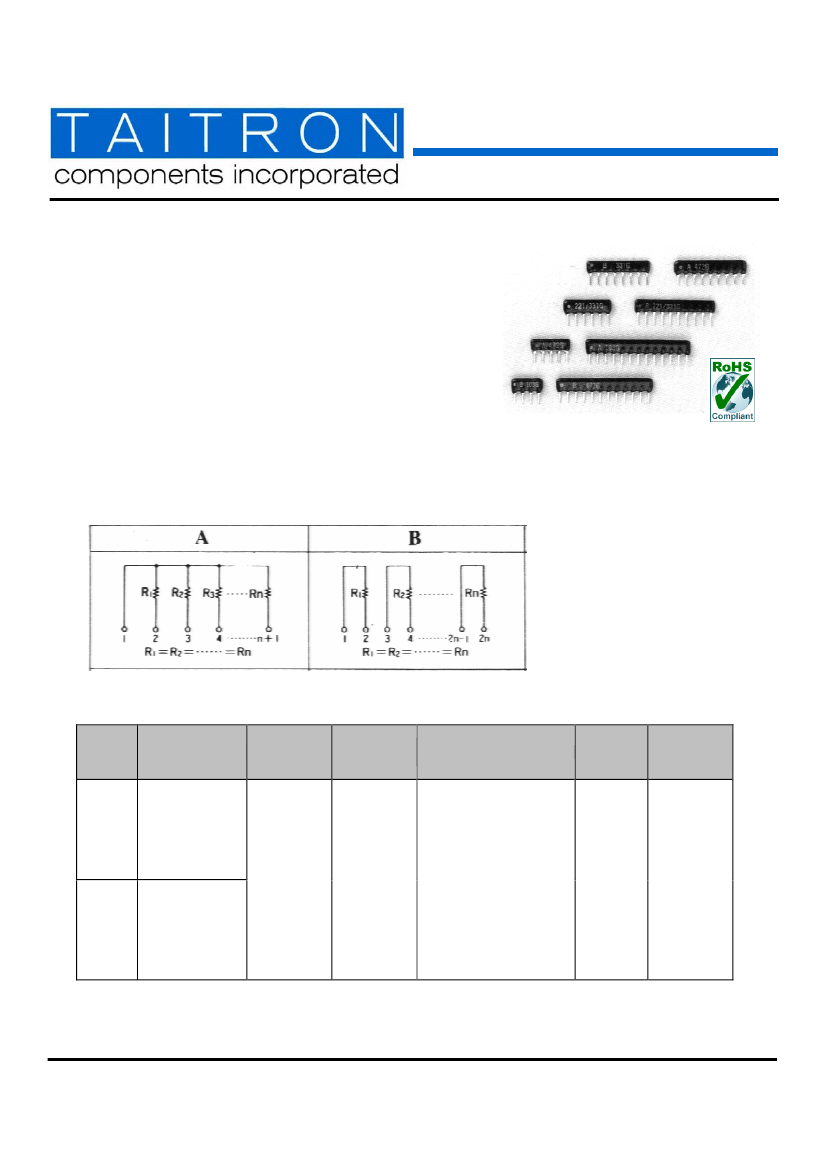

Circuit Diagrams
Absolute Maximum Ratings & Characteristics
Product
Family
Wattage/Element
Resistance
Tolerance
MAX Working
Voltage
TCR ppm/°C
Resistance
Range
Rated
Working
Temperature
RA
0.125 W
F: ±1%
G=±2%
J: ±5%
100V
±250ppm (< 50Ω,
≥2.2MΩ)
±100ppm (50Ω ~ 2.2MΩ)
10Ω~4.7MΩ -55°C ~+125°C
RB
0.2 W
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-247-2232
Fax: (800)-TAITFA
(800)-TAITRON
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. C/WW 2006-05-29
Page 1 of 4
Thick Film Low Profile Resistor Network
RA &RB Series

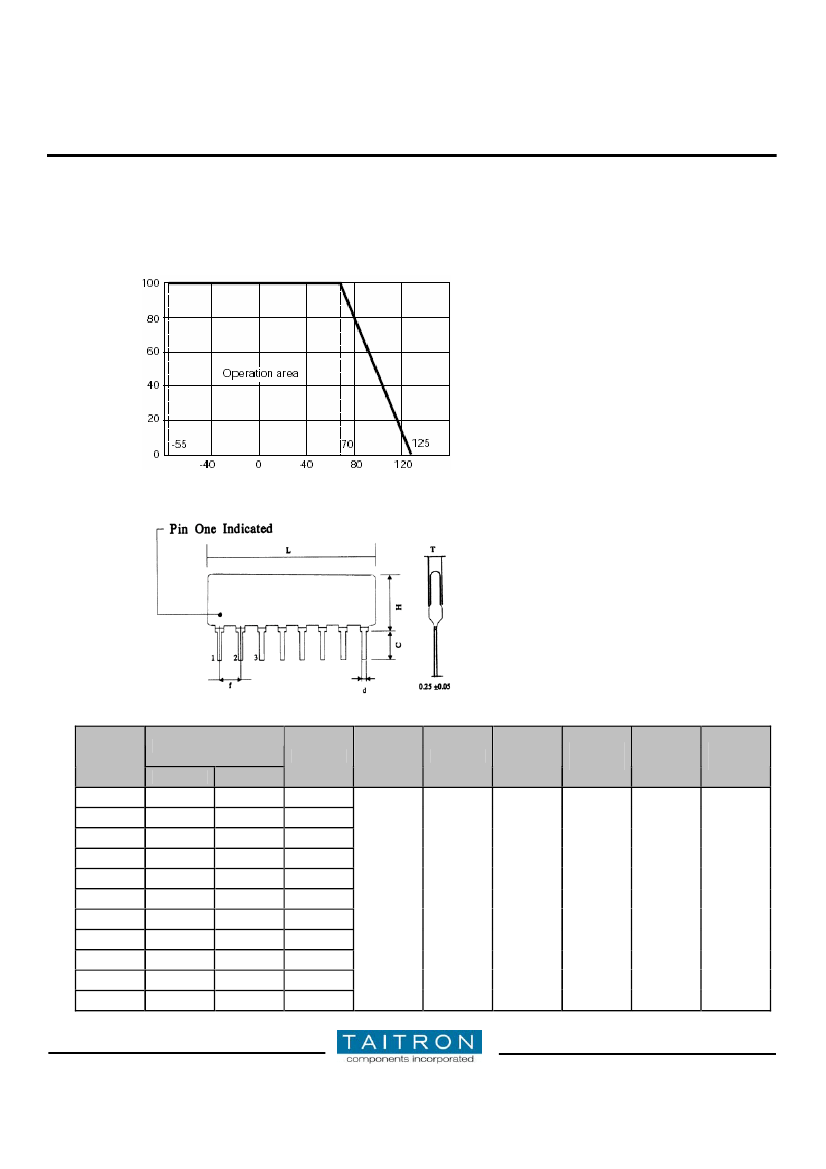

Power Derating Curve
For resistors operate in the ambient temperature over 70˚C, loading power ratio will derate in accordance
with following curve.
Percentage of the rated dissipating (%)
Ambient Temprature(°C)
Dimensions (in mm)
No. of
Pins
4
5
6
7
8
9
10
11
12
13
14
No. of Elements
Type RA
3
4
5
6
7
8
9
10
11
12
13
Type RB
2
--
3
--
4
--
5
--
6
--
7
L(max)
10.2
12.7
15.3
17.8
20.4
22.9
25.4
28
30.5
33.1
35.6
H(max)
T(max)
C
+0.3
-0.2
d
±0.05
r
±0.2
f
±0.05
5.08
2.5
2.8
0.5
2.54
0.25
Rev. C/JJ 2007-09-12
www.taitroncomponents.com
Page 2 of 4
Thick Film Low Profile Resistor Network
RA &RB Series
Environmental Performance Specification
Item
Resistance temperature
characteristic
Temperature Cycling
Short-Time Overload
Resistance to Soldering
Heat
Insulation Resistance
Terminal Strength
Test Methods
-55°C ~+125°C
-55°C ~+125°C , for 5 cycle
Rated Voltage X 2.5 for 5 sec
350°C for 3 sec
100V for 1 minute
Tensile: 1Kg, 30 sec
Bending: 500g, 2 times
Load V, Room temp. 30 minute
Unload, -55°C , 15 minute
Over 2 hrs in Room Temp. before
measuring
230°C ±5°C , 3 sec
40°C , 90-95% RH rated Voltage for 1000
hours
70°C at Rated Voltage for 1000 hours
Specifications
±100ppm°C for 50Ω~2.2M
±250ppm/°C for <50Ω≥2.2M
∆R ≤±(0.5%
+0.05Ω)
∆R ≤±(0.5%
+0.05Ω)
∆R ≤±(0.5%
+0.05Ω)
∆10000Megohm
minute
∆R ≤±(0.25%
+0.05Ω)
Thermal Shock
∆R ≤±(0.5%
+0.05Ω)
Solderbility
Moisture Load Life
Load Life
Covering 95%
∆R ≤±(2%
+0.05Ω)
∆R ≤±(2%
+0.05Ω)
Packaging (in pcs)
Package
Bag
Inner box
Carton
4-6 pins
200
2000
60000
7-10 pins
200
1000
30000
11-12 pins
200
800
24000
13-14 pins
200
600
18000
Rev. C/JJ 2007-09-12
www.taitroncomponents.com
Page 3 of 4
Thick Film Low Profile Resistor Network
RA &RB Series
How to order
R
A
05
103
G
-XX -BL
Packing
BL: Bulk with RoHS, Standard
AR: Tape & Ammo with RoHS
TR30: Tape in 13" Reel with RoHS
Factory Location
Tolerance
G=±2%; J=±5%; K = ±10%
Resistance (E-12 series)
103=10x10 =10K
Ω
3
Number Of Elements(Bits) 05: 5 elements, 6 pins;(A circuit)
05: 5 elements, 10 pins;(B circuit)
Circuit Diagram
A: A circuit; B: B circuit;
Product Series: Thick Film Resistor Network
