5962-8872604LA datasheet, PDF - EEWORLD Datasheet

5962-8872604LA: DescriptionUV PLD, 20ns, 10-Cell, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24; CategoryProgrammable logic devices Programmable logic; File Size487KB，14 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

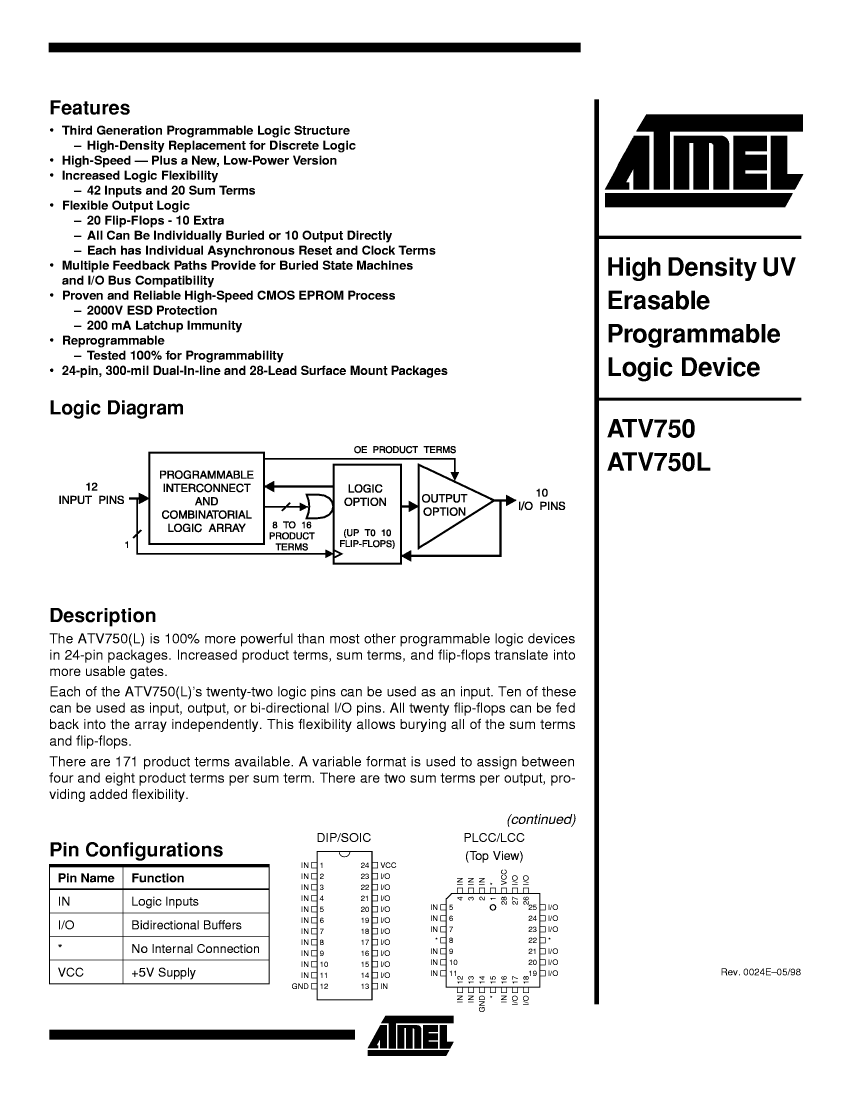

5962-8872604LA Overview

UV PLD, 20ns, 10-Cell, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	WDIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

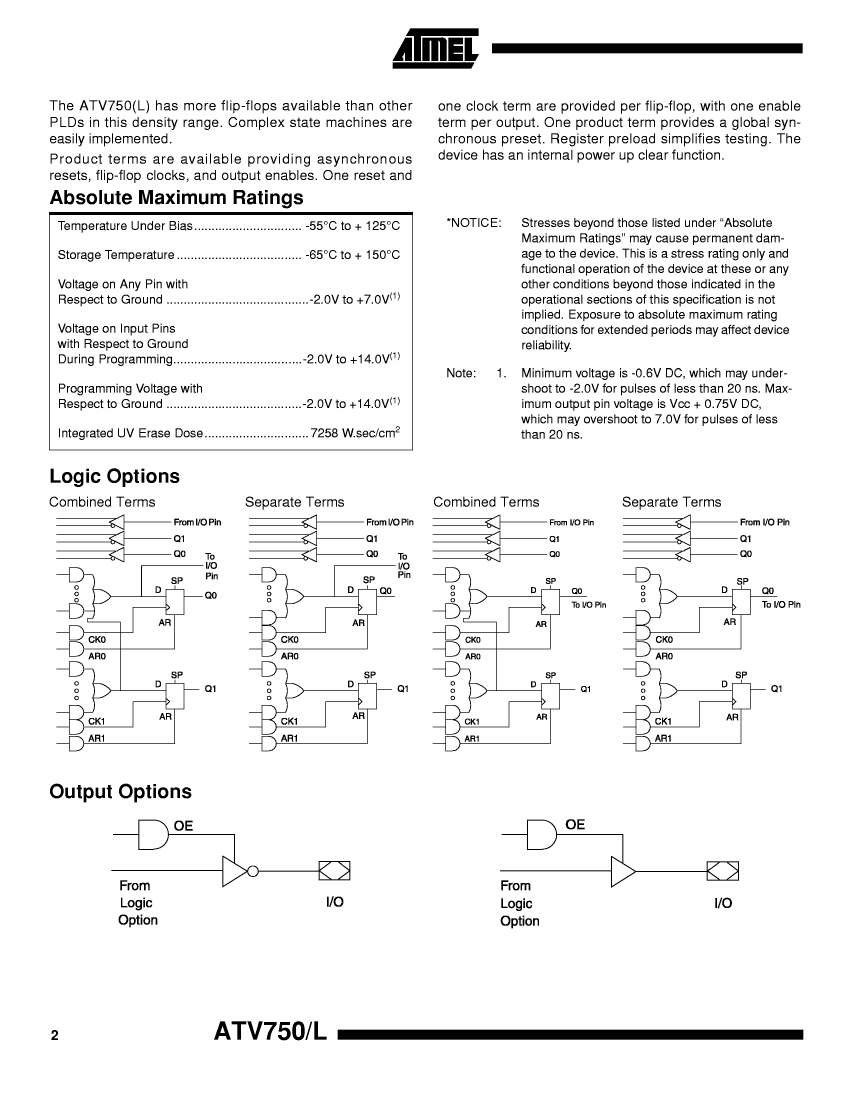

Other features	10 MACROCELLS; VARIABLE PRODUCT TERMS
maximum clock frequency	55 MHz
In-system programmable	NO
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
JTAG BST	NO
length	32 mm
Dedicated input times	12
Number of I/O lines	10
Number of macro cells	10
Number of terminals	24

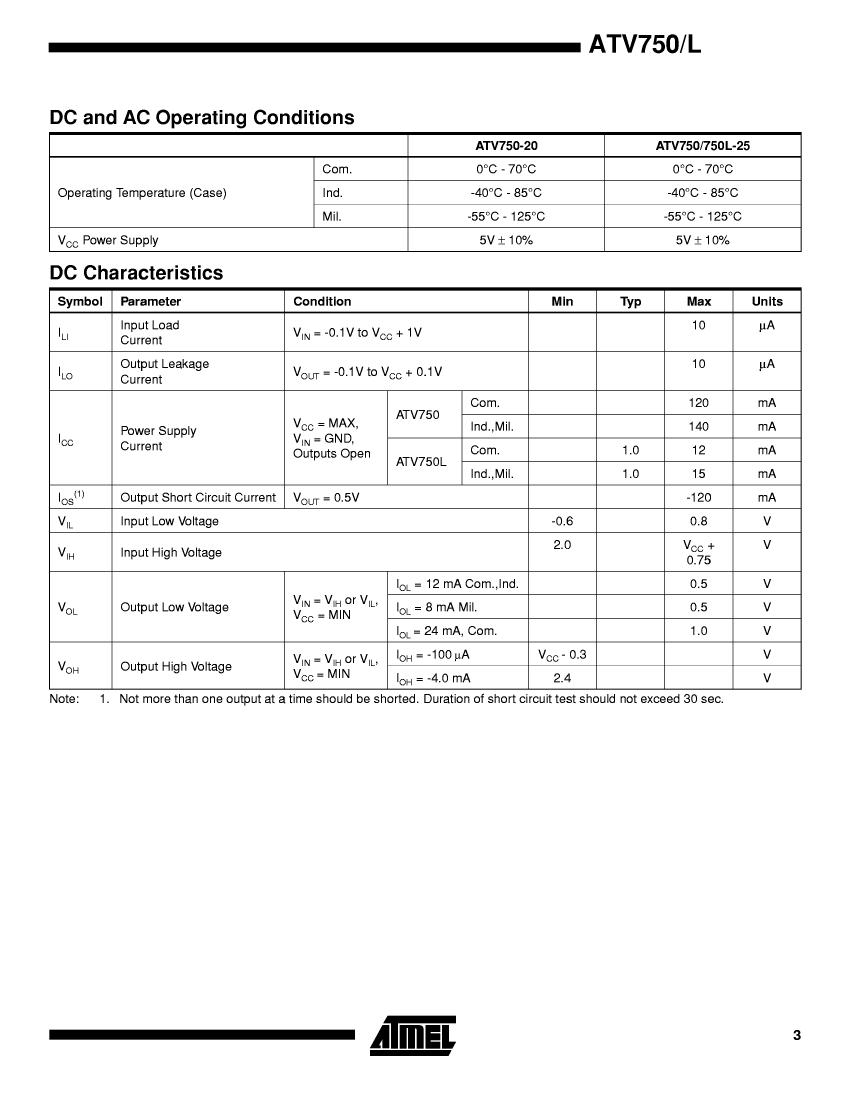

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	UV PLD

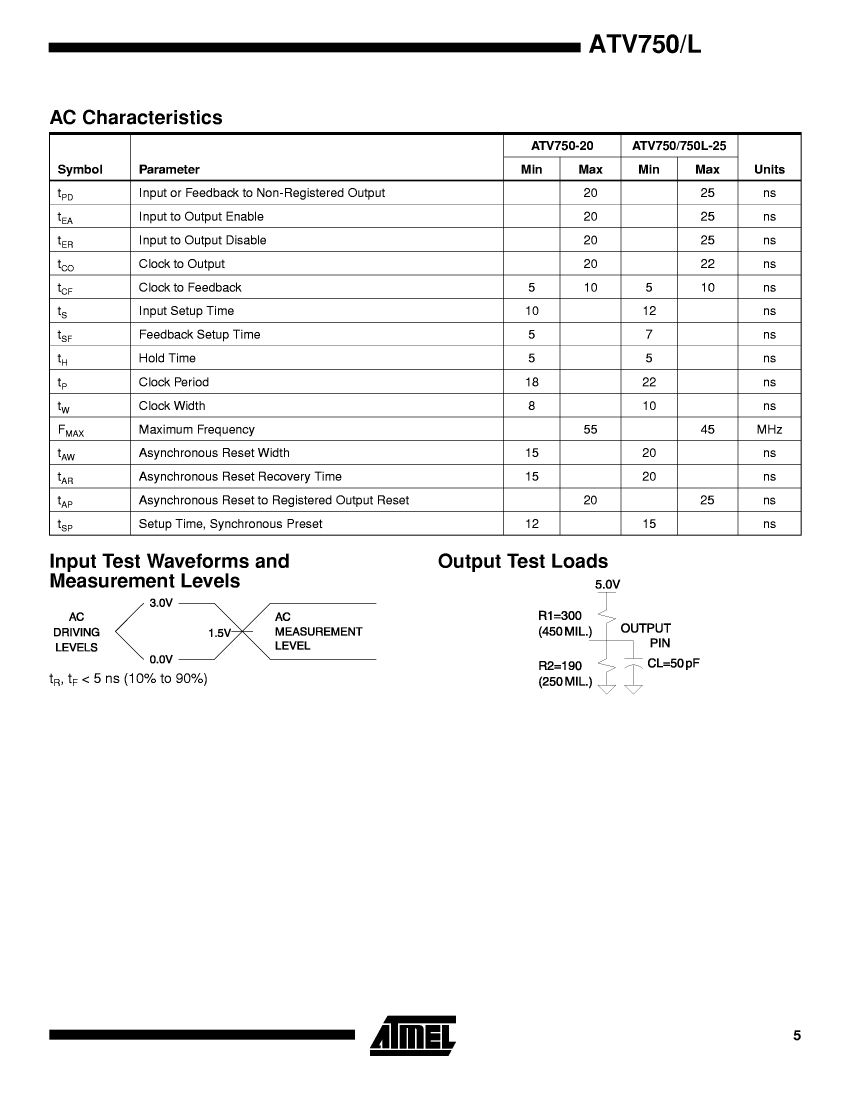

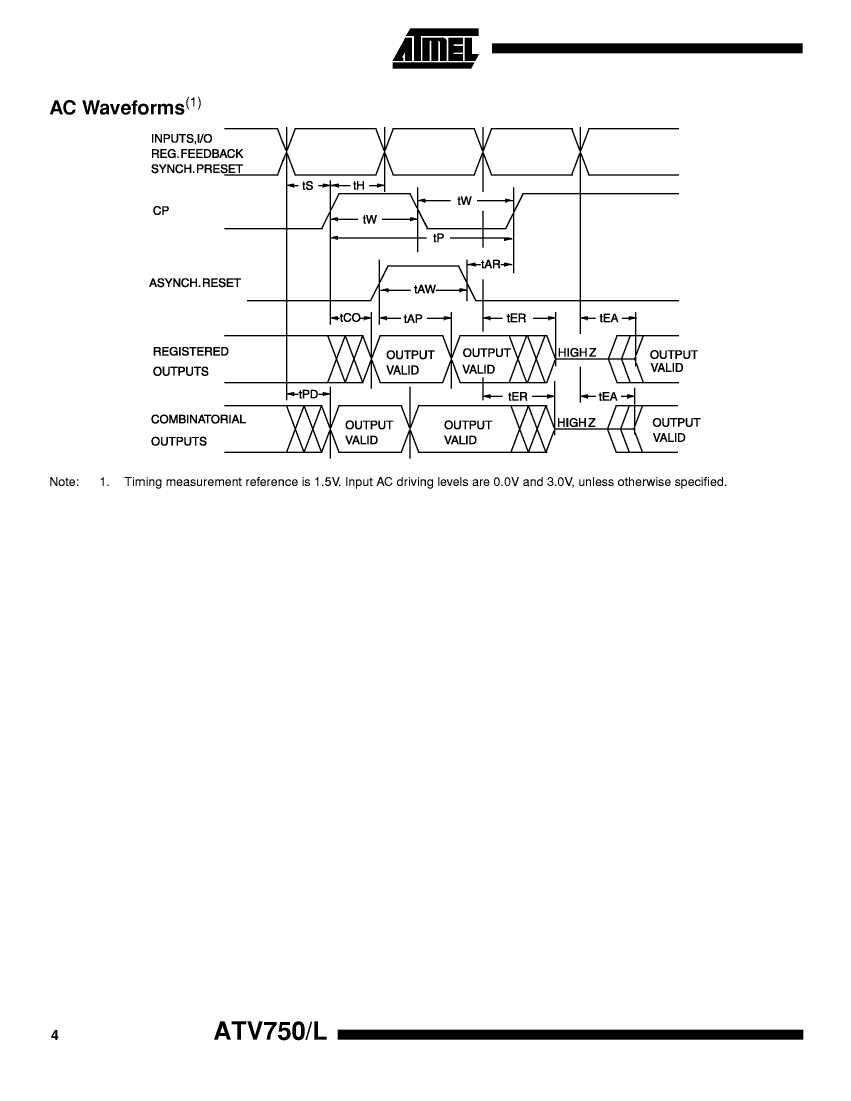

propagation delay	20 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
