5962-9452402MLA datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-9452402MLA

5962-9452402MLA: DescriptionOT PLD, 25ns, CMOS, CDIP24, 0.300 INCH, CERDIP-24; CategoryProgrammable logic devices Programmable logic; File Size818KB，12 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

5962-9452402MLA Overview

OT PLD, 25ns, CMOS, CDIP24, 0.300 INCH, CERDIP-24

5962-9452402MLA Parametric

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	10 MACROCELLS; VARIABLE PRODUCT TERMS
maximum clock frequency	45 MHz
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32 mm
Dedicated input times	12
Number of I/O lines	10
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	12 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	OT PLD
propagation delay	25 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

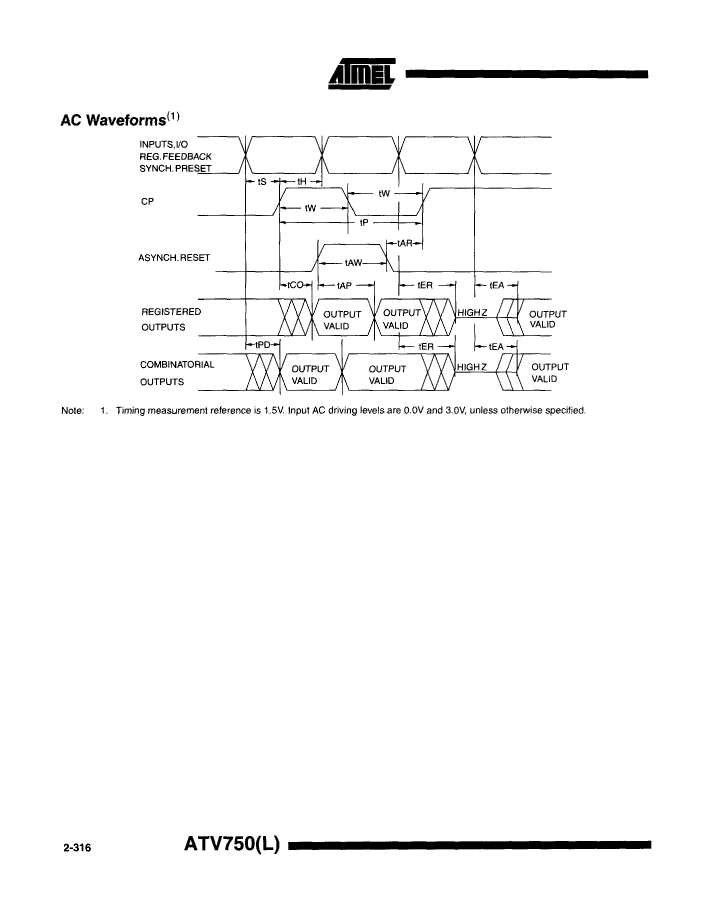

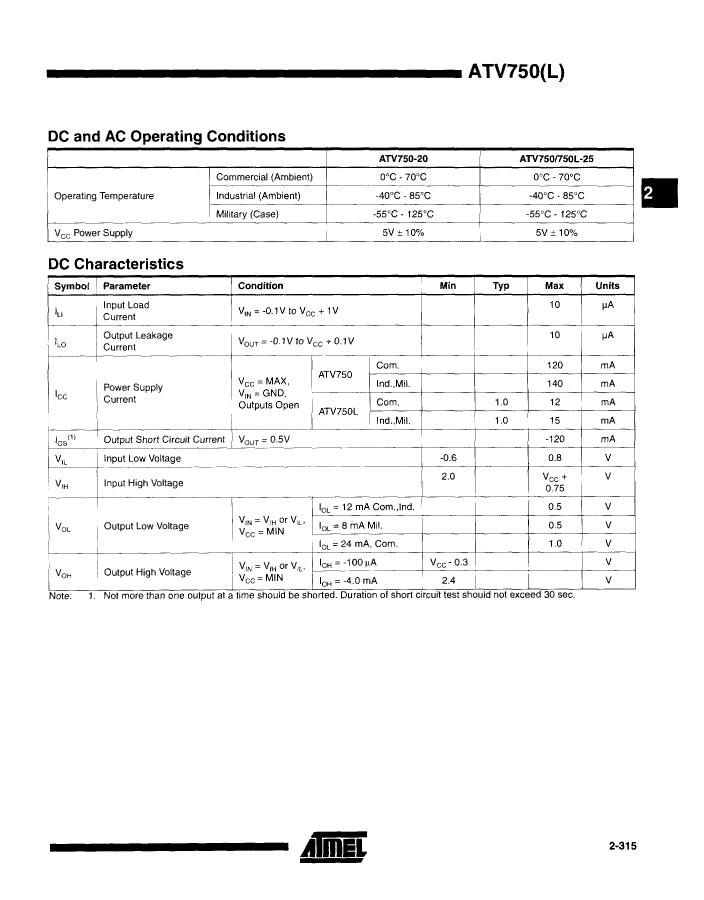

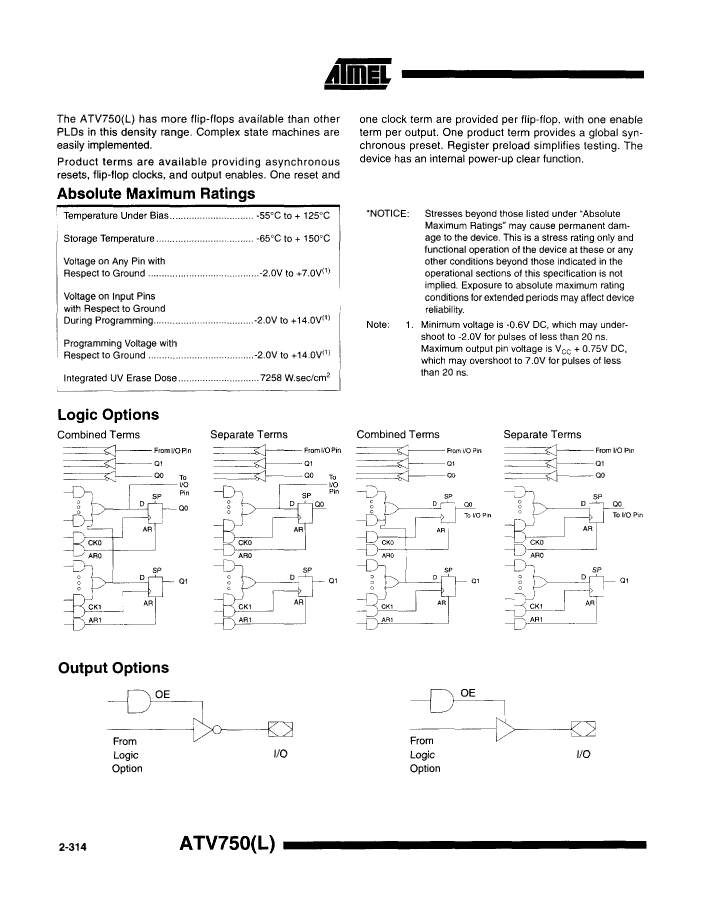

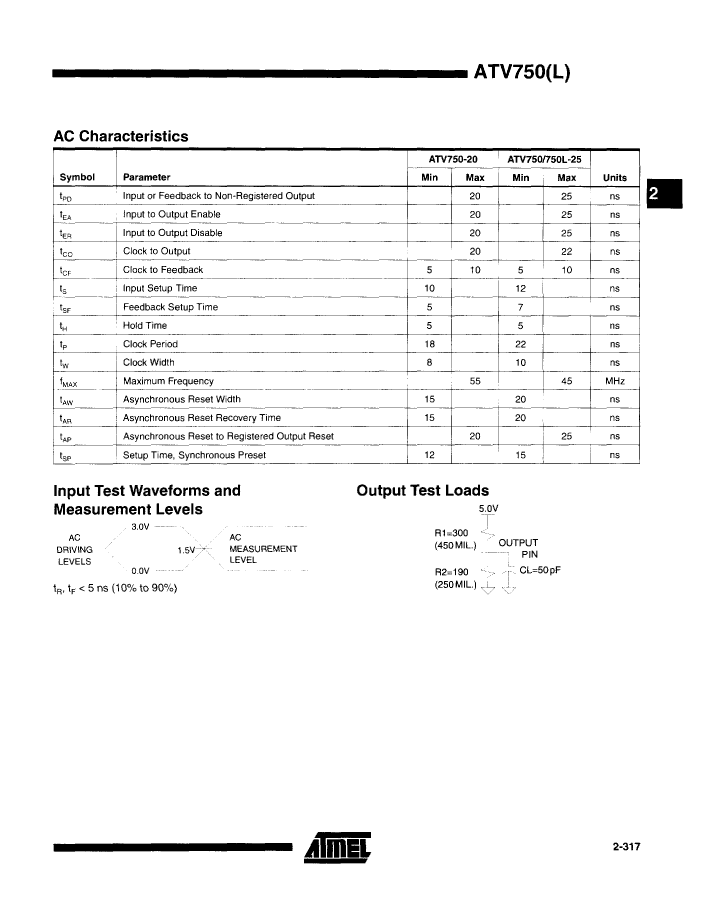

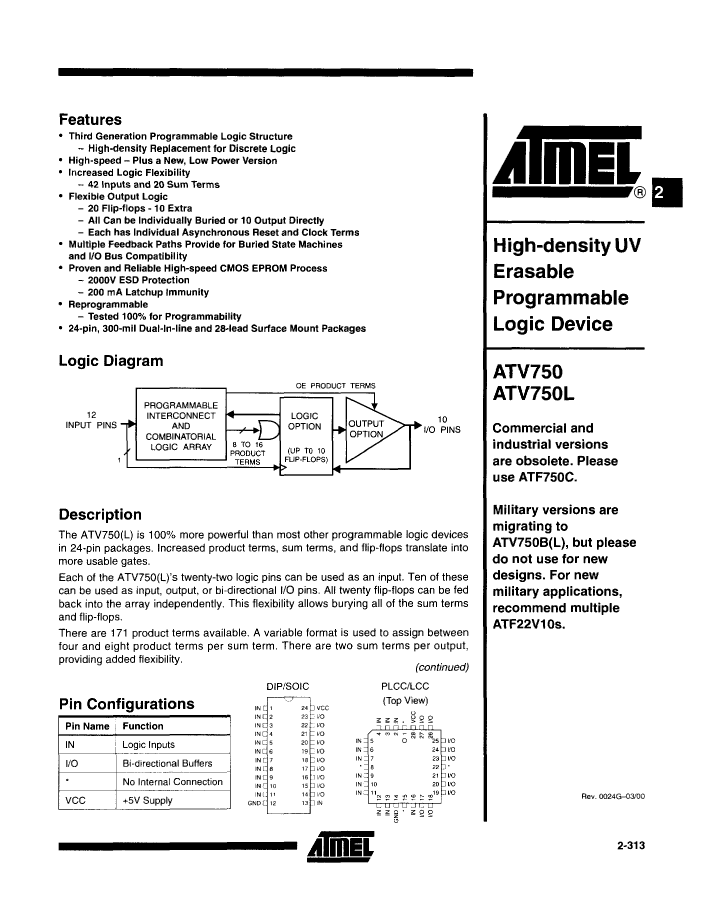

Preview

Download Datasheet

View All

5962-9452402MLA Related Products

	5962-9452402MLA	5962-9452405MLA	5962-9452403MLA
Description	OT PLD, 25ns, CMOS, CDIP24, 0.300 INCH, CERDIP-24	OT PLD, 25ns, CMOS, CDIP24, 0.300 INCH, CERDIP-24	OT PLD, 20ns, CMOS, CDIP24, 0.300 INCH, CERDIP-24
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	10 MACROCELLS; VARIABLE PRODUCT TERMS	10 MACROCELLS; VARIABLE PRODUCT TERMS	10 MACROCELLS; VARIABLE PRODUCT TERMS
maximum clock frequency	45 MHz	45 MHz	55 MHz
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0	e0
length	32 mm	32 mm	32 mm
Dedicated input times	12	12	12
Number of I/O lines	10	10	10
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	12 DEDICATED INPUTS, 10 I/O	12 DEDICATED INPUTS, 10 I/O	12 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Programmable logic type	OT PLD	OT PLD	OT PLD
propagation delay	25 ns	25 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1
Maker	Atmel (Microchip)	-	Atmel (Microchip)
