59628982301XX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> 59628982301XX

59628982301XX: DescriptionFPGA, 320 CLBS, 9000 GATES, 16MHz, CPGA175, CERAMIC, PGA-175; CategoryProgrammable logic devices Programmable logic; File Size339KB，8 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/

Download Datasheet Parametric Compare View All

59628982301XX Overview

FPGA, 320 CLBS, 9000 GATES, 16MHz, CPGA175, CERAMIC, PGA-175

59628982301XX Parametric

Parameter Name	Attribute value
Maker	XILINX
Parts packaging code	PGA
package instruction	PGA,
Contacts	175
Reach Compliance Code	unknown
maximum clock frequency	16 MHz
Combined latency of CLB-Max	14 ns
JESD-30 code	R-CPGA-P175
JESD-609 code	e4
Configurable number of logic blocks	320
Equivalent number of gates	9000
Number of terminals	175
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	320 CLBS, 9000 GATES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
Base Number Matches	1

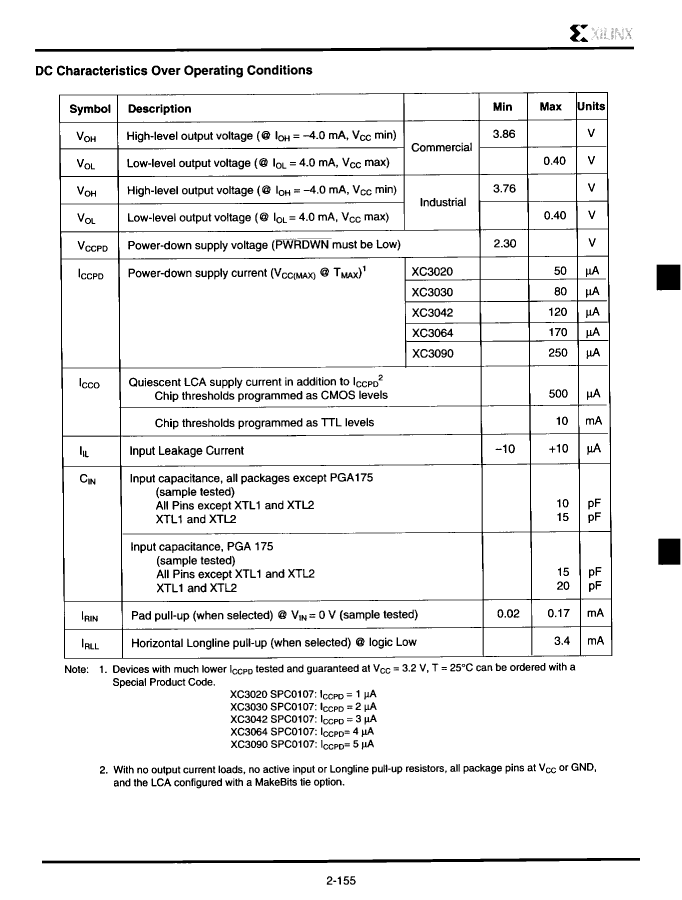

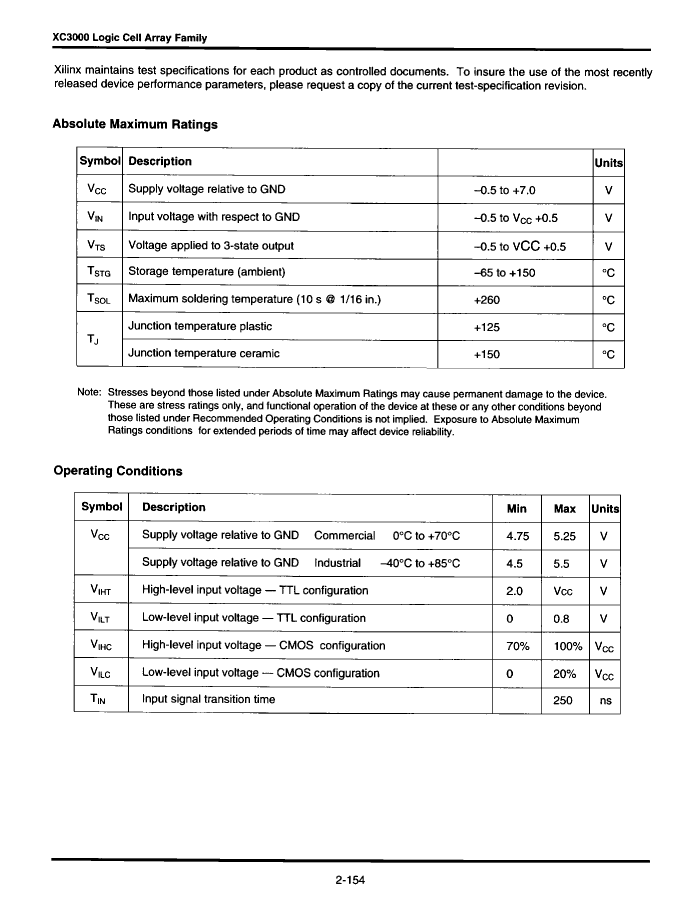

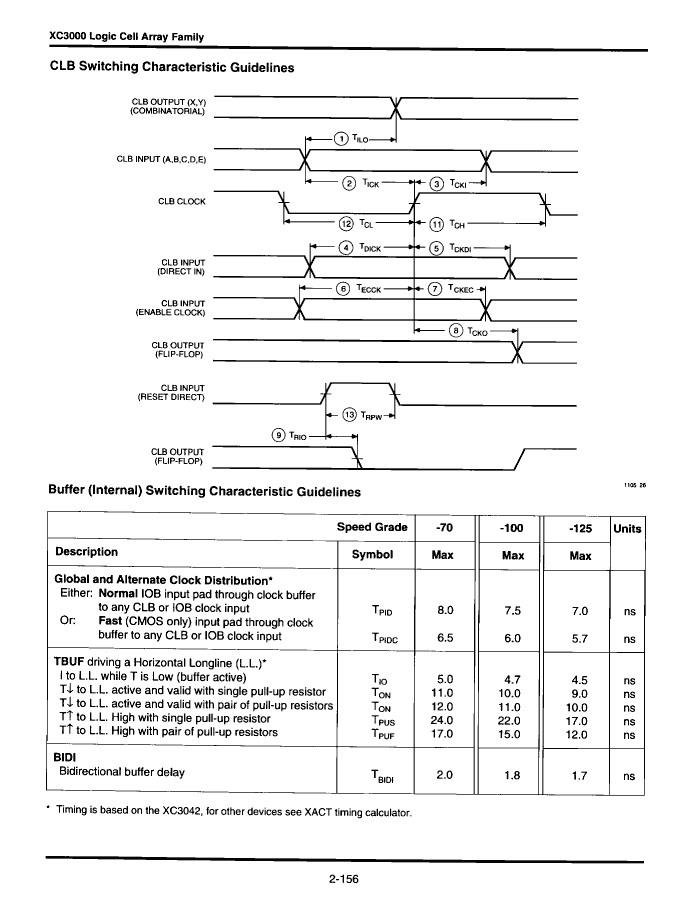

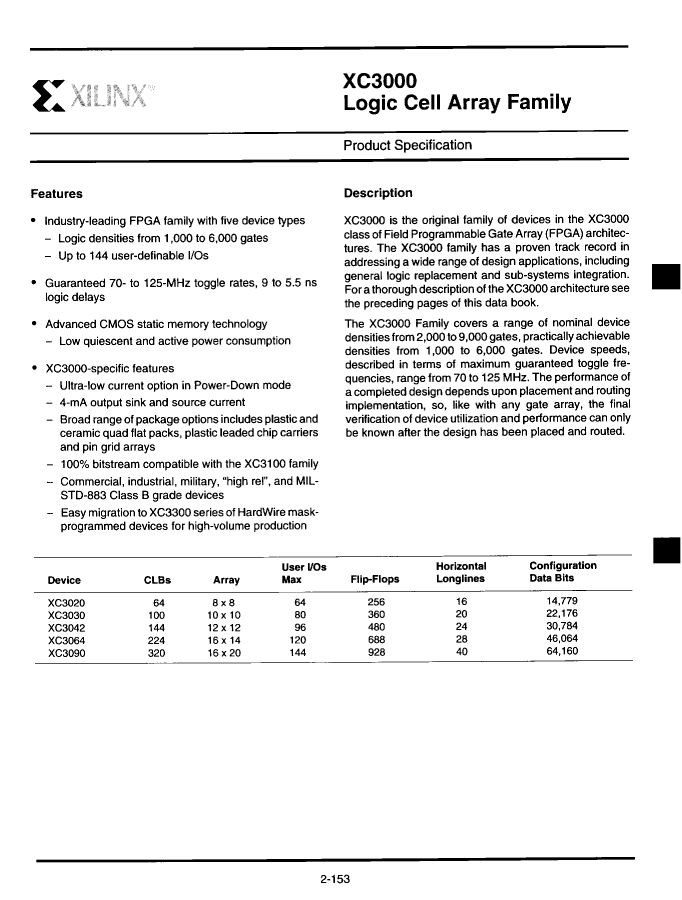

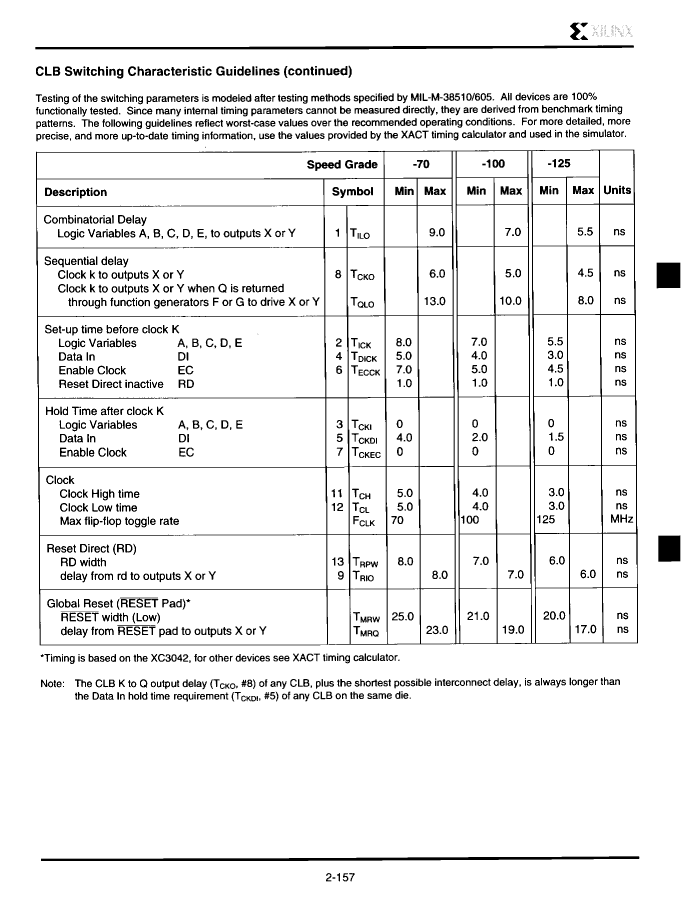

Preview

Download Datasheet

View All

59628982301XX Related Products

	59628982301XX	5962-8982301XC	5962-8982301ZC	5962-8982302XC	5962-8994801XC	5962-8994802XC	59628982302XX	5962-8971302XC
Description	FPGA, 320 CLBS, 9000 GATES, 16MHz, CPGA175, CERAMIC, PGA-175	Field Programmable Gate Array, 320 CLBs, 9000 Gates, 16MHz, CMOS, CPGA175, CERAMIC, PGA-175	Field Programmable Gate Array, 320 CLBs, 9000 Gates, 16MHz, CMOS, QFP-164	Field Programmable Gate Array, 320 CLBs, 9000 Gates, 25MHz, CMOS, CPGA175, CERAMIC, PGA-175	Field Programmable Gate Array, 64 CLBs, 2000 Gates, 16MHz, CMOS, CPGA84, CERAMIC, PGA-84	Field Programmable Gate Array, 64 CLBs, 2000 Gates, 25MHz, CMOS, CPGA84, CERAMIC, PGA-84	FPGA, 320 CLBS, 9000 GATES, 25MHz, CPGA175, CERAMIC, PGA-175	Field Programmable Gate Array, CMOS, CQFP100
package instruction	PGA,	PGA,	QFF,	PGA,	PGA,	PGA,	PGA,	,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Number of terminals	175	175	164	175	84	84	175	100
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package form	GRID ARRAY	GRID ARRAY	FLATPACK	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	FLATPACK, GUARD RING
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal location	PERPENDICULAR	PERPENDICULAR	QUAD	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	QUAD
Maker	XILINX	XILINX	XILINX	XILINX	-	-	XILINX	-
Parts packaging code	PGA	PGA	QFP	PGA	PGA	PGA	PGA	-
Contacts	175	175	164	175	84	84	175	-
maximum clock frequency	16 MHz	16 MHz	16 MHz	25 MHz	16 MHz	25 MHz	25 MHz	-
Combined latency of CLB-Max	14 ns	14 ns	14 ns	9 ns	14 ns	9 ns	9 ns	-
JESD-30 code	R-CPGA-P175	R-CPGA-P175	S-XQFP-F164	R-CPGA-P175	R-CPGA-P84	R-CPGA-P84	R-CPGA-P175	-
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	-
Configurable number of logic blocks	320	320	320	320	64	64	320	-
Equivalent number of gates	9000	9000	9000	9000	2000	2000	9000	-
organize	320 CLBS, 9000 GATES	320 CLBS, 9000 GATES	320 CLBS, 9000 GATES	320 CLBS, 9000 GATES	64 CLBS, 2000 GATES	64 CLBS, 2000 GATES	320 CLBS, 9000 GATES	-
encapsulated code	PGA	PGA	QFF	PGA	PGA	PGA	PGA	-
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	-
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-
surface mount	NO	NO	YES	NO	NO	NO	NO	-
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-
Terminal form	PIN/PEG	PIN/PEG	FLAT	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	-
Base Number Matches	1	1	1	1	-	-	1	-
ECCN code	-	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C
