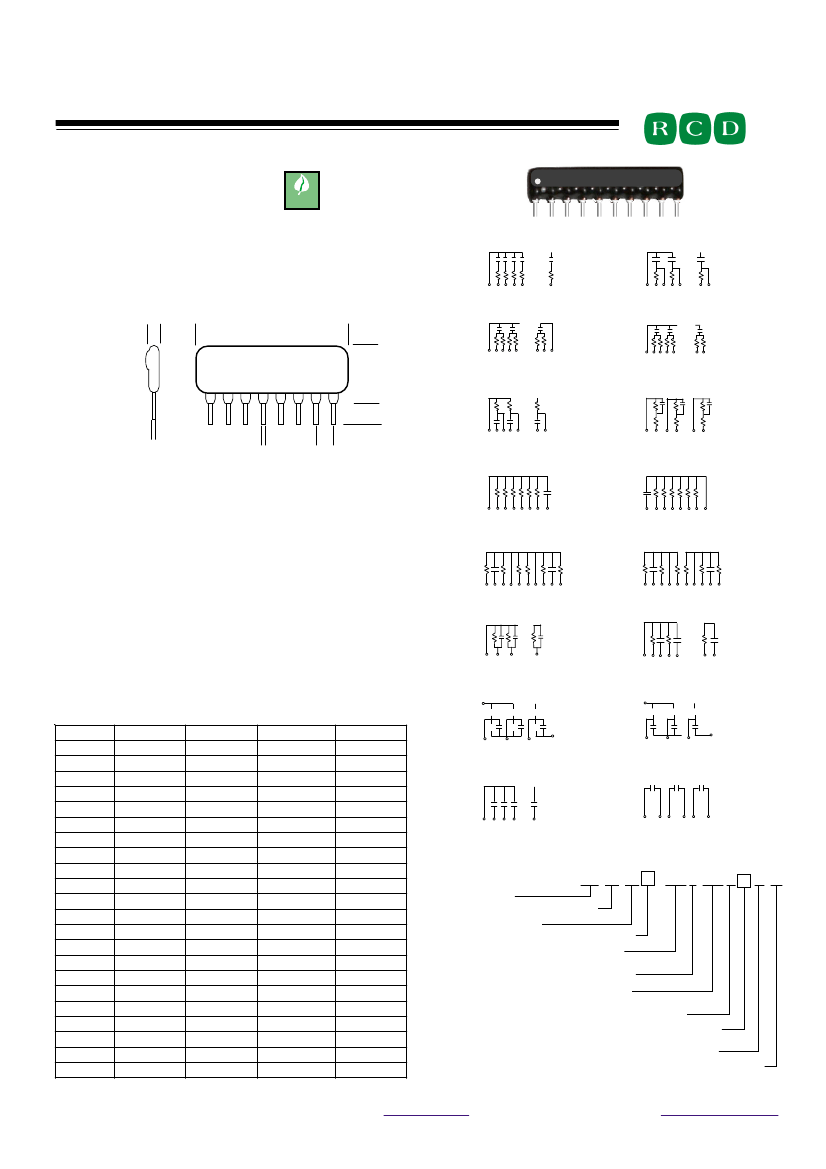

CAPACITOR AND RESISTOR/CAPACITOR NETWORKS
RESISTORS CAPACITORS COILS DELAY LINES
RC SERIES
RoHS
Term.W is
RoHS
compliant
& 260°C
compatible
RC1001 250G101K
Widest selection in the industry!
Low cost resulting from automated production
PCB space savings over discrete components
Custom circuits available
Exclusive
SWIFT
TM
delivery available (refer to DSN series)
Options include voltage ratings to 2KV, multiple values,
custom marking, low profile & narrow profile designs, diodes, etc.
STANDARD SCHEMATICS
(Custom circuits available)
. . . .
. . . . . .
.
.
.
.
. . . . . .
.
.
.
RC-01
(4, 5, 6, 7, 8, 9,10,11,12,13,14 pin)
RC-02
(5, 7, 9,11,13 pin)
.....
→
Opt. N= .100 [2.54] Max.
.135 [3.43] Max.
←
←
Length=0.1” X No. of pins max
→
Pin #1
. .
. . . . .
.
.
.350 [8.9] Max.
(low profile avail)
↑
↓
RC-03
(5, 7, 9,11,13 pin)
RC-04
(5, 7, 9,11,13 pin)
.012 [.30]
→ ←
.020 [.5]
Dimensions: Inch [mm]
→ ← →
←
.100 ± .01 [2.54 ± .25]
↑
.102 [2.6] Min.
↓
. .
. . . . . .
.
. .
.
RC-05
(5, 7, 9,11,13 pin)
.
.
.
...
RC-06
(4, 6, 8,10,12,14 pin)
SPECIFICATIONS
RESISTORS
Resistance Range: 22Ω to 1MΩ standard, 1Ω to 100M avail.
Tolerance: ±5% standard, ±2% and ±1% available
Temp. Coefficient: ±100ppm typ (±250ppm <50Ω & >2.2M)
Voltage rating: 50V (up to 1KV available)
Operating Temp: -55° C to +125°C
Power Rating: .2W @25°C (package power = .125W/pin)
CAPACITORS
Capacitance Range: 10pF to 0.1µF standard, 0.5pF to 10µF avail.
Voltage rating: 50V standard, 6.3V to 2KV available
Dielectric: COG(NPO), X7R, X5R, Y5V, Z5U*
Standard capacitance values & dielectrics: refer to table below
(most popular models listed in bold). Any combination of chips
from RCD’s CE Series can be utilized on a custom basis.
P/N CODE
100K G
220K G
330K G
470K G
560K G
680K G
101K G
151K G
221K G
331K G
471K G
561K G
681K G
102MR
222MR
472MR
103MR
223ZV
333ZV
473ZV
683ZV
104ZV
CAP. VALUE
10pF
22pF
33pF
47pF
56p F
68pF
100p F
150pF
220p F
330pF
470p F
560pF
680pF
1000p F
2200pF
4700pF
.01µF
.022µF
.033µF
.047µF
.068µF
0.1µF
TOL.
10%
10%
10%
10%
10%
10%
10%
10%
10%
10%
10%
10%
10%
20%
20%
20%
20%
+80%/-20%
+80%/-20%
+80%/-20%
+80%/-20%
+80%/-20%
TYPE
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
NPO/COG
X 7R
X 7R
X 7R
X 7R
Y5V*
Y5V*
Y5V*
Y5V*
Y5V*
VOLTAGE
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
50V
.. . . . .
. . . . ..
RC-07
(8 pin)
RC-08
(8 pin)
. . . . . . . .
. . . . . . . .
RC-09
(10 pin)
RC-10
(10 pin)
. . .
.
.. ..
.
. . . .
. . . . . .
.
RC-11
(4, 5, 6, 7, 8, 9,10,11,12,13,14 pin)
RC-12
(5, 7, 9,11,13 pin)
.
RC-13
(4, 5, 6, 7, 8, 9,10,11,12,13,14 pin)
. . .
. . . .
.
RC-15
(4, 5, 6, 7, 8, 9,10,11,12,13,14 pin)
P/N DESIGNATION:
Type
(RC Series)
Number of Pins
(4 -14 std, 2 -20 avail)
Configuration Number
Options:
assigned by RCD, leave blank if std
Resis.Code
(Ω) 2 signif. figures & multiplier,
(e.g. 100=10Ω, 101=100Ω, 102=1K, 105=1M)
Resistor Tol. Code:
J=5% (standard), G=2%
Capac. value (pF)
2 signif. figures & multiplier,
e.g. 100=10pF, 101=100pF, 102=1000pF, 104=100000pF (.1uF
)
Capac. Tol. Code:
J=5%, K=10%, M=20%, Z=+80%/-20%
Cap. Voltage
(if other than std 50V): 006=6.3V, 010=10V, 016=16V,
025=25V, 101=100V, 201=200V, 501=500V, 102=1KV, 202=2KV.
Cap. Dielectric:
G=COG(NPO), R=X7R, X=X5R, U=Z5U, V=Y5V
Termination:
W= Lead-free, Q= Tin/Lead (leave blank if either is acceptable)
*
Y5V is standard, Z5U is available (Y5V & Z5U are considered interchangeable)
RCD Components Inc,
520 E.Industrial Park Dr, Manchester, NH, USA 03109
rcdcomponents.com
Tel: 603
-
669
-
0054 Fax: 603
-
669
-
5455 Email:sales@rcdcomponents.com
FA100 Sale of this product is in accordance with GF-061. Specifications subject to change without notice.
39
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
.
>
>
>
.
.
. . . . .
.
>
>
>
>
>
>
.
.
. .
. . . . . .
. .
.
>
>
>
.
.
. . . . .
>
>
>
>
>
>
.
.
.
. . .
.
RC-14
(4, 5, 6, 7, 8, 9,10,11,12,13,14 pin)
..
RC-16
(4, 6, 8,10,12,14 pin)
RC 08 01
- 102 J 561 K
G W
