81RIA120M Overview

Silicon Controlled Rectifier, 125A I(T)RMS, 80000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, TO-209AC

81RIA120M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	POST/STUD MOUNT, O-MUPM-H3
Reach Compliance Code	unknown
Nominal circuit commutation break time	110 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	120 mA
Maximum DC gate trigger voltage	2.5 V
Maximum holding current	150 mA
JEDEC-95 code	TO-209AC
JESD-30 code	O-MUPM-H3
Maximum leakage current	15 mA
On-state non-repetitive peak current	1700 A
Number of components	1
Number of terminals	3
Maximum on-state current	80000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	125 A
Maximum repetitive peak off-state leakage current	15000 µA
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

Previous Datasheet

Index

Next Data Sheet

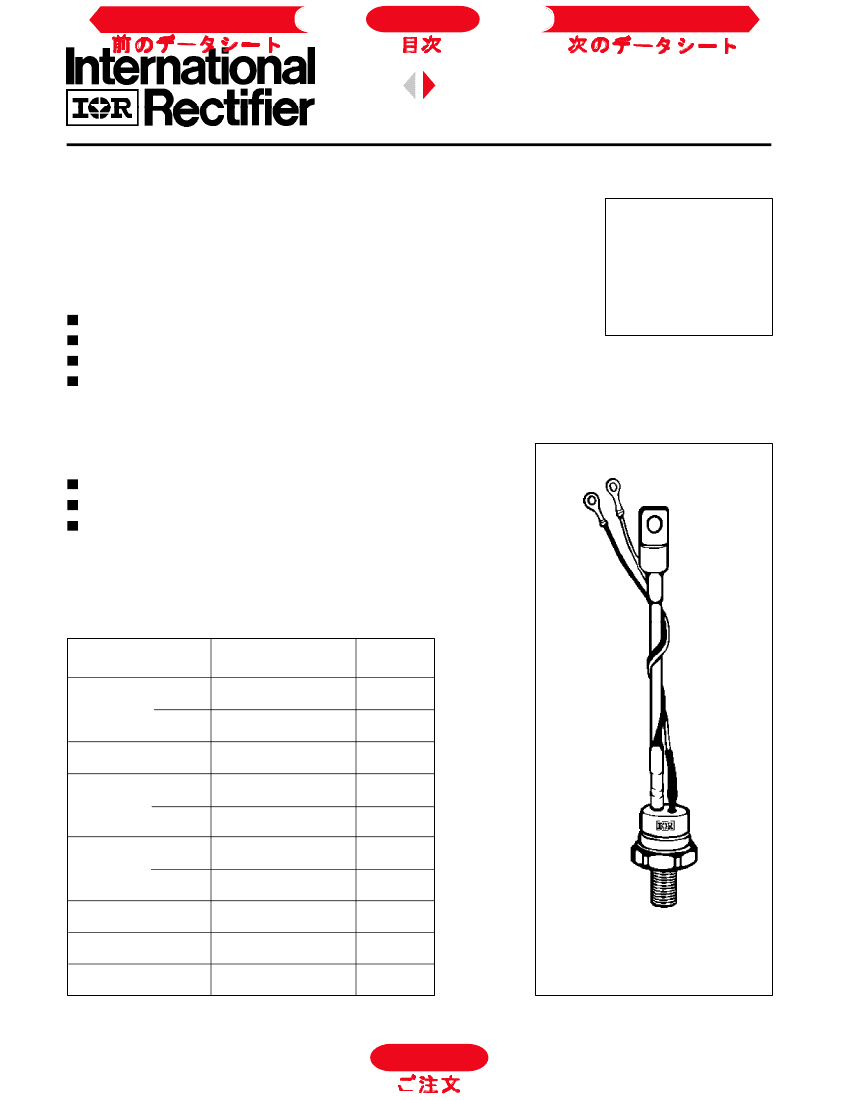

Bulletin I25201

80RIA SERIES

PHASE CONTROL THYRISTORS

Stud Version

80A

Features

All diffused design

Glass-metal seal up to 1200V

International standard case TO-209AC (TO-94)

Threaded studs UNF 1/2 - 20UNF2A or ISO M12x1.75

Typical Applications

DC motor controls

Controlled DC power supplies

AC controllers

Major Ratings and Characteristics

Parameters

T(AV)

@ T

T(RMS)

TSM

@ 50Hz

@ 60Hz

@ 50Hz

@ 60Hz

DRM

RRM

typical

80RIA

125

1900

1990

400 to 1200

110

- 40 to 125

Unit

°C

µs

°C

case style

TO-209AC (TO-94)

To Order
