Part Number

Search

3-146281-9

Description
HEADER CONNECTOR,PCB MNT,RECEPT,39 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK
CategoryThe connector    The connector

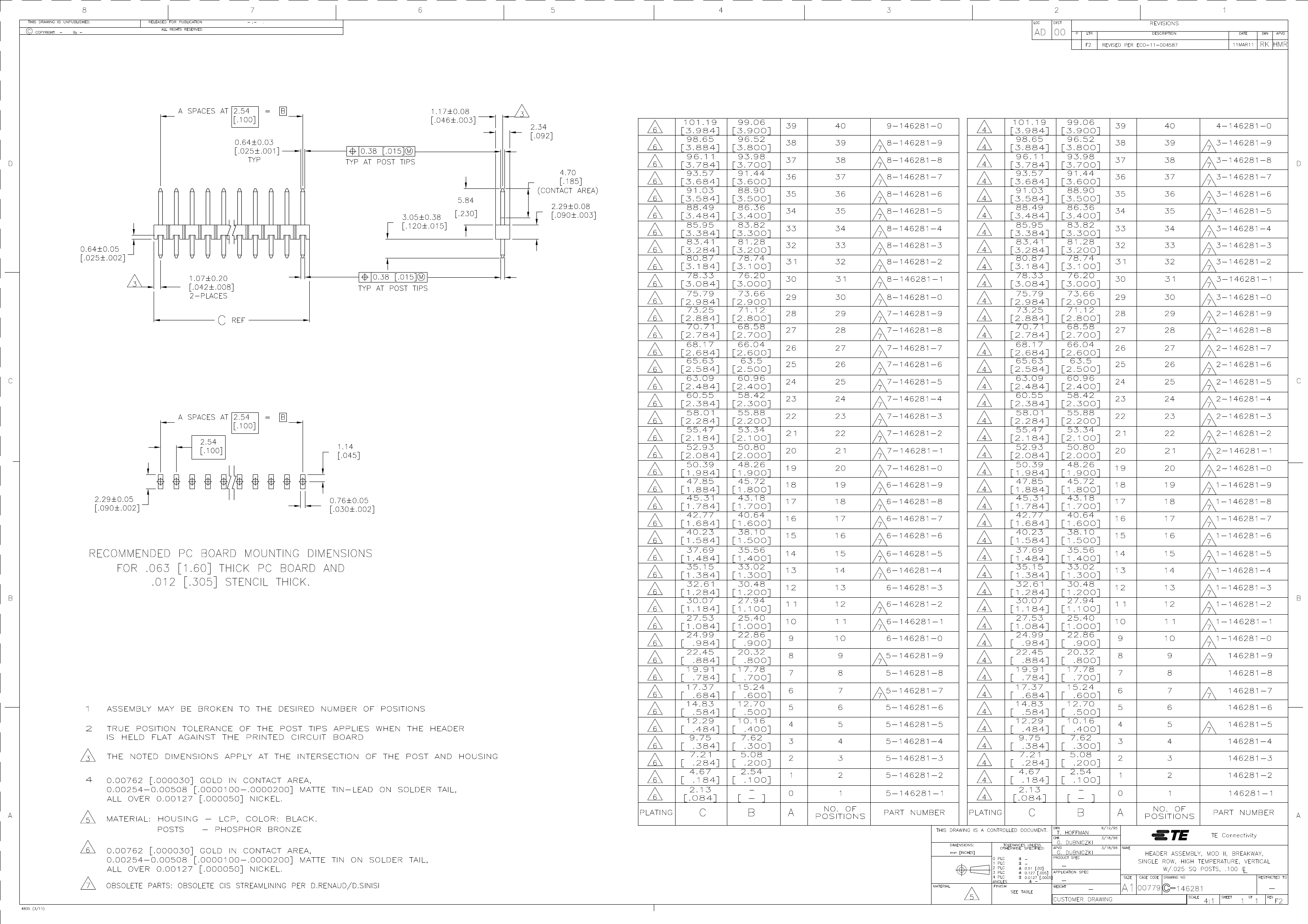

File Size242KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

3-146281-9 Online Shopping

Suppliers Part Number Price MOQ In stock
3-146281-9 - - View Buy Now

3-146281-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,39 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK

3-146281-9 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.09 inch
subject depth0.09 inch
body length3.884 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage750VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.12 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts39
Base Number Matches1

3-146281-9 Related Products

3-146281-9 1-146281-1
Description HEADER CONNECTOR,PCB MNT,RECEPT,39 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK 11 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified? incompatible incompatible
Reach Compliance Code compliant unknow
ECCN code EAR99 EAR99
body width 0.09 inch 0.09 inch
subject depth 0.09 inch 0.09 inch
body length 3.884 inch 1.084 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI NOT SPECIFIED
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 750VAC V 750VAC V
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK
insulator material THERMOPLASTIC THERMOPLASTIC
Plug contact pitch 0.1 inch 0.1 inch
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -65 °C -65 °C
PCB contact pattern RECTANGULAR RECTANGULAR
Plating thickness 30u inch 30u inch
Rated current (signal) 3 A 3 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.12 inch 0.12 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 39 11
Base Number Matches 1 1
