RADIAL CHOKE COIL
1. PART NO. EXPRESSION :
RCC0606 SERIES
RCC0606220KZF
(a)
(b)
(c) (d)(e) (f)
(a) Series code
(b) Dimension code
(c) Inductance code : 220 = 22uH
(d) Tolerance code : K = ±10%
(e) X, Y, Z : Standard part
(f) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
A
B
C
ØW
6.0±0.5
3. SCHEMATIC :
4. MATERIALS :
e
a
b
(a) Core : DR Ferrite Core
(b) Wire : Enamelled Copper Wire
(c) Lead : Tinned Copper Wire
(d) Adhesive : Epoxy
c
(e) Ink : Bon Margue
5. GENERAL SPECIFICATION :
a) The inductance drop at rated is 10% max.
b) Temp. rise : 40°C max. at rated current
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
1
10
Unit:m/m
A
B
6.5 Max.
C
20.0±5.0
F
4.0±0.5
ØW
0.50±0.10
F
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
RADIAL CHOKE COIL
6. ELECTRICAL CHARACTERISTICS :
Part No.
RCC0606220KZF
RCC0606270KZF
RCC0606330KZF
RCC0606390KZF
RCC0606470KZF
RCC0606560KZF
RCC0606680KZF
RCC0606820KZF
RCC0606101KZF
RCC0606121KZF
RCC0606151KZF
RCC0606181KZF
RCC0606221KZF
RCC0606271KZF
RCC0606331KZF
RCC0606391KZF
RCC0606471KZF
RCC0606561KZF
RCC0606681KZF
RCC0606821KZF
RCC0606102KZF
Inductance
( µH )
22±10%
27±10%
33±10%
39±10%
47±10%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
680±10%
820±10%
1000±10%
Test
Frequency
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
RCC0606 SERIES
RDC
( )
Max.
0.11
0.14
0.17
0.19
0.23
0.26
0.28
0.39
0.43
0.54
0.64
0.74
0.96
1.12
1.48
1.66
1.91
2.31
2.67
3.10
4.45
IDC
(A)
Max.
1.27
1.14
1.03
0.95
0.87
0.80
0.72
0.66
0.59
0.54
0.48
0.44
0.40
0.36
0.33
0.30
0.27
0.25
0.23
0.21
0.19
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
260°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
RADIAL CHOKE COIL

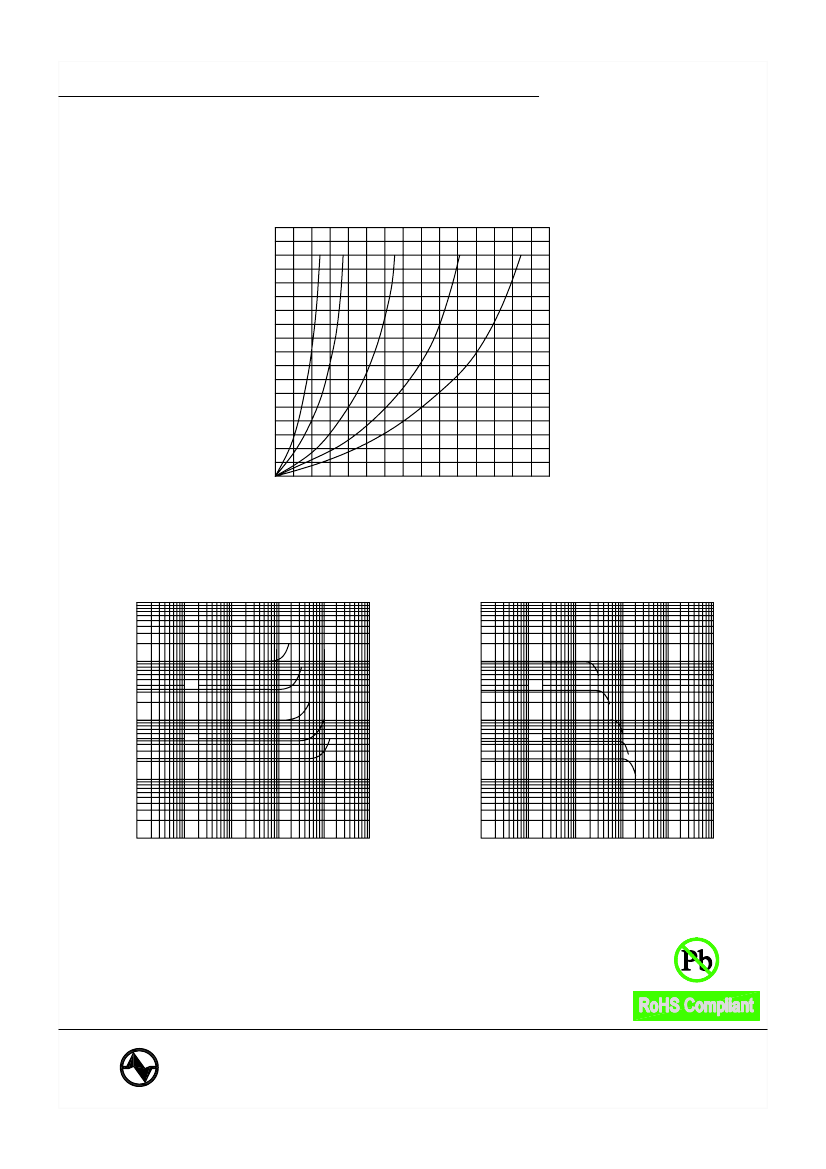

7. CHARACTERISTICS CURVES :
RCC0606 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
102K
331K
101K
470K
220K
t
(°C)
40
30
20
10
0 0
1
2
3
50
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
104
5
3
103
5
3
102K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
104
5
3
103
5
3
102K
331K
331K
L
(uH)
102
5
3
1
10
5
3
100
10-3
101K
470K
220K
L
(uH)
102
5
3
1
10
5
3
100
10-3
101K
470K
220K
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
RADIAL CHOKE COIL
8. PACKAGING INFORMATION :
Size
Inner Package
Quantity
RCC0606
Tray
140 pcs
RCC0606 SERIES

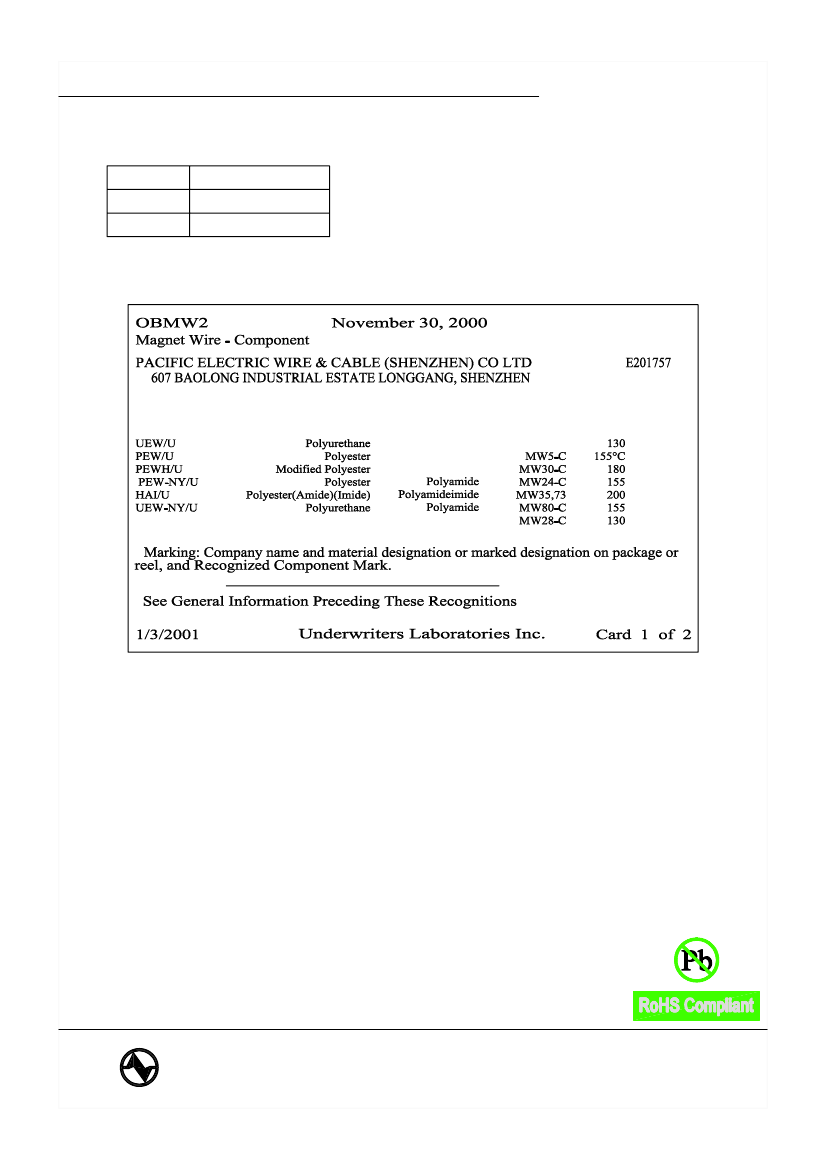

9. UL CARD :
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
