RADIAL CHOKE COIL
1. PART NO. EXPRESSION :
RCC0805 SERIES
RCC0805100MZF
(a)
(b)
(c) (d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 100 = 10.0uH
(d) Tolerance code : K = ±10%, M = ±20%
(e) X, Y, Z : Standard part
(f) F : Lead Free
2. CONFIGURATION & DIMENSIONS :
A
B
C
ØW
7.80±0.50 5.50 Max. 15.00±3.00 5.00±0.50 0.65±0.10
3. SCHEMATIC :
4. MATERIALS :
e
a
b
(a) Core : DR Ferrite Core
(b) Wire : Enamelled Copper Wire
(c) Lead : Tinned Copper Wire
(d) Adhesive : Epoxy
c
(e) Ink : Bon Margue
5. GENERAL SPECIFICATION :
a) The inductance drop at rated is 10% max.
b) Temp. rise : 40°C max. at rated current
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
10
1
Unit:m/m
ØW
A
B
C
F
F
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
RADIAL CHOKE COIL
6. ELECTRICAL CHARACTERISTICS :
Part No.
RCC0805100MZF
RCC0805120MZF
RCC0805150MZF
RCC0805180MZF
RCC0805220KZF
RCC0805270KZF
RCC0805330KZF
RCC0805390KZF
RCC0805470KZF
RCC0805560KZF
RCC0805680KZF
RCC0805820KZF
RCC0805101KZF
RCC0805121KZF
RCC0805151KZF
RCC0805181KZF
RCC0805221KZF
RCC0805271KZF
RCC0805331KZF
RCC0805391KZF
RCC0805471KZF
RCC0805561KZF
RCC0805681KZF
RCC0805821KZF
RCC0805102KZF
Inductance
( µH )
10±20%
12±20%
15±20%
18±20%
22±10%
27±10%
33±10%
39±10%
47±10%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
680±10%
820±10%
1000±10%
Test
Frequency
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
RDC
( )
Max.
0.07
0.08
0.09
0.10
0.12
0.14
0.17
0.21
0.24
0.31
0.34
0.40
0.52
0.59
0.71
0.89
1.04
1.28
1.47
1.67
1.95
2.83
3.25
3.82
5.28
RCC0805 SERIES
IDC
(A)
Max.
2.50
2.40
2.10
2.00
1.70
1.60
1.40
1.30
1.20
1.10
1.00
0.93
0.81
0.76
0.67
0.62
0.54
0.49
0.44
0.41
0.38
0.35
0.32
0.31
0.25
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
260°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
RADIAL CHOKE COIL

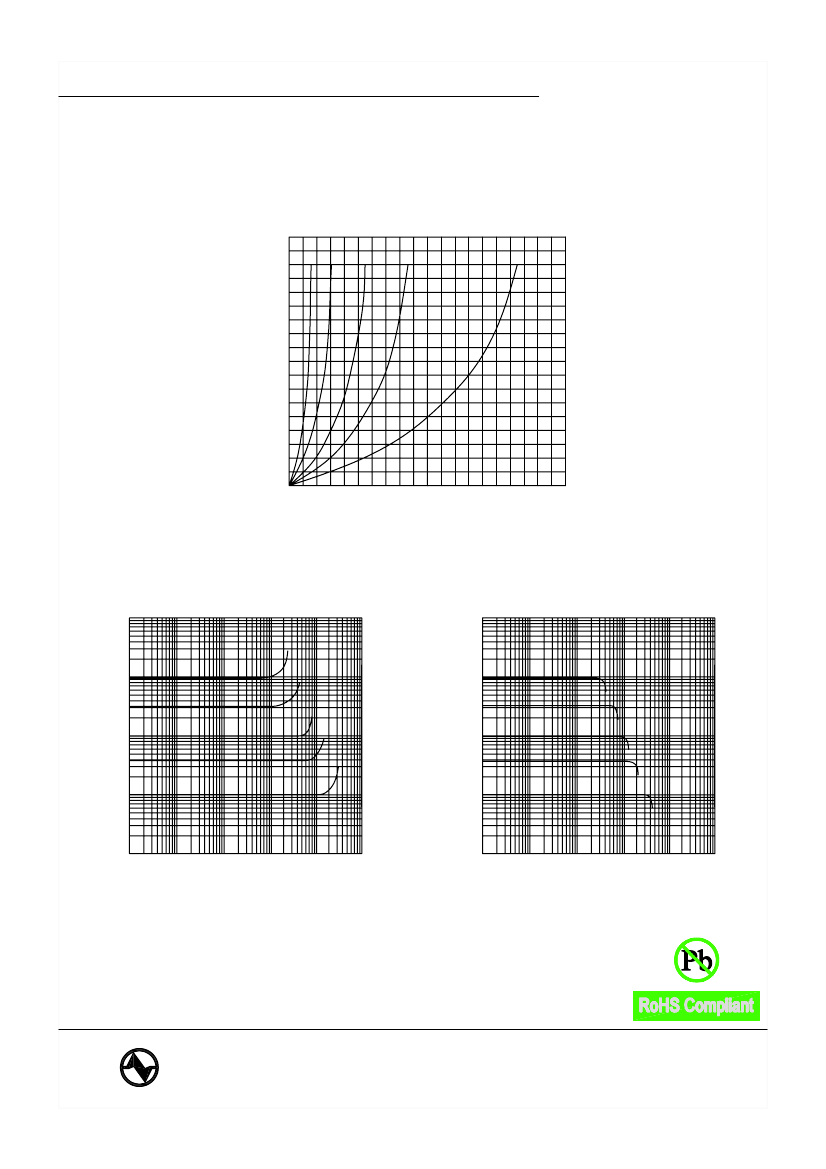

7. CHARACTERISTICS CURVES :
RCC0805 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
50
40
30
20
10
0 0
1
2
3
4
5
102K
331K
101K
390K
100M
t
(°C)
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
104
5
3
103
5
3
331K
102K
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
104
5
3
103
5
3
331K
102K
L
(uH)
102
5
3
1
10
5
3
100
10-3
101K
L
(uH)
102
5
3
101K
390K
390K
100M
1
10
5
3
100
10-3
100M
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
3 5
10-2 3 5
-1
10
3 5
0
10
3 5
1
10
3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
RADIAL CHOKE COIL
8. PACKAGING INFORMATION :
Size
Inner Package
Quantity
RCC0805
Tray
160 pcs
RCC0805 SERIES

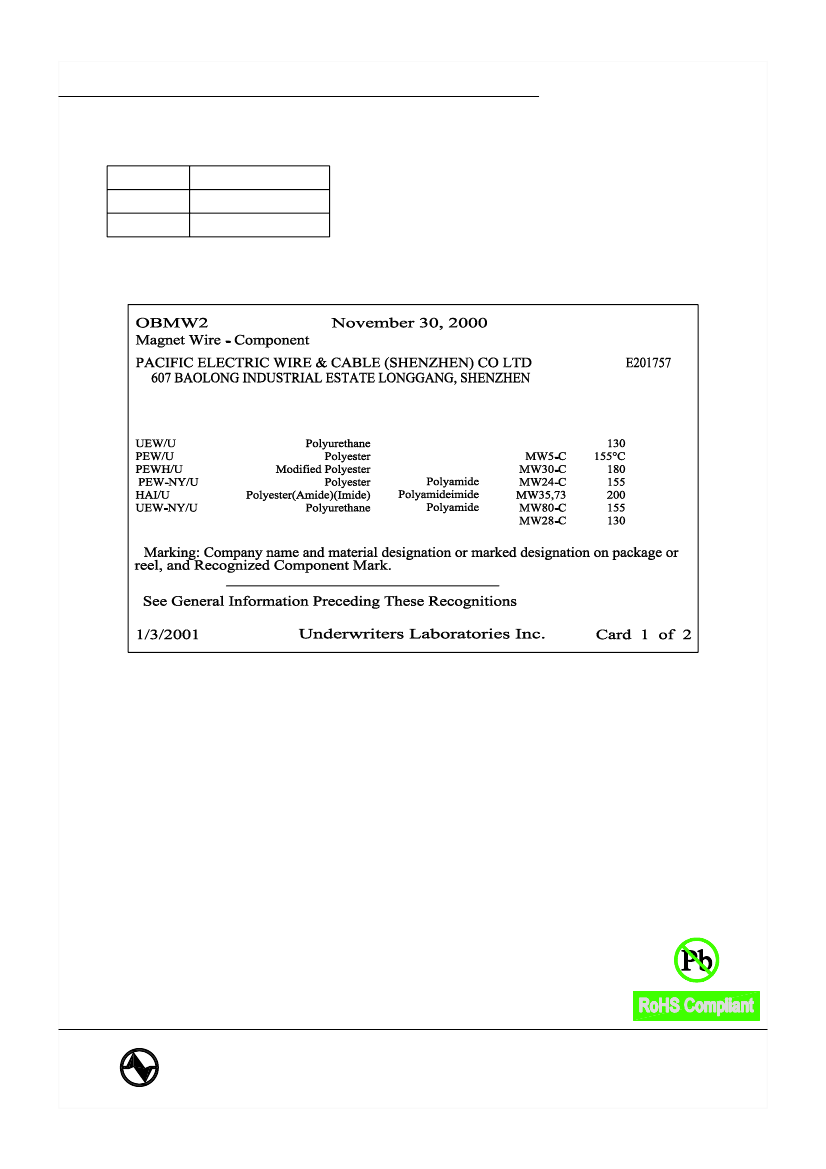

9. UL CARD :
GUANGDONG CHINA
Mtl Dsg
BC
Coating Type
TC
__
__
__
ANSI
Type
__
TI
NOTE : Specifications subject to change without notice. Please check our website for latest information.
01.07.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
