RADIAL CHOKE COIL

1. PART NO. EXPRESSION :

RCC0809 SERIES

RCC0809100MZF

(a)

(b)

(a) Series code

(b) Dimension code

(d) Tolerance code : K = ±10%, M = ±20%

(e) X, Y, Z : Standard part

(f) F : Lead Free

2. CONFIGURATION & DIMENSIONS :

ØW

7.80±0.5

3. SCHEMATIC :

4. MATERIALS :

(a) Core : DR Ferrite Core

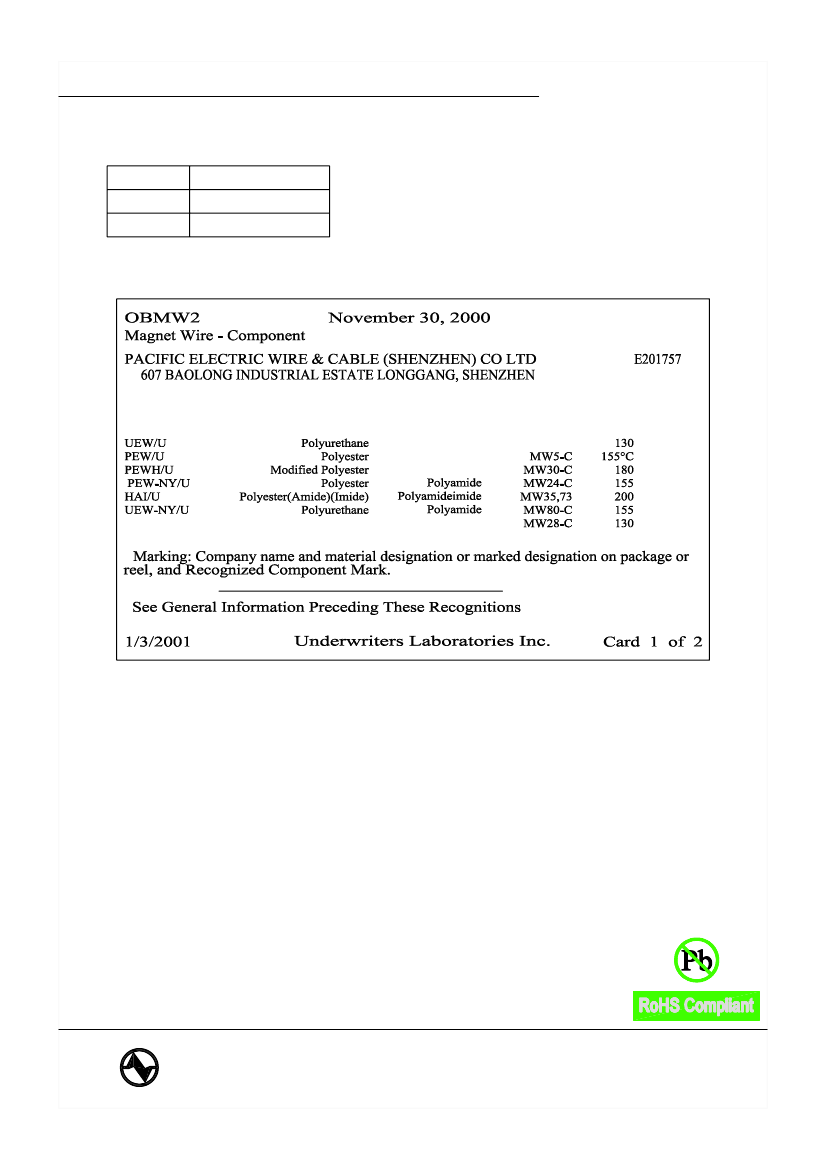

(b) Wire : Enamelled Copper Wire

(d) Adhesive : Epoxy

(e) Ink : Bon Margue

5. GENERAL SPECIFICATION :

a) The inductance drop at rated is 10% max.

b) Temp. rise : 40°C max. at rated current

c) Storage temp. : -40°C to +125°C

d) Operating temp. : -40°C to +85°C

NOTE : Specifications subject to change without notice. Please check our website for latest information.

Unit:m/m

ØW

0.65±0.10

9.5 Max.

15.0±3.0

5.0±0.5

01.07.2008

SUPERWORLD ELECTRONICS (S) PTE LTD

PG. 1
