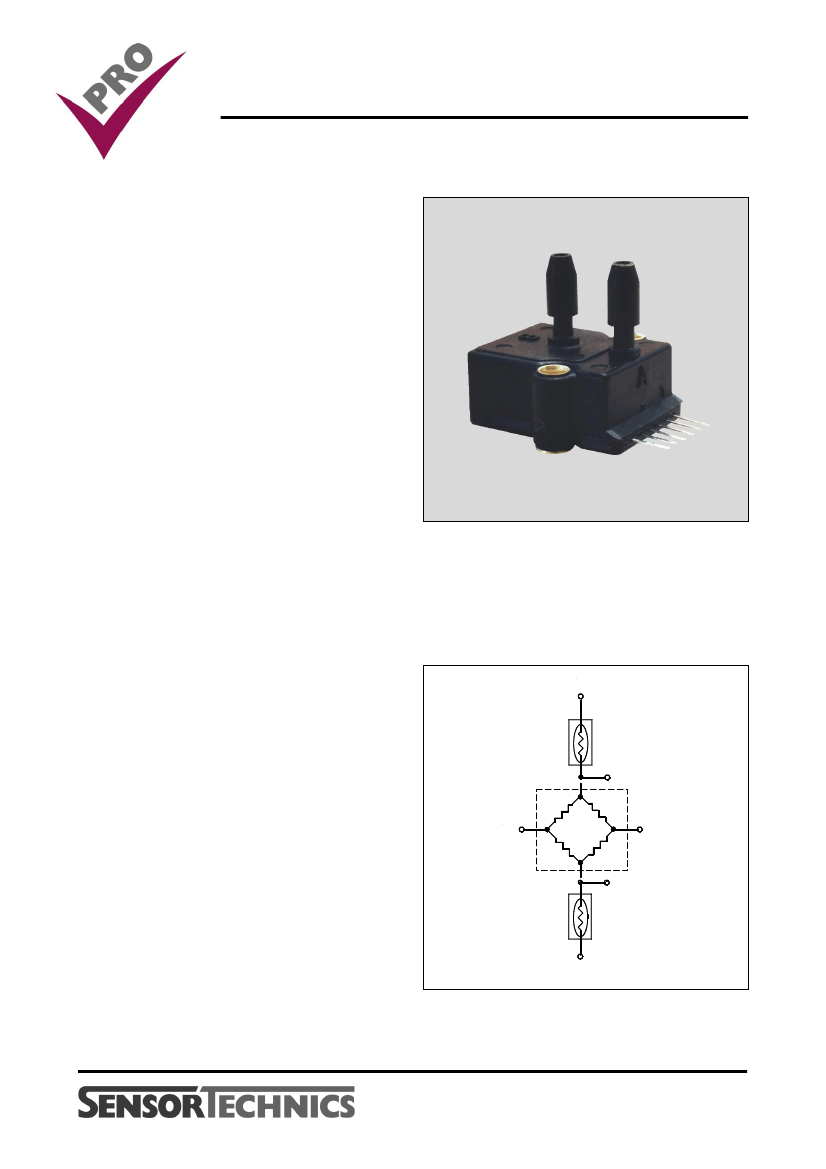

RCO Series
Precision compensated pressure sensors
FEATURES
· 0...50 mbar to 0...10 bar,
0...1 to 0...150 psi,
differential, gage or absolute
· Temperature compensated
· Calibrated zero and span
· High impedance for low power
applications
· Sensortechnics PRO services
MEDIA COMPATIBILITY
To be used with non-corrosive, non-ionic working
fluids such as clean dry air, dry gases and the like.
SPECIFICATIONS
Maximum ratings
Supply voltage V
S
Lead temperature (soldering 4 sec.)
Temperature ranges
Compensated
Operating
Storage
Humidity limits (non-condensing)
Common mode pressure
+20 V
DC
250 °C
EQUIVALENT CIRCUIT
2
1
0 to 70 °C
-40 to 85 °C
-55 to 125 °C
0 to 100% RH
3
5
6
50 psig
4
E / 11712 / A
1/5
www.sensortechnics.com
RCO Series
Precision compensated pressure sensors
PRESSURE RANGES SPECIFICATIONS
1
RCO...P (Prime Grade) devices
Part number
RCOM050...P
RCOM100...P
RCOM250...P
RCOB001...P
RCOB002...P
RCOB005...P
RCOB010...P
RCOP001...P
RCOP005...P
RCOP015...P
RCOP030...P
RCOP100...P
RCOP150...P
Operating pressure
0...50 mbar
0...100 mbar
0...250 mbar
0...1 bar
0...2 bar
0...5 bar
0...10 bar
0...1 psi
0...5 psi
0...15 psi
0...30 psi
0...100 psi
0...150 psi
Proof pressure
1.4 bar
1.4 bar
1.4 bar
2.1 bar
4.2 bar
10 bar
10 bar
2 0 p si
2 0 p si
3 0 p si
6 0 p si
1 5 0 p si
1 5 0 p si
2
Full-scale span
3
Min.
Typ.
Max.
12.92 mV
25.84 mV
43.1 mV
86.2 mV
86.2 mV
71.8 mV
86.0 mV
17.82 mV
59.40 mV
89.10 mV
89.10 mV
99.00 mV
89.00 mV
13.05 mV
26.10 mV
43.5 mV
87.0 mV
87.0 mV
72.5 mV
87.0 mV
18.0 mV
60.0 mV
90.0 mV
90.0 mV
100.0 mV
90.0 mV
13.18 mV
26.37 mV
43.9 mV
87.9 mV
87.9 mV
73.2 mV
88.0 mV
18.18 mV
60.60 mV
90.90 mV
90.90 mV
101.0 mV
91.0 mV
RCO...H (High Grade) devices
Part number
RCOM050...H
RCOM100...H
RCOM250...H
RCOB001...H
RCOB002...H
RCOB005...H
RCOB010...H
RCOP001...H
RCOP005...H
RCOP015...H
RCOP030...H
RCOP100...H
RCOP150...H
Operating pressure
0...50 mbar
0...100 mbar
0...250 mbar
0...1 bar
0...2 bar
0...5 bar
0...10 bar
0...1 psi
0...5 psi
0...15 psi
0...30 psi
0...100 psi
0...150 psi
Proof pressure
2
1.4 bar
1.4 bar
1.4 bar
2.1 bar
4.2 bar
10 bar
10 bar
2 0 p si
2 0 p si
3 0 p si
6 0 p si
1 5 0 p si
1 5 0 p si
Full-scale span
3
Min.
Typ.
Max.
12.3 mV
24.6 mV
41.7 mV
82.2 mV
82.2 mV
68.9 mV
82.2 mV
17 mV
57.5 mV
85 mV
85 mV
95 mV
85 mV
13.05 mV
26.1 mV
43.5 mV
87.0 mV
87.0 mV
72.5 mV
87.0 mV
18 mV
60 mV
90 mV
90 mV
100 mV
90 mV
13.8 mV
27.6 mV
45.3 mV
91.9 mV
91.9 mV
76.1 mV
91.9 mV
19 mV
62.5 mV
95 mV
95 mV
105 mV
95 mV
E / 11712 / A
2/5
www.sensortechnics.com
RCO Series
Precision compensated pressure sensors
PERFORMANCE CHARACTERISTICS
1
RCO...P (Prime Grade) devices
Characteristics
Zero pressure offset
Combined linearity and hysteresis
4
Temperature effects (0 to 70°C)
5
Repeatability
6
Input impedance
7
Output impedance
8
Common mode voltage
9
Response time
10
Long term stability of offset and span
11
5.8
all RCO...DP devices
all RCO...AP devices
12
Offset
Span
Min.
-0.25
-0.50
Typ.
0
0
±0.1
±0.1
±0.2
±0.2
4.0
4.0
6.0
100
±0.1
Max.
+0.25
+0.50
±0.5
±0.5
±1.0
±0.5
Unit
mV
%FSO
mV
%FSO
kΩ
6.2
V
DC
µ se c
mV
RCO...H (High Grade) devices
Characteristics
Zero pressure offset
Combined linearity and hysteresis
4
Temperature effects (0 to 70°C)
5
Repeatability
6
Input impedance
7
Output impedance
8
Common mode voltage
9
Response time
10
Long term stability of offset and span
11
5.7
all RCO...DH devices
all RCO...AH devices
12
Offset
Span
Min.
-0.50
-1.00
Typ.
0
0
±0.2
±0.2
±0.4
±0.2
4.0
4.0
6.0
100
±0.1
Max.
+0.50
+1.00
±1.0
±1.0
±2.0
±0.5
Unit
mV
%FSO
mV
%FSO
kΩ
6.3
V
DC
µ se c
mV
Specification notes:
1.
2.
3.
4.
5.
6.
Reference conditions: V
S
= 12 V, T
A
= 25°C, common-mode line pressure = 0 barg, pressure applied to Port B. For absolute
devices only, pressure is applied to Port A and the output polarity is reversed.
Maximum pressure above which causes permanent sensor failure.
Span is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure. Span
is ratiometric to the supply voltage.
Hysteresis - the maximum output difference at any point within the operating pressure range for increasing and decreasing
pressure.
Maximum error band of the offset voltage and the error band of the span, relative to the 25°C reading.
Maximum difference in output at any pressure within the operating pressure range and temperature within 0°C to +70°C after:
a) 1,000 temperature cycles, 0°C to +70°C
b) 1.5 million pressure cycles, 0 psi to full-scale span
Input impedance is the impedance between pins 2 and 4.
Output impedance is the impedance between pins 3 and 5.
This is the common-mode voltage of the output arms (pins 3 and 5) for V
S
= 12 V
DC
.
Response time for a 0 bar to full-scale span pressure step change, 10 % to 90 % rise time.
Long term stability over a one year period.
Absolute devices with improved zero pressure offset values are available on request. Please contact your nearest
Sensortechnics sales office for further information.
3/5
7.
8.
9.
10.
11.
12.
E / 11712 / A
www.sensortechnics.com
RCO Series
Precision compensated pressure sensors

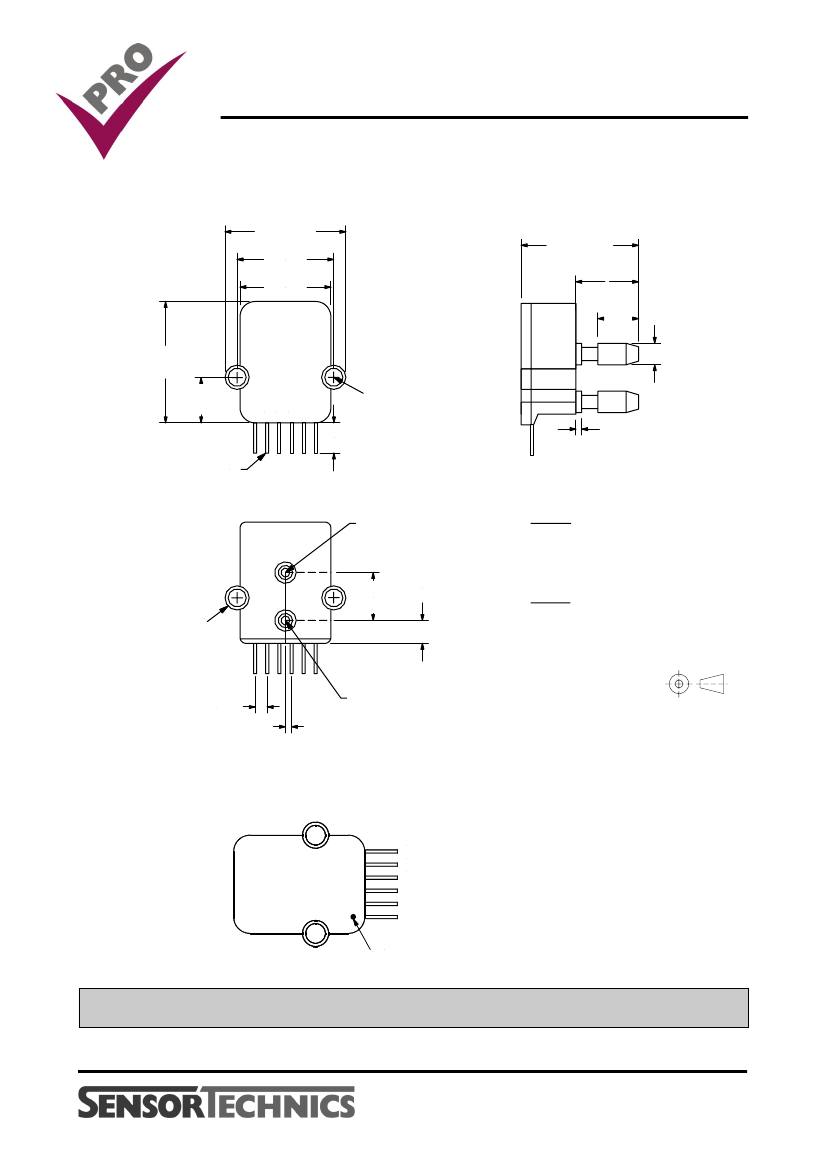

PHYSICAL DIMENSIONS
1.10 ref
(27.9 ref
0.85
(21.6)
0.80
(20.3)
1.03 ref
(26.2) ref
0.55
(14.0)
0.36
(9.1)
1.08
(27.4)
0.41
(10.4)
Ø 0.14 (3.6) thru rivet
mounting holes
0.25
(6.4)
0.020 (0.51) x 0.01 (0.25)
pins 6 pls
Ø 0.08 (2.0)
pressure port B
0.05
(1.3)
0.190
(4.8)
2 pls
1 2 3 4 5 6
Port B:
High pressure Port for gage
and differential devices
Port A:
High pressure Port for
absolute devices
0.42
(10.7)
R0.13
(R3.3) typ
0.20
(5.1)
0.10
(2.5)
pin spacing
mass:
5 g
Ø 0.08 (2.0)
pressure port A
0.05
(1.3)
third angle projection
dimensions in inches (mm)
ELECTRICAL CONNECTION
6
5
4
3
2
1
Pin 1
marked by dot
Temperature output (-)
Output (-)
GND
Output (+)
+Vs
Temperature output (+)
Note:
The polarity indicated is for pressure applied to port B. For absolute devices pressure is applied to port A
and the output polarity is reversed.
E / 11712 / A
4/5
www.sensortechnics.com
RCO Series
Precision compensated pressure sensors
ORDERING INFORMATION - AVAILABLE LISTINGS
Note:
·
Preferred listings are highlighted in grey
·
RCO...P = Prime Grade, RCO...H = High Grade
Pressure range
50 mbar
100 mbar
250 mbar
1 bar
2 bar
5 bar
10 bar
1 p si
5 p si
1 5 p si
3 0 p si
1 0 0 p si
1 5 0 p si
Pressure mode
Absolute
Differential/Gage
RCOM050D(P,H)
RCOM100D(P,H)
RCOM250D(P,H)
RCOB001A(P,H)
RCOB002A(P,H)
RCOB005A(P,H)
-
RCOB001DP
RCOB002D(P,H)
RCOB005D(P,H)
RCOB010D(P,H)
RCOP001D(P,H)
RCOP005D(P,H)
RCOP015A(P,H)
RCOP030A(P,H)
RCOP100A(P,H)
RCOP150A2P
RCOP015DP
RCOP030D(P,H)
RCOP100D(P,H)
RCOP150D(P,H)
Sensortechnics PRO services:
· Extended guarantee period of 2 years
· Improved performance characteristics
· Custom product modifications and adaptations even for small quantities
· Advanced logistics models for supply inventory and short delivery times
· Technical support through application engineers on the phone or at your site
· Fastest possible technical response for design and QA engineers
... plus other services on request
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of the
application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
E / 11712 / A
5/5
www.sensortechnics.com
